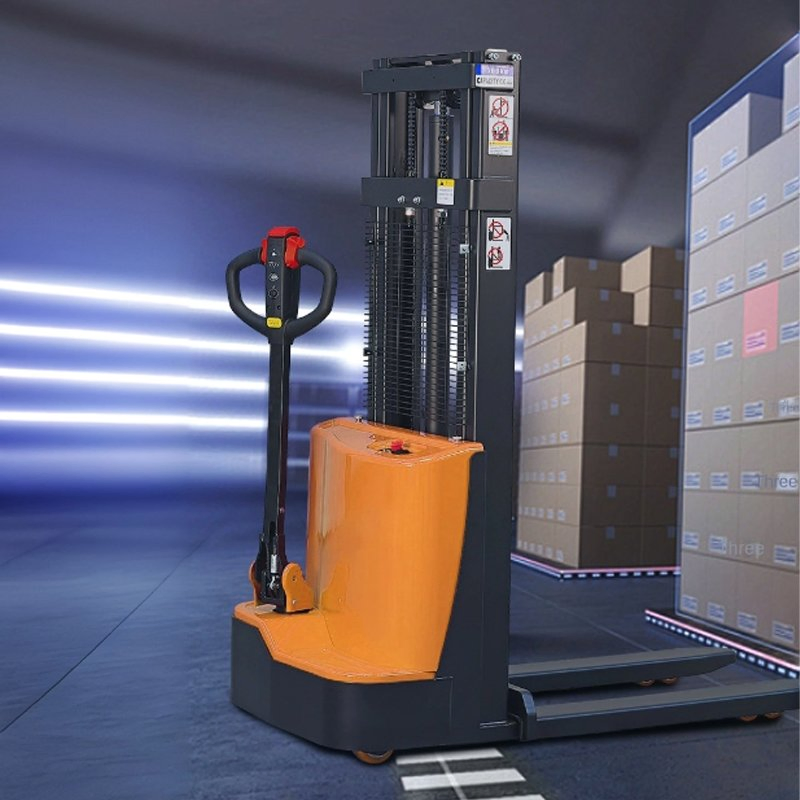

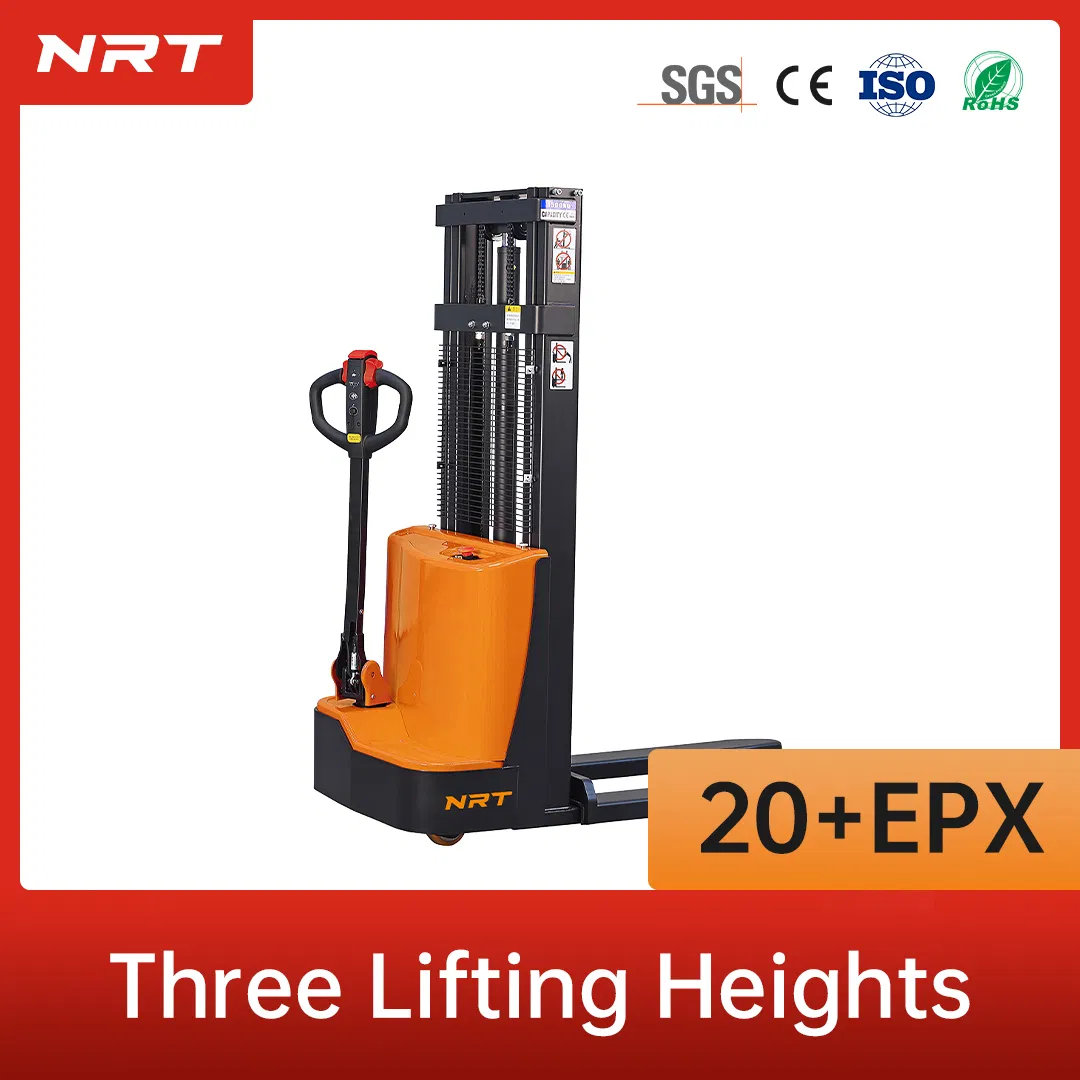

Nrt Load Capacity 1.5t Lifting Height 1600/2000/3000mm Electric Pallet Stacker

1 / 5

Nrt Load Capacity 1.5t Lifting Height 1600/2000/3000mm Electric Pallet Stacker

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	1 Years

Send Inquiry

Product Description

📋

Overview & Basic Info

Model NO.

ND15Q01LD

Type

Stacker

Power

DC Motor

Load Capacity

1.5t

Fuel

Electric

Load center

500mm

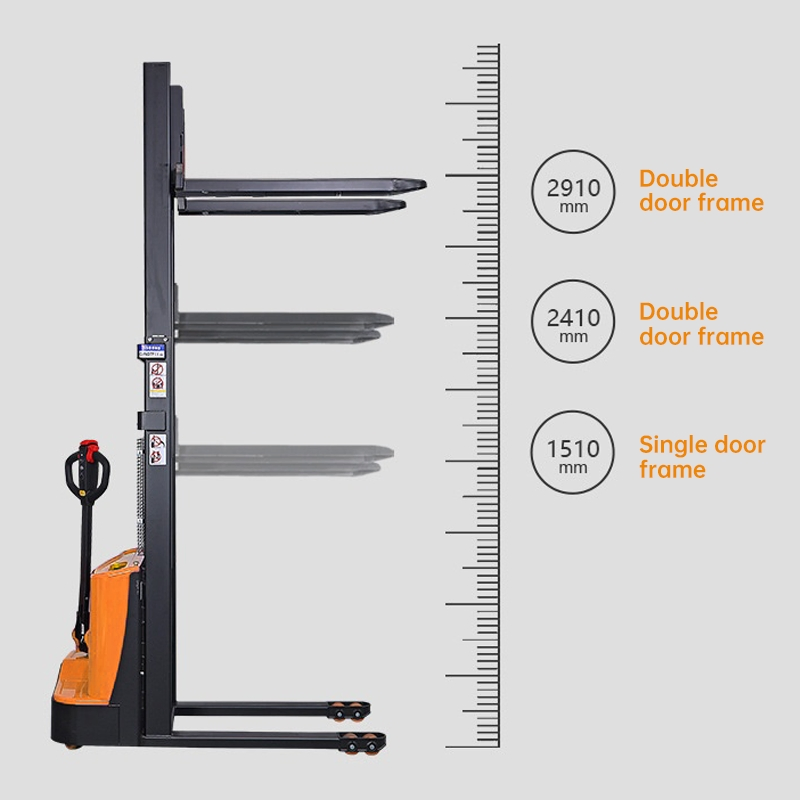

Lift height

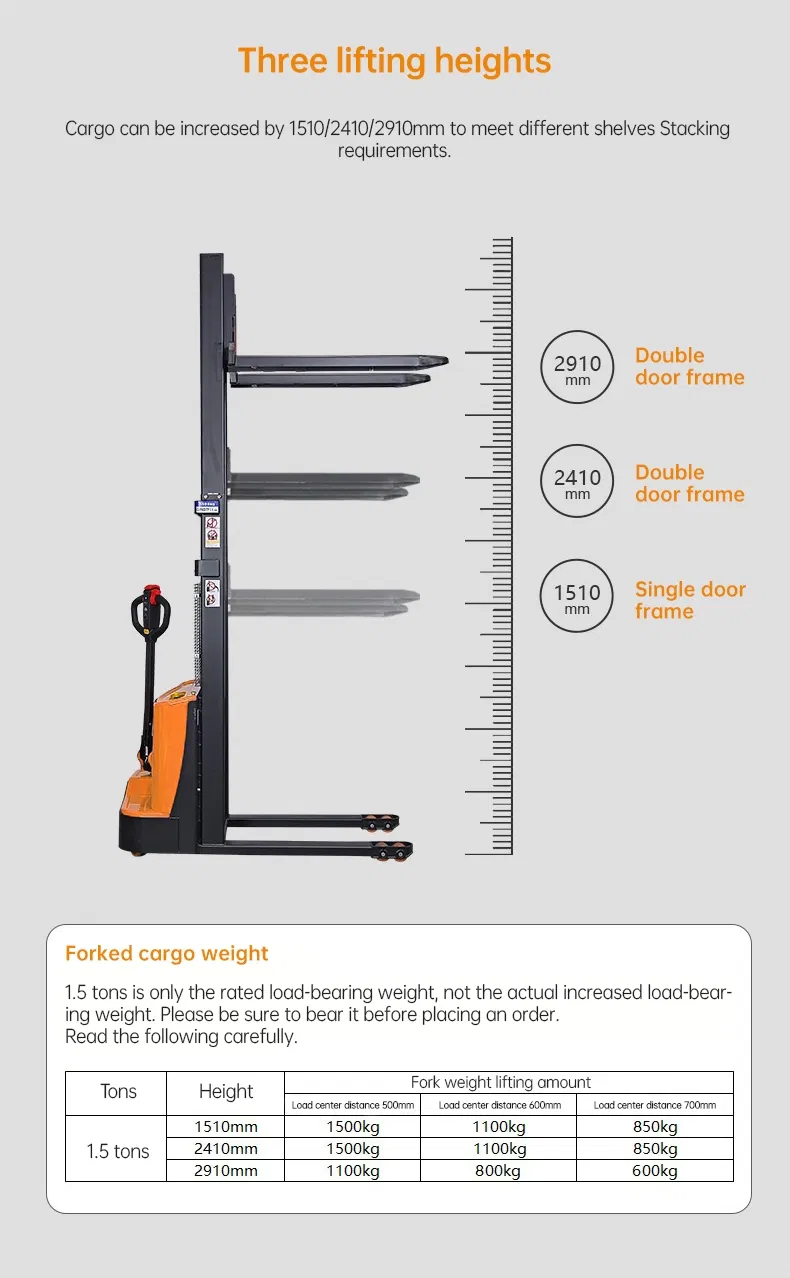

1510/2410/2910mm

Battery Model

Lead Acid Battery

Fork Length

1070mm

Certification

CE, PSE

🚚

Product Description

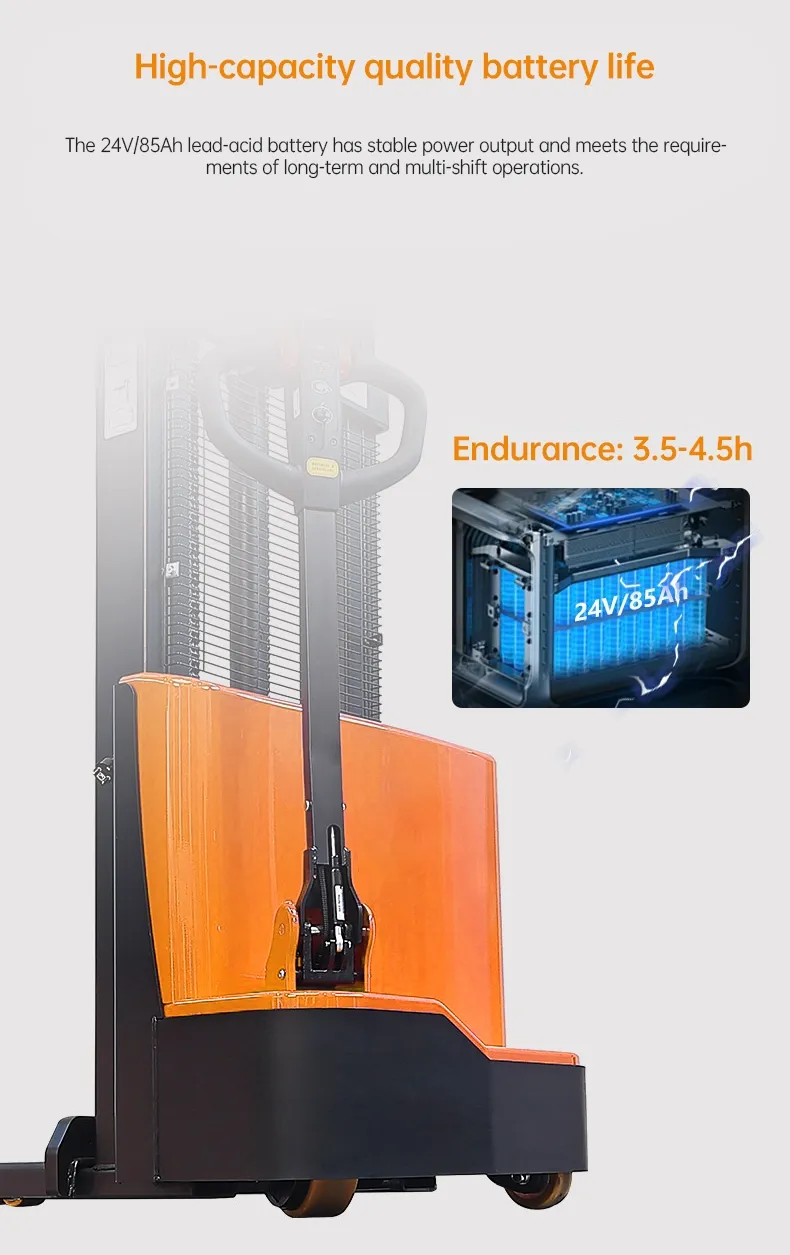

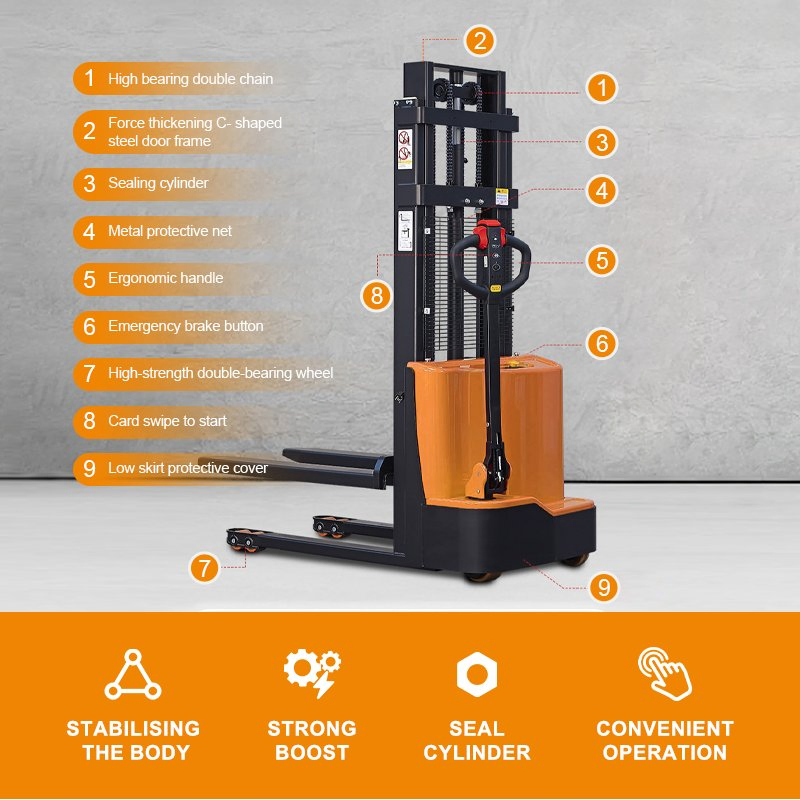

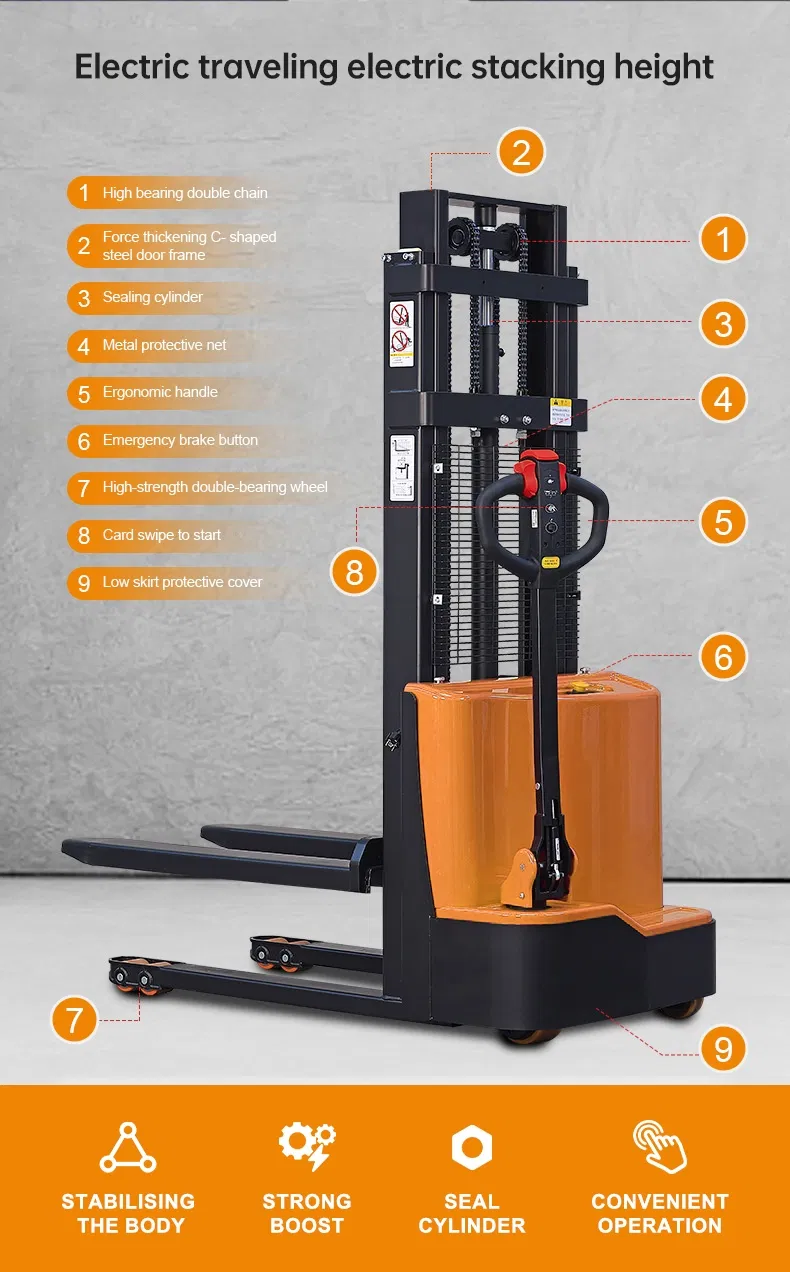

ND15Q01LD 1.5T Electric Pallet Stacker is a walk-behind solution designed for efficient warehouse stacking. It features a 24V85Ah battery with low-power protection, supported by a 0.75kW drive motor and 2.2kW lifting motor.

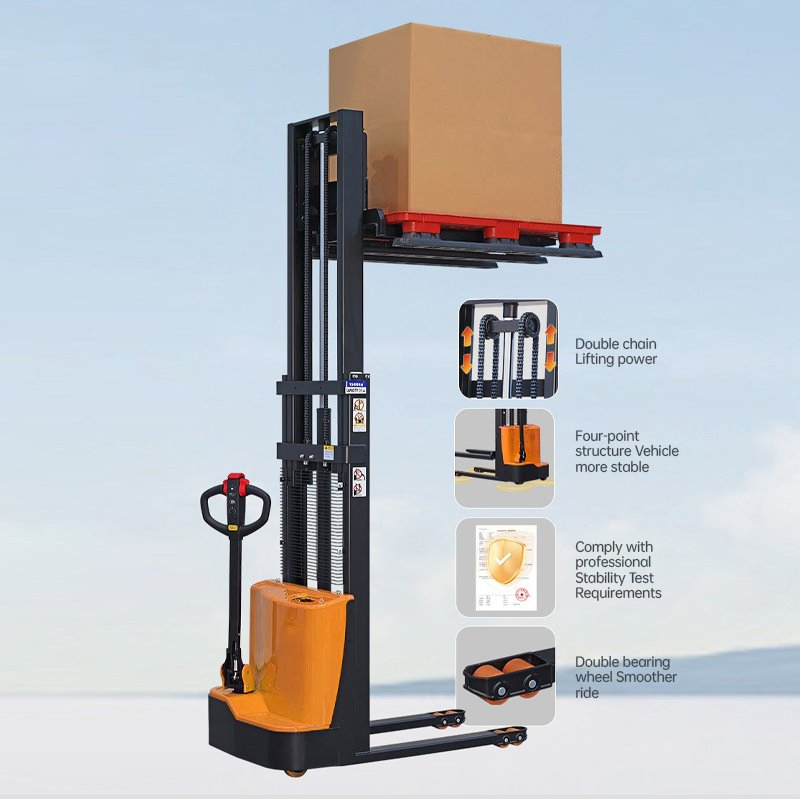

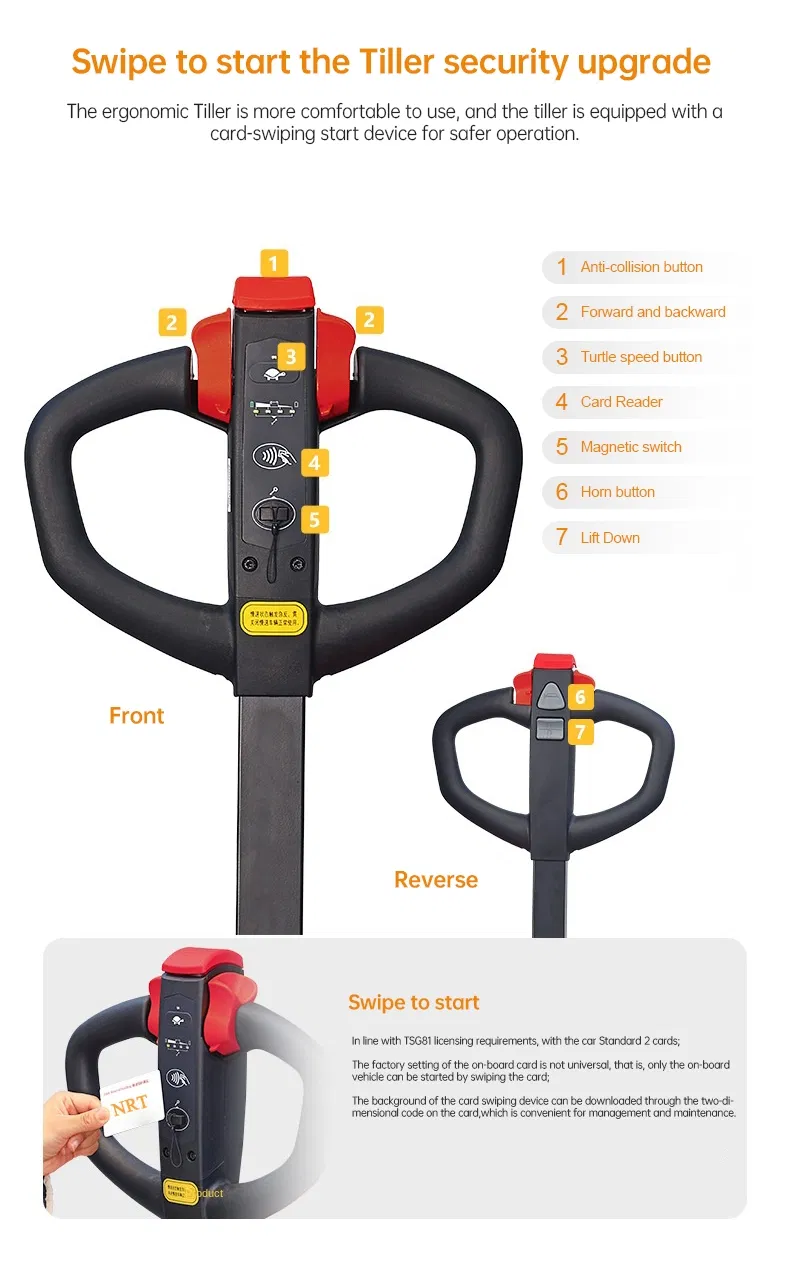

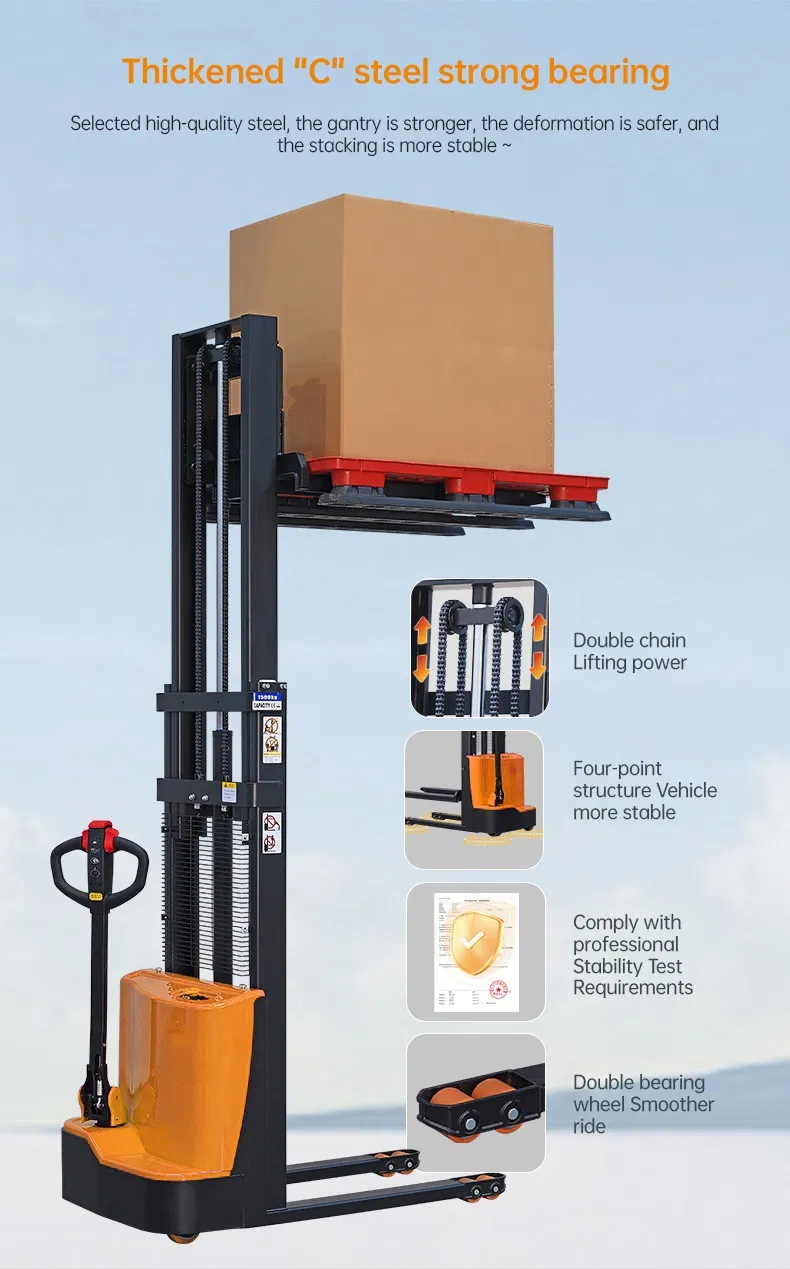

Key highlights include an integrated rubber-coated handle, one-click creep speed for narrow aisle navigation, and magnetic card startup for enhanced security. The C-type alloy steel mast ensures stability while meeting GB/T 26949.1 standards.

📊

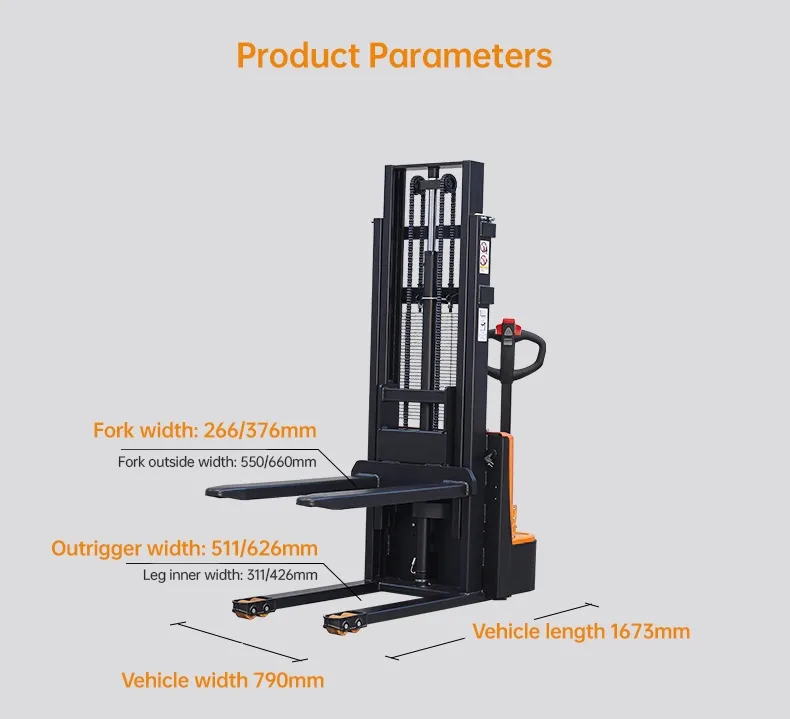

Product Parameters

Rated Load	1500kg
Fork Size	60x142x1150mm
Ground Clearance	90mm
Net Weight	470kg
Driving Speed	3.5/4km/h (Full/No Load)
Climbing Grade	3% / 10%
Turning Radius	1357mm
Battery Spec	24V/85Ah Lead-acid
Charger	24V/10Ah
Charging Duration	8h

📷

Detailed Display

📦

Packaging & Logistics

Package Size

167.30cm * 66.00cm * 209.00cm

Gross Weight

470.00kg

Lead Time

31 Days (1 Piece)

❓

Frequently Asked Questions

How long is the warranty for these products?

We provide a warranty of 12 months or 1000 hours, whichever comes first, from the date of shipment.

What is the typical delivery time?

For standard products, we often have stock for immediate delivery. Production time generally takes 15-20 days after receiving advance payment.

What is the continuous working time and charging duration?

The continuous working time is approximately 3-6 hours depending on capacity. A full charge typically takes 8-12 hours. Chargers are automatic and stop once the battery is full.

Do you offer customized OEM or ODM options?

Yes, customized products based on specific requirements are available. We have extensive experience in both OEM and ODM production.

What are the specifications of the chargers?

Chargers support voltages including 110V, 220V, 240V, 380V, and 415V (single or three-phase, 50/60Hz). Plugs can be customized for USA, UK, Australia, or Europe standards.

Can we request a specific color for the stacker?

Yes, we can accommodate requests for specific colors to match your requirements.
