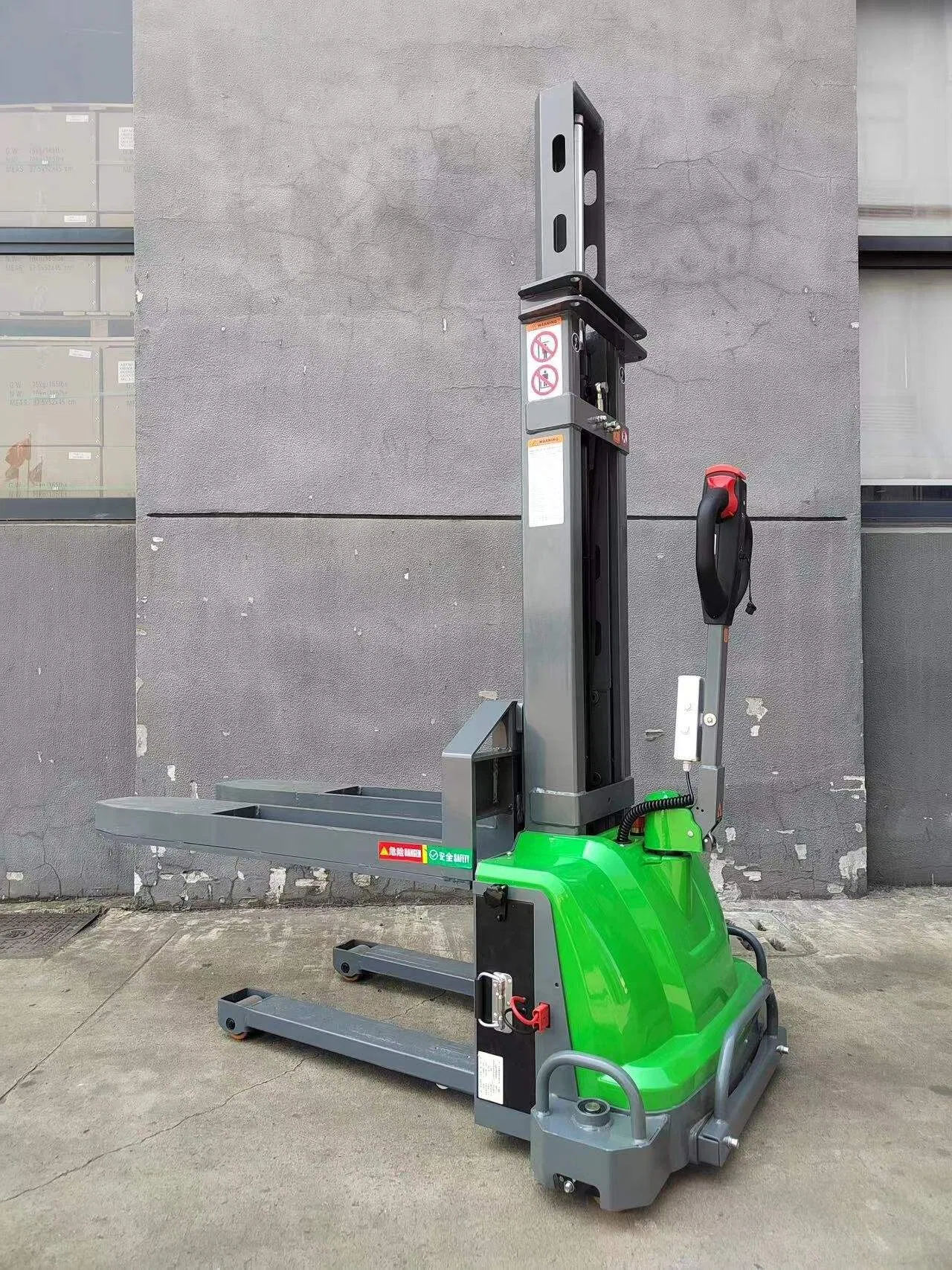

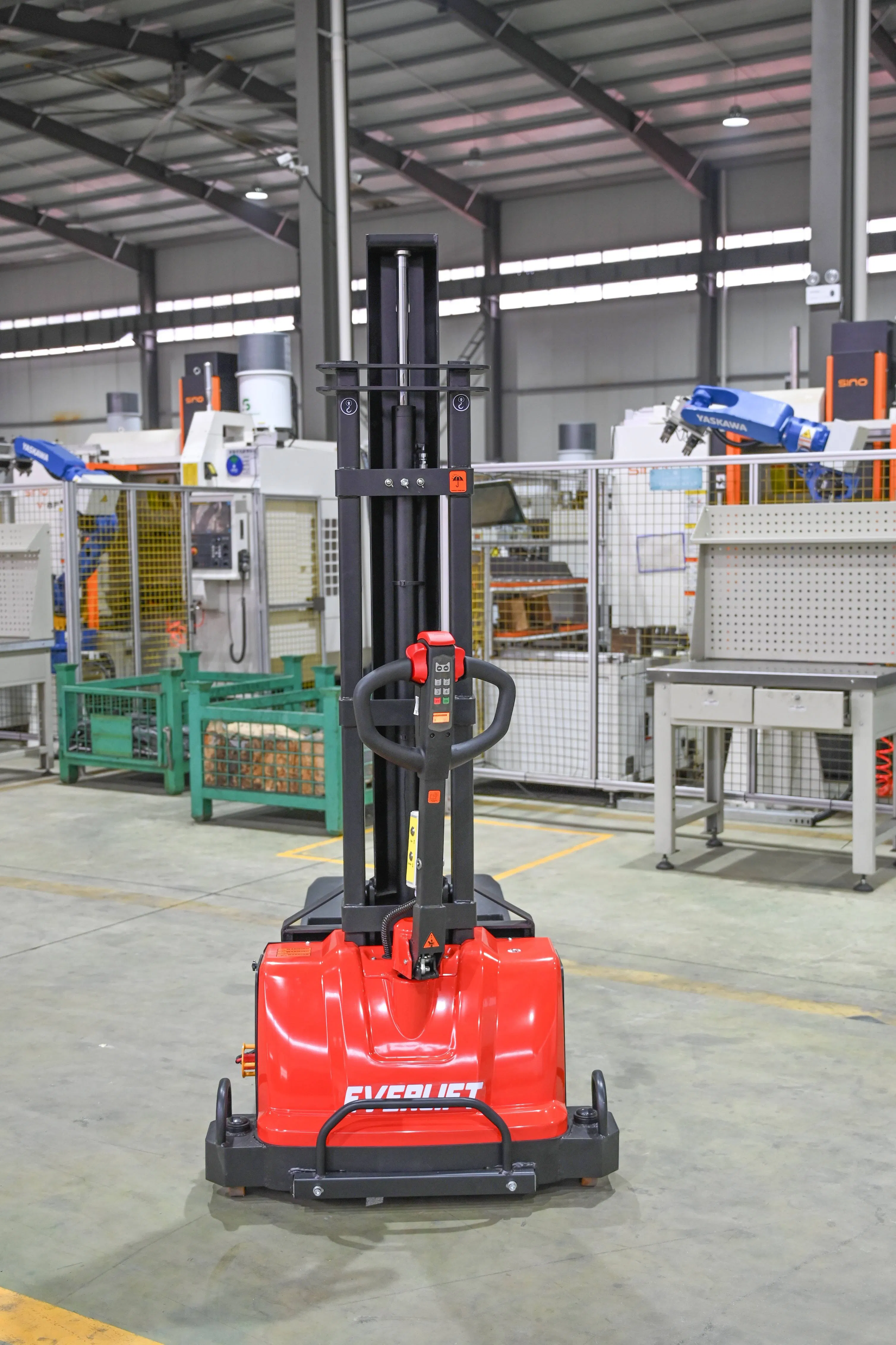

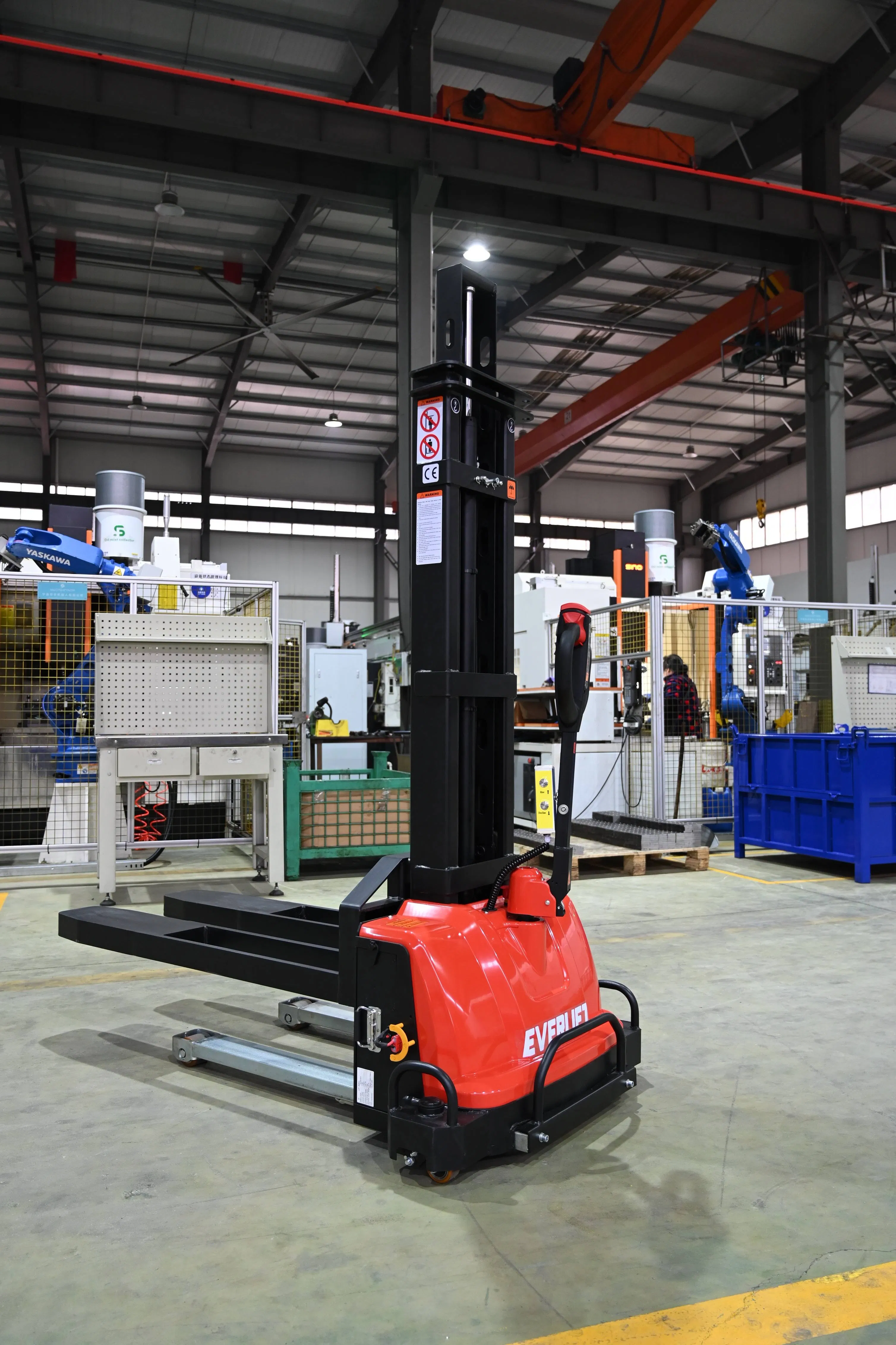

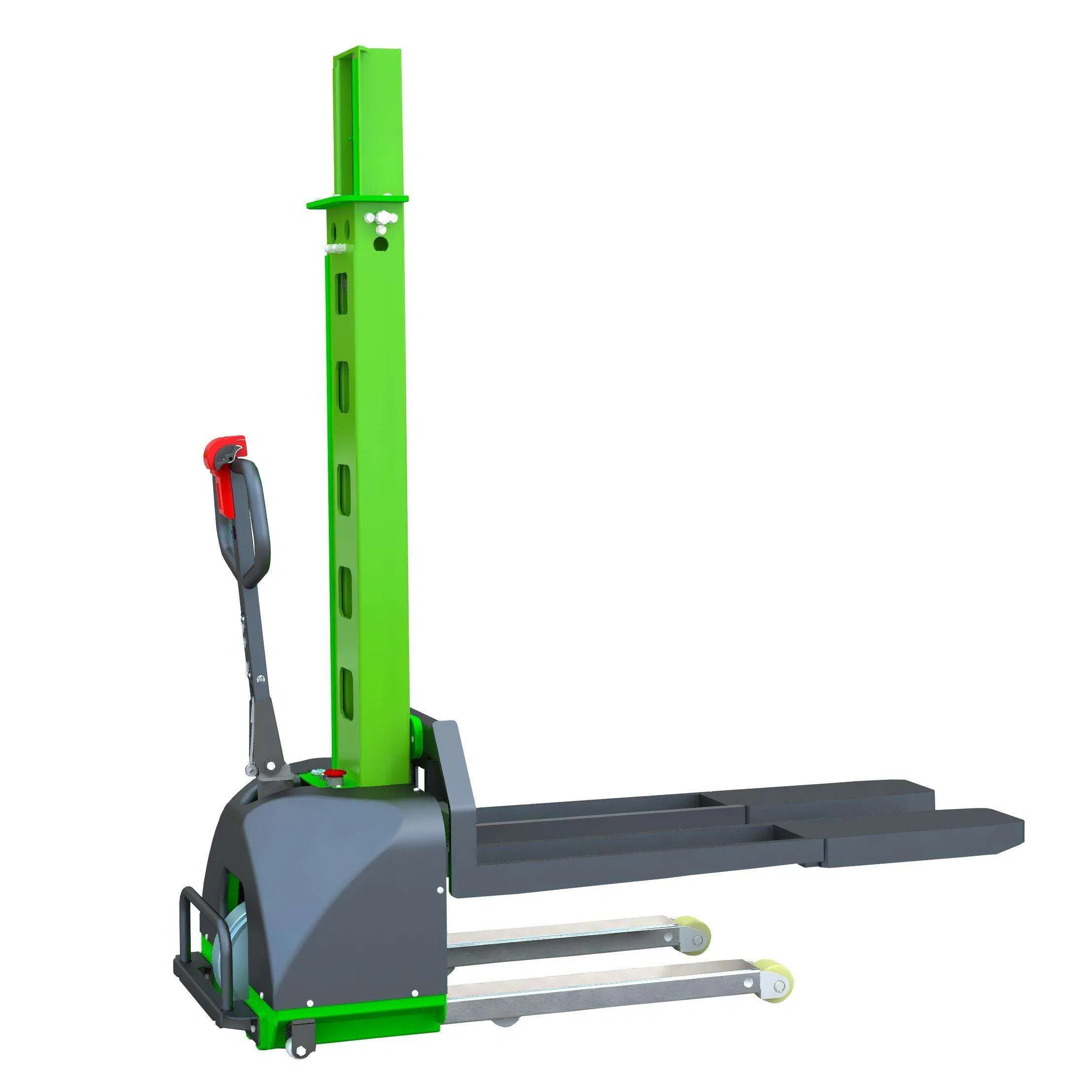

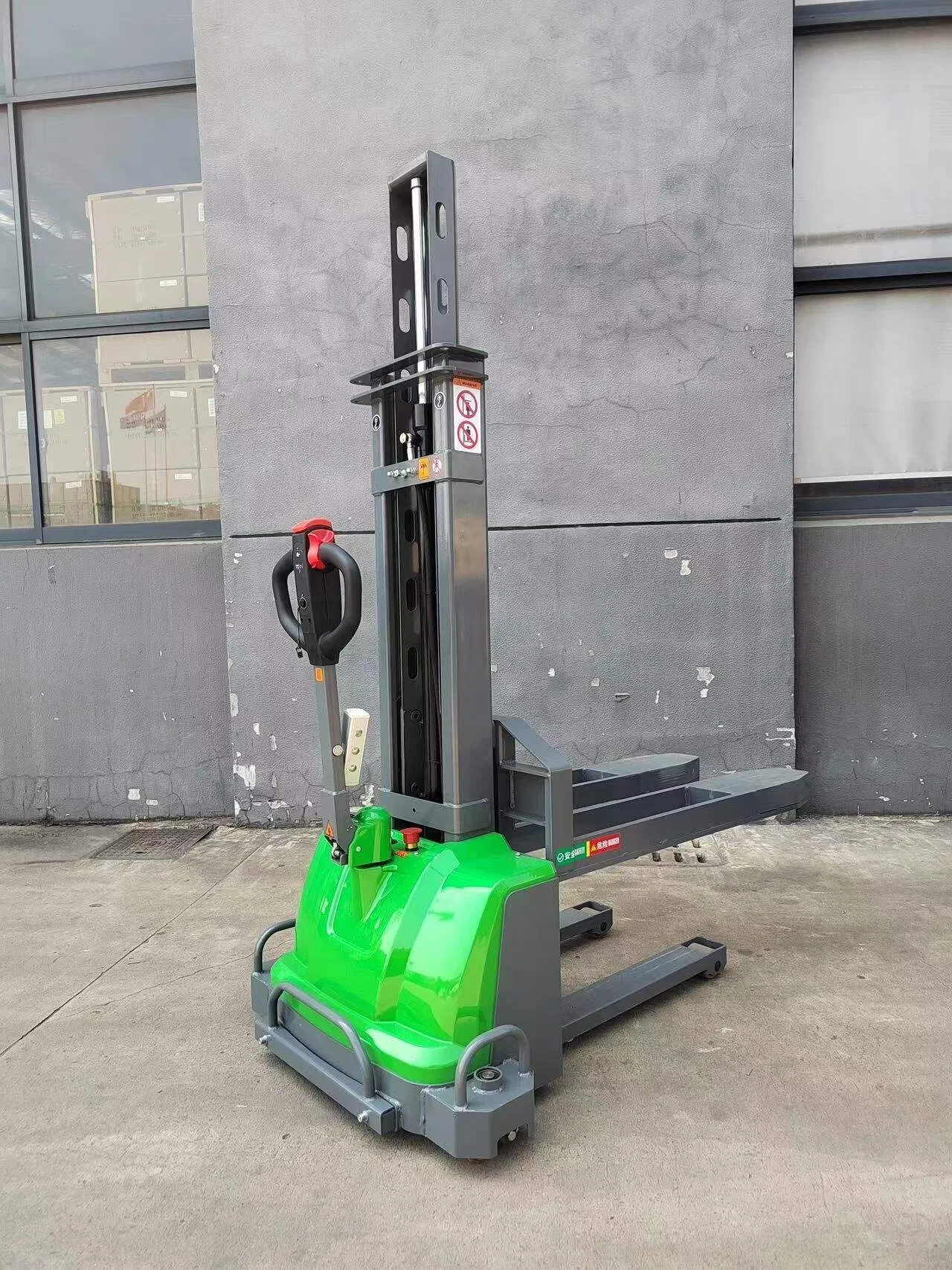

Full-Electric 1.0ton 1.3ton 1.5ton 1.6m Lift Height Electric Pallet Forklift Self-Lift Stacker

Customization:	Available
After-sales Service:	12months
Warranty:	12months

📋 Basic Information

Model NO.

ELES-15ED

Type

Stacker

Power

DC Motor

Load Capacity

1T - 5T

Fuel

Electric

Load Center

500mm

Lift Height

3000~5000mm

Fork Length

1150 mm

Operating Mode

Manual Operation

Drive Type

Rwd

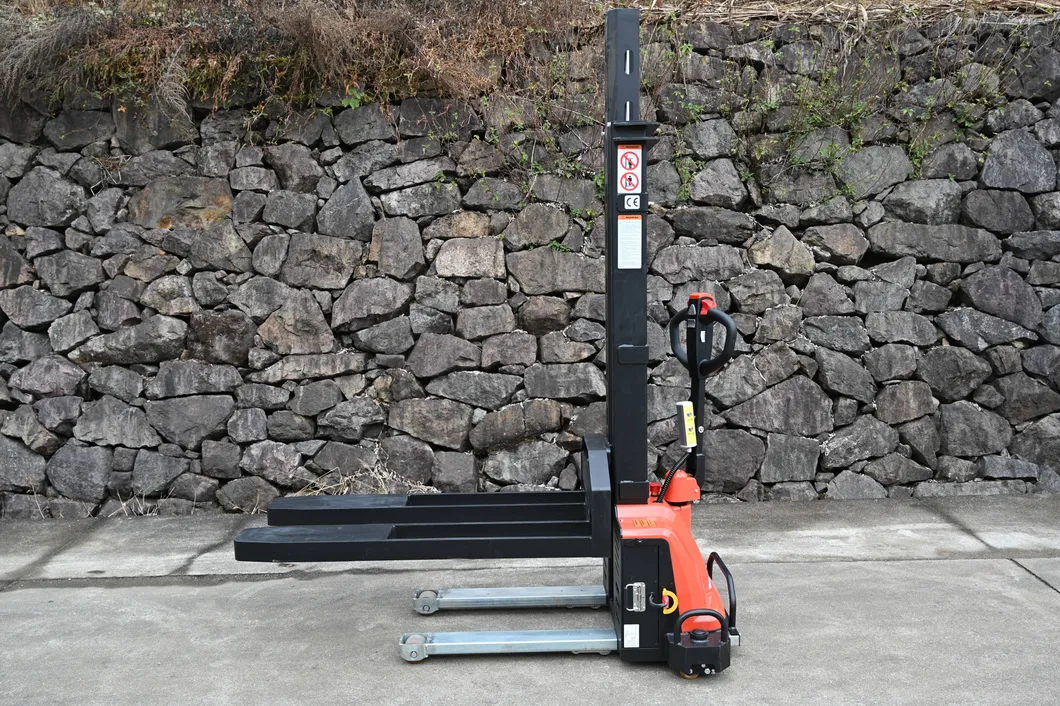

🏗️ Product Description

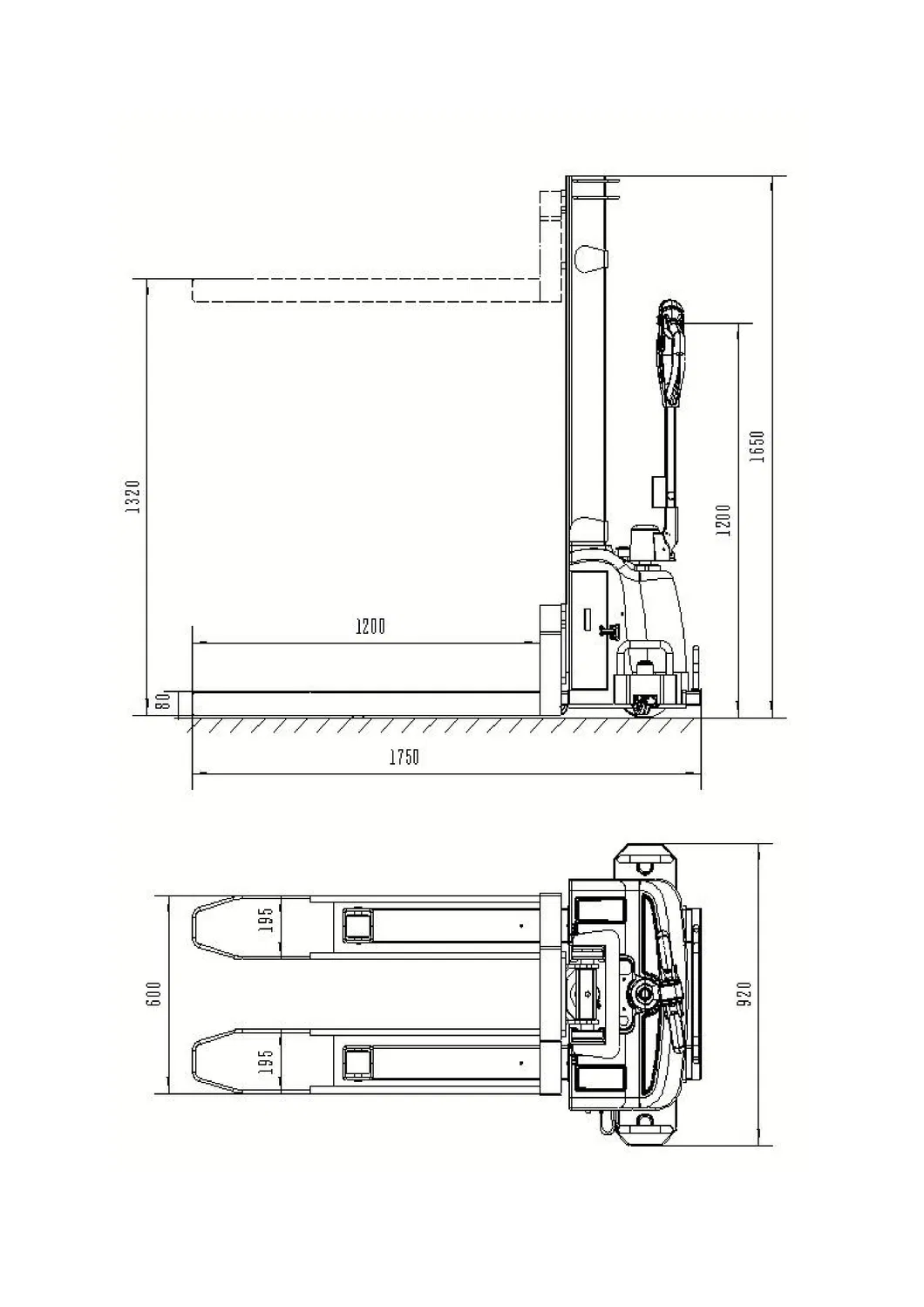

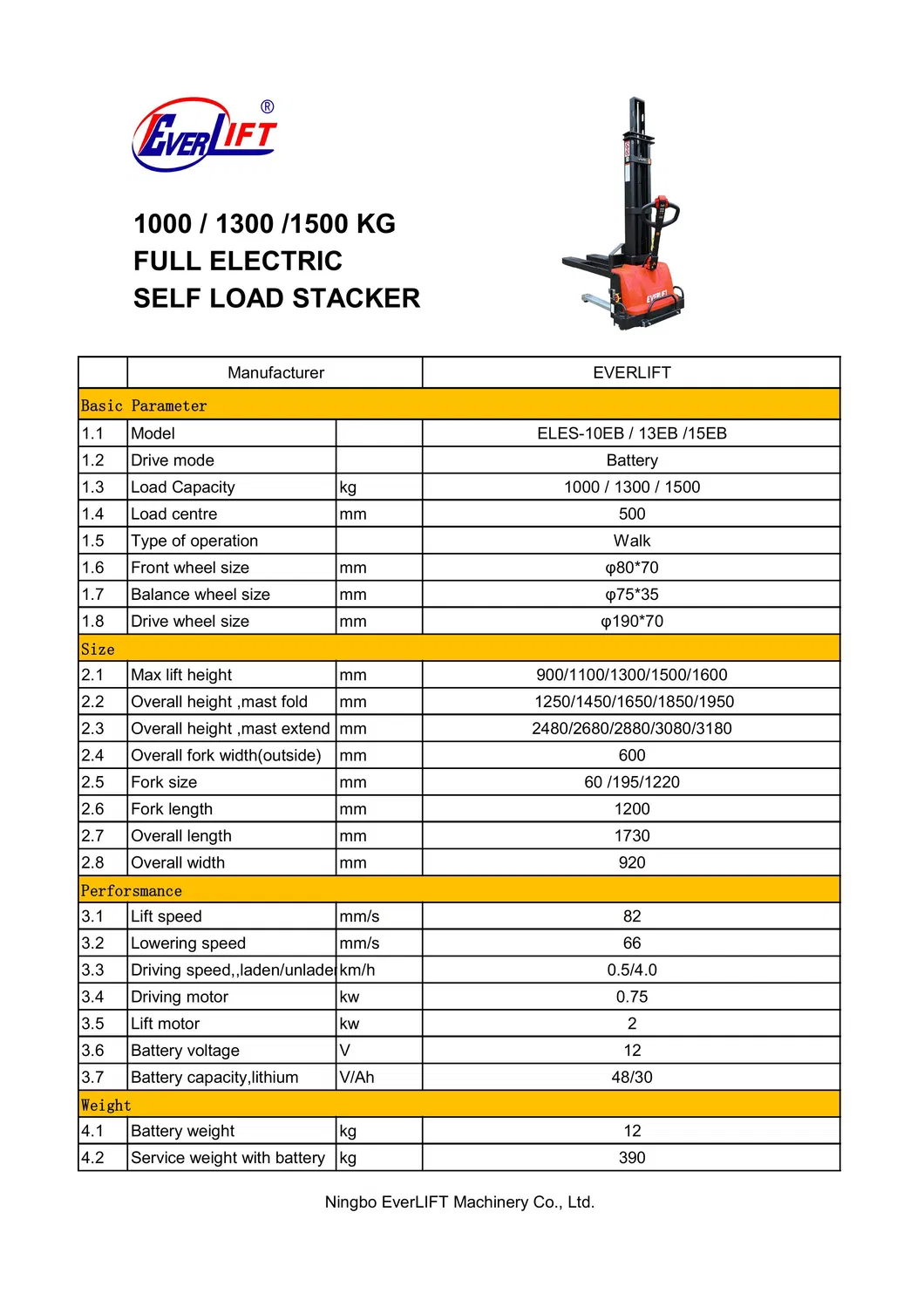

📊 Technical Specification

Parameter	Description	Unit	Value
Model	Full-Electric Stacker	-	ELES-10EB / 13EB /15EB
Drive mode	Battery Powered	-	Electric
Load Capacity	Maximum Loading	kg	1000 / 1300 / 1500
Load centre	Standard Center	mm	500
Front wheel size	Wheel Dimension	mm	φ80*70
Max lift height	Lifting Range	mm	900 - 1600
Overall length	Equipment Length	mm	1730
Overall width	Equipment Width	mm	920
Lift speed	Lifting Velocity	mm/s	82
Driving motor	Motor Power	kw	0.75
Battery voltage	Electric Potential	V	12
Service weight	Total Weight	kg	390

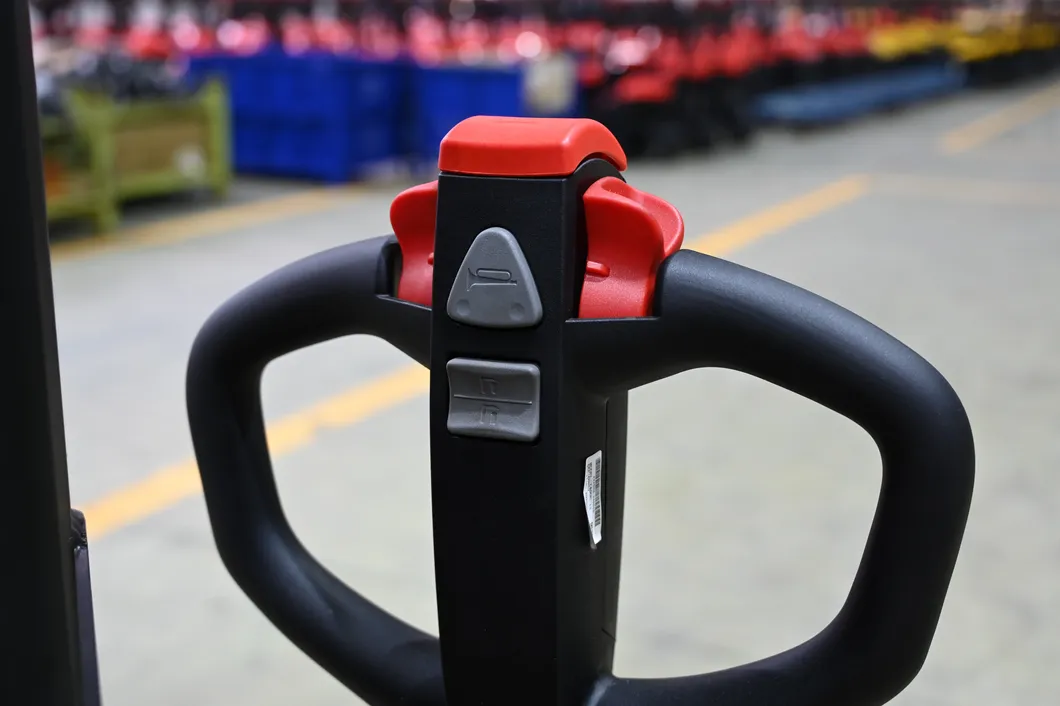

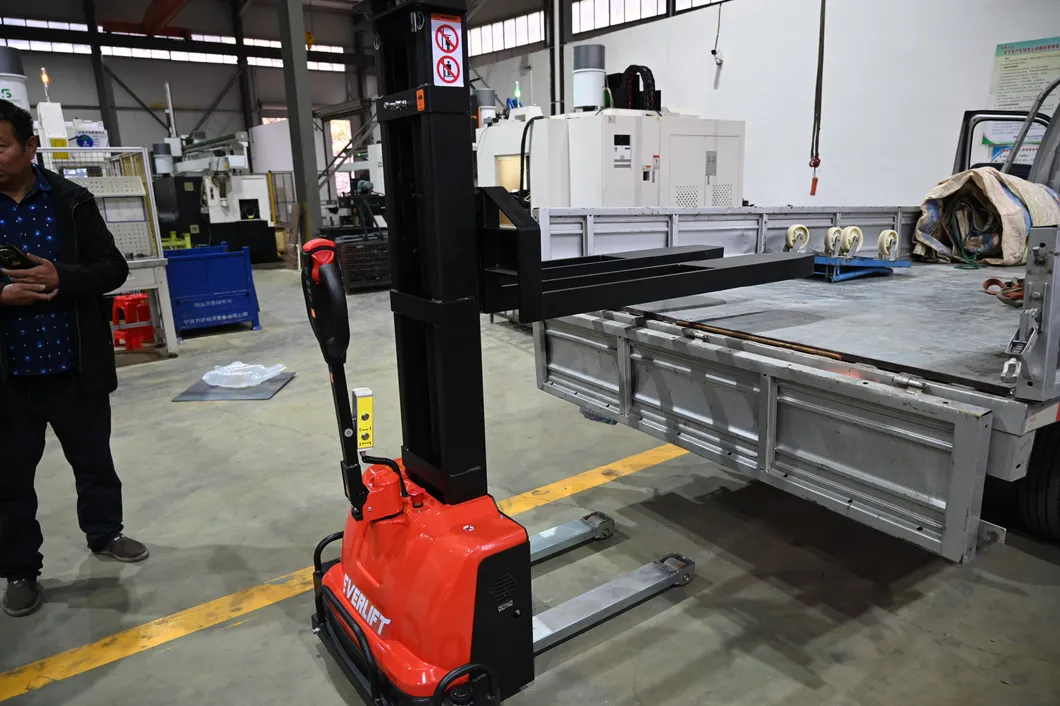

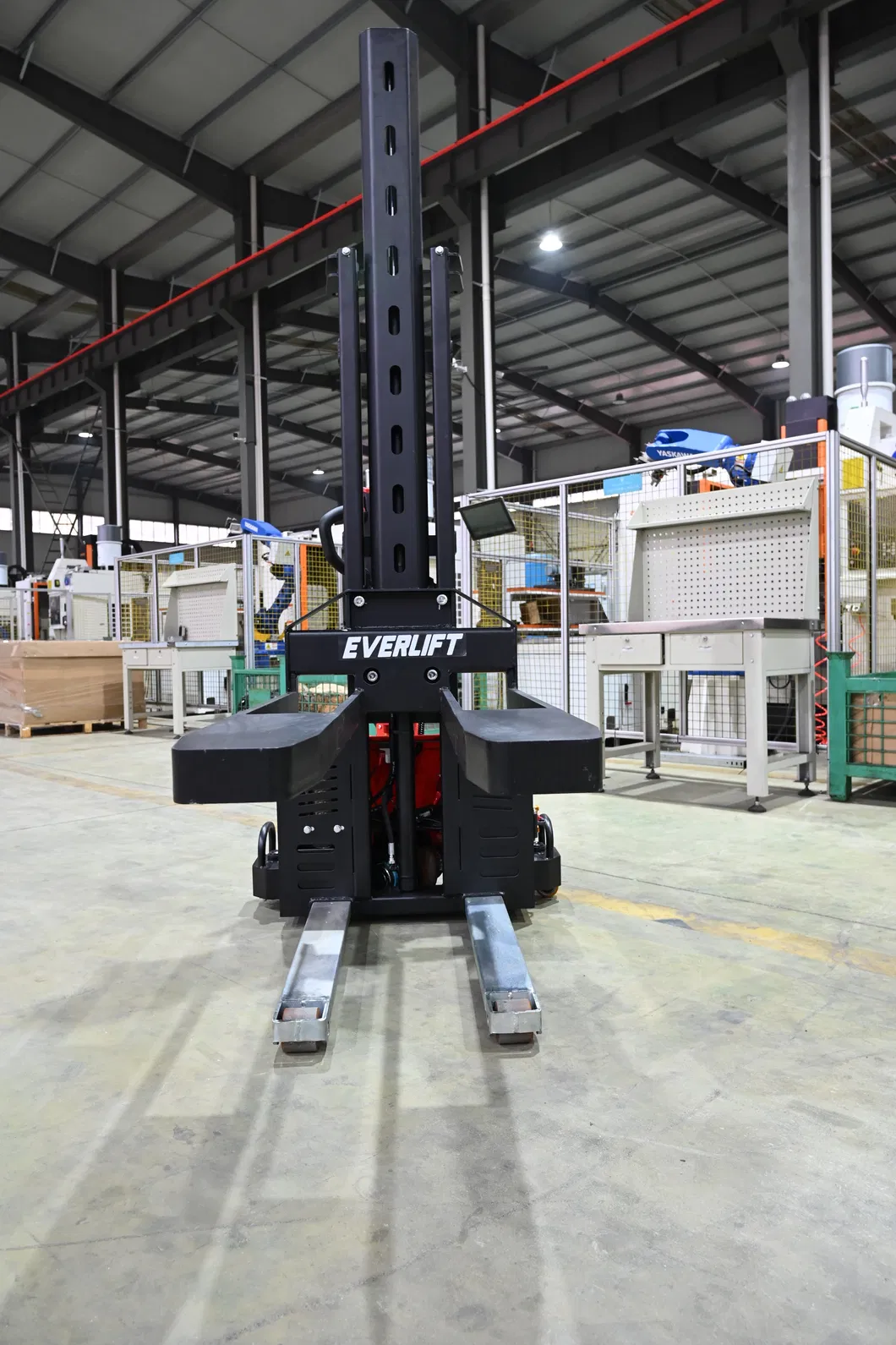

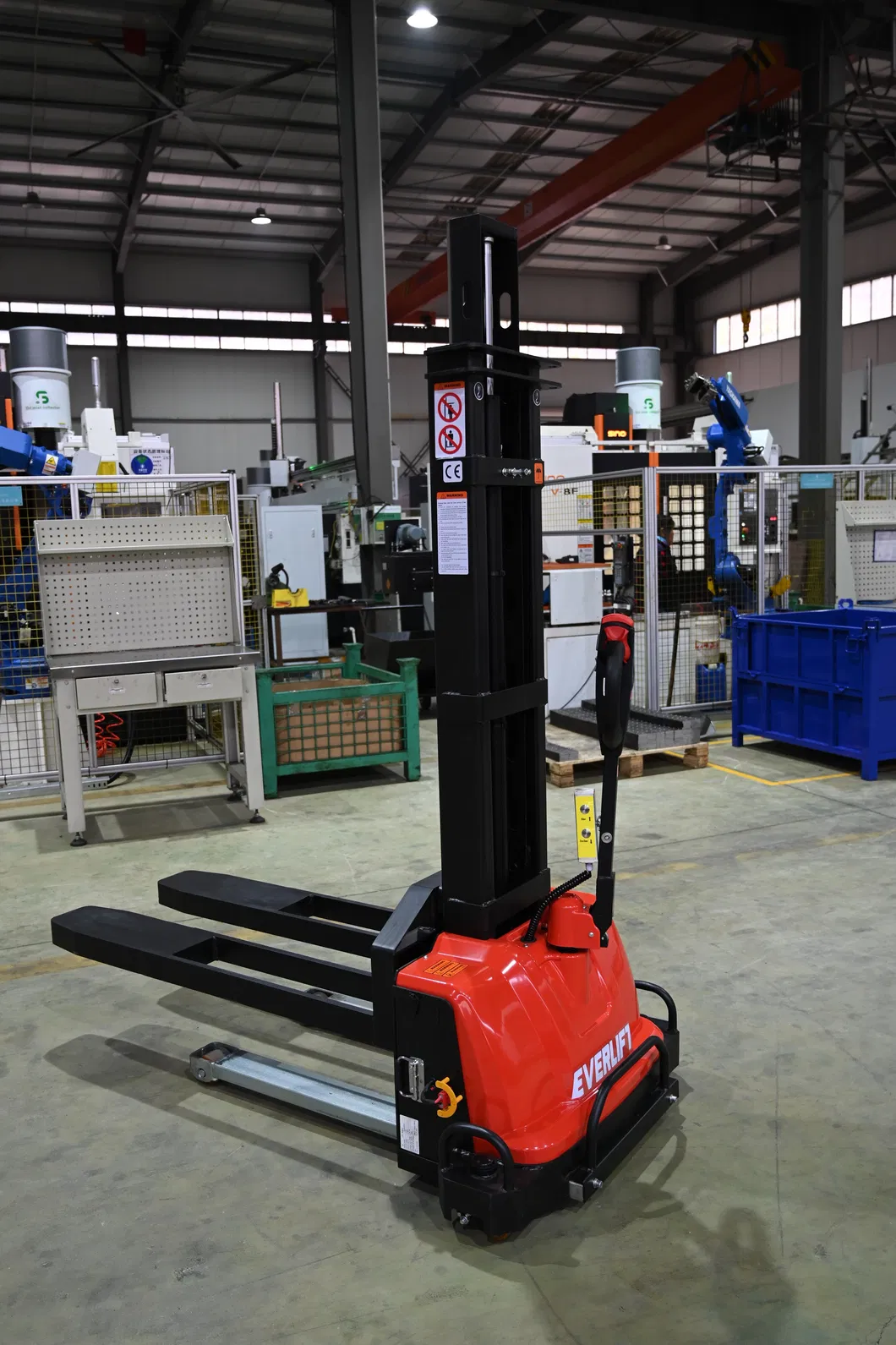

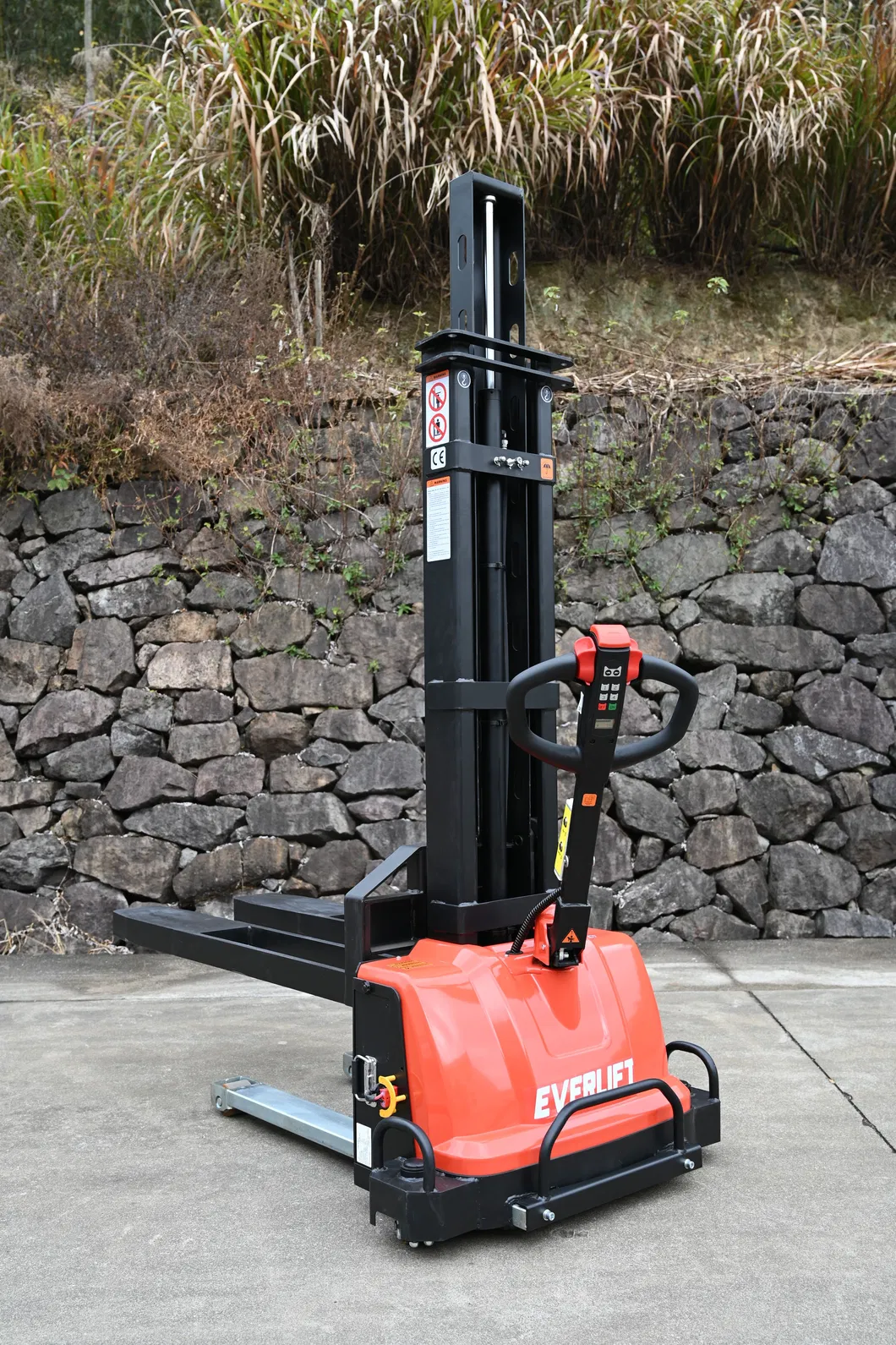

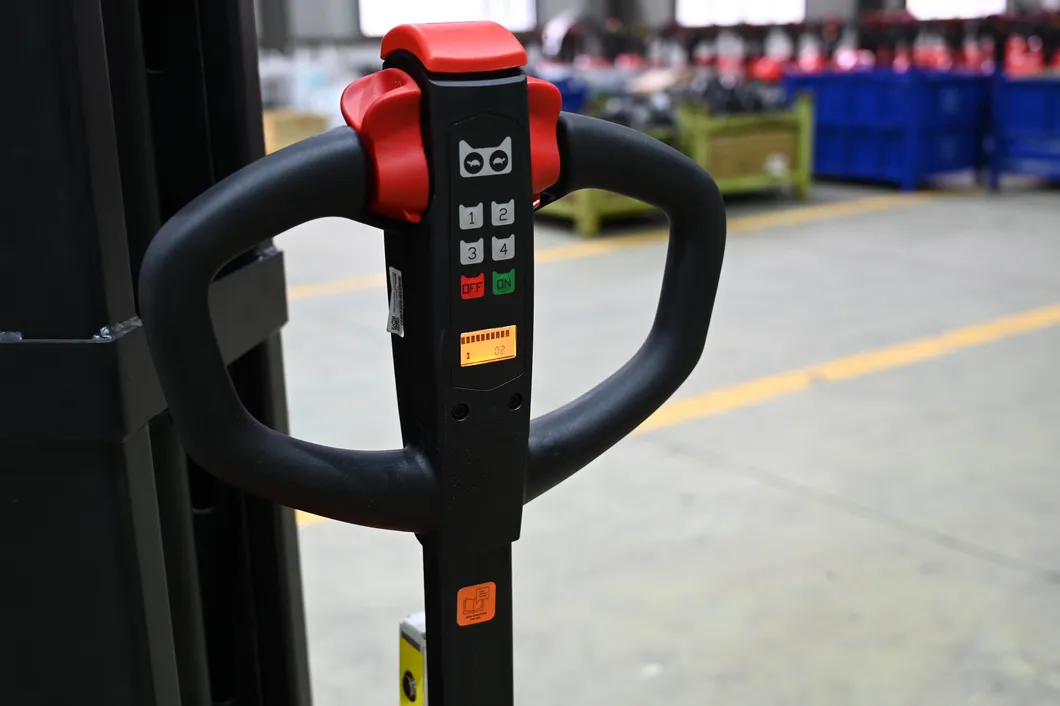

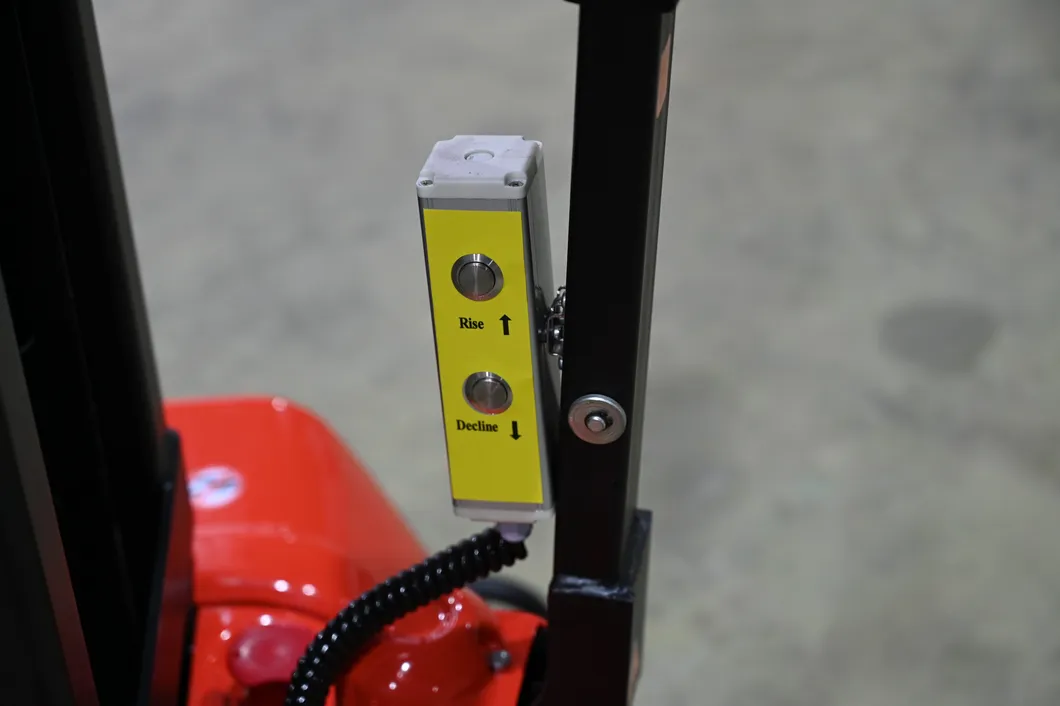

⚙️ Operational Display

📦 Packaging & Shipping

🛡️ Manufacturing Standards

Our products are manufactured under strict ISO9001:2000 control systems and have been granted CE, GS, and TUV approvals. As a high-tech enterprise involving research, manufacture, and marketing, we provide a wide range of material handling equipment including electric pallet trucks, stackers, and aerial platforms designed to meet global industrial needs.

❓ Frequently Asked Questions

Q1: How long is the product warranty?

We provide a 12-month or 1000-hour warranty for the entire machine, starting from the on-board time.

Q2: What is the typical delivery time?

Standard production time is approximately 15-20 days after receipt of advance payment. Stock items may be available for immediate delivery.

Q3: What is the continuous working time for electric series?

The battery provides approximately 3-6 hours of continuous operation depending on the volume. Charging typically takes 8-12 hours and stops automatically when full.

Q4: Do you offer customized OEM or ODM products?

Yes, we specialize in providing customized products tailored to your specific requests. Both OEM and ODM services are fully supported.

Q5: What are the specifications for the chargers?

Chargers are available in 110V, 220V, 240V, 380V, or 415V (1 or 3 phase, 50/60HZ). We provide plugs for USA, UK, Australia, and European standards.

Q6: Can we request a specific color for the equipment?

Certainly. You can specify any color by providing us with the corresponding RAL code.
