Load Capacity 1.5t Lifting Height 1600/2000/3000mm Electric Pallet Stacker Forklift

Customization:	Available
After-sales Service:	24 Hours Online
Warranty:	1 Years

📋 Basic Information

Model NO.

ND15Q01LD

Type

Stacker

Power

DC Motor

Load Capacity

1.5t

Fuel

Electric

Load Center

500mm

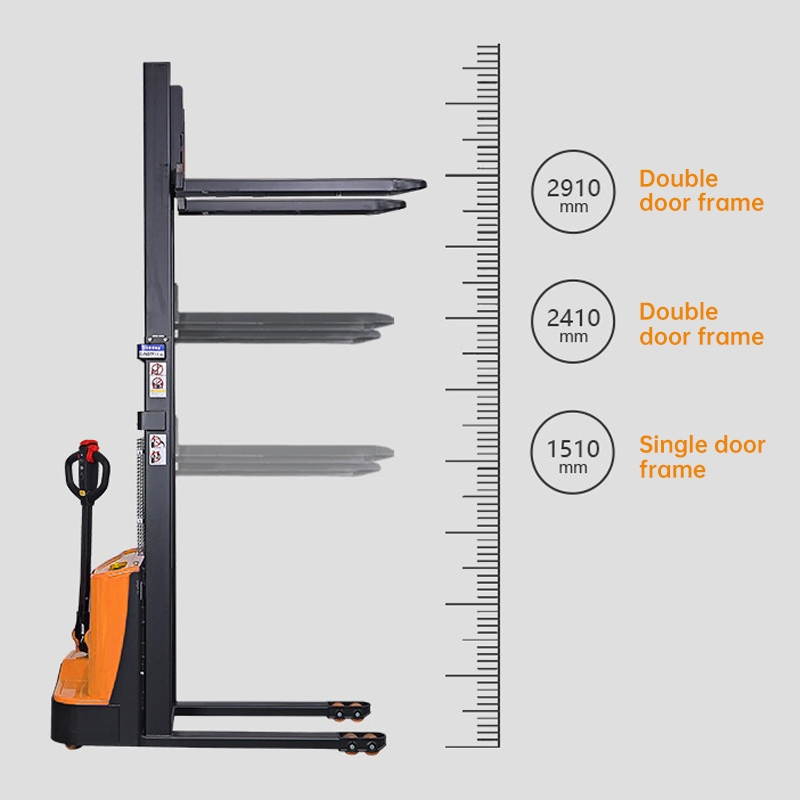

Lift Height

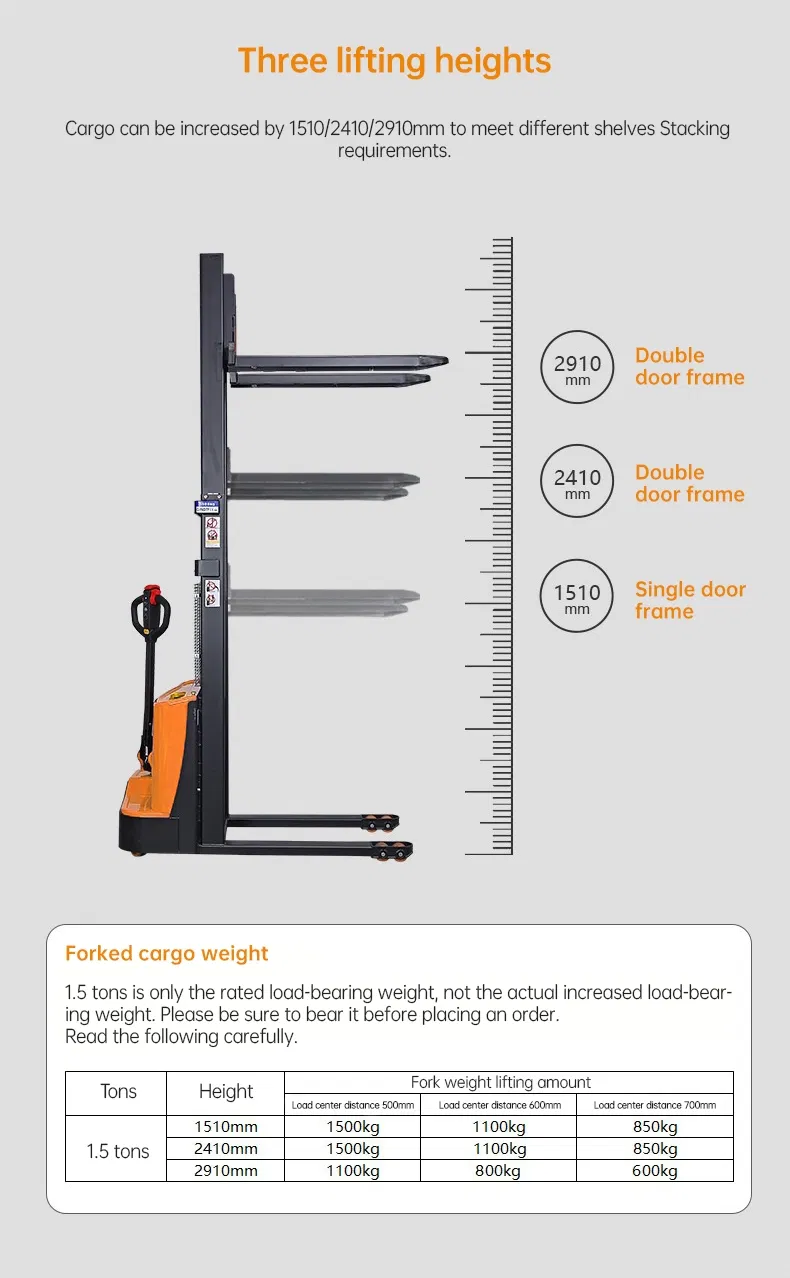

1510/2410/2910mm

Fork Length

1070mm

Battery Type

Lead Acid Battery

Certification

CE, PSE

Material

Steel

HS Code

8427109000

📦 Packaging & Delivery

Package Size

167.30cm * 66.00cm * 209.00cm

Gross Weight

470.000kg

Lead Time

31 days (1 - 1 pieces)

Customization

ODM, OEM Available

🔍 Product Description

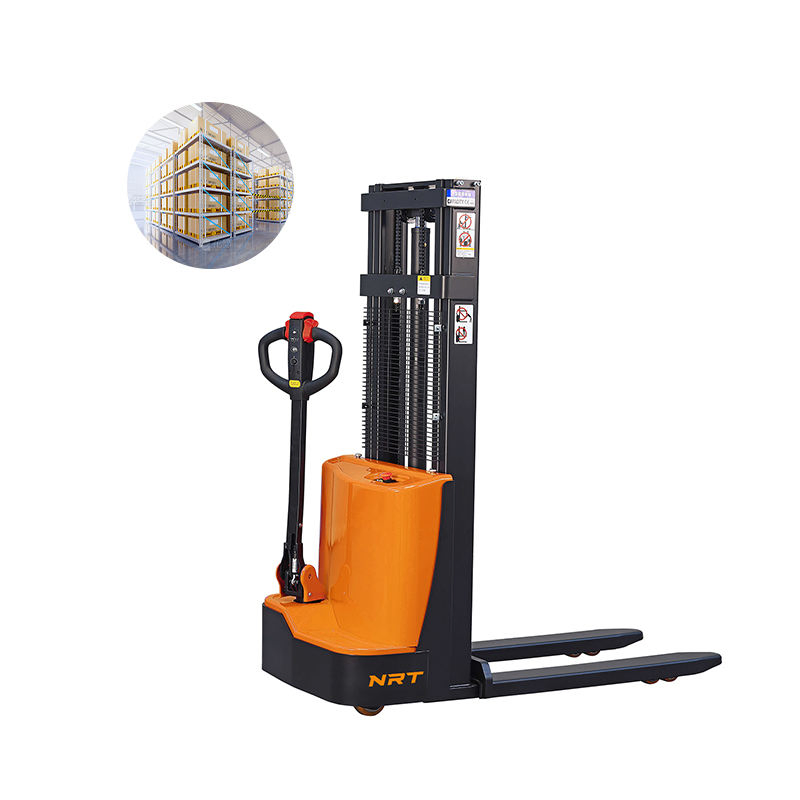

ND15Q01LD 1.5T Electric Pallet Stacker

ND15Q01LD is a 1.5T walk-behind electric pallet stacker designed for efficient warehouse stacking. It is equipped with a high-performance 24V85Ah battery featuring low-power protection, a 0.75kW drive motor, and a 2.2kW lifting motor. With travel speeds reaching up to 4km/h and a maximum lifting height of 2910mm, it is an ideal solution for material handling.

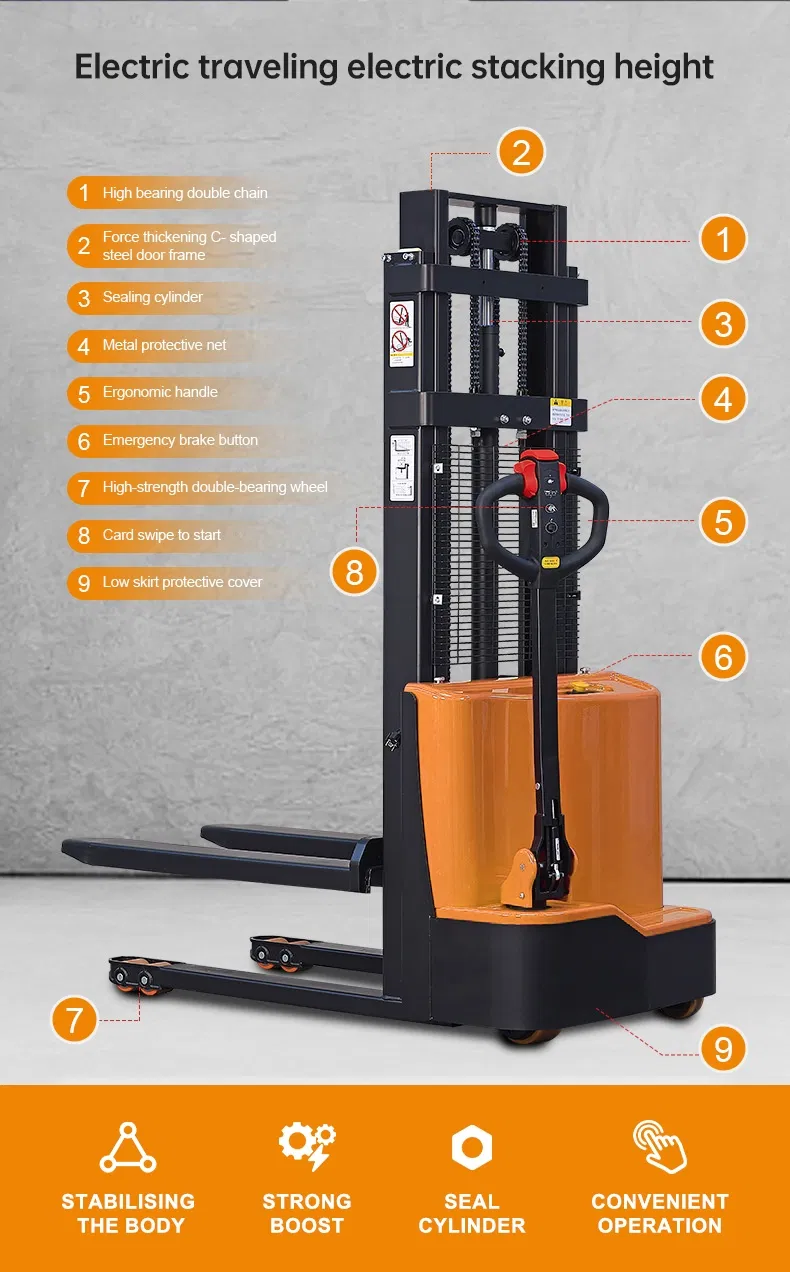

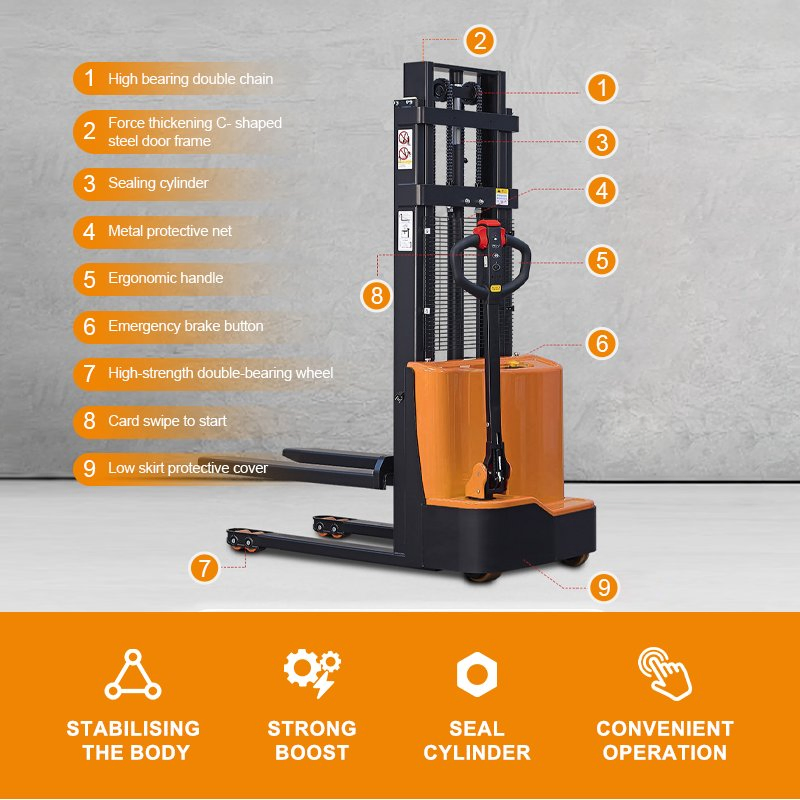

Integrated rubber-coated handle for ergonomic operation.
One-click creep speed functionality for narrow space maneuvering.

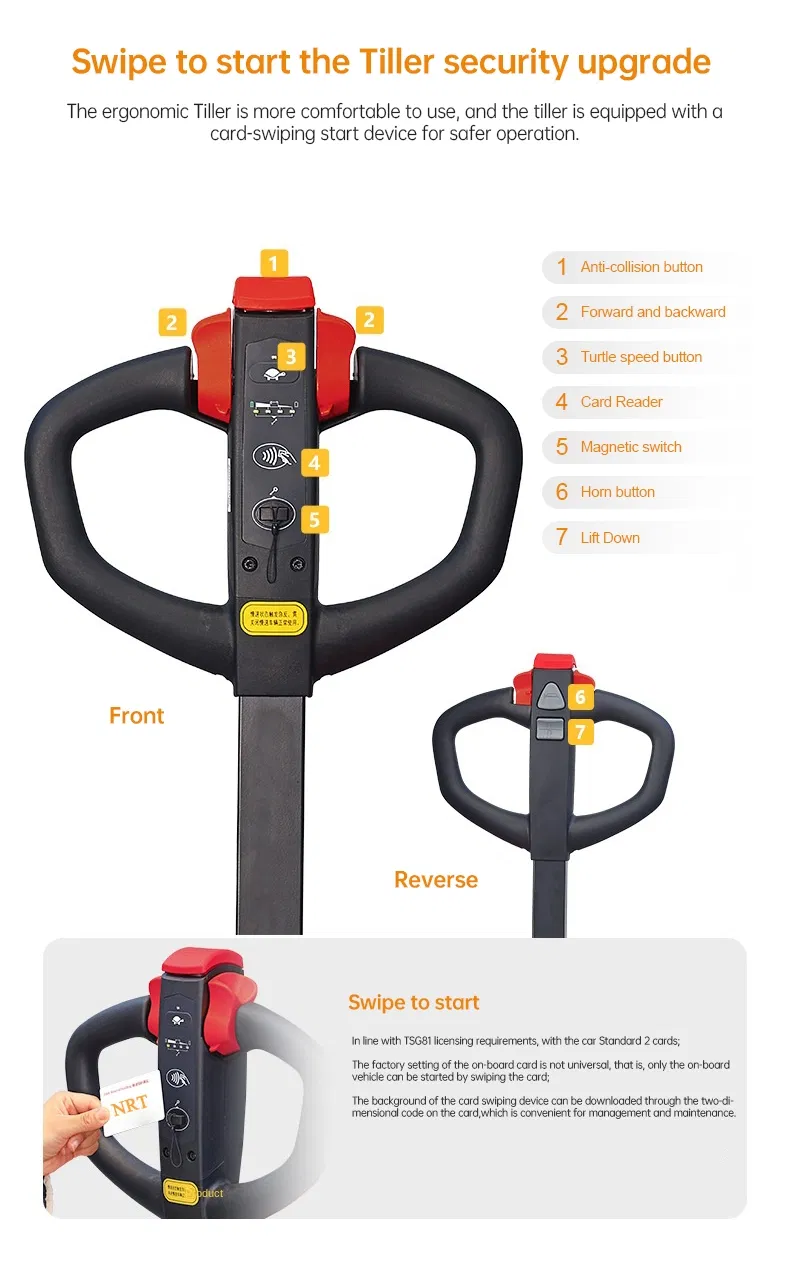

Safe startup via magnetic + card authentication.

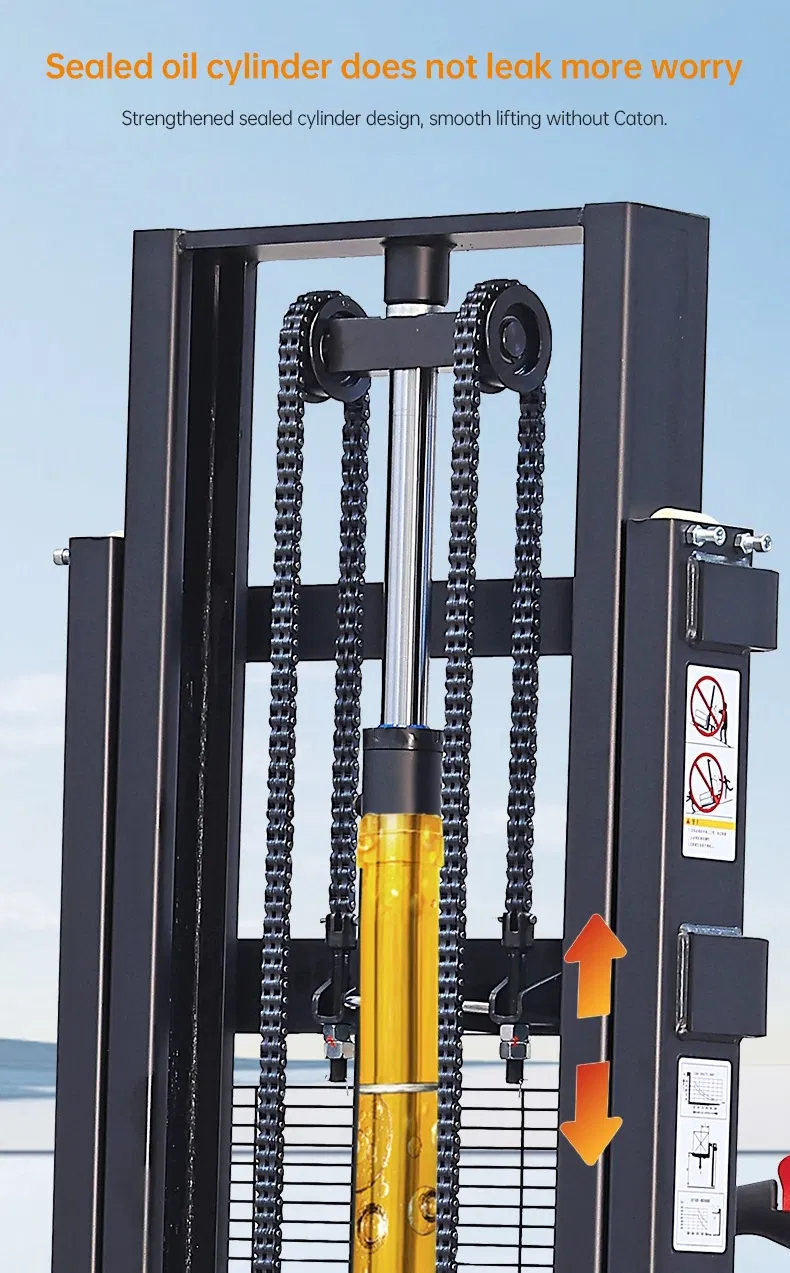

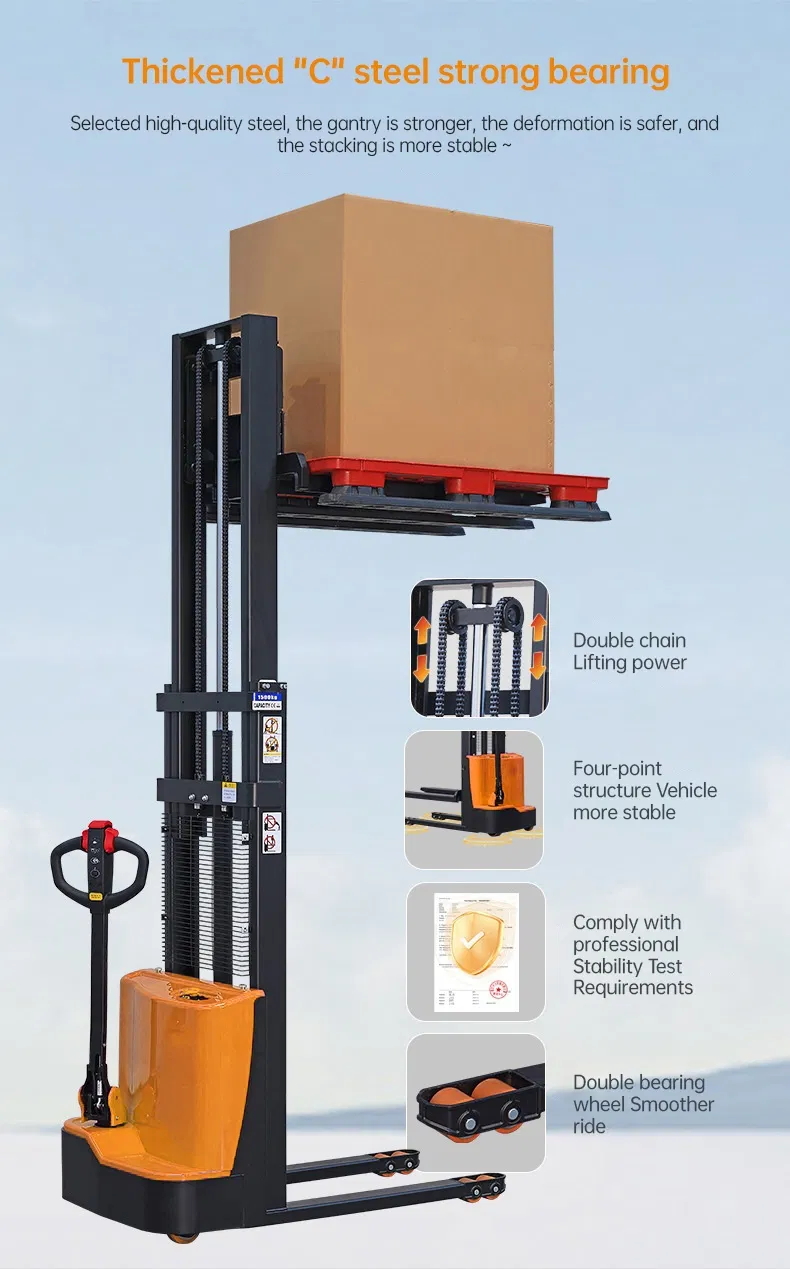

Durable C-type alloy steel mast compliant with GB/T 26949.1 standards.

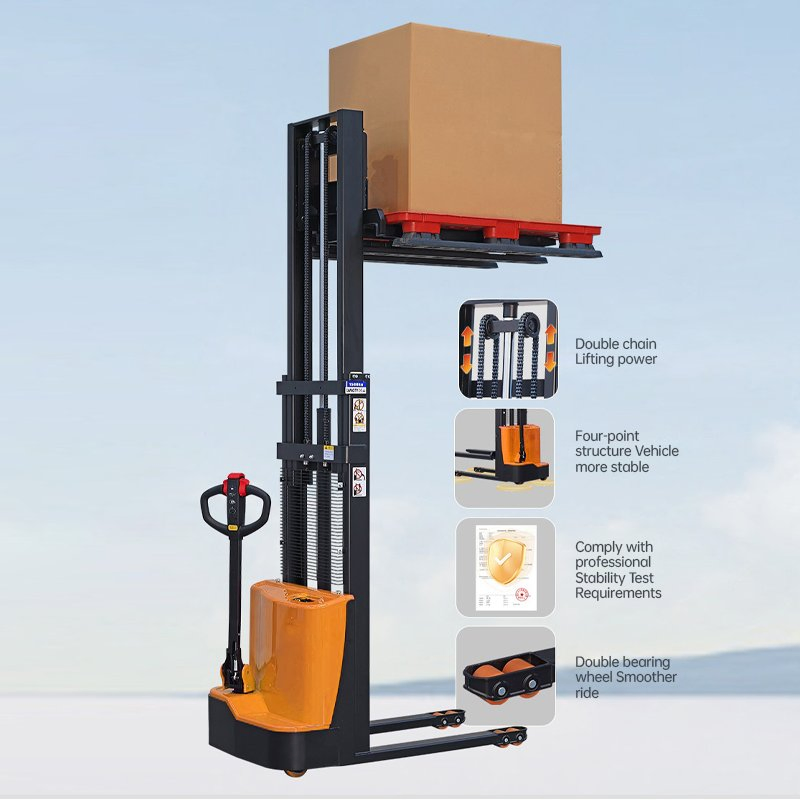

Stable dual load wheels and heavy-duty chains with metal guard protection.

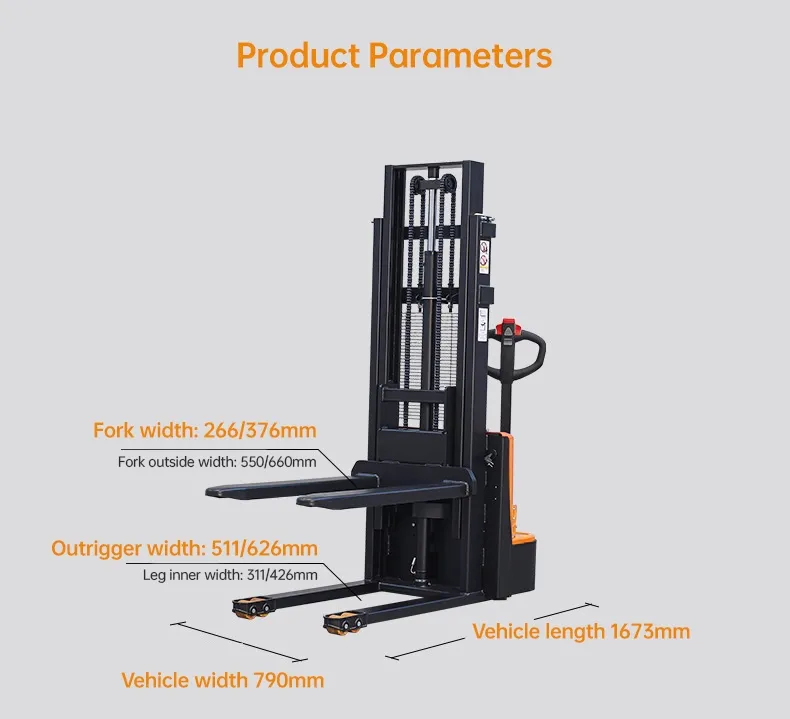

⚙️ Technical Parameters

Item	Pallet Stackers
Rated Load	1500kg
Fork Size	60x142x1150mm
Fork Ground Height	90mm
Total Weight	470kg
Driving Speed (Full/No Load)	3.5 / 4 km/h
Climbing Grade (Full/No Load)	3% / 10%
Turning Radius	1357mm

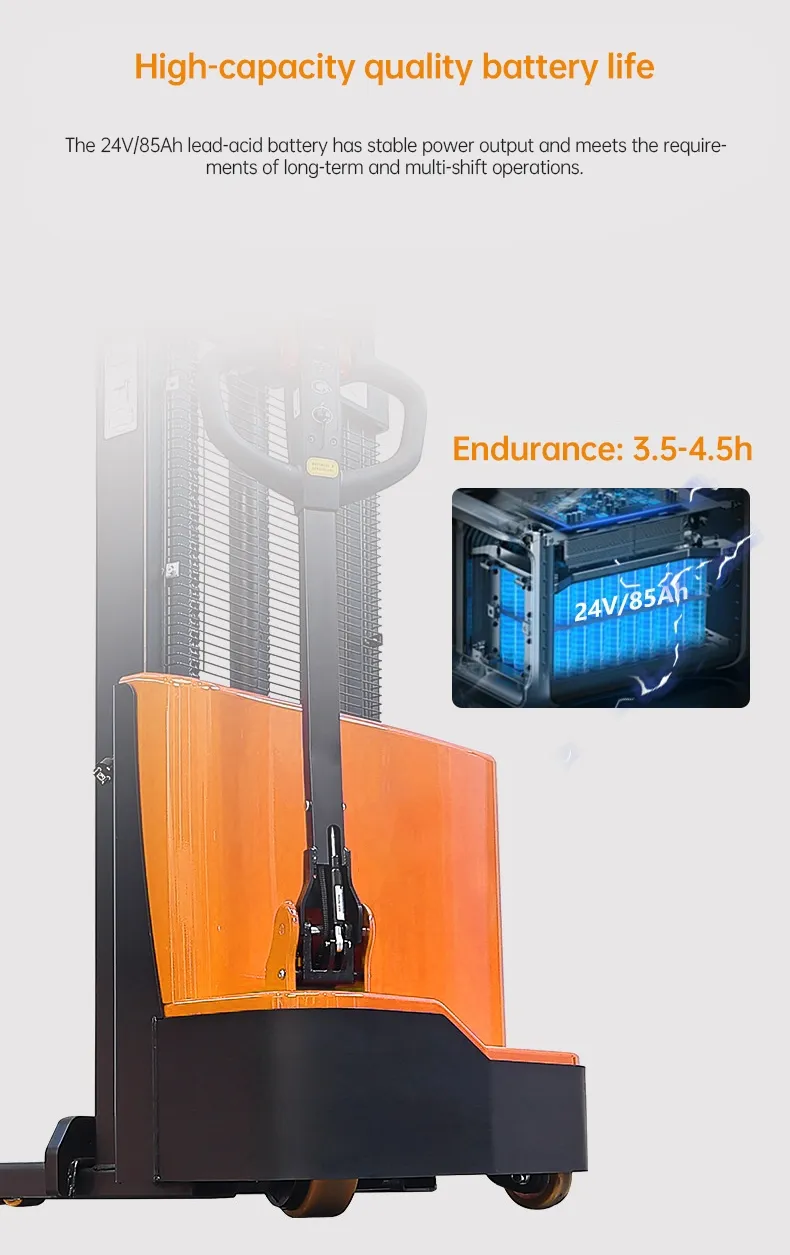

Battery Specification	24V / 85Ah
Battery Cycle Times	400 times
Charger	24V / 10Ah
Charging Duration	8 hours

❓ Frequently Asked Questions

How long is the warranty for these products?

We provide a warranty of 12 months or 1000 hours, whichever comes first, starting from the date of shipment.

What is the standard delivery time?

For standard products, stock is often available for immediate delivery. Typically, production time is 15-20 days after receiving advance payment.

What is the working time and charging duration for electric forklifts?

Continuous working time is approximately 3-6 hours depending on battery capacity. A full charge takes 8-12 hours. Chargers are automatic and stop once the battery is full.

Are customized OEM or ODM products available?

Yes, we can provide customized products based on your specific requirements. We have extensive experience in both OEM and ODM manufacturing for non-standard equipment.

What charger specifications are supported?

Chargers support multiple voltages (110V, 220V, 240V, 380V, 415V) and single/three-phase power (50/60Hz). Power plugs can be customized to USA, UK, Australia, or European standards.

Can we request a specific color for the equipment?

Yes, we can accommodate specific color requests to match your brand or preference.
