BestDeal Forklifts
1 / 5
| Model NO. | CDD20 | Type | Stacker |
| Load Capacity | 2 ton | Power | DC Motor |

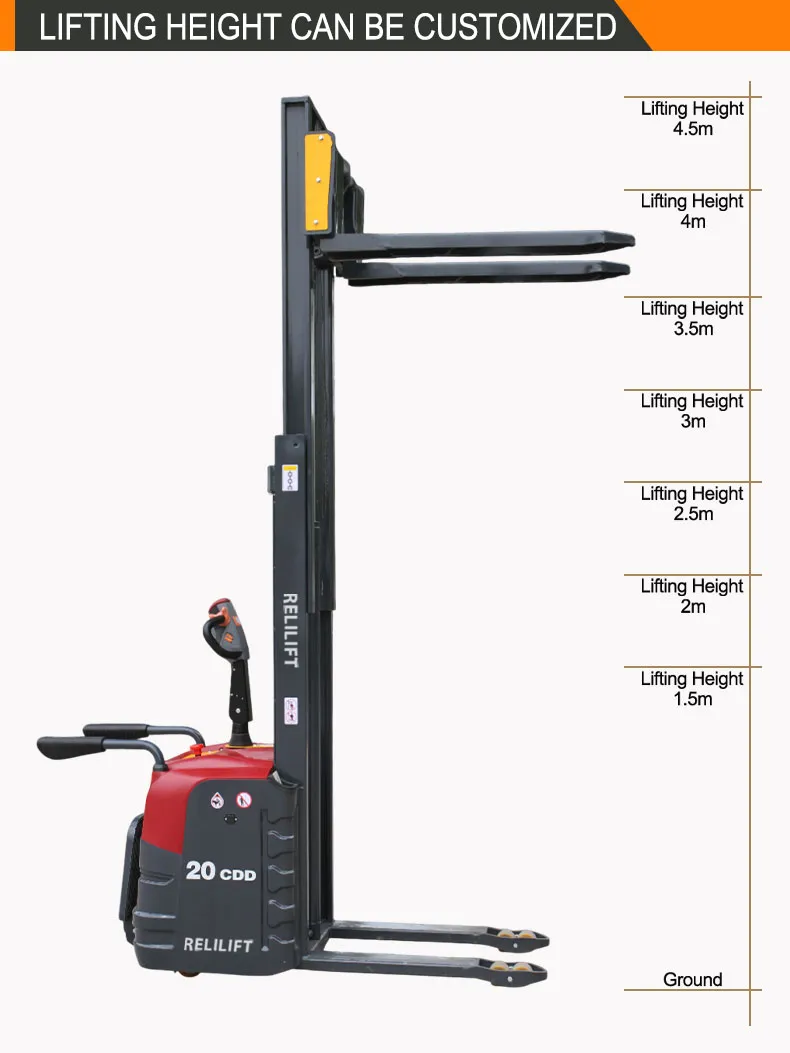

| Lift Height | 2000-5500mm | Load Center | 500mm |
| Battery | 48V/32Ah Lead-Acid | Fork Length | 1150mm |
| Tyre Type | Polyurethane Tire | Operating Mode | Standing Operation |

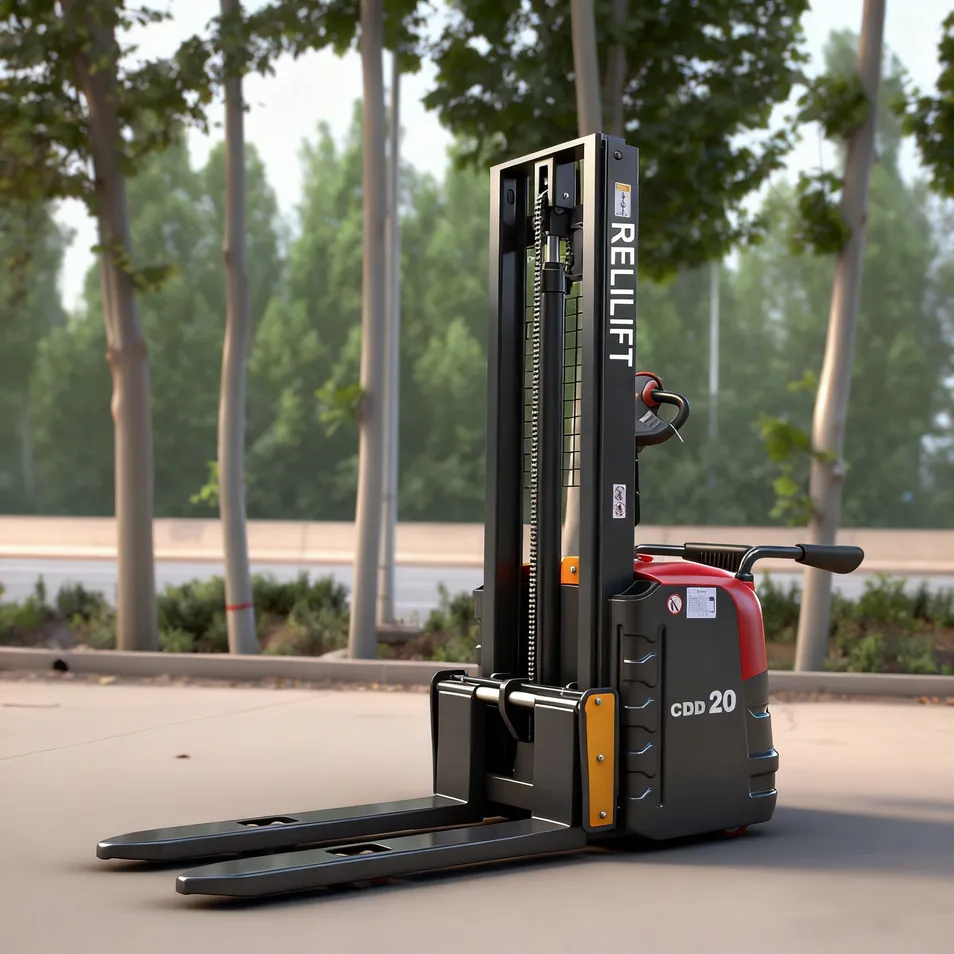

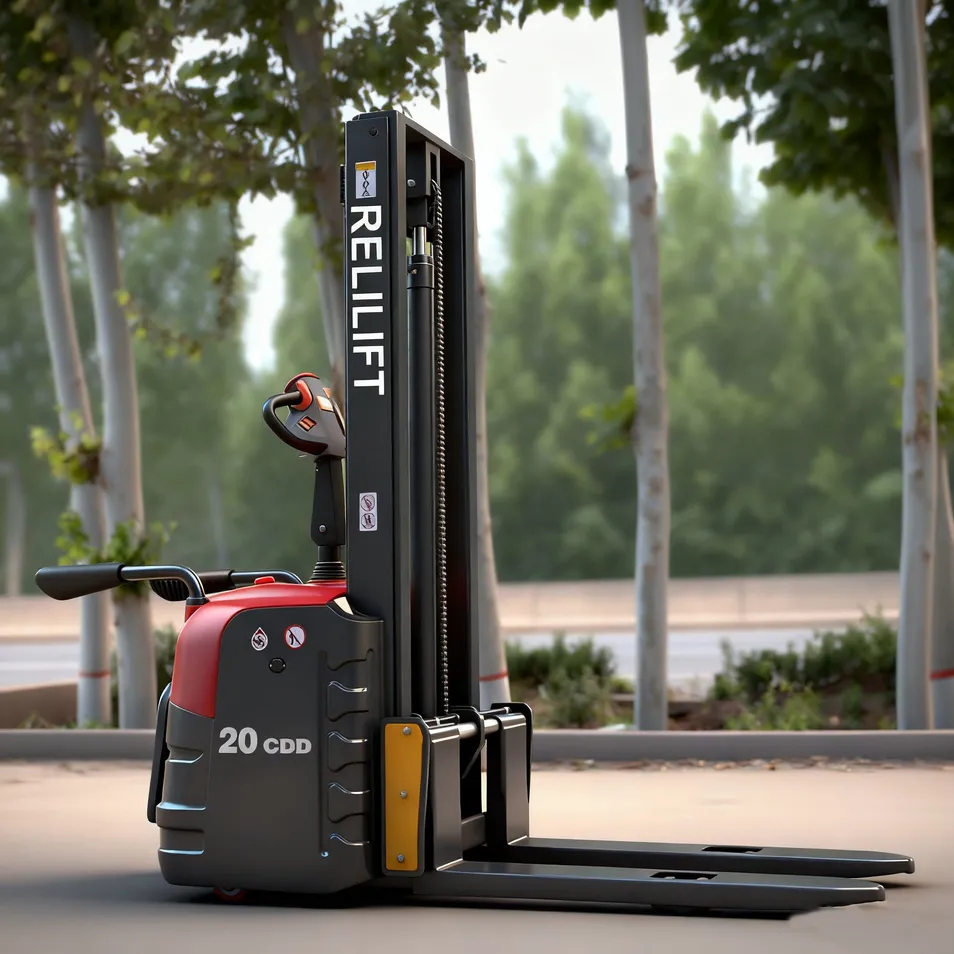

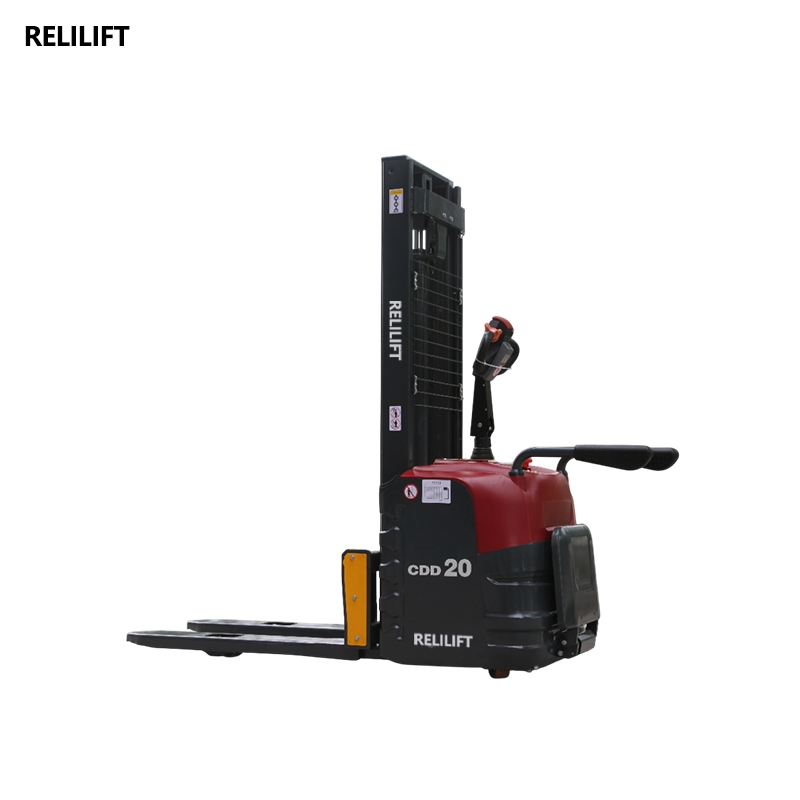

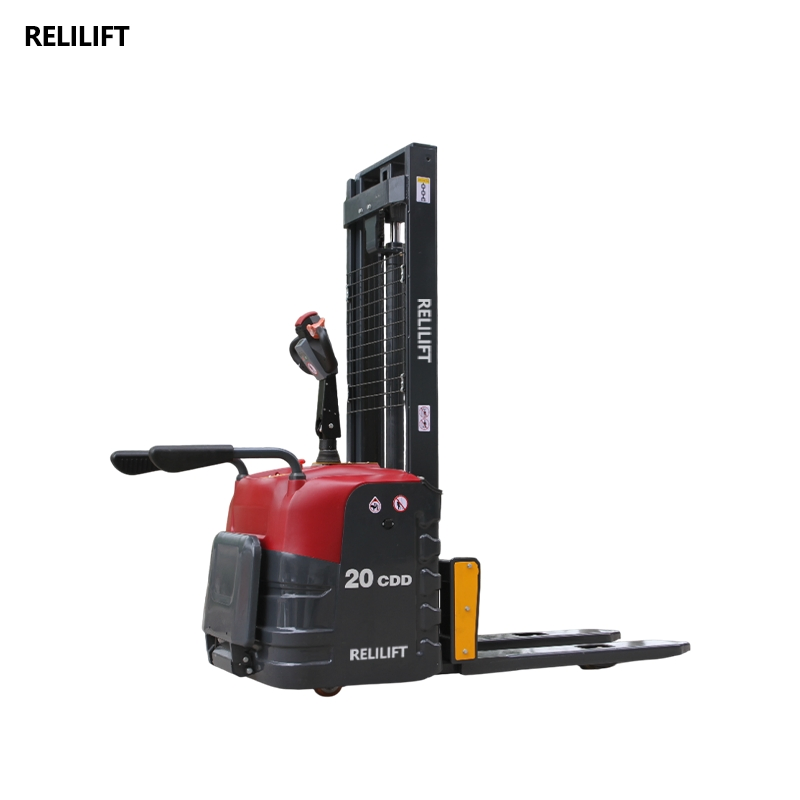

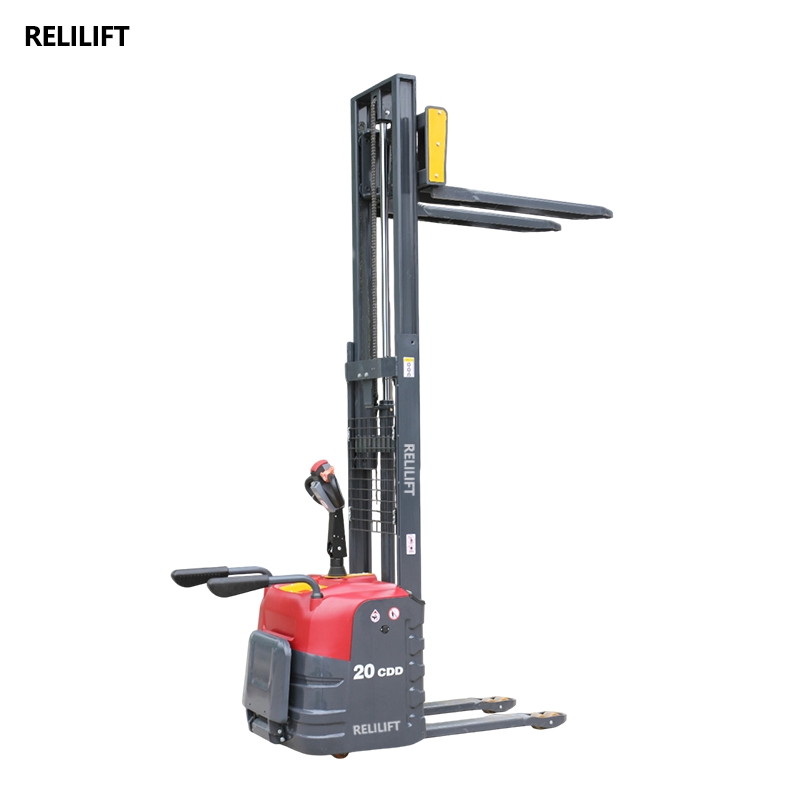

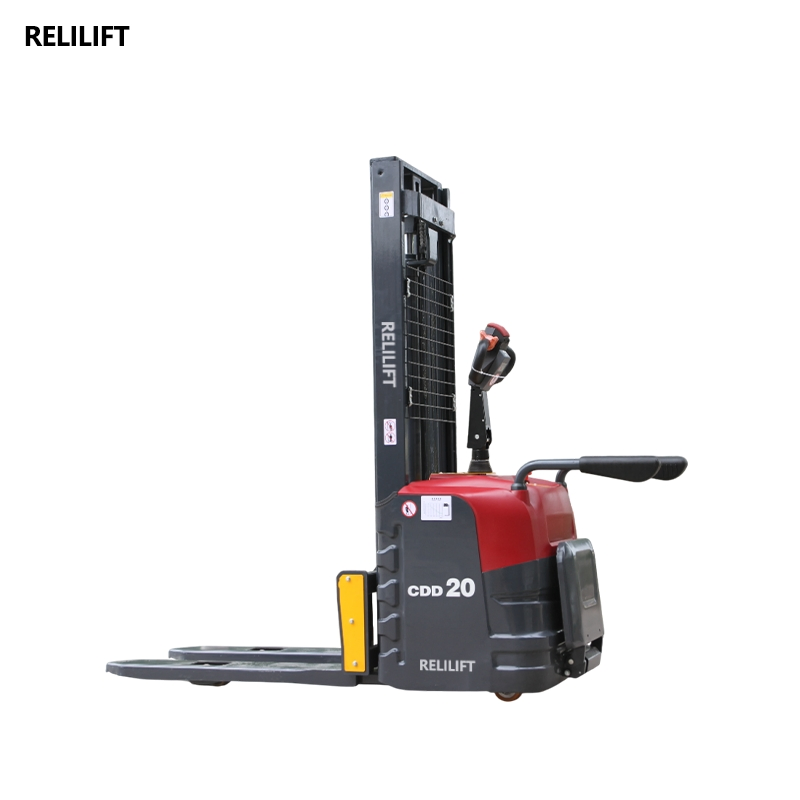

2 Ton Electric Stacker Solution
Our 2T Electric Stacker Truck is a heavy-duty material handling solution engineered for safe, efficient, and reliable handling of bulky, high-weight cargo—including heavy pallets, industrial components, and large cartons—in large warehouses, heavy manufacturing plants, and logistics hubs.
Rated load of 2000kg with lifting heights up to 5500mm to meet industrial storage needs.
Equipped with a 2.0kW high-torque drive motor and 3.0kW lifting motor for steady operation.

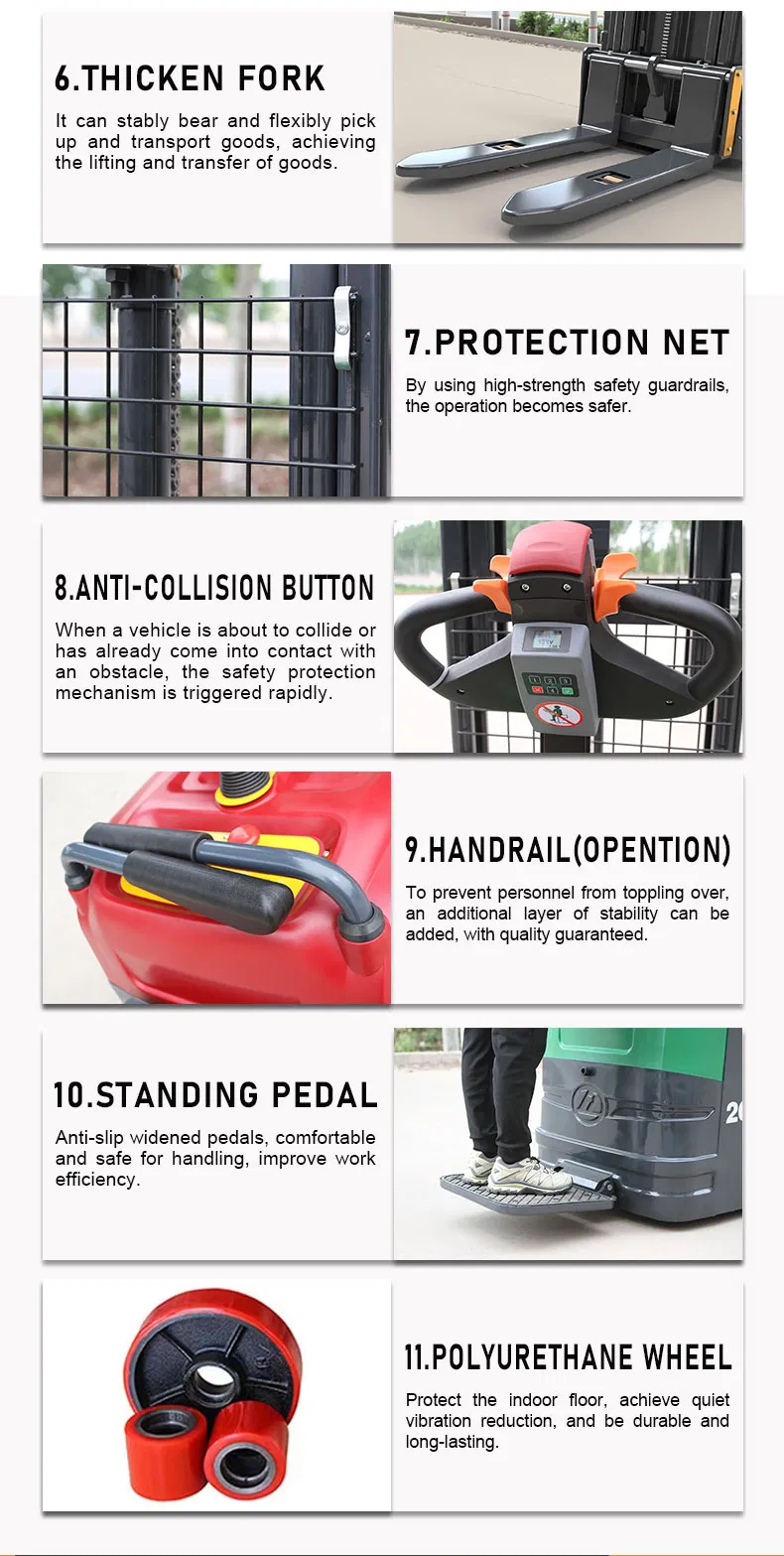

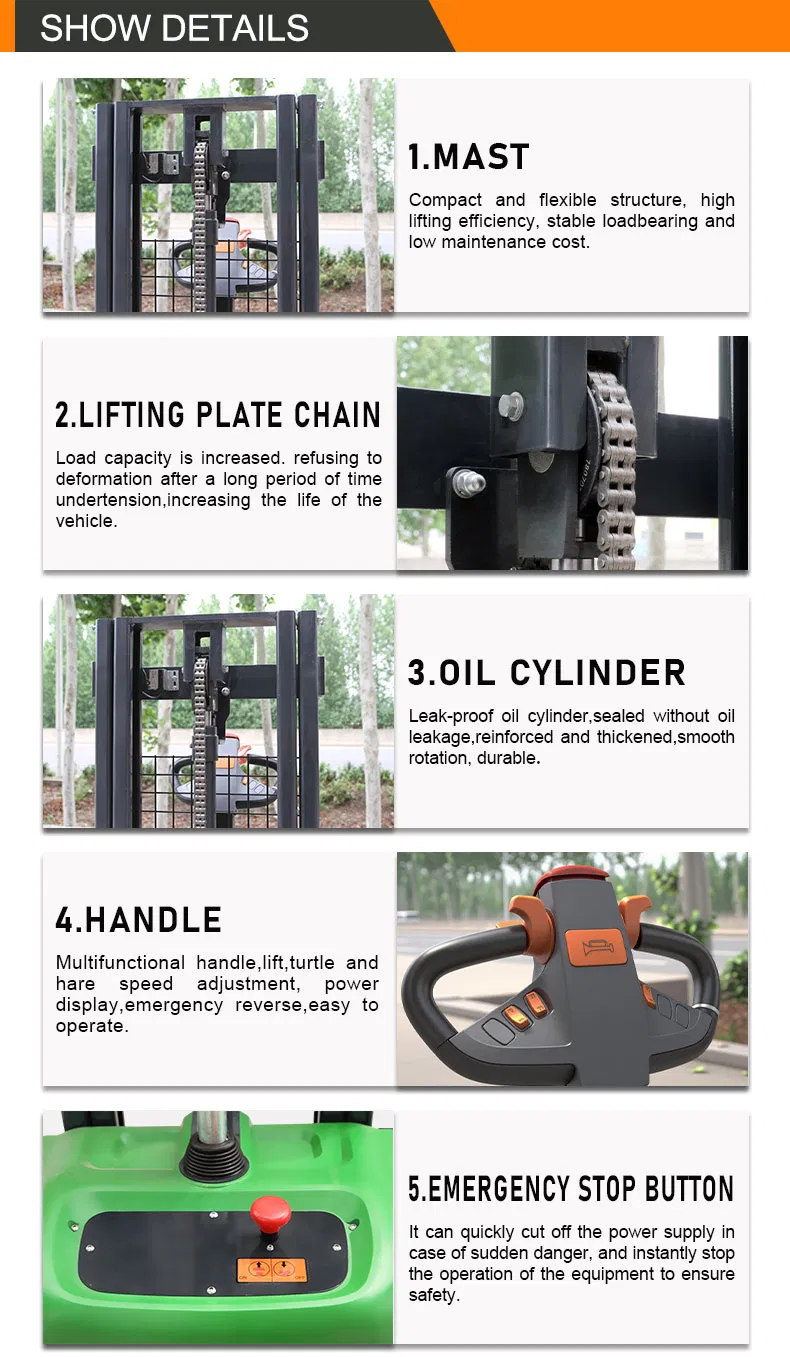

Features hydraulic anti-drop valves, overload protection, and electromagnetic braking systems.
| Feature | Unit | CDD2020 | CDD2030 | CDD2035 |
|---|---|---|---|---|
| Lifting height | mm | 2000 | 3000 | 3500 |
| Self Weight | kg | 580 | 640 | 670 |
| Travel Speed (Loaded/Unloaded) | km/h | 4.0 / 5.0 | ||
| Lifting Speed (Loaded/Unloaded) | m/s | 0.09 / 0.135 | ||
| Braking Type | - | Electromagnetic | ||
| Drive Motor Power | kw | 0.8 | ||
| Lifting Motor Power | kw | 2.2 | ||

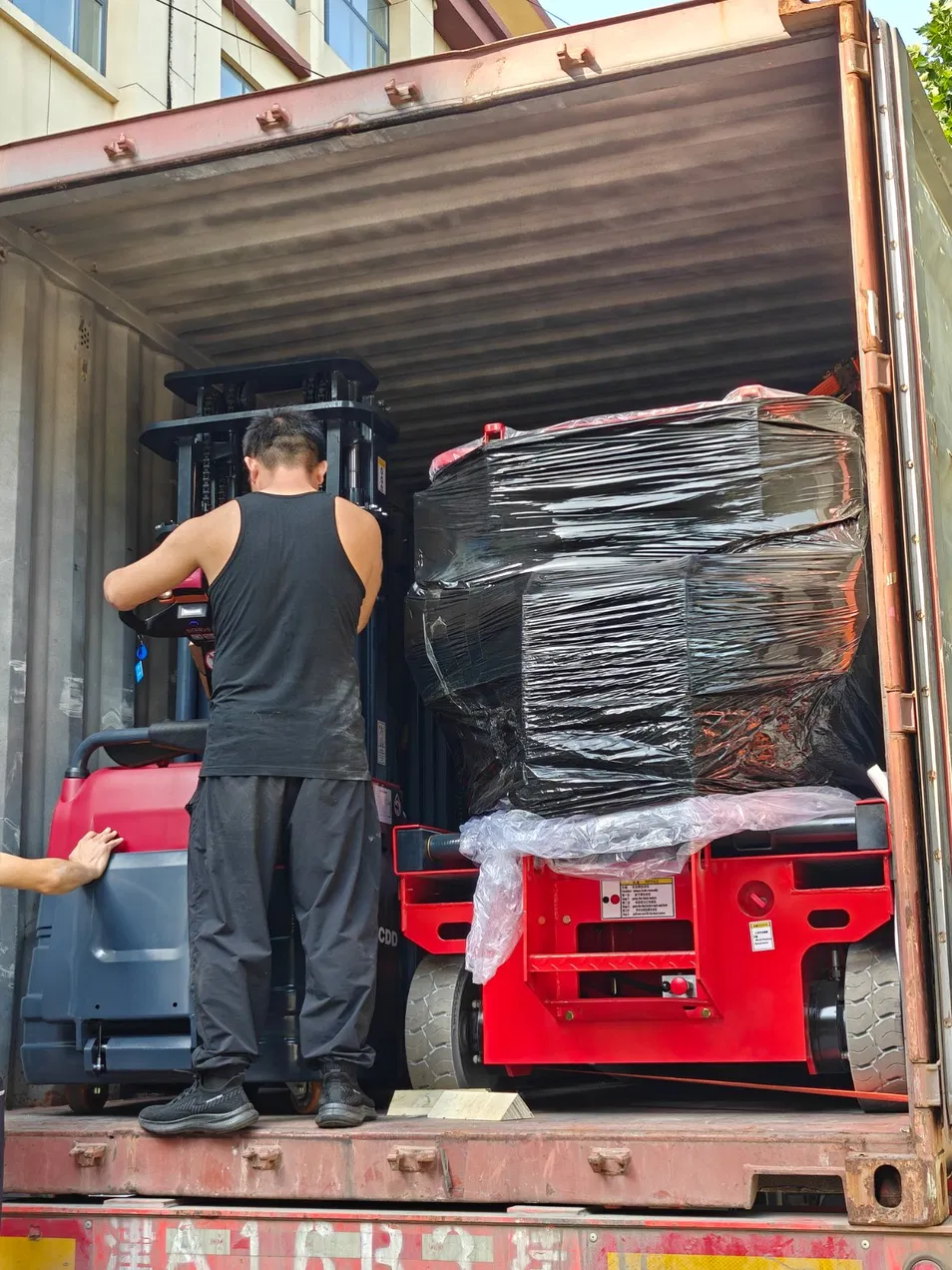

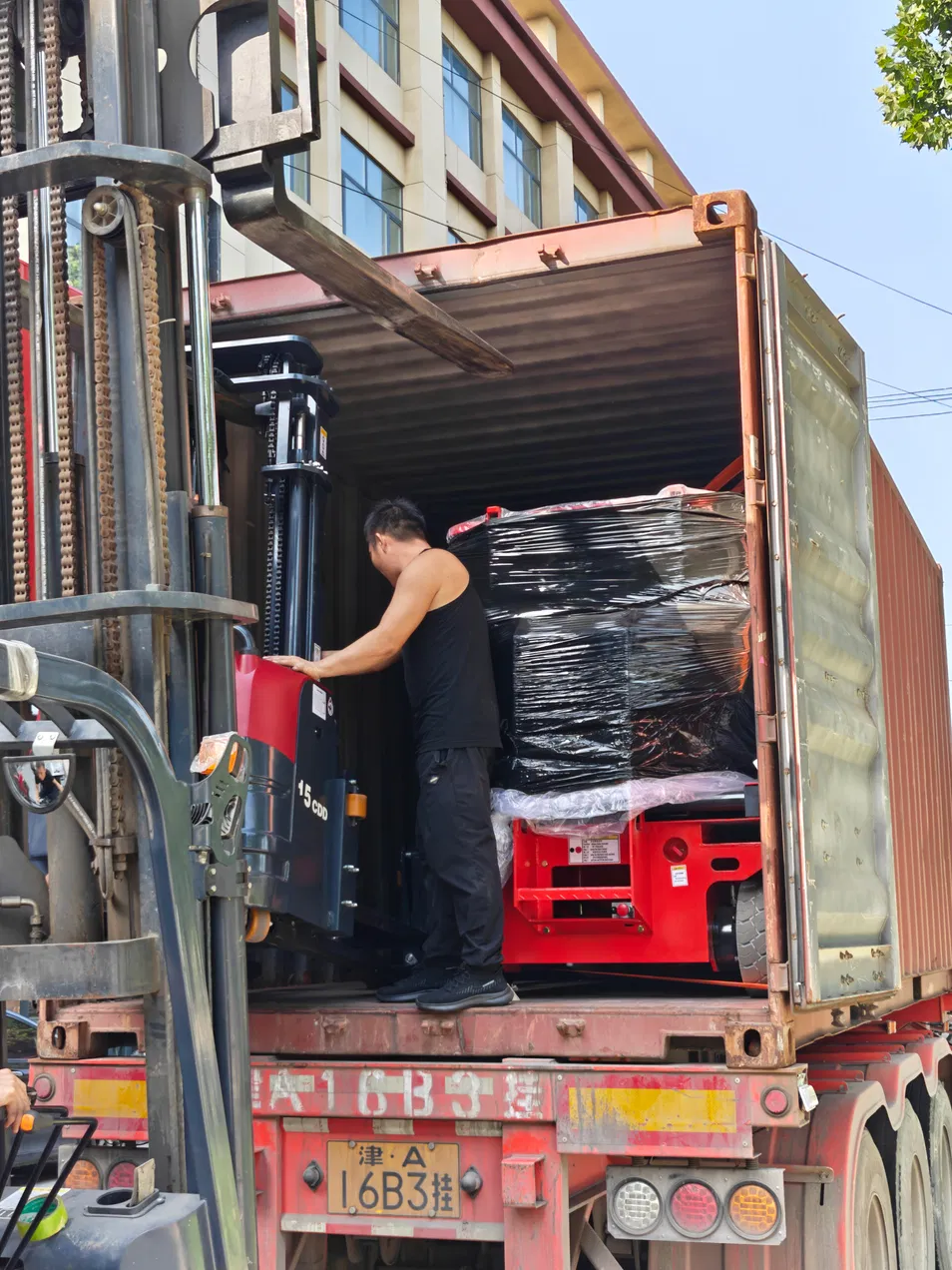

We ensure secure packaging for international transit, typically utilizing wooden cases for maximum protection.
