Smart Remote Controlled Trench Roller Vibratory Road Roller

Customization:	Available
After-sales Service:	10 Year
Warranty:	1 Year

⚙️ Basic Specifications

Model NO.

FYL-R1600T

Type

Road Roller

Working Method

Steel Wheel

Axle

Tandem Drum

Grinding Wheel

Trench Drum

Compaction Depth

25cm

Engine Type

Diesel Engine

Travel Speed

0-2.5km/H

Centrifugal Force

70kN

Drive Type

Variable Piston Pump

Vibration Control

Hydraulic Motor

Power

24HP

Weight

1600kg

Starting Mode

Electric or Remoter

📝 Product Overview

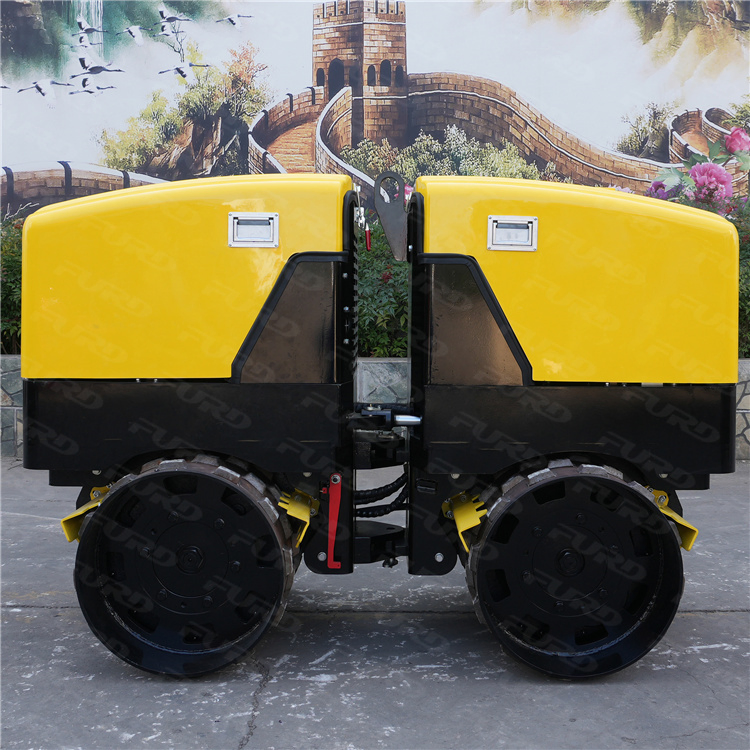

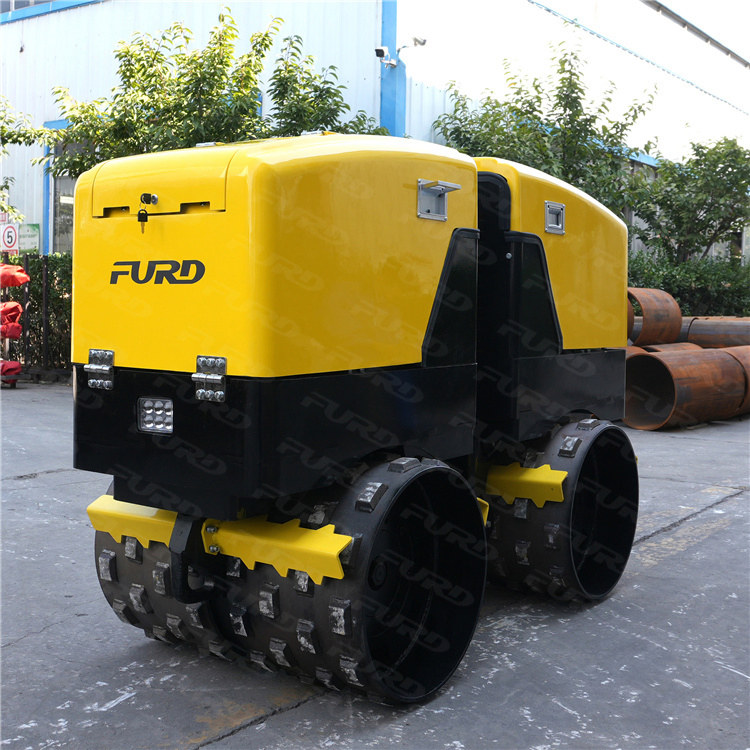

Smart Remote Controlled Trench Roller Vibratory Road Roller

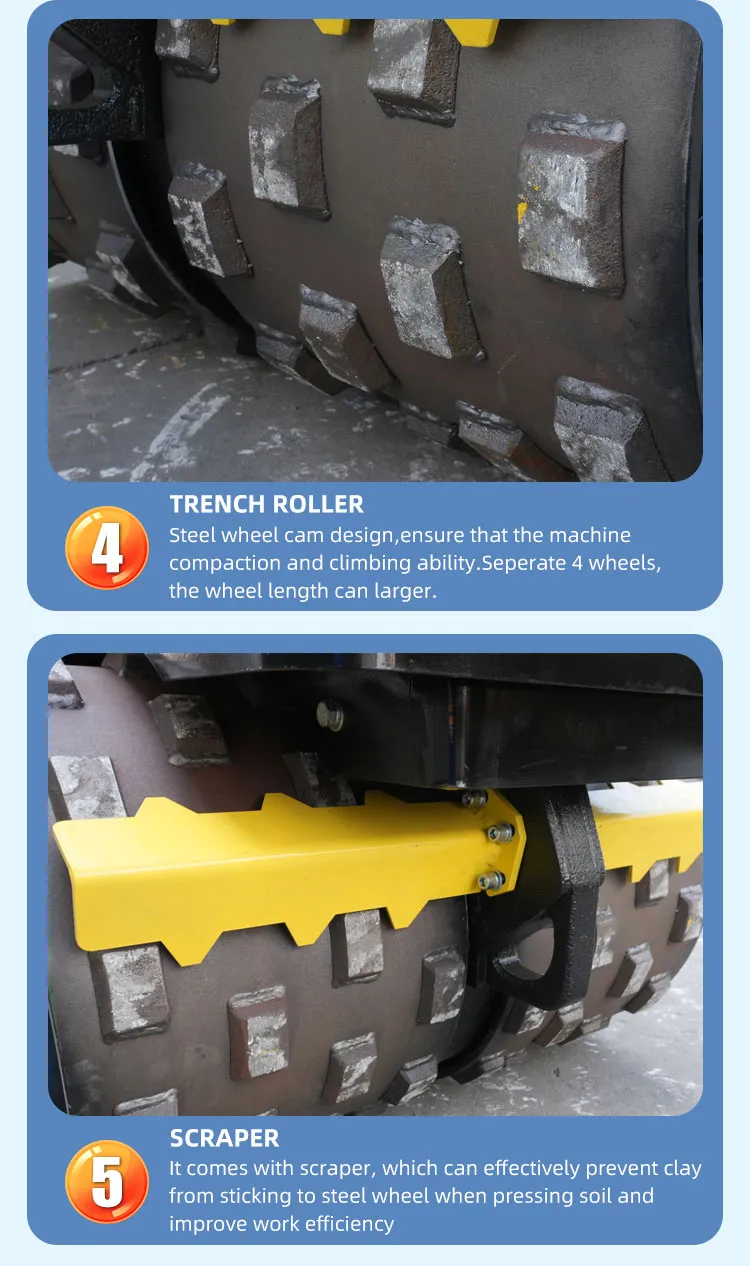

The FYL-R1600T road roller offers proven compaction results with safer operation. The smart control uses an infrared signal with line-of-sight control. The articulated trench roller with padfoot drums offers below the axle exciter in each drum to allow for the efficient transfer of compaction energy to the soil for superior compaction results. Mainly used for compaction of excavations and sub bases of foundations, roads and parking lots.

📊 Technical Parameters

Model	Technical Specifications
FYL-R1600T	Gradeability: 45% Drive Type: Hydraulic Transmission Vibration Type: Hydraulic Vibration Nominal Amplitude: 1.3-2.4mm Vibration Frequency: 40Hz Exciting Force: 70KN/35KN (Switchable) Engine: Yanmar Diesel Engine 3TNV76-KYT Power: 24HP Starting Mode: Electric or Remoter Hydraulic Oil tank: 35L Steel Drum Size: Φ550mm x 820mm Net Weight: 1600kg

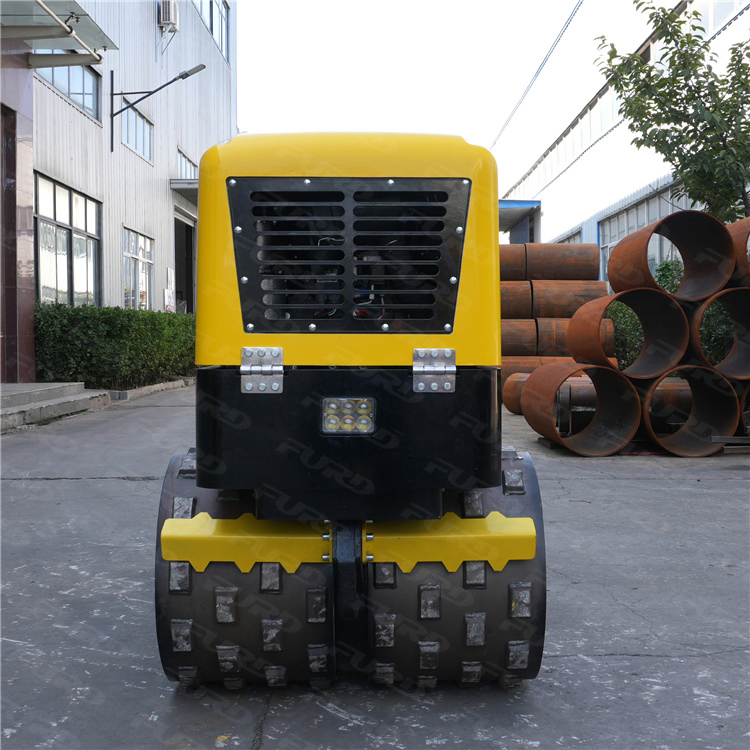

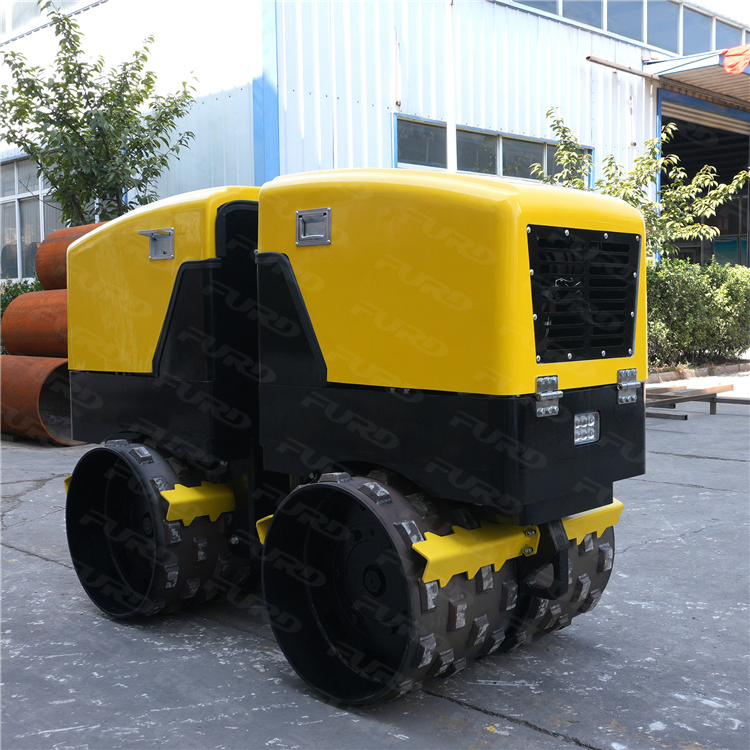

📸 Product Gallery

❓ Frequently Asked Questions

Q1: What are the main applications of the FYL-R1600T trench roller?

A1: It is primarily designed for the efficient compaction of excavations, sub-bases of foundations, road projects, and parking lots, especially in restricted trench areas.

Q2: How does the remote control system enhance safety?

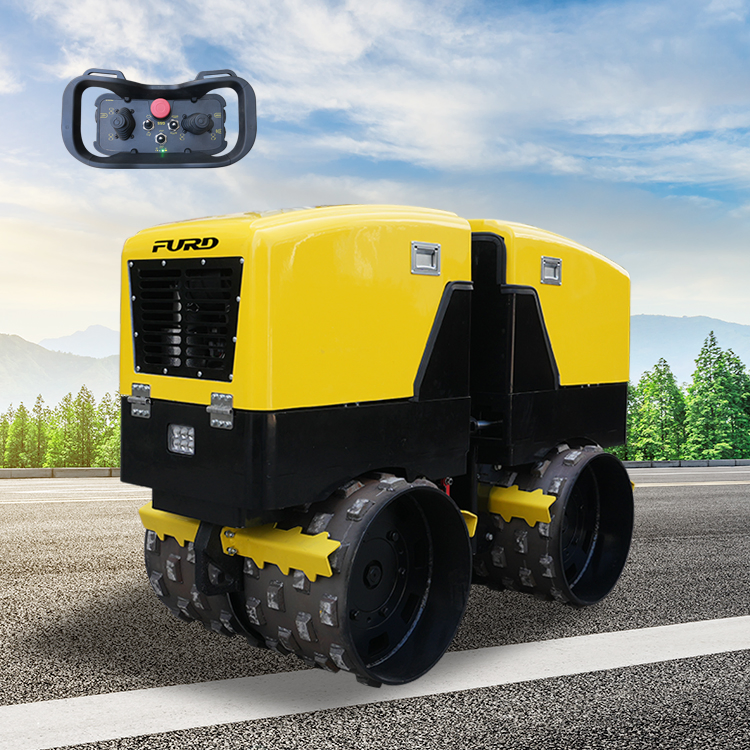

A2: The smart remote control uses an infrared signal with line-of-sight operation, allowing workers to manage the machine from a safe distance, away from potential soil collapses or hazardous areas.

Q3: What type of engine powers this vibratory road roller?

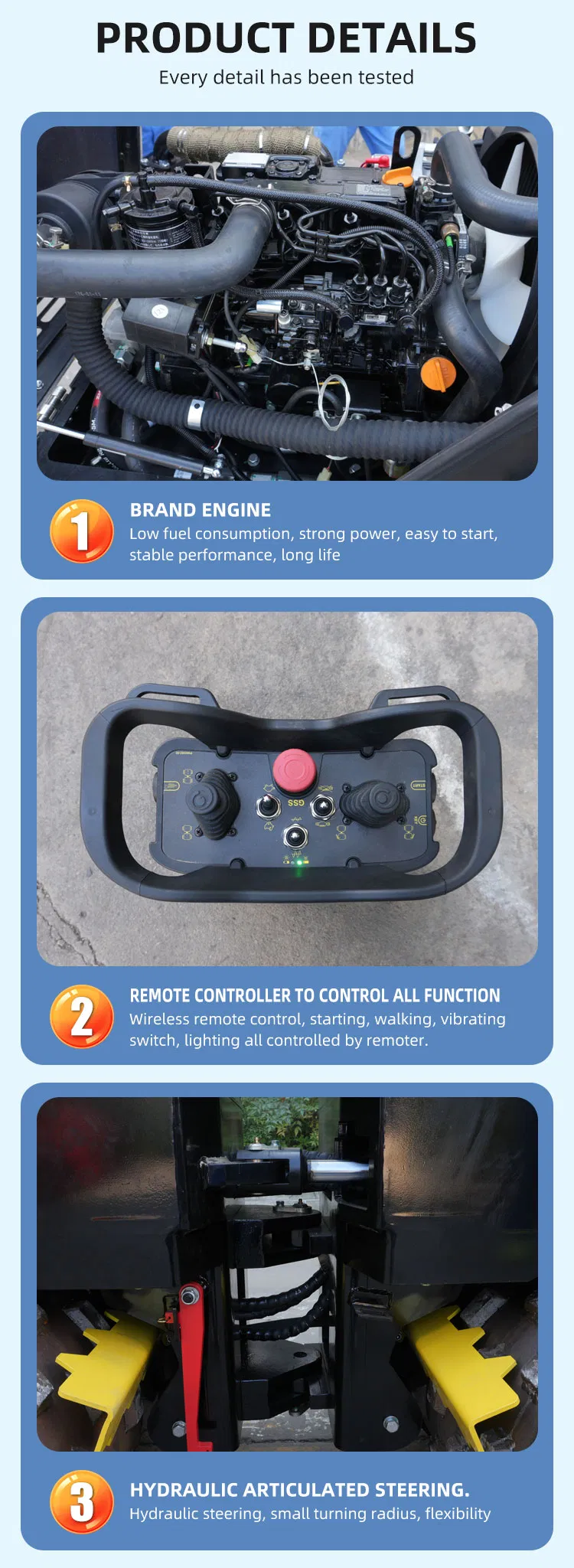

A3: The FYL-R1600T is equipped with a high-performance 24HP Yanmar Diesel Engine (3TNV76), ensuring reliable power and durability for heavy-duty tasks.

Q4: What is the maximum compaction force and depth?

A4: The roller provides a powerful centrifugal force of 70kN and is capable of reaching a compaction depth of approximately 25cm.

Q5: Can the vibration force be adjusted?

A5: Yes, the exciting force can be switched between 70KN and 35KN to suit different soil conditions and compaction requirements.

Q6: What is the gradeability of the FYL-R1600T?

A6: Thanks to its robust hydraulic transmission system, the roller features a gradeability of up to 45%, making it suitable for sloped terrains.
