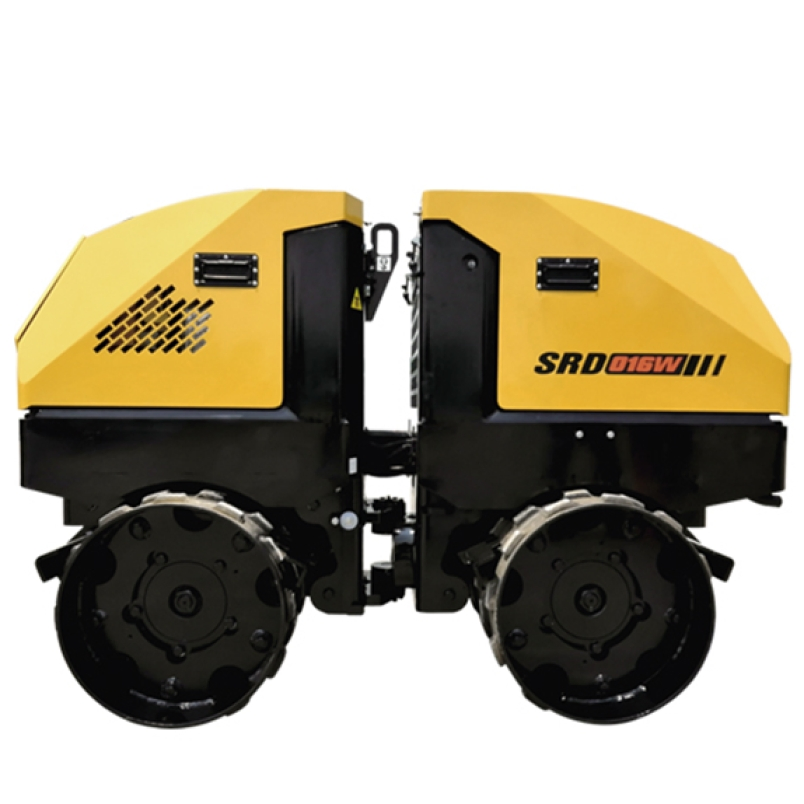

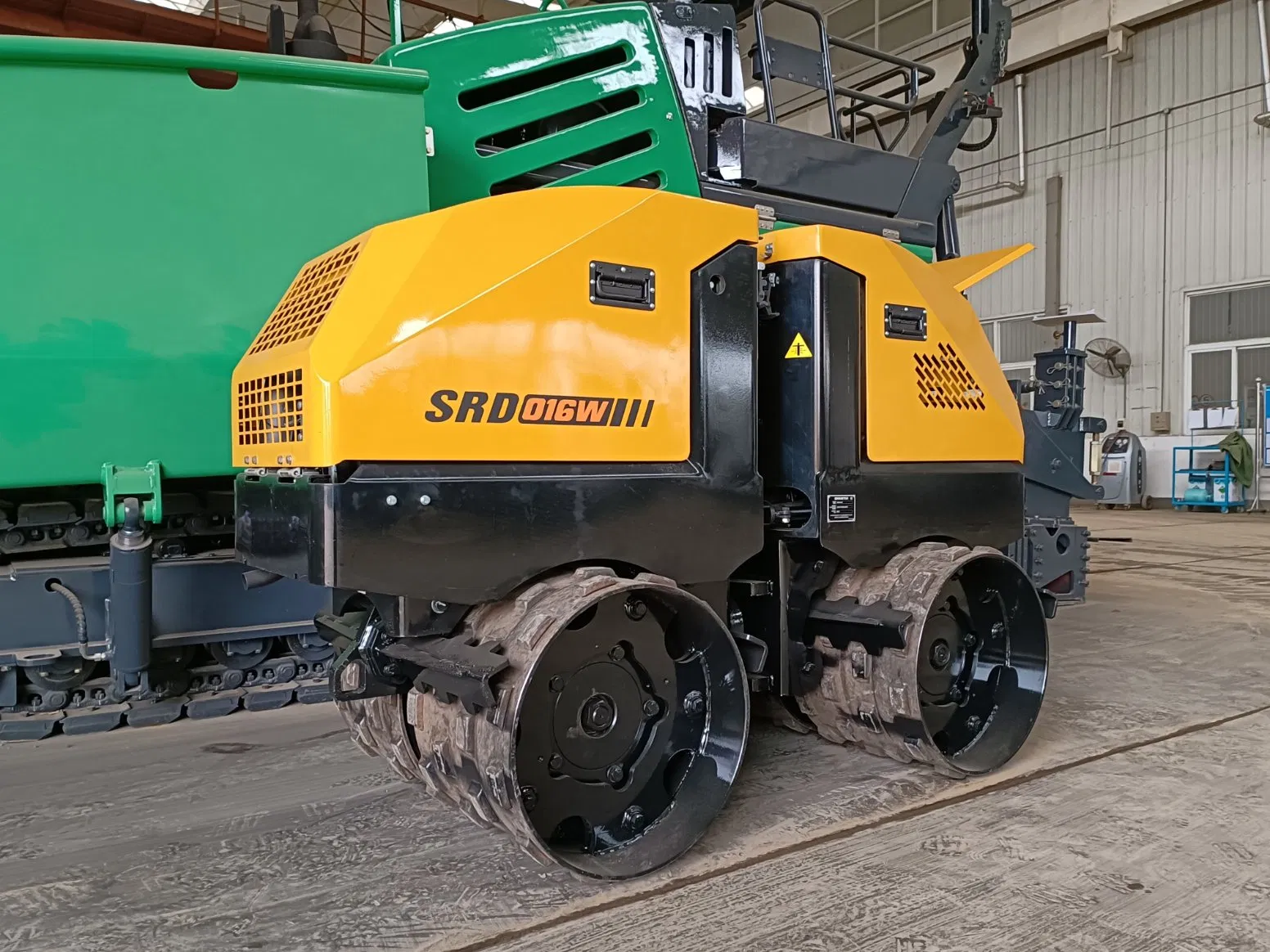

Shantui 1.5 Ton 1.6t Double Drum Mini Road Roller Srd016W Trench Roller

1 / 5

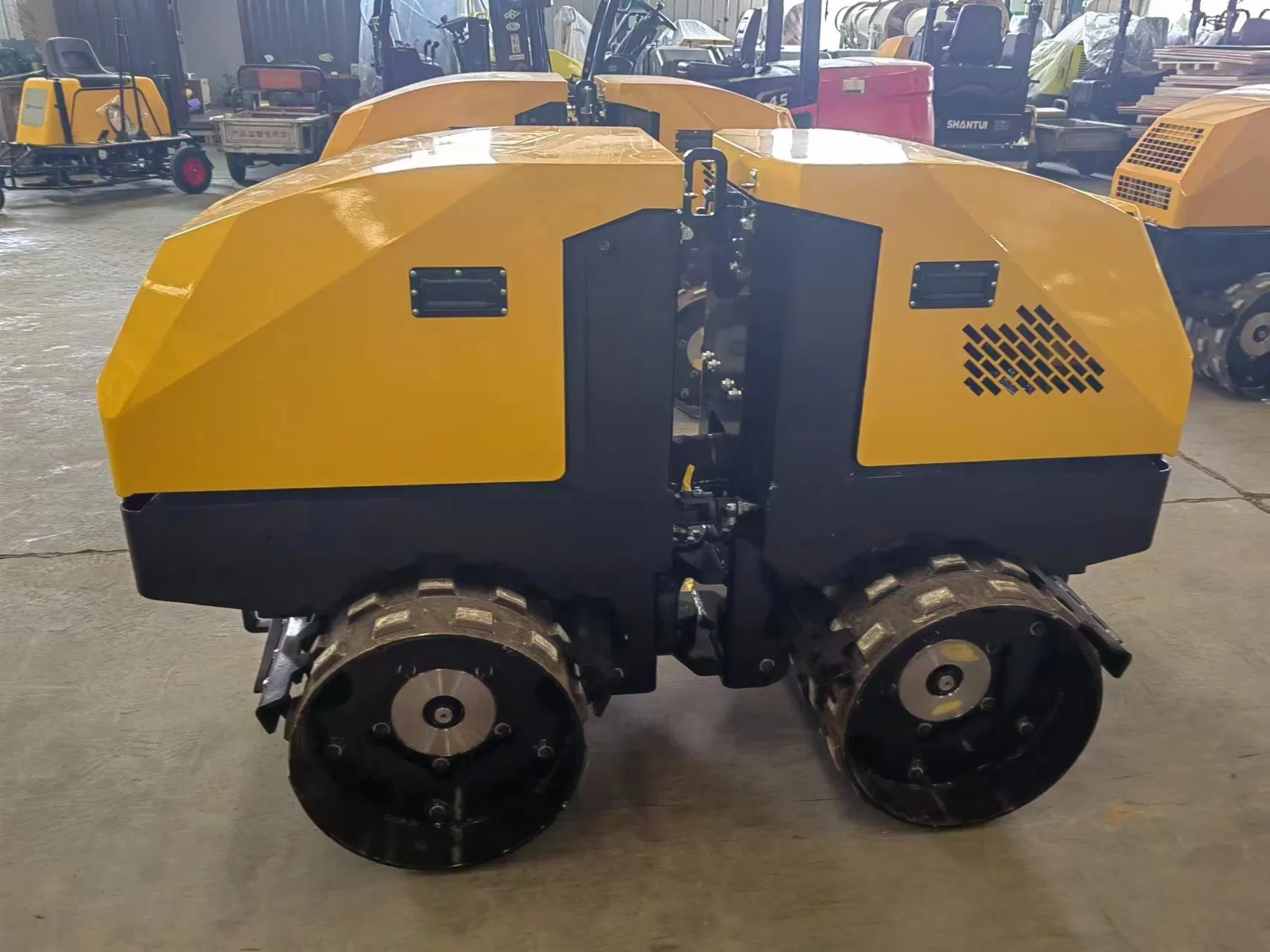

Shantui 1.5 Ton 1.6t Double Drum Mini Road Roller Srd016W Trench Roller

Customization:	Available
After-sales Service:	1 Year After-Sales Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.:Srd016W

Type:Road Roller

Working Method:Vibration

Axle:Biaxial Dual-Drum

Grinding Wheel:Slot Grind

Engine Type:Diesel Engine

Operating Weight:1635kg

Compacting Width:680mm

Exciting Force:70/35kN

Frequency:42Hz

Gradeability:30%

HS Code:8429401900

★

Product Description

1.6t Double Drum Mini Road Roller Trench Roller

1. Controlling Comfort

Adopt bird-wing engine cover design, open both sides of the wing cover, all engine hydraulic pumps are exposed in the operable range.
Maintenance points and maintenance points can be carried out on the ground.

2. Maintenance Convenience

High vibration frequency (67Hz) for maximum compaction efficiency.
Electro-hydraulic control technology with international matching components ensures reasonable vibration start/stop times and uniform compaction.

3. Driving Environment

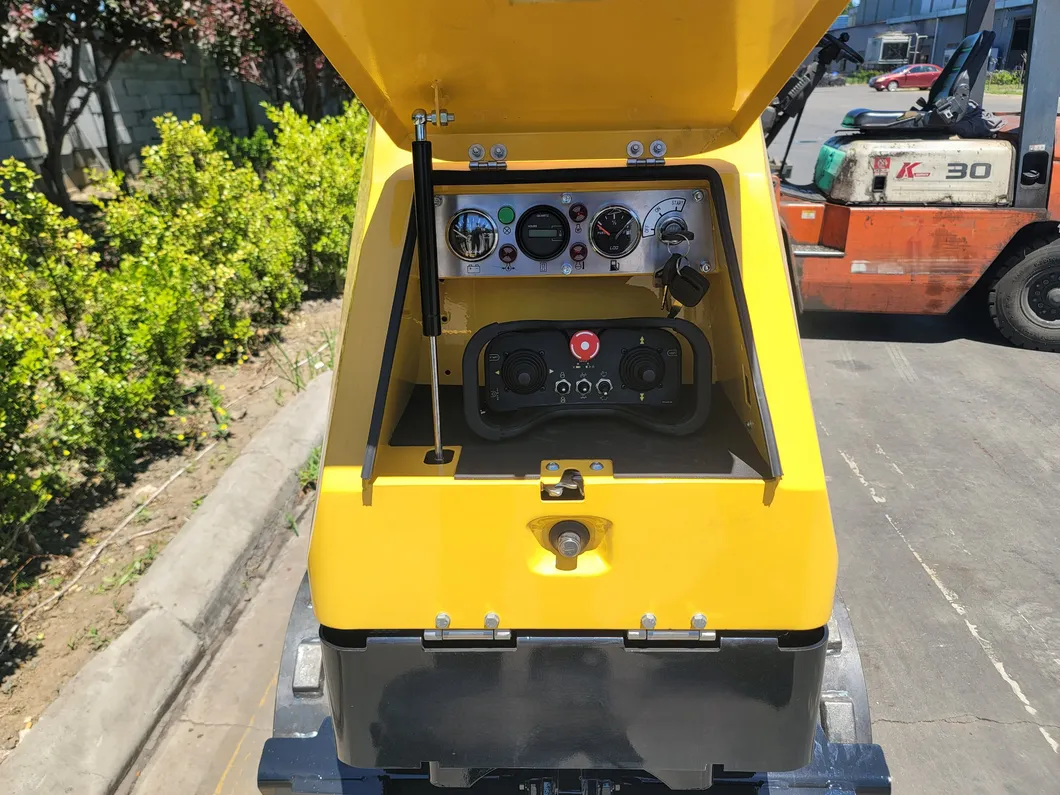

Console and driver's seat adopt an integral rotating structure (90° rotation left/right) for better field of vision.
Three-level shock absorption, special sealing, low vibration, and low noise.
Full hydraulic drive with three-speed stepless speed change for simple operation.

📋

Product Parameters

Parameter Name	SRD016W Data
Operating weight (Kg)	1635
Exciting force (KN)	70/35
Vibration frequency (Hz)	42
Nominal amplitude (mm)	1.7
Gradeability (%)	30
Engine model	3TNV76/3TNV80(T4F)/GX630
Rated power (kW/rpm)	25hp/3200 or 20.0hp/2800
Overall dimensions (mm)	11206801110
Travel speed (km/h)	0-2.4
Fuel tank capacity (L)	30
Compacting width (mm)	680

📷

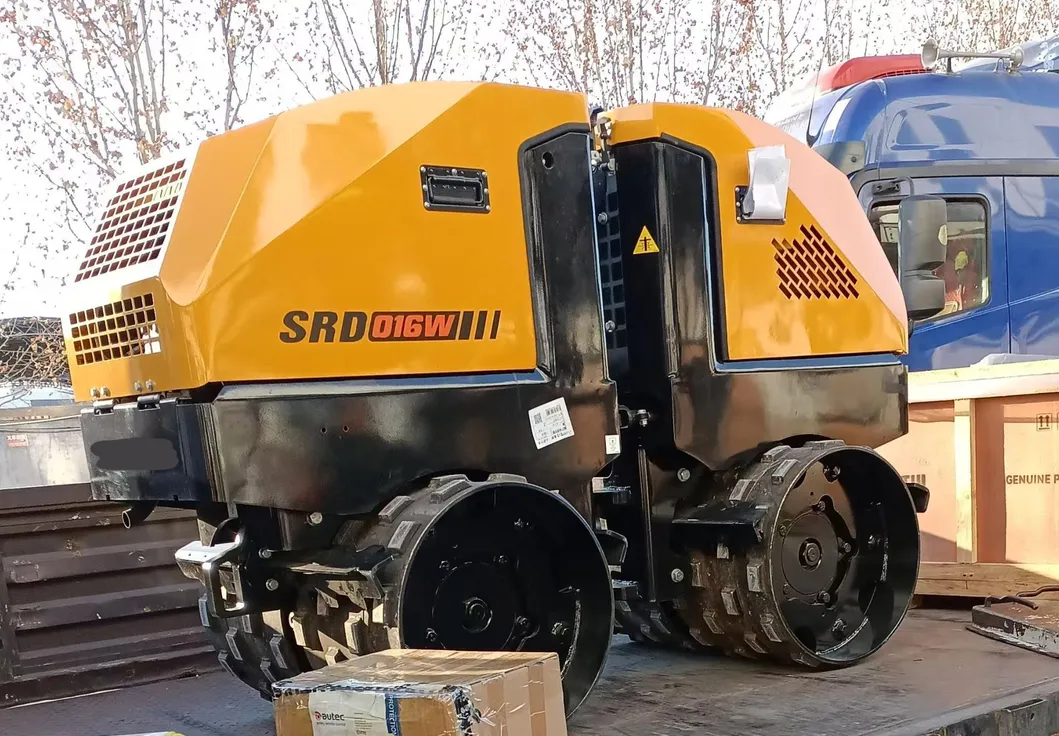

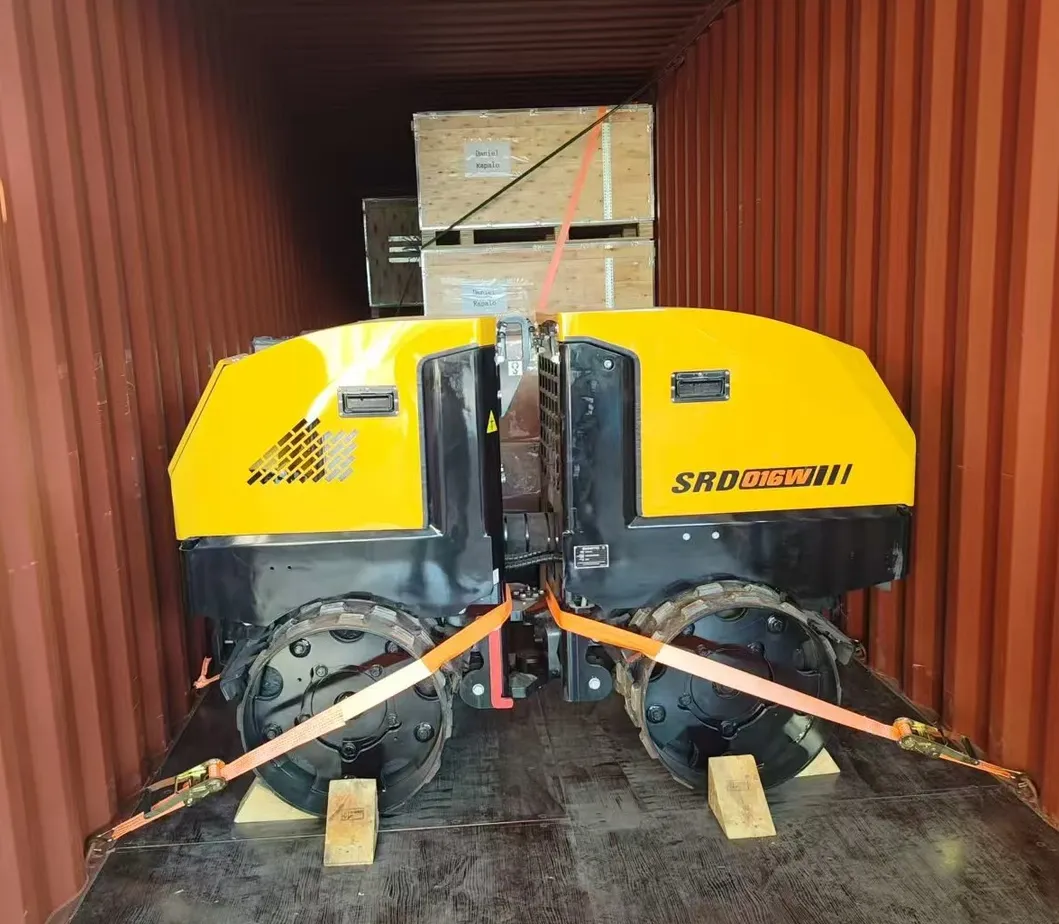

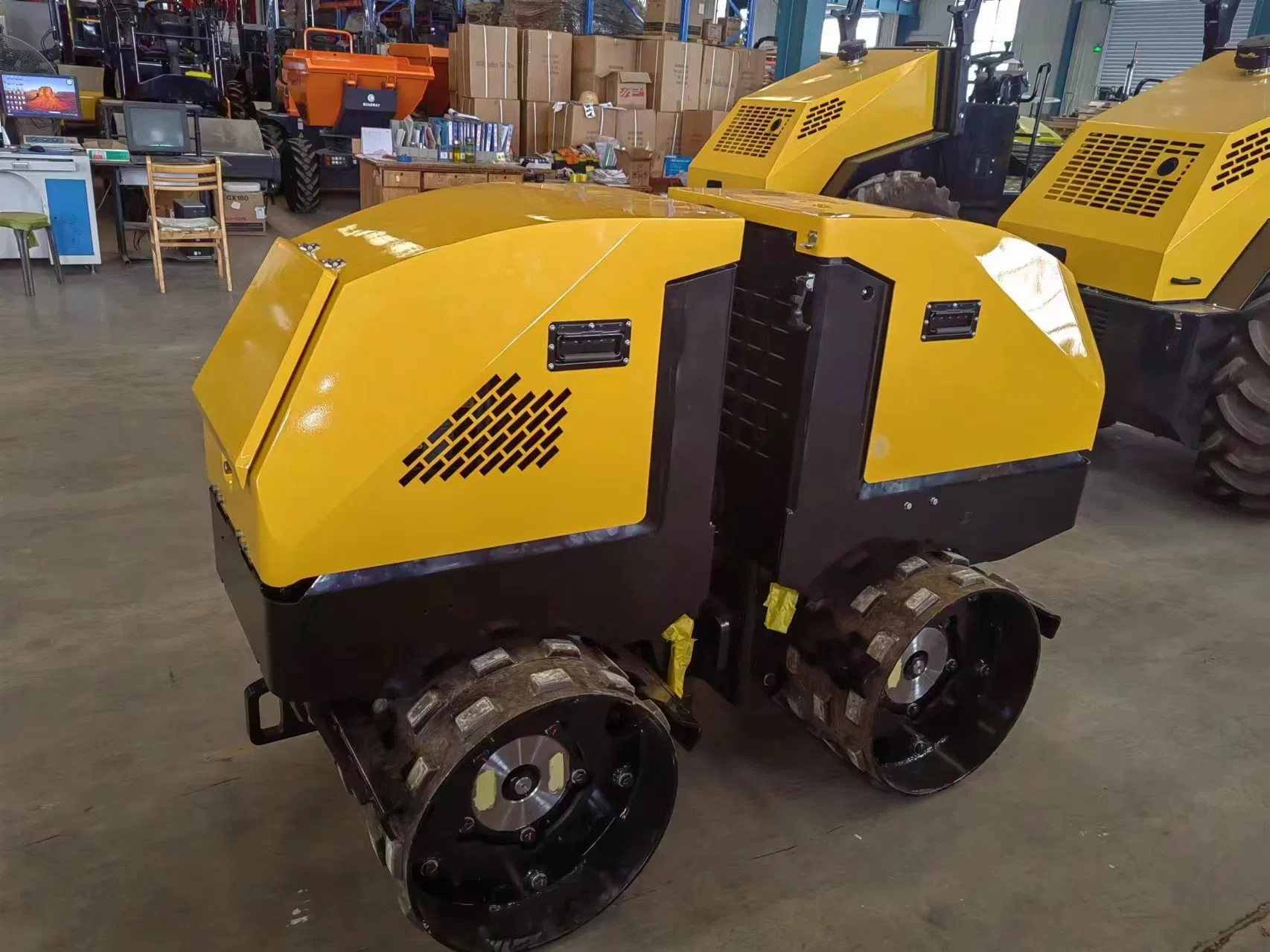

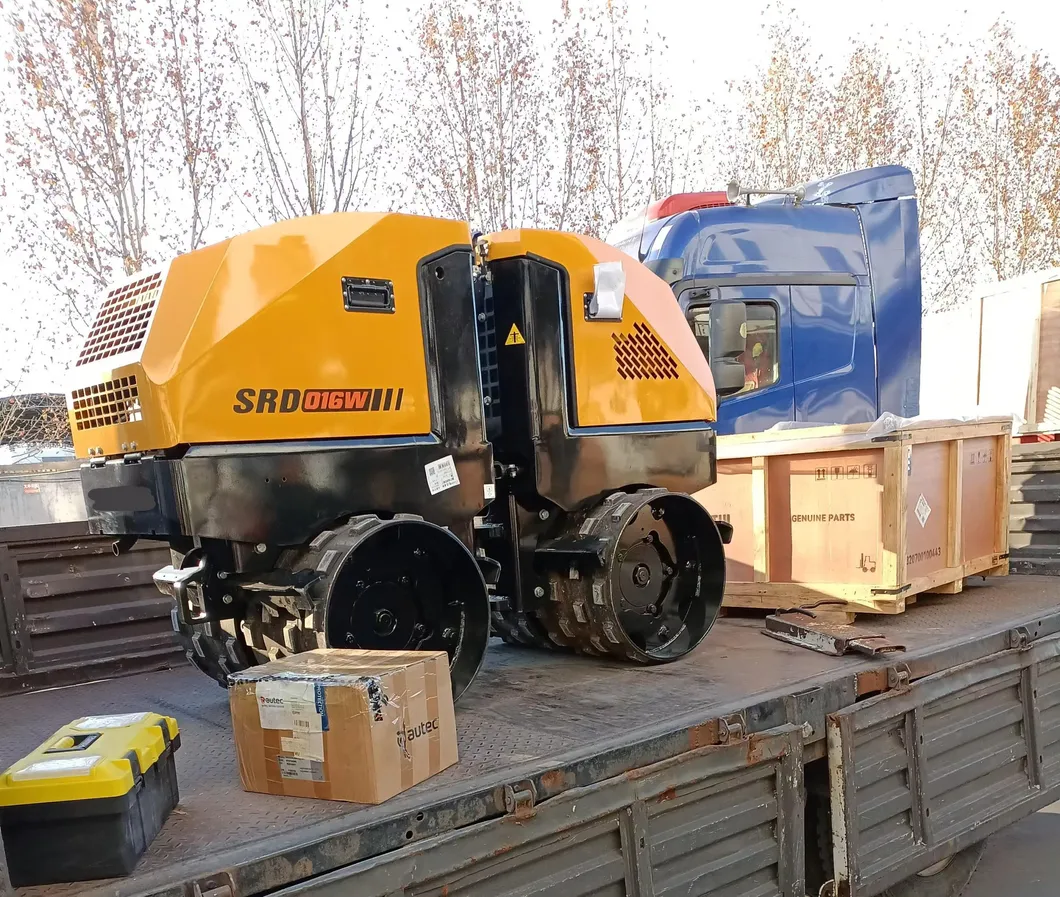

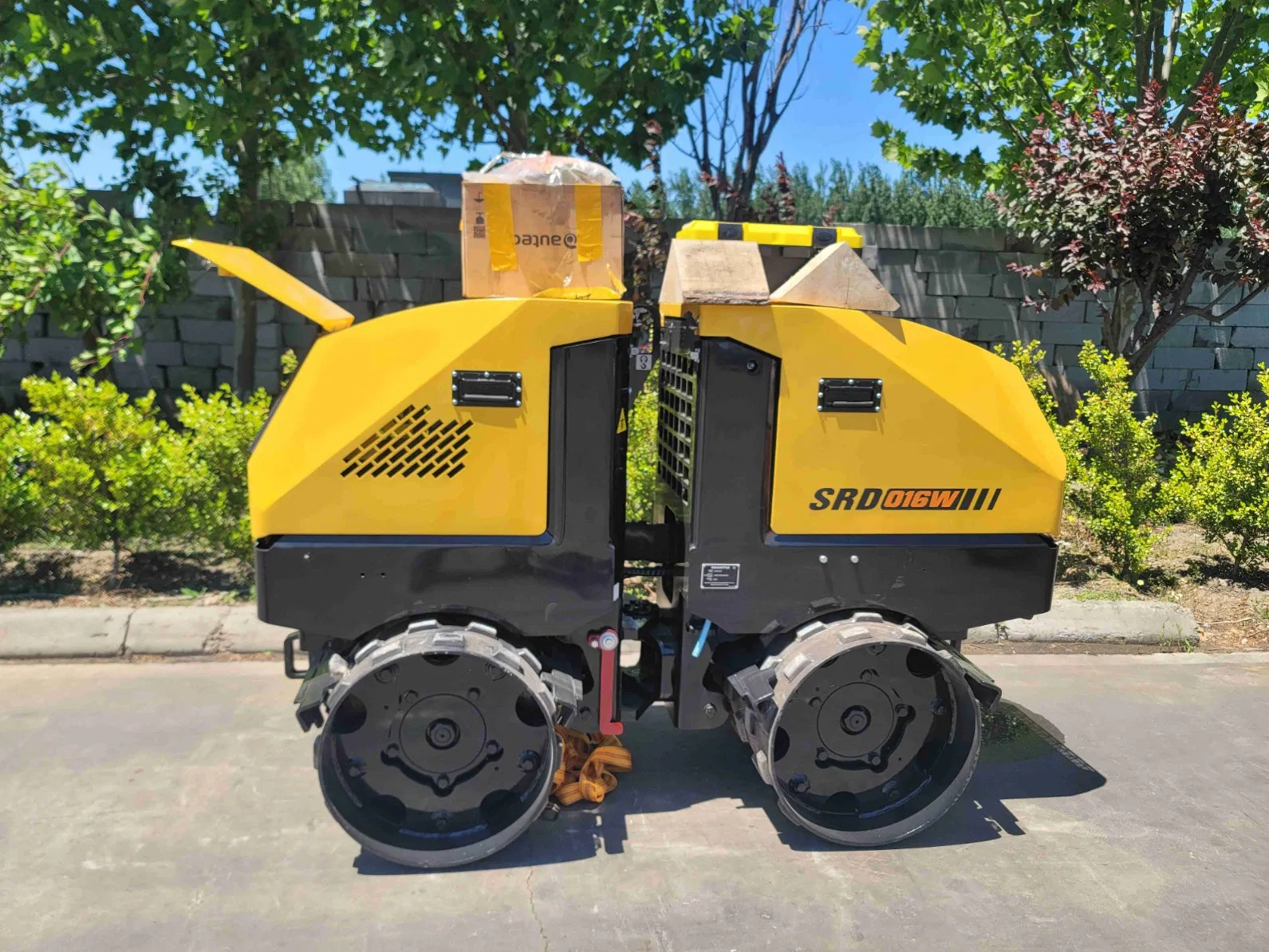

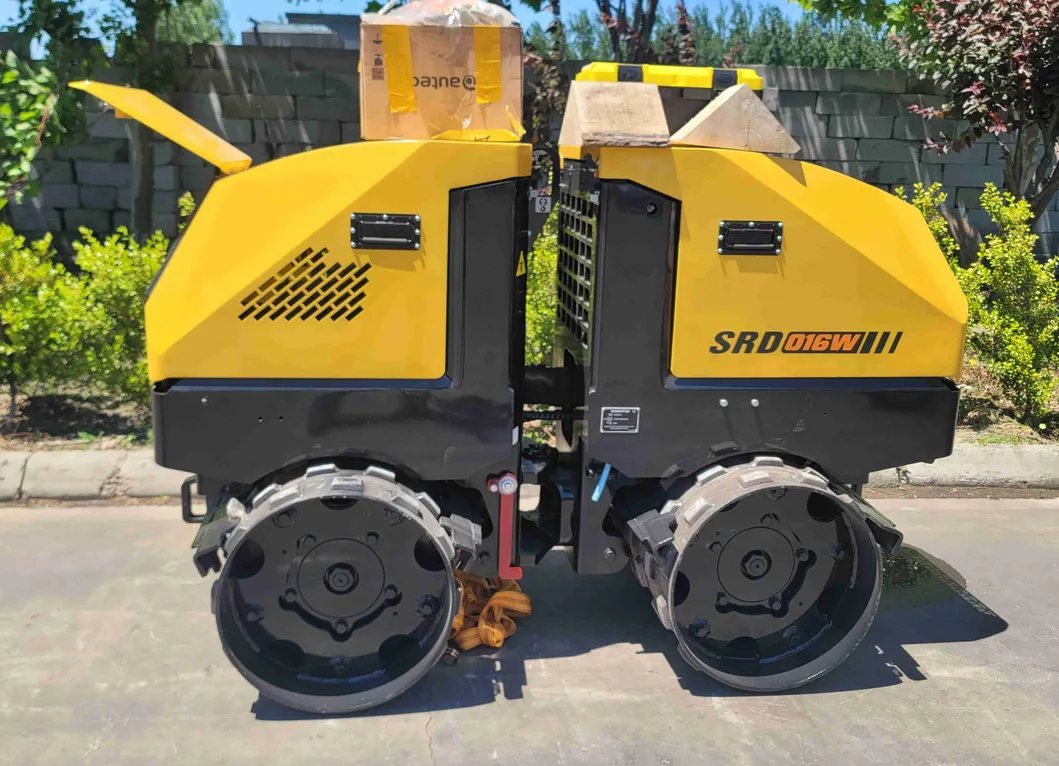

Detailed Photos

🏭

Professional Display

Frequently Asked Questions

Q1: What is the operating weight of the SRD016W mini road roller?

A1: The operating weight of this model is 1635kg, making it ideal for compact construction sites and trench work.

Q2: Which engine models are available for this roller?

A2: It can be equipped with either diesel engines (3TNV76 / 3TNV80 T4F) or a Honda GX630 gasoline engine depending on your power requirements.

Q3: What is the compaction width of the drum?

A3: The compacting width is 680mm, which provides a good balance between efficiency and accessibility in tight spaces.

Q4: Can this road roller handle inclines?

A4: Yes, the SRD016W has a gradeability of 30%, allowing it to perform effectively on moderate slopes.

Q5: What are the main features for operator comfort?

A5: It features a 90° rotating console and seat for better visibility, three-level shock absorption for low vibration, and a full hydraulic drive for simple operation.

Q6: Is maintenance easy for this machine?

A6: Yes, it uses a bird-wing engine cover design that opens on both sides, exposing all hydraulic pumps and maintenance points for easy access from the ground.
