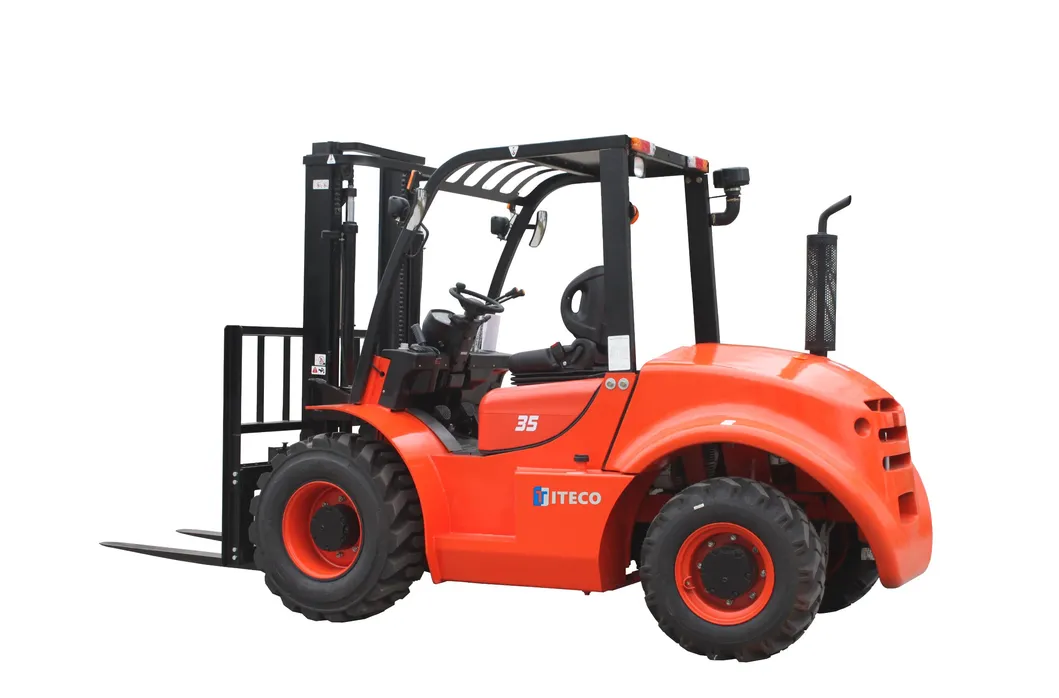

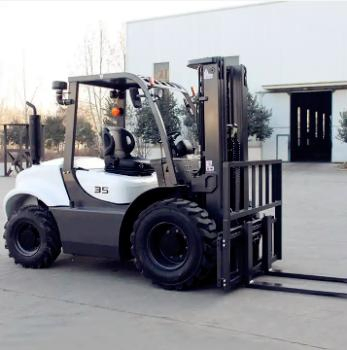

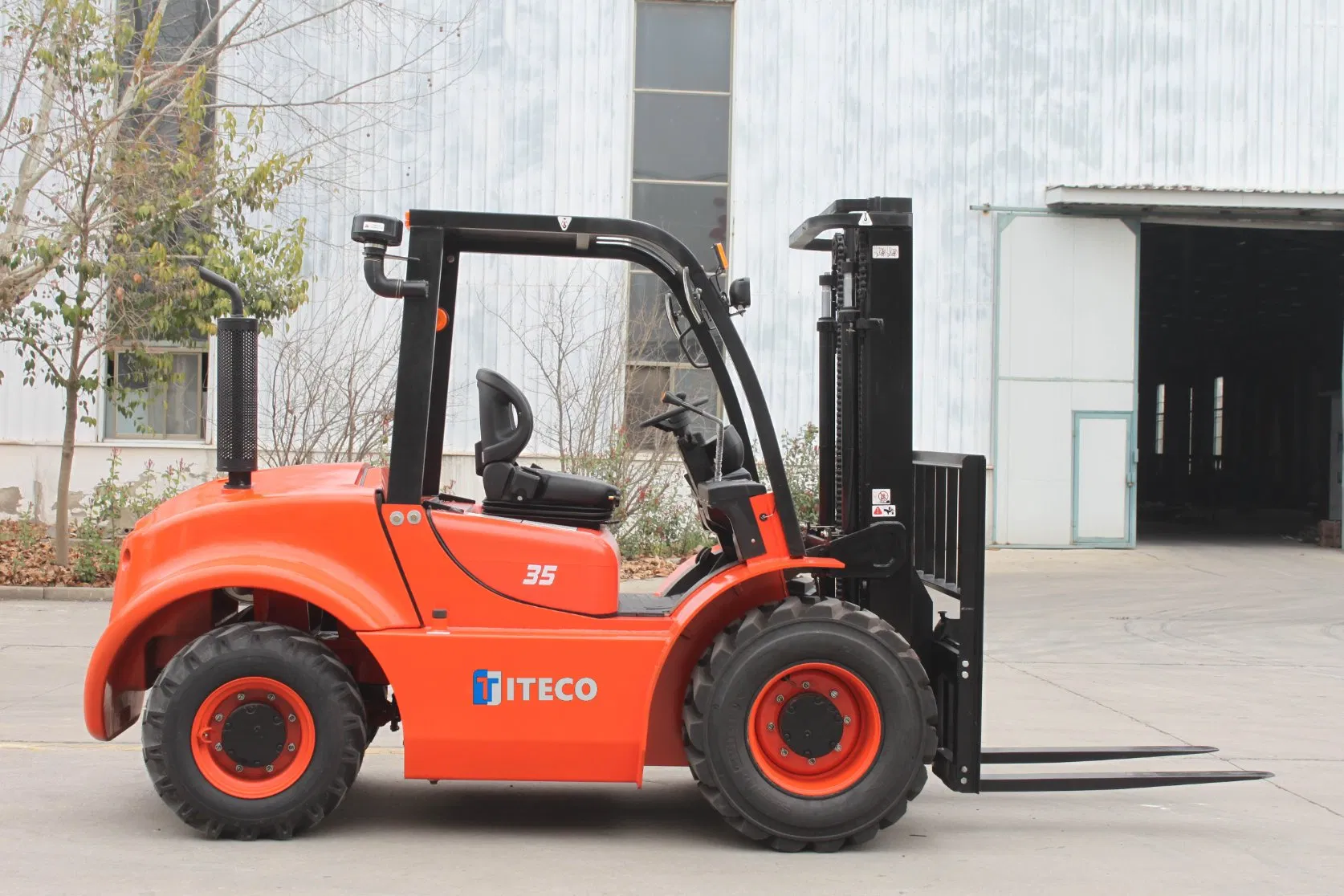

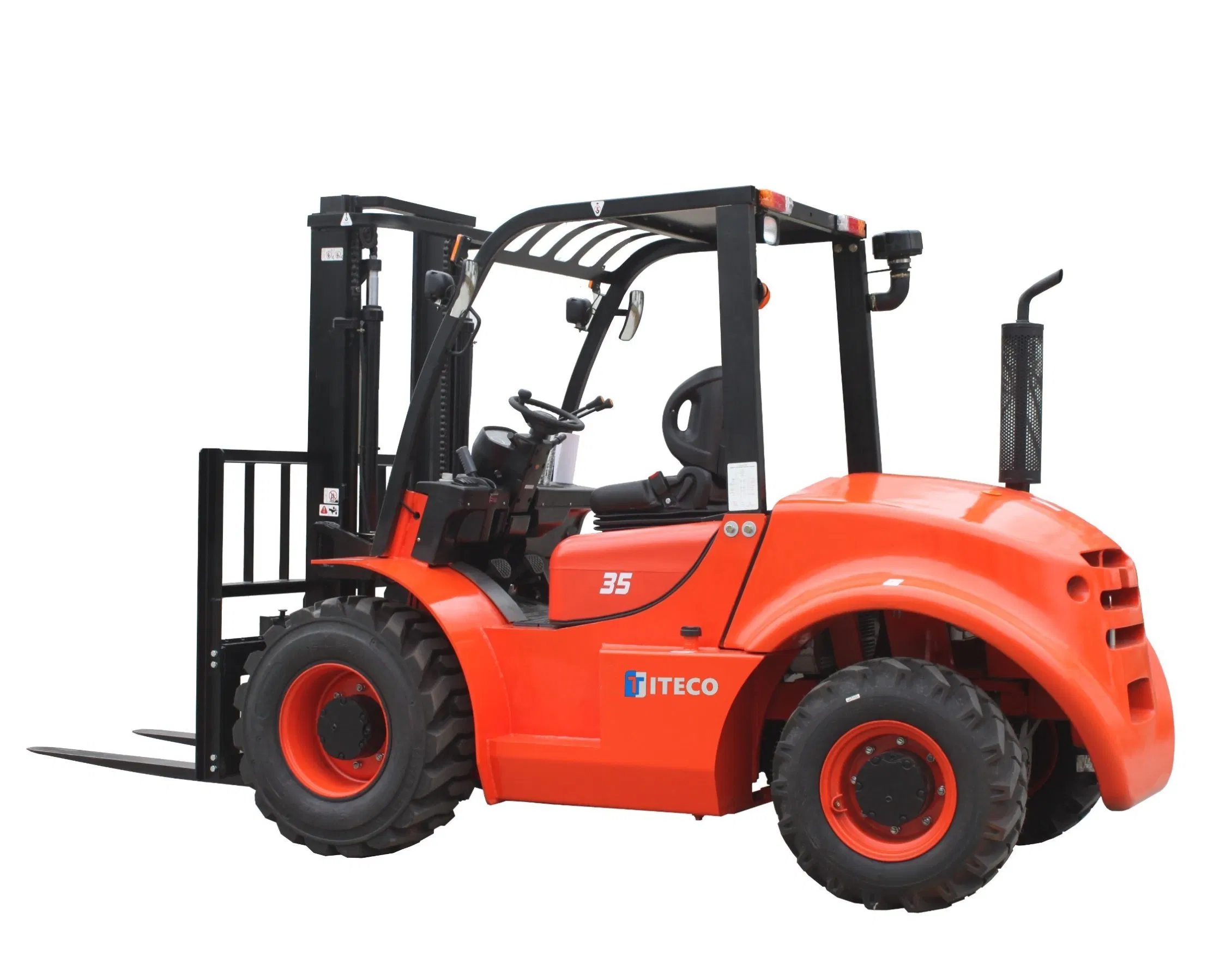

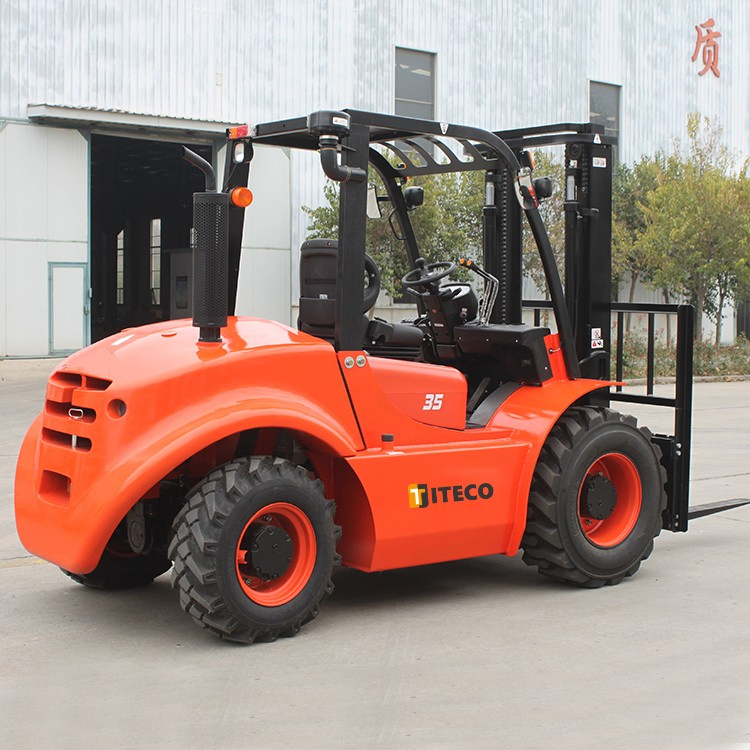

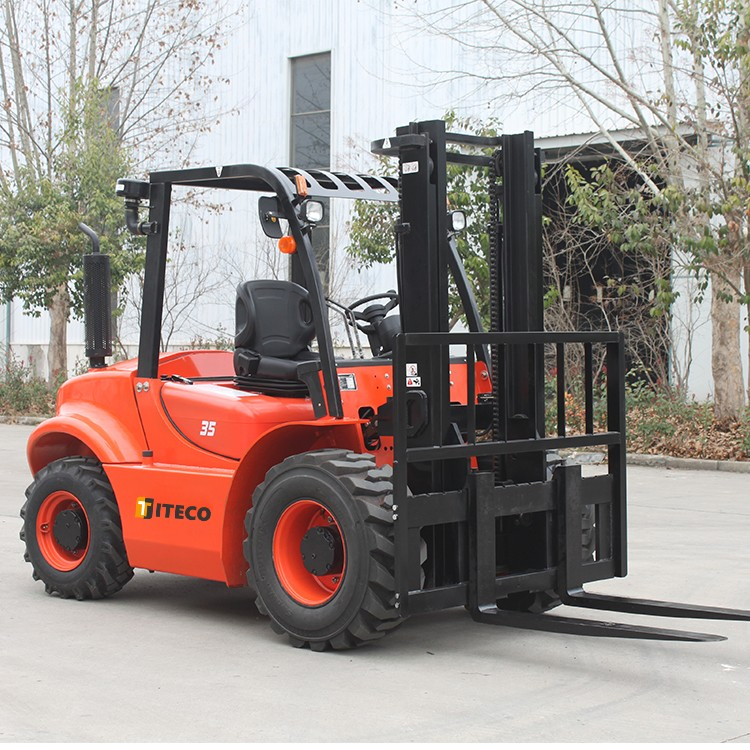

Titeco 2ton-4ton Ride-on Rough Terrain Fork Lift Trucks Mountain Forest Transport off-Road Forklift with Side Shifter/Closed Cabin/Toyota Suspension Seat

1 / 5

Titeco 2ton-4ton Ride-on Rough Terrain Fork Lift Trucks Mountain Forest Transport off-Road Forklift with Side Shifter/Closed Cabin/Toyota Suspension Seat

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Specifications

Model NO.:CPCD20Y

Type:Diesel Forklift

Power:Diesel Engine

Load Capacity:2t

Fuel:Diesel

Load Center:500mm

Lift Height:3000~5000mm

Ground Clearance:230mm

Forklift Weight:4600kg

Min. Turning Radius:2950mm

Lifting Speeds:545mm/s

Package Size:4165*1500*2270mm

★

Product Description

Designed for Harsh Environments & Muddy Roads

Model	Unit	CPCD20Y	CPCD25Y	CPCD30Y	CPCD35Y	CPCD40Y
Load capacity	kg	2000	2500	3000	3500	4000
Load center	mm	500	500	500	500	500
Power type	-	Diesel	Diesel	Diesel	Diesel	Diesel
Max. lifting speed	mm/s	545	545	440	440	400
Max. driving speed	km/h	17/19	17/19	18/20	18/19.8	17.8/19.5
Total Weight	kg	4600	4900	5400	5600	5850
Gradeability	%	45	45	45	45	45
Lifting height	mm	3000	3000	3000	3000	3000
Min. under-clearance	mm	230	230	230	230	230
Overall length	mm	4165	4165	4435	4435	4435
Drive type	-	4WD	4WD	4WD	4WD	4WD

✔

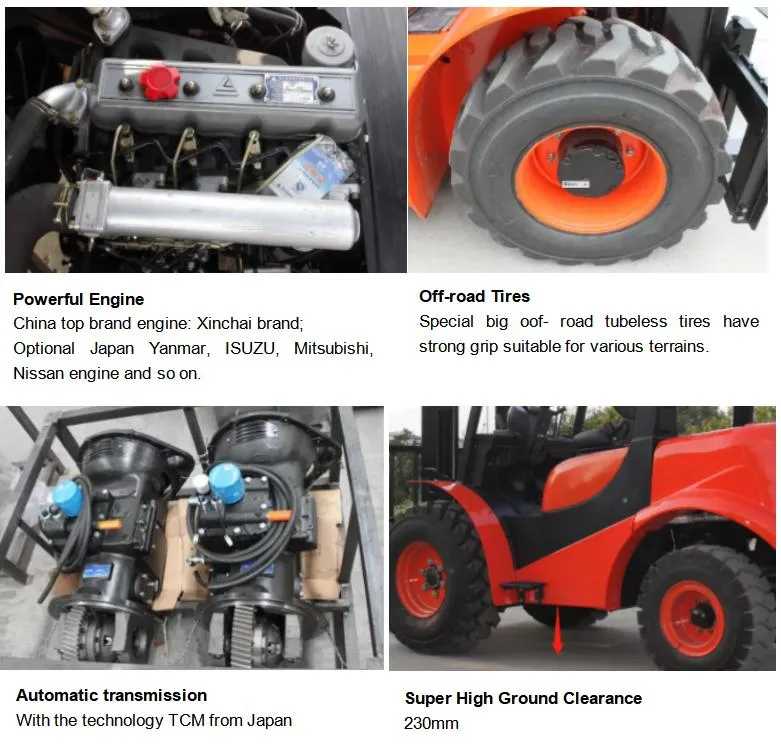

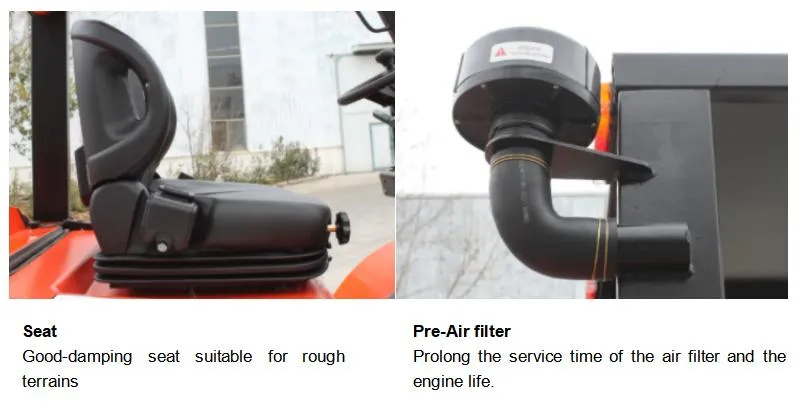

Key Features

●

Professional Steering Axle
Engineered for the worst working conditions, specifically for muddy and uneven terrain.

●

Differential Lock
Transmission equipped with a differential lock to ensure traction in difficult environments.

●

High Ground Clearance
Chassis ground clearance up to 320mm with a 30-degree departure angle for superior passing ability.

●

Rough Terrain Tires
Deep tread and wide driving tires provide excellent stability and skid resistance.

●

Enhanced Visibility
Widened mast design ensures the operator has a clear and safe view during operation.

●

Super Cooling System
Specially increased water tank capacity (1.25x standard) to prevent overheating.

📷

Visual Overview

Frequently Asked Questions (FAQ)

Q1: What are the available load capacities for these rough terrain forklifts? A1: This series offers a range of load capacities including 2000kg (2t), 2500kg, 3000kg, 3500kg, and up to 4000kg (4t).

Q2: Is this forklift suitable for muddy or forest transport? A2: Yes, it is specifically designed for off-road environments. It features 4WD, a professional steering axle for mud roads, and a high ground clearance of up to 320mm.

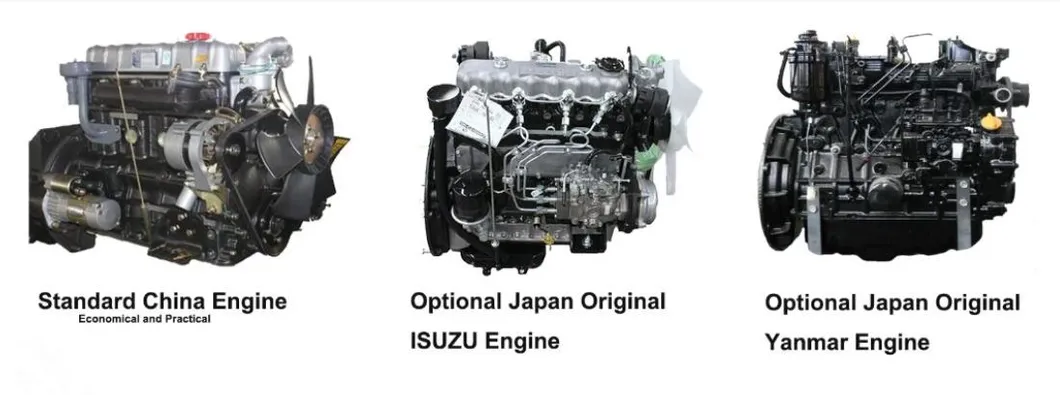

Q3: What kind of engine and transmission does it use? A3: It uses a high-performance diesel engine with an automatic power shift transmission, equipped with a differential lock for better traction.

Q4: Does the forklift have safety features for working on slopes? A4: Yes, it includes a preventing slope sliding function that effectively prevents the machine from sliding when restarting on an incline.

Q5: What is the maximum lift height for the CPCD20Y model? A5: The standard lifting height is 3000mm, but it can be customized to reach between 3000mm and 5000mm depending on your requirements.

Q6: How does the cooling system handle long working hours? A6: It features a super cooling system with a specially increased water tank. The cooling area is 1.25 times larger than similar products, preventing overheating during intensive use.
