| Model NO. | YL202 |
| Type | Road Roller |
| Working Method | Vibration |
| Axle | Biaxial Three-Wheel |
| Grinding Wheel Type | Sheep Foot Roller |
| Compaction Depth | 40cm |
| Engine Type | Honda / Yanmar |
| Certification | CE, ISO 9001:2000 |
| Condition | New |
| Product Name | Vibratory Roller Compactor |
| Power | 20HP |
| Hydraulic Motor | Eaton/White, USA. Output: 125cc |
| Drum Diameter | 520mm |
| Drum Width | 600mm/850mm |
| Weight | 1530kgs / 1635kg (Max) |
| Package Size | 203.00cm * 95.00cm * 146.00cm |
| HS Code | 84306100 |

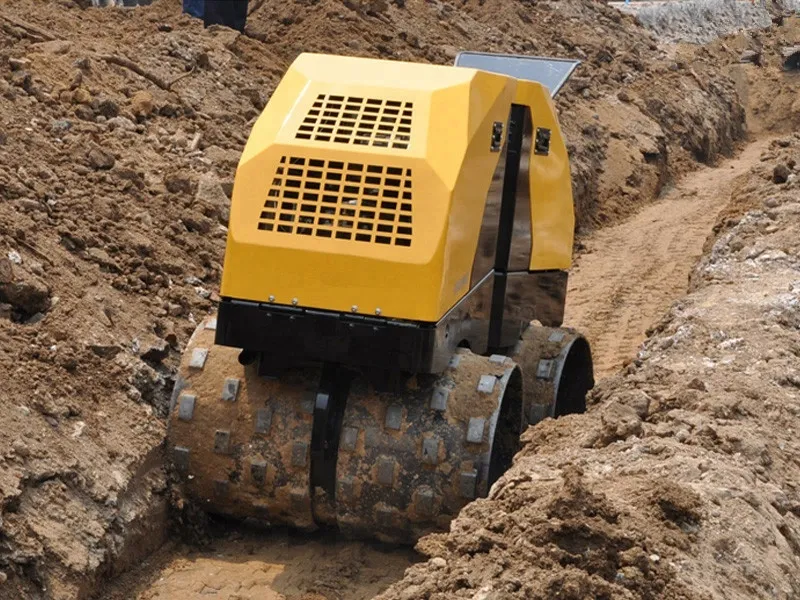

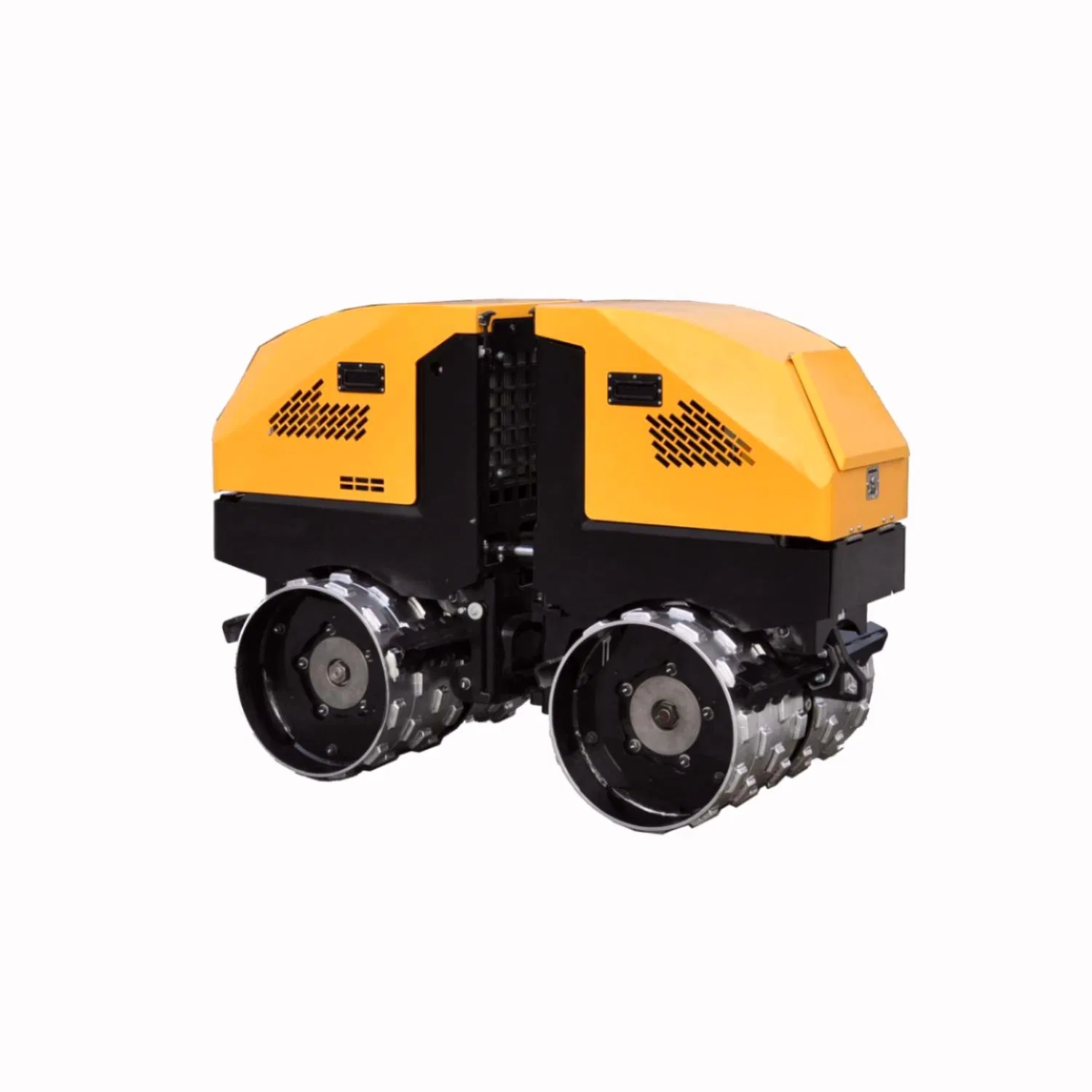

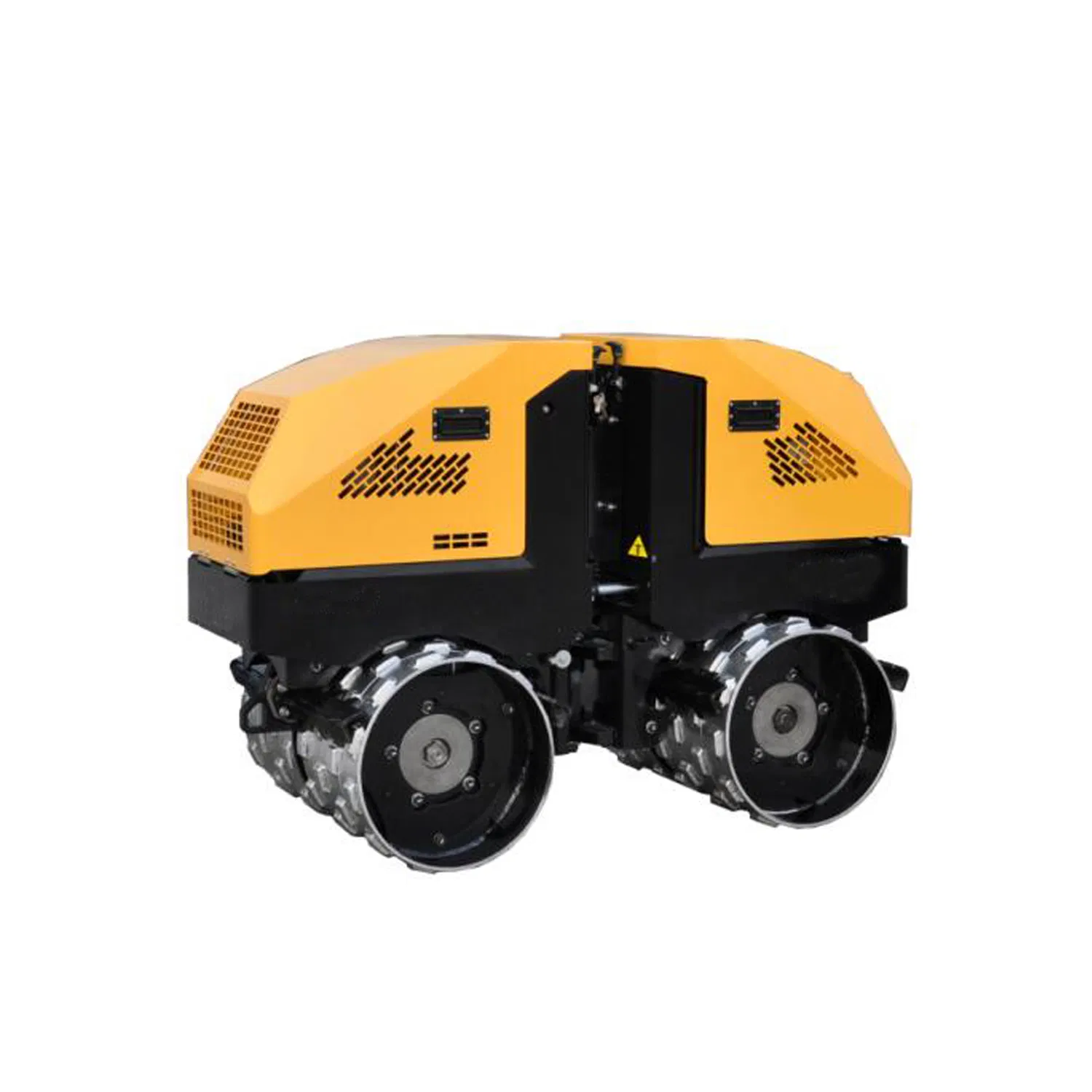

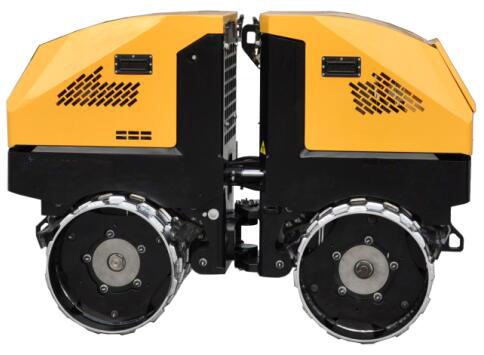

Remote Control Trench Roller RWYL202C
The remote control trench roller is self-developed and designed to fill critical gaps in utility construction. With several national patents, it offers unparalleled performance in specialized compaction tasks.
| RUN PARAMETERS | |
| Speed | 1.2km/h (low) / 2.4km/h (high) |
| Turning Radius | 1700mm |
| Climbing Capacity | 50% (Theoretical) |
| COMPACTION PERFORMANCE | |
| Static Load Forward/Back | 98/90N/cm |
| Nominal Amplitude | 1.7mm |
| Vibration Frequency | 42Hz |
| Exciting Force | 70kN / 35kN (Hydraulic Control) |
| ENGINE DETAILS | |
| Model | YANMAR Diesel Engine |
| Type | Water cooled, 4-stroke, 3-cylinder |
| Fuel Tank Volume | 30L |
| Fuel Consumption | 281g/kWh |
| DIMENSIONS & WEIGHT | |
| Width of Steel Wheel | 600mm / 850mm |
| Total Dimensions | 1900 x 850 x 1300mm |
| Max Working Weight | 1635kg |
