Remote Control Trench Double Drum Hydraulic Vibratory Road Roller Manufacturer

1 / 5

Remote Control Trench Double Drum Hydraulic Vibratory Road Roller Manufacturer

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

YL202

Type

Road Roller

Working Method

Vibration

Axle

Biaxial Three-Wheel

Grinding Wheel

Sheep Foot Roller

Compaction Depth

40cm

Engine Type

Honda / Yanmar

Travel Speed

2.4m/H

Centrifugal Force

70kN

Product Name

Vibratory Roller Compactor

Hydraulic Motor

Eaton/White, USA. Output: 125cc

Drum Width

600mm/850mm

Weight

1530kgs

Package Size

203.00cm * 95.00cm * 146.00cm

Product Description

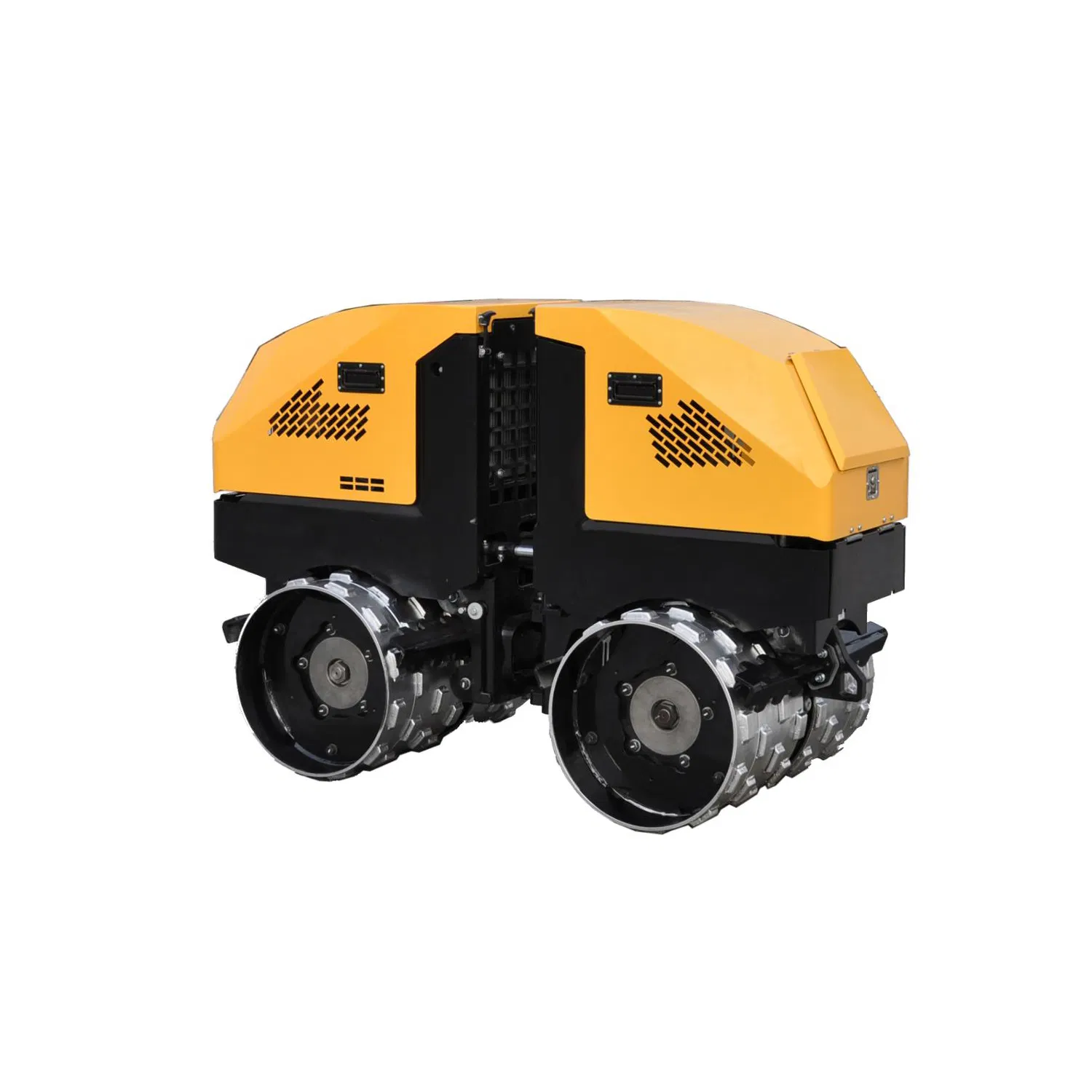

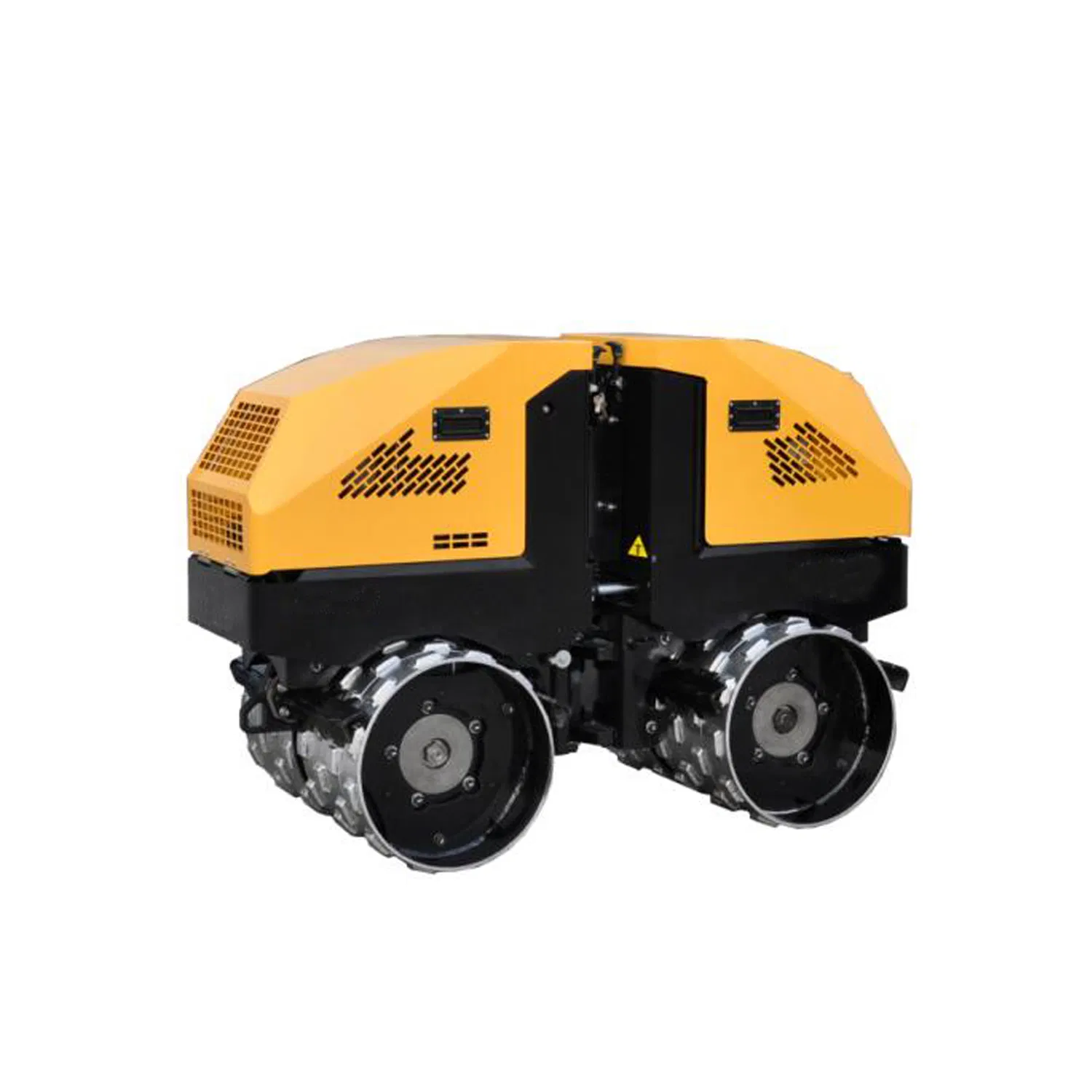

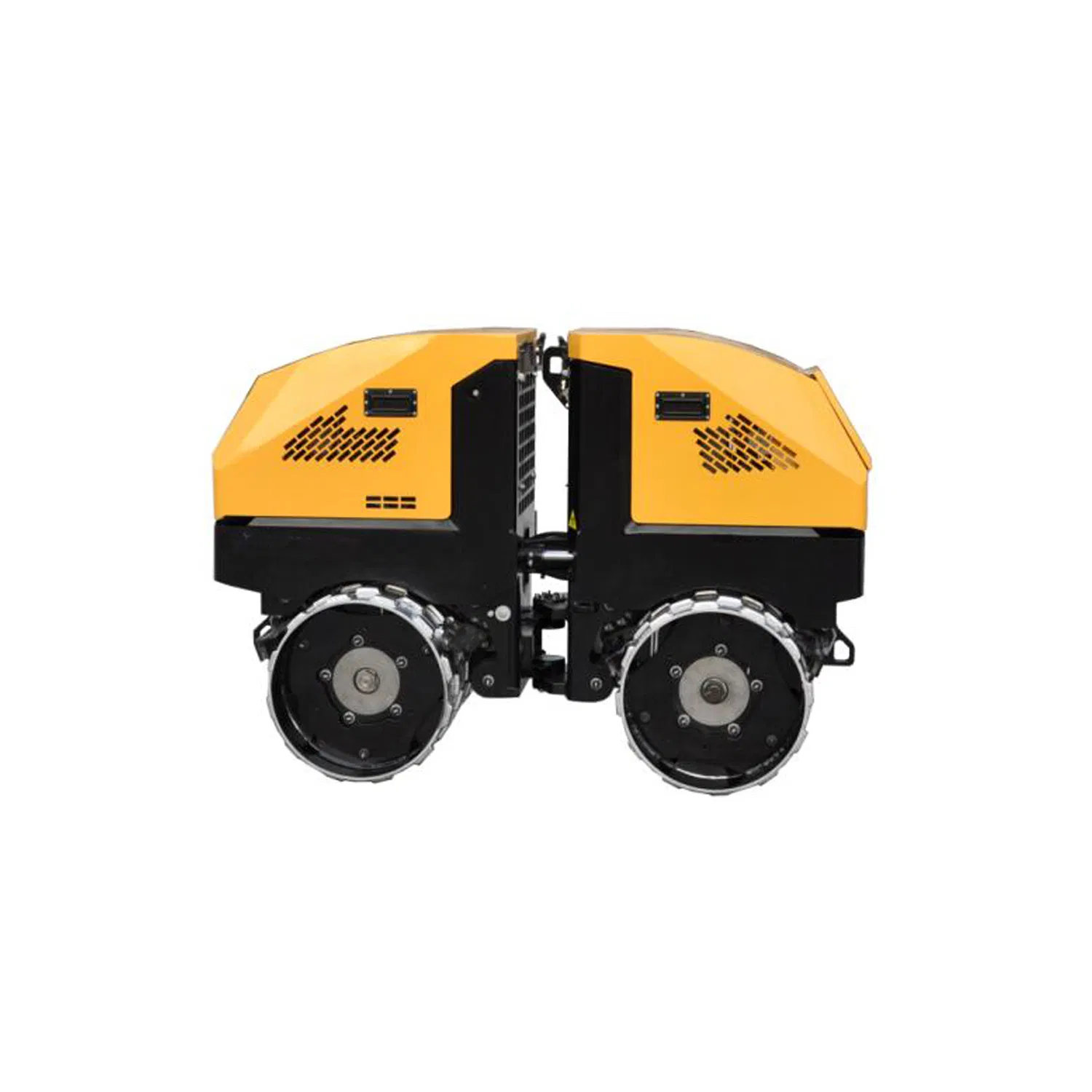

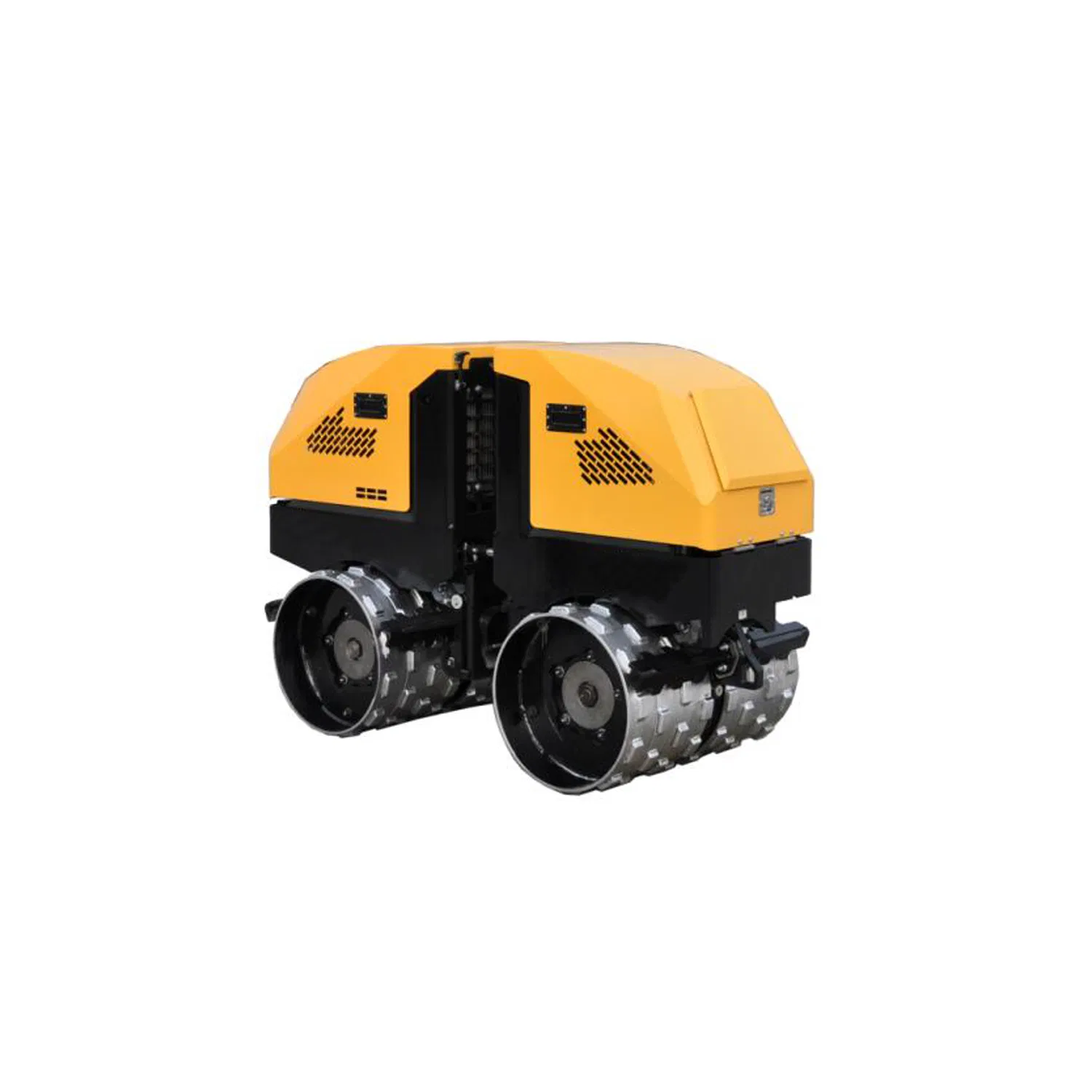

Remote Control Trench Roller RWYL202C

The remote control trench roller is a specialized construction machine designed for efficiency and safety. This product features several national patents and is ideal for various compaction tasks.

Remote controller manages start, stop, forward/backward movement, steering, vibration, and water flow.
Enhanced safety for operators, especially in confined or hazardous areas.
Equipped with a high-performance engine.
Full hydraulic drive, vibration, and steering systems.

Technical Specifications - YL202C
Run Speed	1.2km/h (low) - 2.4km/h (high)
Turning Radius	1700mm
Climbing Capacity	50% (Theoretical)
Static Load (F/B)	98/90 N/cm
Nominal Amplitude	1.7mm
Vibration Frequency	42Hz
Exciting Force	70kN / 35kN (Hydraulic control)
Engine Model	YANMAR Diesel
Engine Type	Water cooled, 4-stroke, 3-cylinder
Power Output	20hp / 3000rpm
Fuel Tank Volume	30L
Dimensions (LxWxH)	1900 x 850 x 1300 mm
Steel Wheel Width	600mm / 850mm
Max Working Weight	1635kg

Visual Display & Details

Featured Products

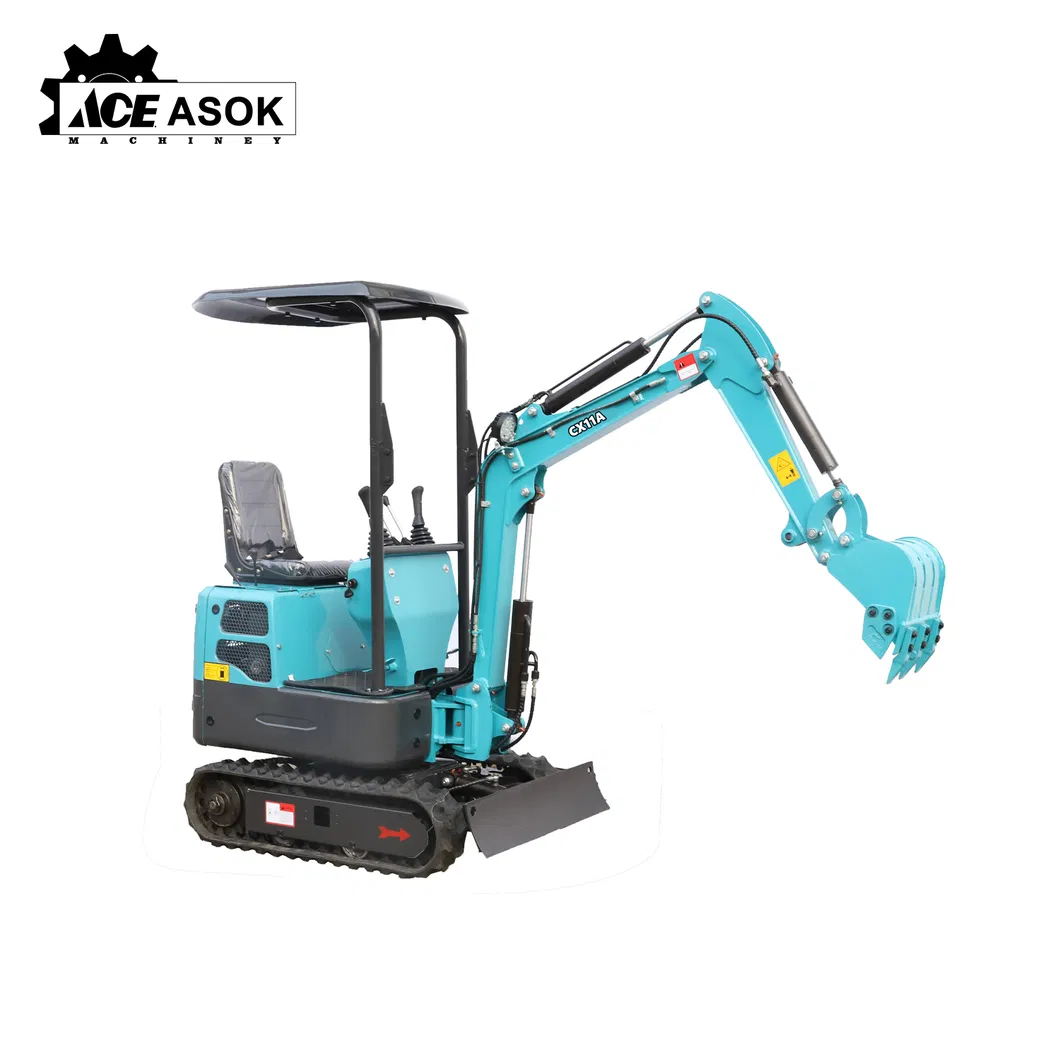

Excavator

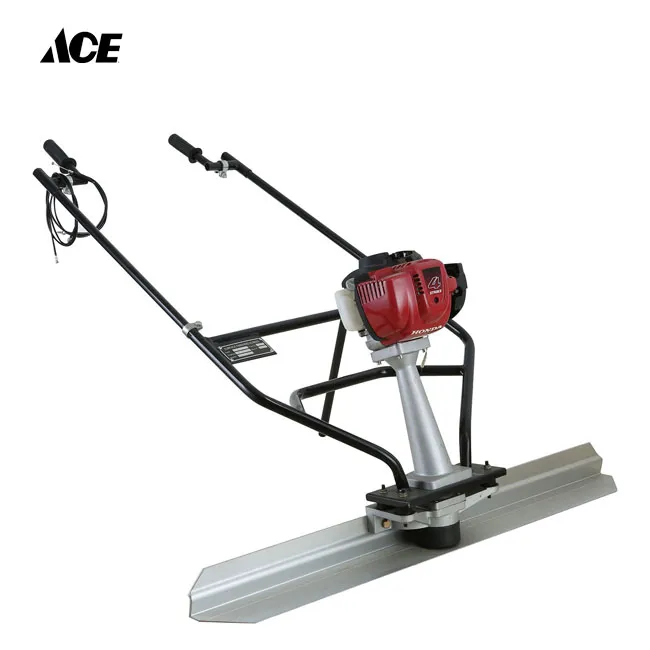

Surface Finishing Screed

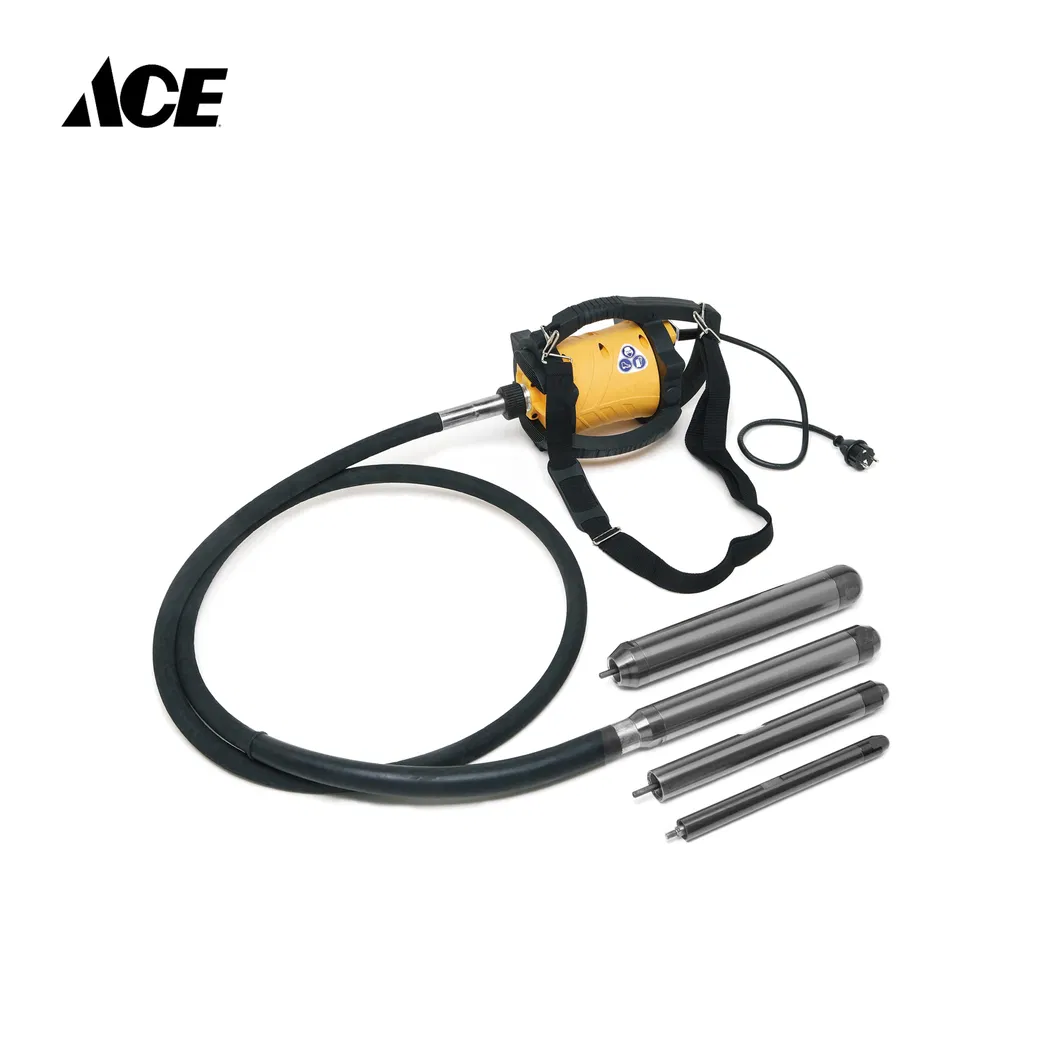

Concrete Vibrator

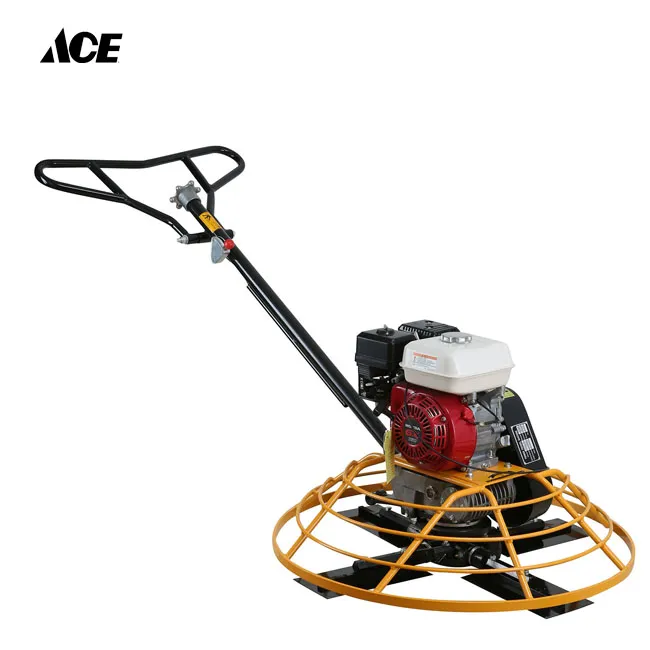

Power Trowel

Remote Control Trowel

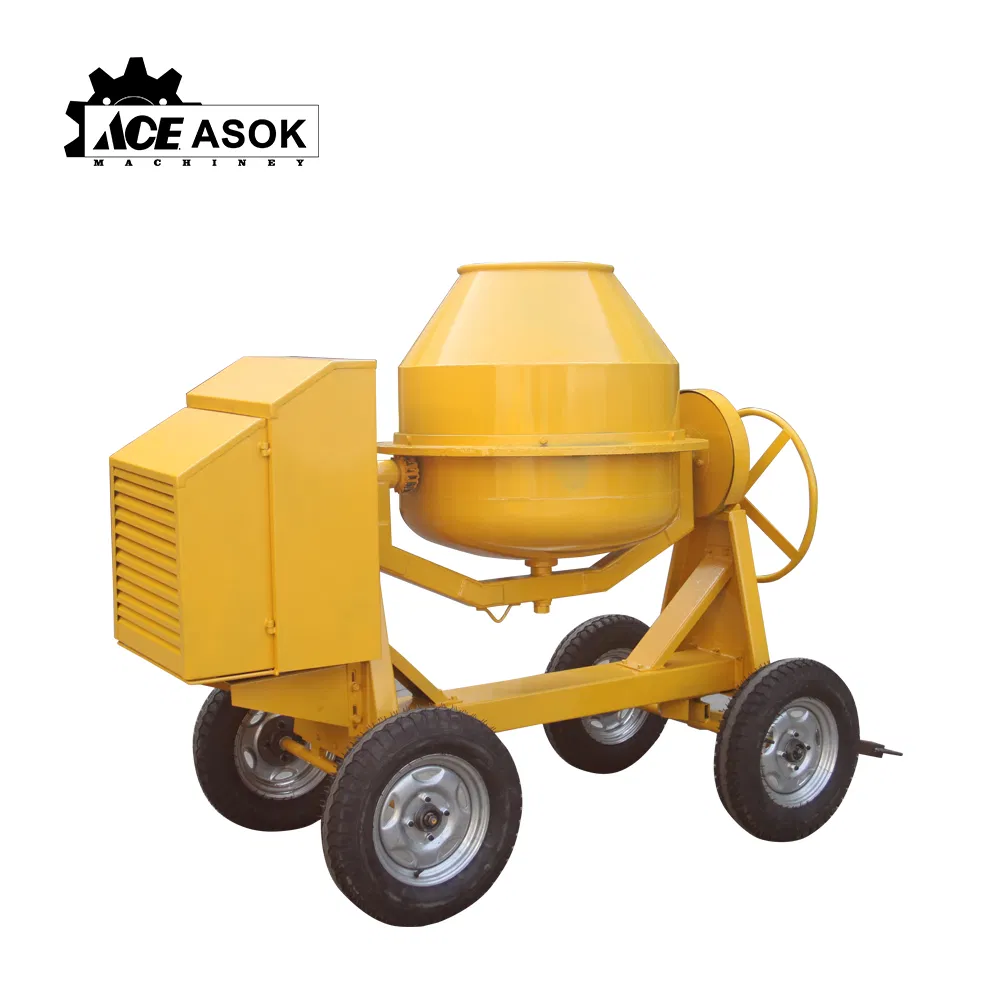

Concrete Mixer

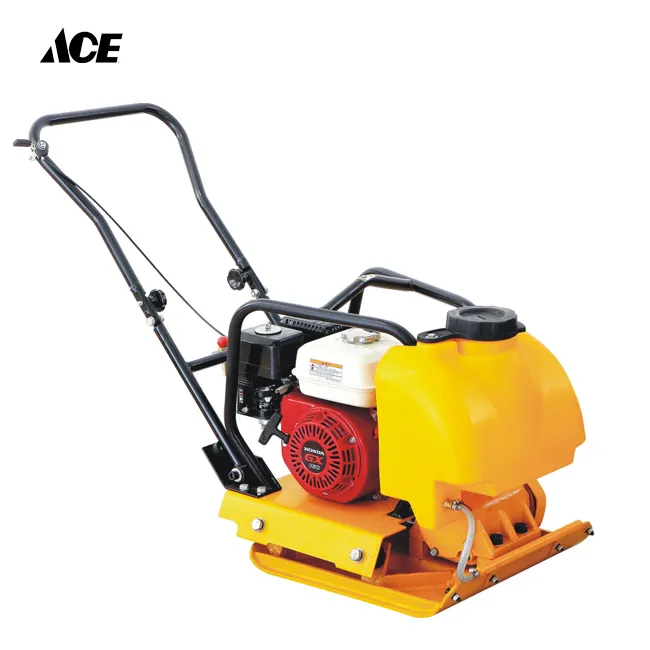

Plate Compactor

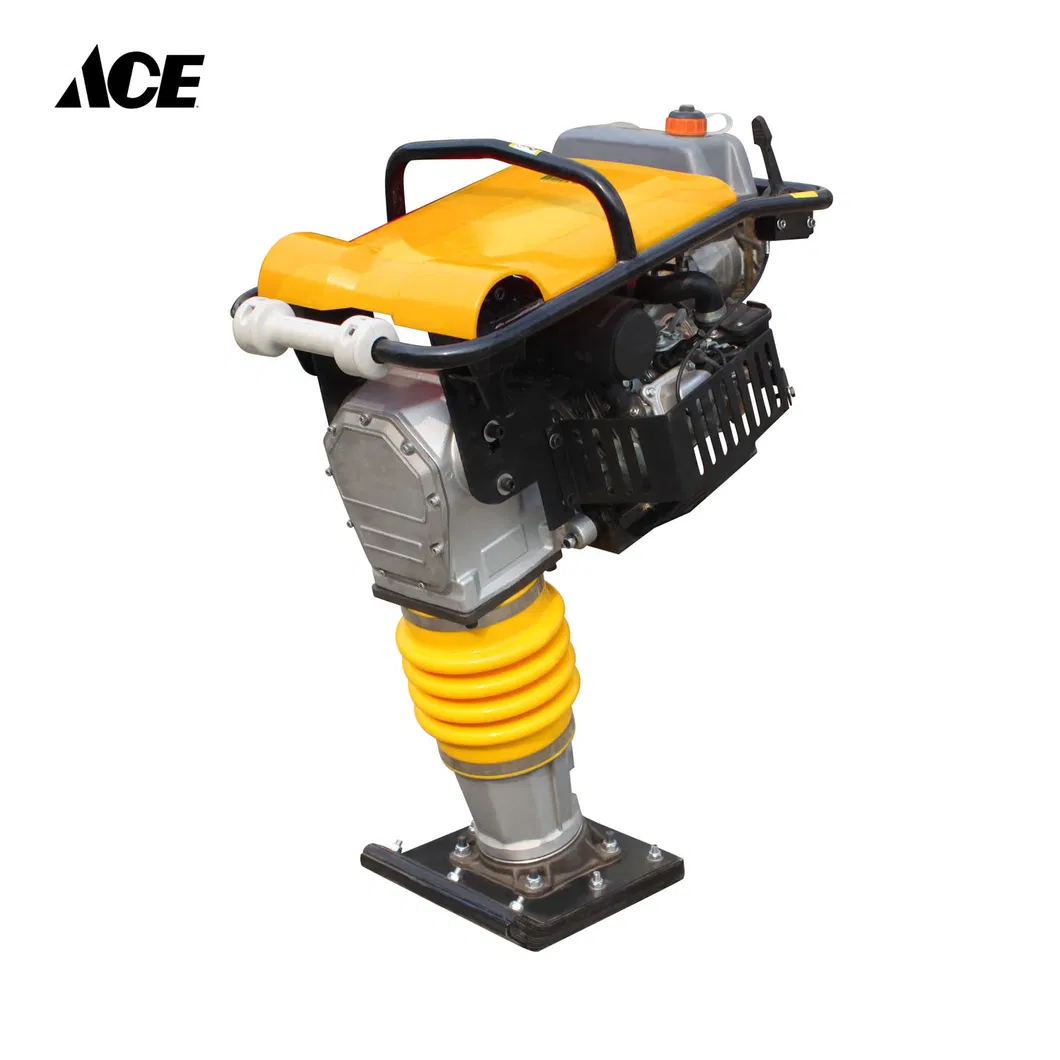

Compactor Machine

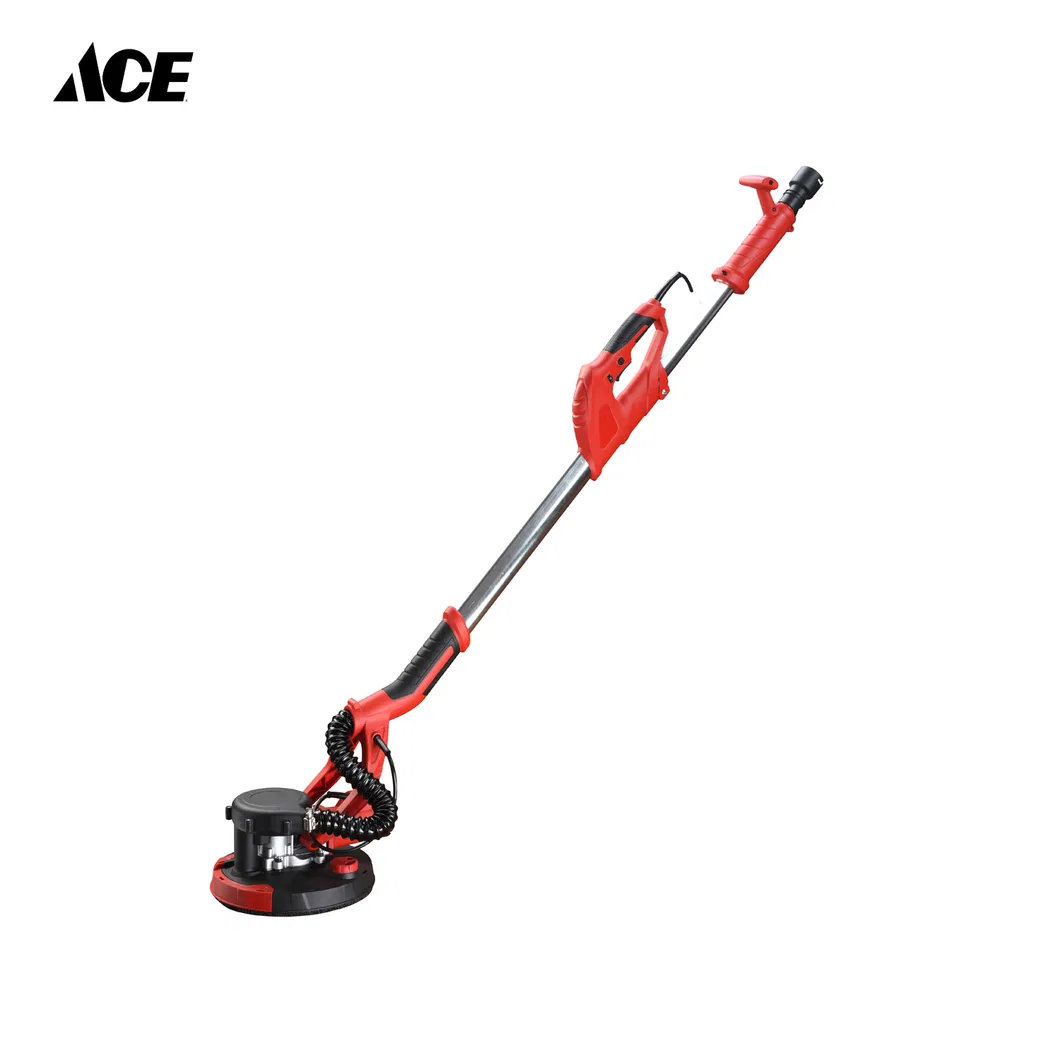

Drywall Sander

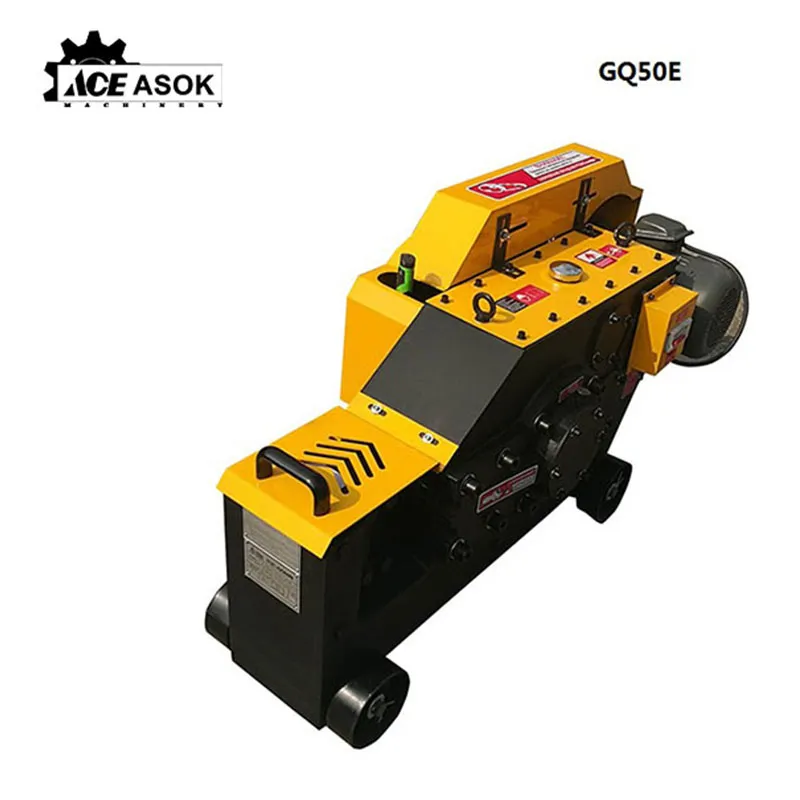

Steel Bar Cutter

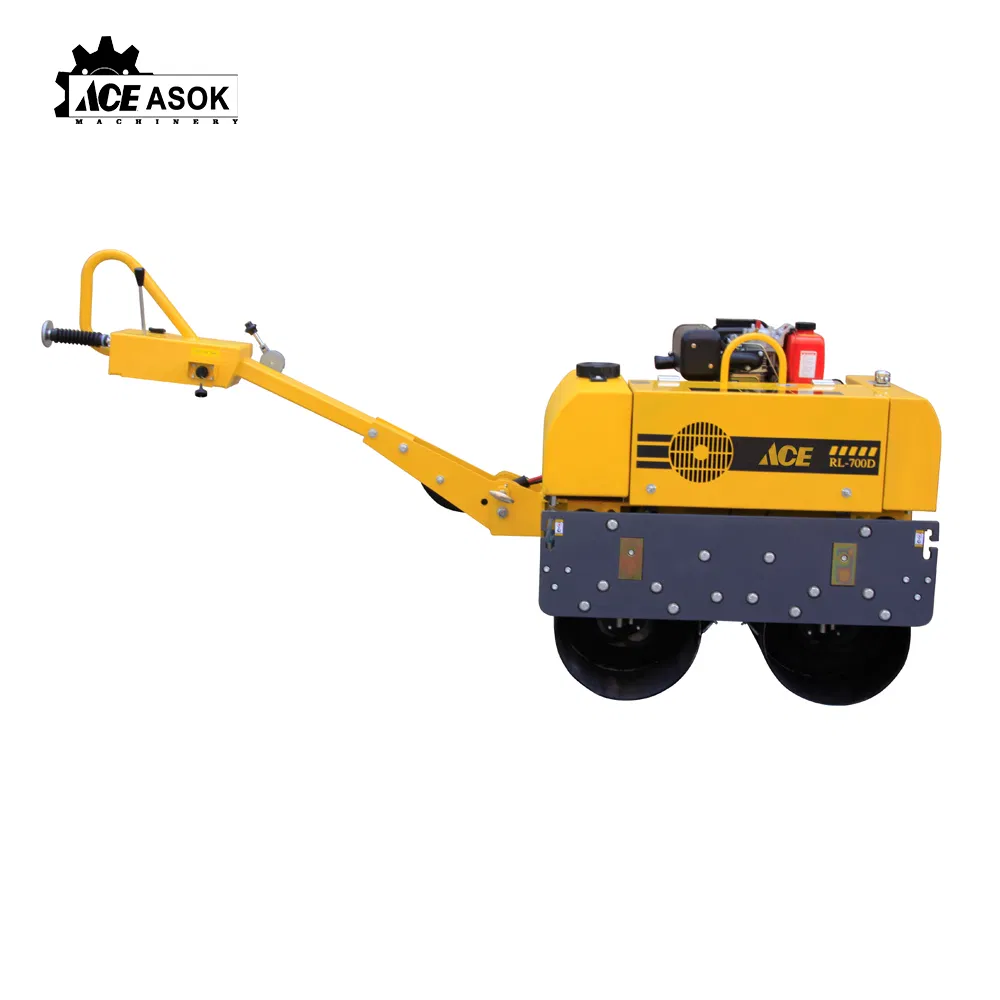

Vibratory Roller

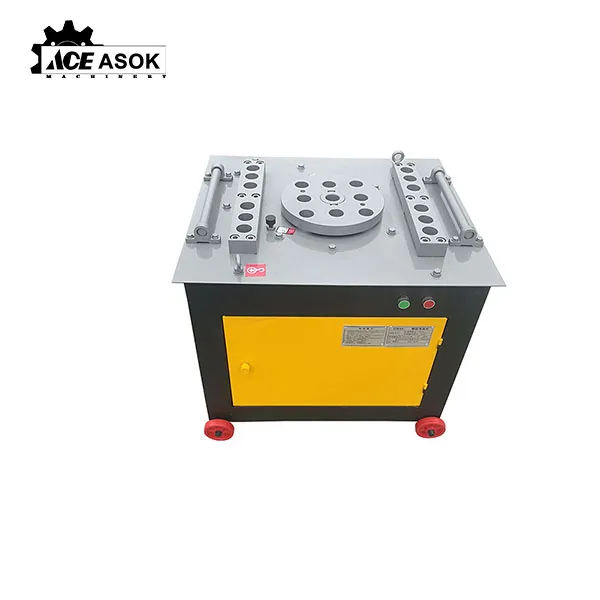

Steel Bar Bender

Frequently Asked Questions

What are the main functions of the remote controller?

The remote controller allows the operator to control the engine start/stop, forward and backward movement, steering, vibration settings, and water spraying system from a distance.

What is the maximum exciting force of the YL202C?

It provides a maximum exciting force of 70kN, with a secondary setting of 35kN controlled via the hydraulic system.

Is this roller suitable for narrow trenches?

Yes, with a drum width option of 600mm and a total width of 850mm, it is specifically designed for safe and efficient operation in limited and dangerous trench areas.

What kind of engine does the machine use?

The unit is powered by a high-quality 20HP diesel engine (Yanmar or Honda options), which is water-cooled and features a three-cylinder design for stable performance.

What is the theoretical climbing capacity of this roller?

The RWYL202C trench roller has a theoretical climbing capacity of 50%, allowing it to handle significant inclines during compaction tasks.

What is the compaction depth of this model?

The model is designed to achieve a compaction depth of approximately 40cm, depending on soil conditions.
