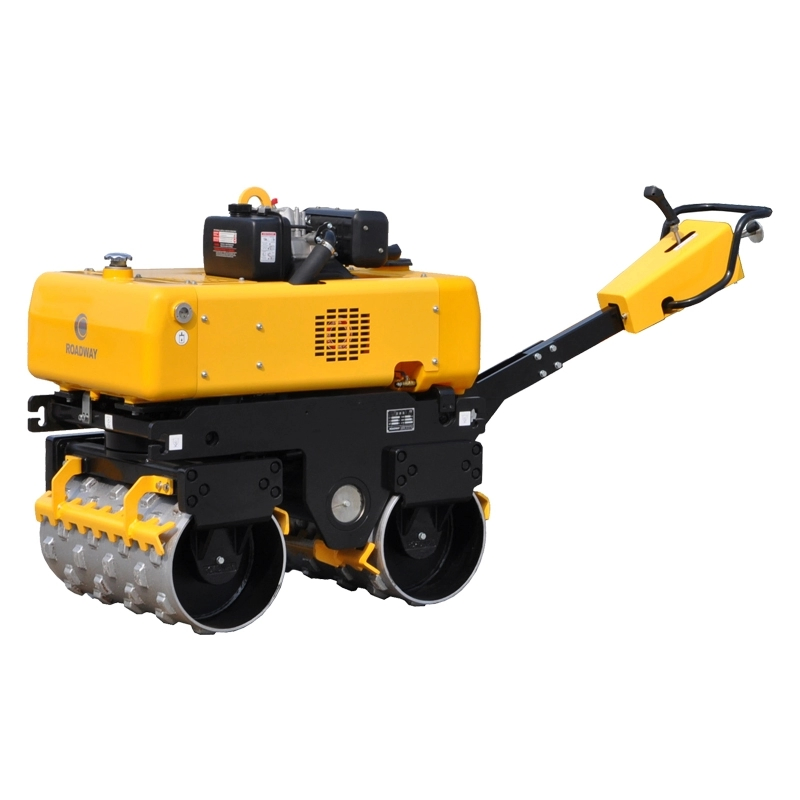

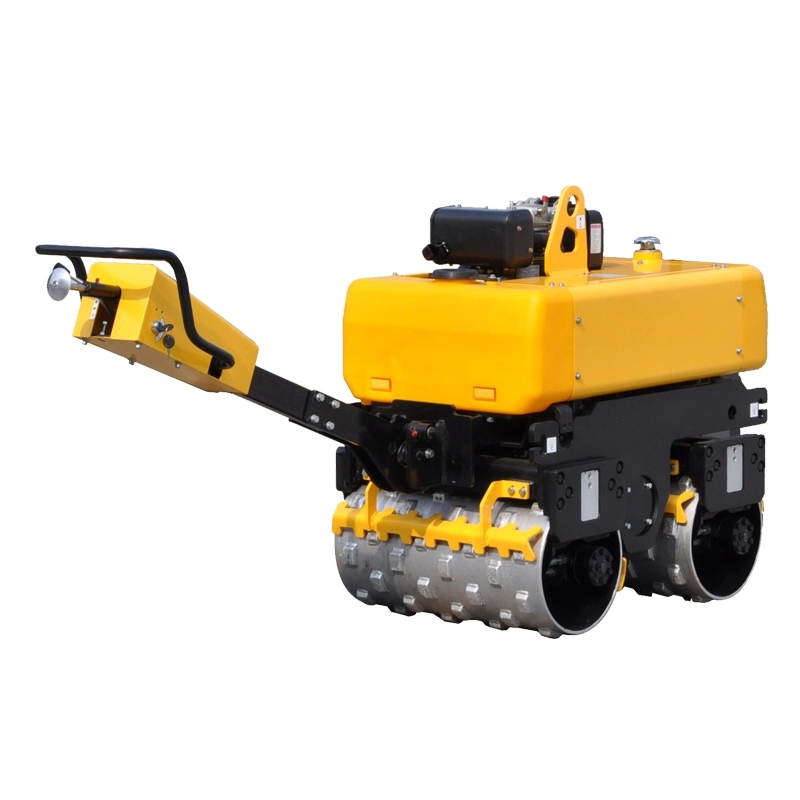

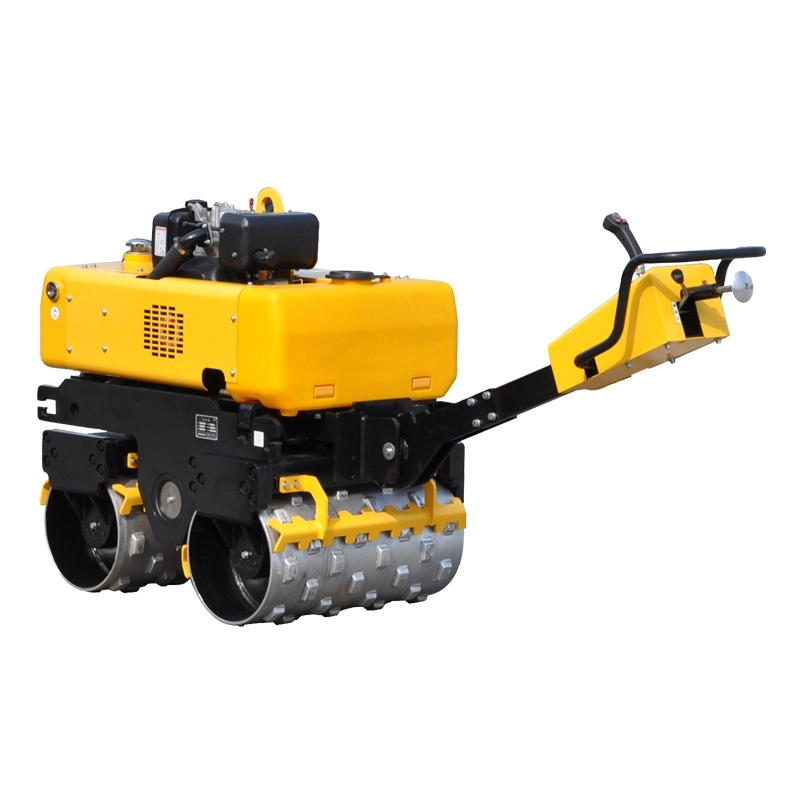

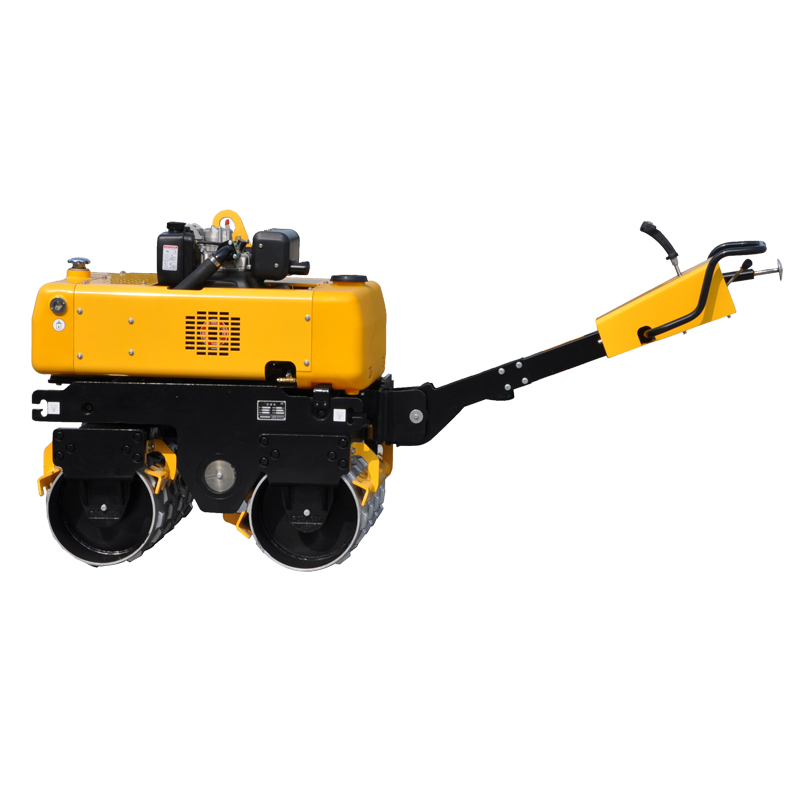

Reliable 1 Ton Walk-Behind Vibratory Trench Roller for Sale

1 / 5

Reliable 1 Ton Walk-Behind Vibratory Trench Roller for Sale

Customization:	Available
Warranty:	1 Year
Type:	Vibratory Roller, Double Drum Roller

Send Inquiry

Product Description

Basic Information

Model NO.

RWYL102

Travel Speed

0-3.0km/H (Forward and Back)

Certification

CE ISO

Condition

New

Power

13HP/3600rpm

Grade Ability

40%

Unique Selling Point

High Operating Efficiency

Drum

Double Drum Roller

Test Report

Provided

Weight

1 Ton, 838kg

Exciting Force

20kn

Engine Brand

Honda

Origin

China

Warranty

1 Year

Product Description

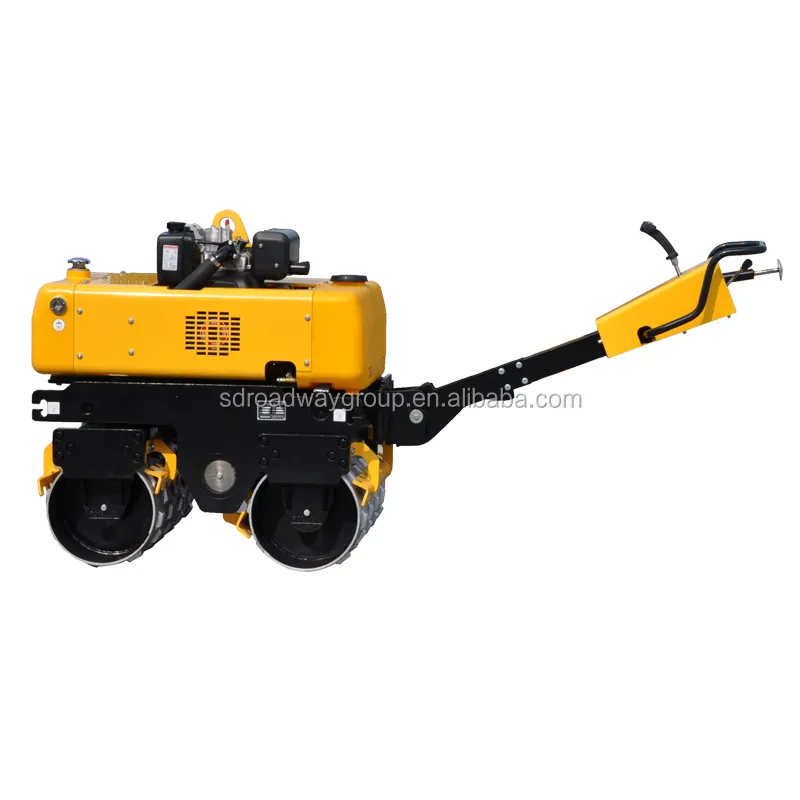

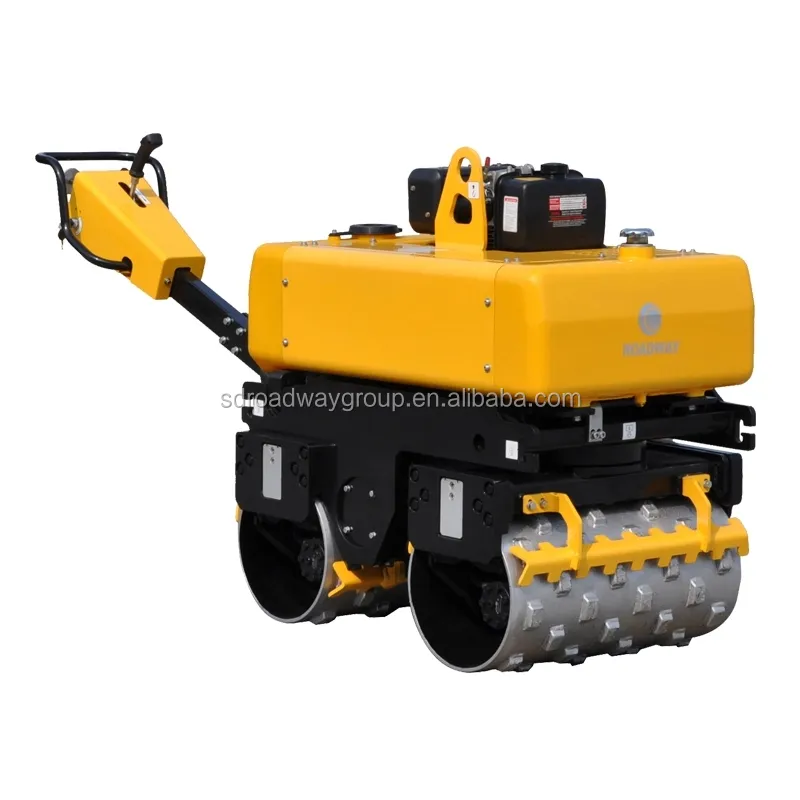

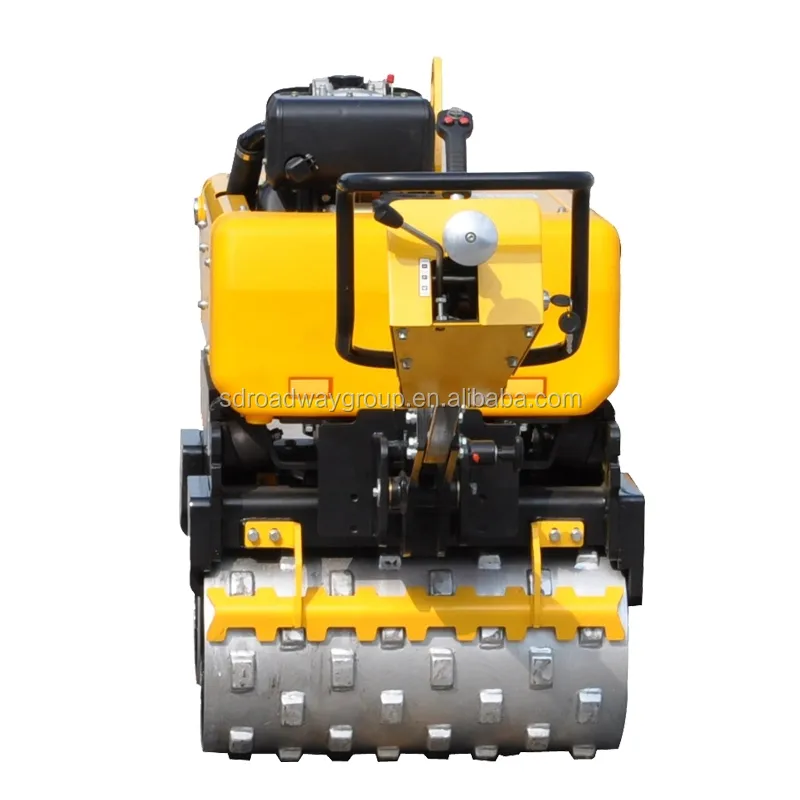

Walk-behind vibratory trench roller RWYL102

Technical Parameters
Type	RWYL102
Performance
Speed	0-3.0km/h (Forward and back)
Turning angle	15°
Climbing capacity	40%
Compaction
Static load forward/back	50.2/52.2N/cm
Nominal amplitude	0.5mm
Vibration frequency	40Hz
Exciting force	20kN
Working System
Drive	Variable plunger pump, constant displacement hydraulic motor
Vibration	Mechanical drive, electromagnetic clutch
Turning	Hydraulic steering
Engine
Model	HONDA GX390
Type	Gasoline engine, air cooled, single cylinder
Power	13hp/3600rpm
Fuel tank volume	6.5L
Dimensions & Weight
Width of steel wheel	680mm
Tread	650mm
Total height	1800mm
Working weight	838kg

Our Services

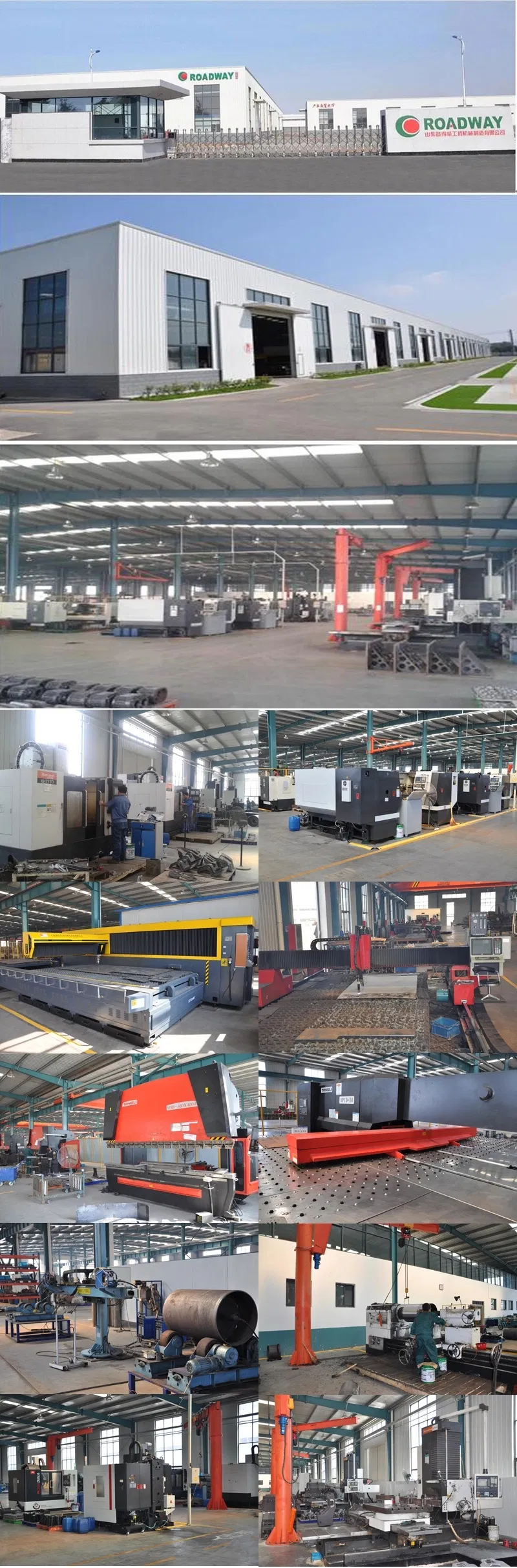

Professional Production

Frequently Asked Questions

What type of engine is used in the RWYL102 trench roller?

The RWYL102 is equipped with a high-performance Honda GX390 gasoline engine, which is air-cooled and features a single-cylinder design for reliable power output.

What is the exciting force of this vibratory roller?

This model provides an exciting force of 20kN, ensuring efficient compaction for various construction and trenching projects.

How does the steering system operate?

The RWYL102 uses a hydraulic steering system, allowing for precise control and a turning angle of 15 degrees, making it suitable for narrow workspaces.

What is the climbing capacity of the machine?

The machine has a theoretical climbing capacity of 40%, which allows it to handle inclined surfaces efficiently during operation.

Does the roller support both forward and backward movement?

Yes, the variable plunger pump and hydraulic motor allow for a travel speed of 0-3.0km/h in both forward and backward directions.

What is the warranty period for this equipment?

The core components of the RWYL102 walk-behind vibratory roller come with a 1-year warranty to ensure long-term operational reliability.

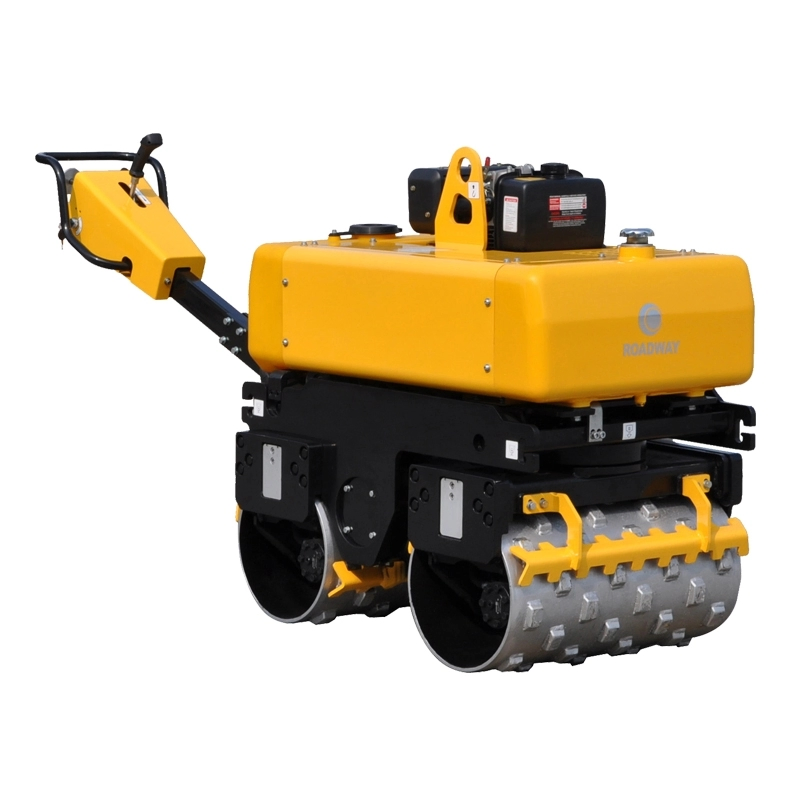

Reliable 1 Ton Walk-Behind Vibratory Trench Roller for Sale

Product Description

Basic Information

Product Description

Our Services

Professional Production

Frequently Asked Questions

Related Products

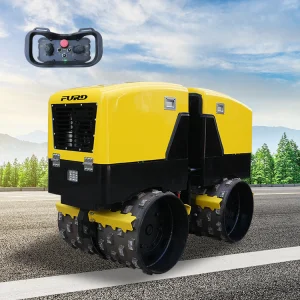

Smart Remote Controlled Trench Roller Vibratory Road Roller

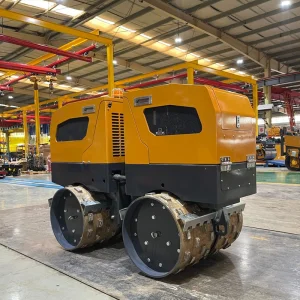

1.8ton Remote Control Trench Sheep Foot Double Drum Yanamr Engine Vibratory RC Road Roller Compactor
