Product Description

📋

Basic Information

Model NO.YL202

TypeRoad Roller

Working MethodVibration

AxleBiaxial Three-Wheel

Grinding WheelSheep Foot Roller

Compaction Depth40cm

Engine TypeHonda

CertificationCE, ISO 9001:2000

Power20HP

Weight1530kgs

Drum Width600mm/850mm

OriginChina

🏗️

Product Description

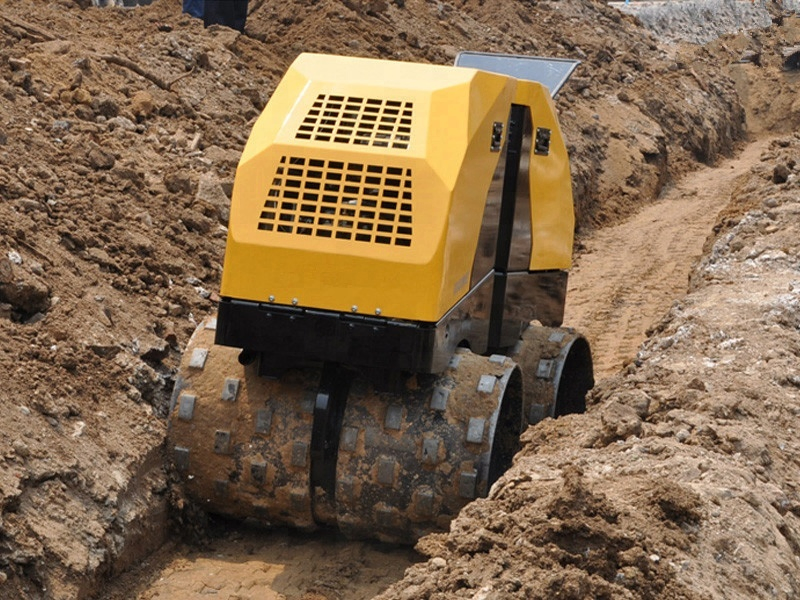

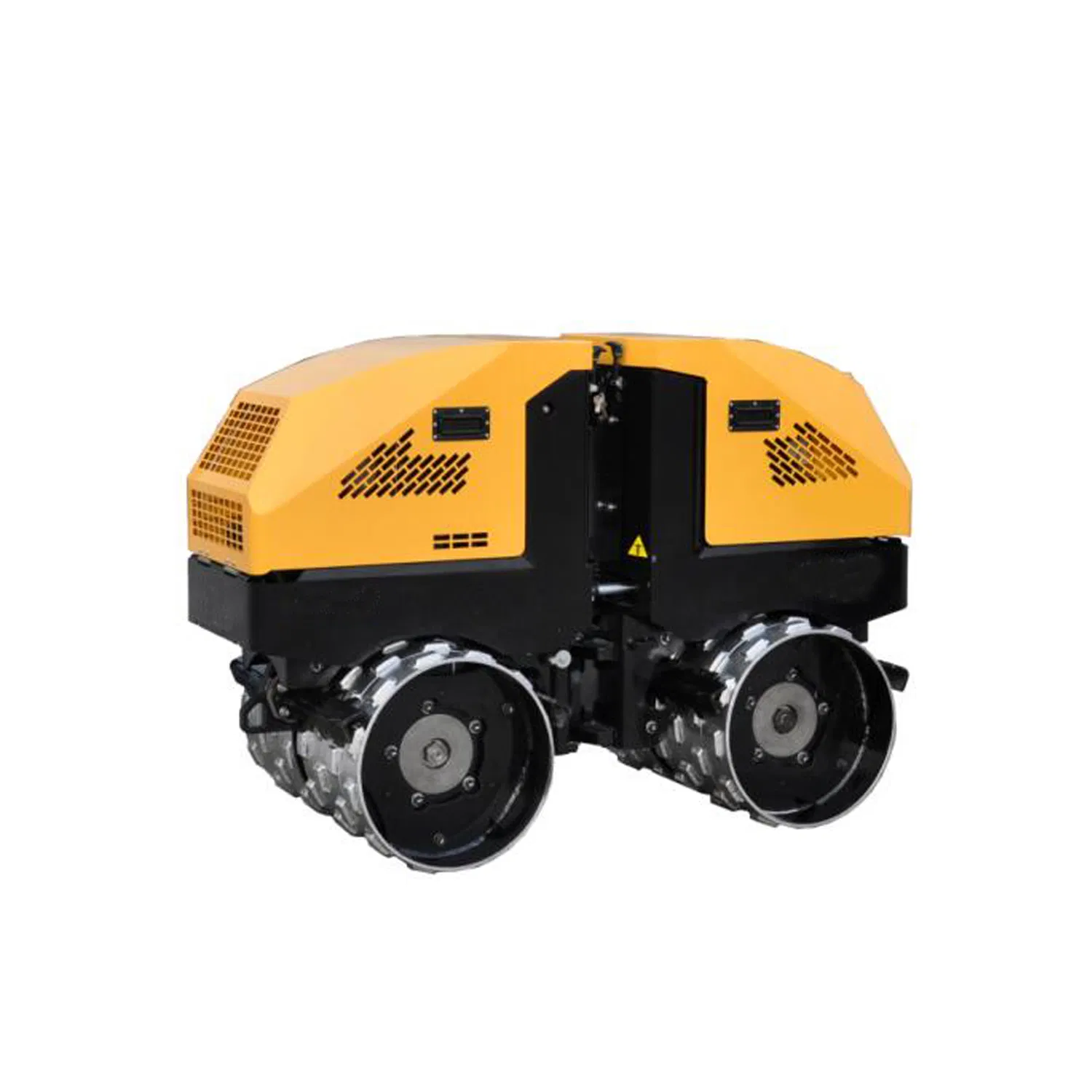

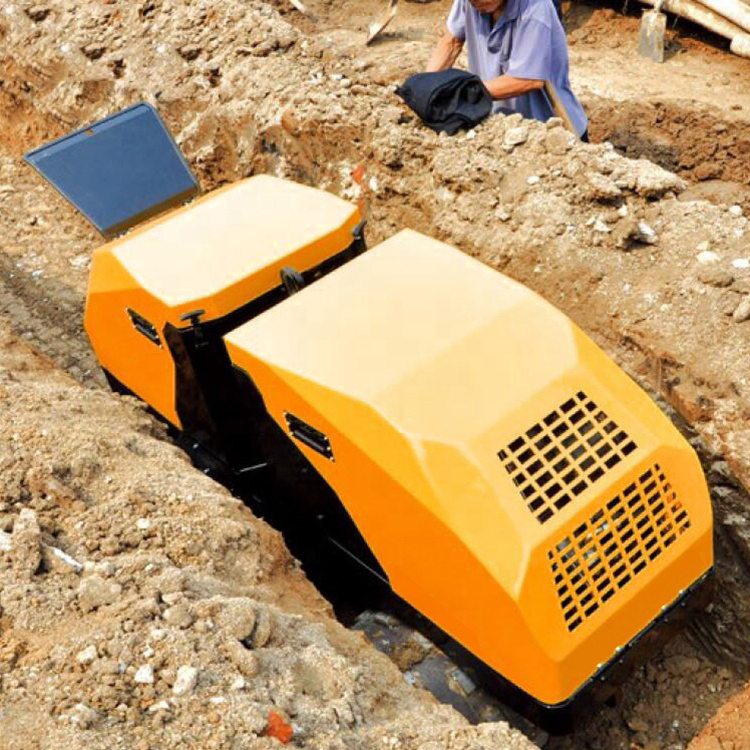

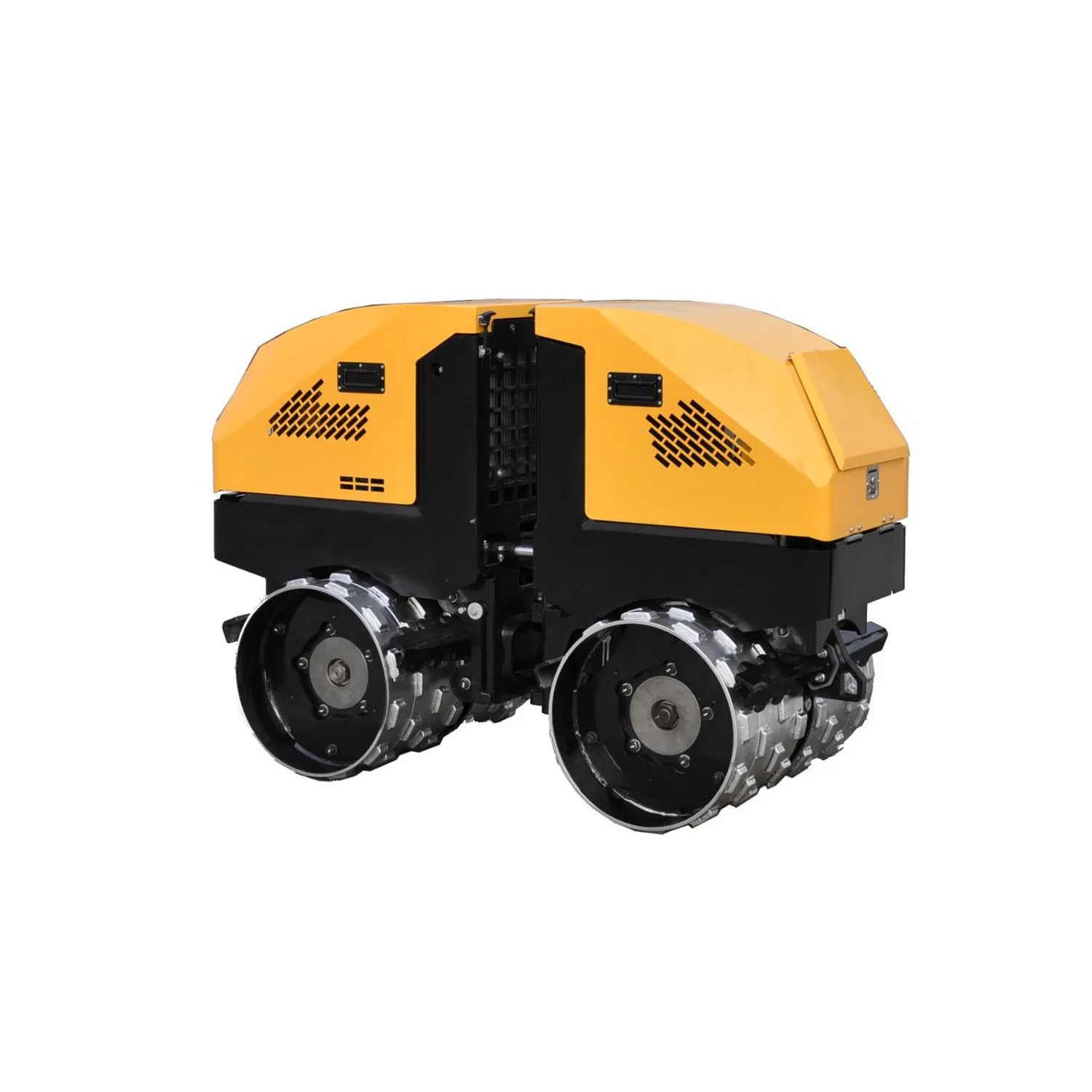

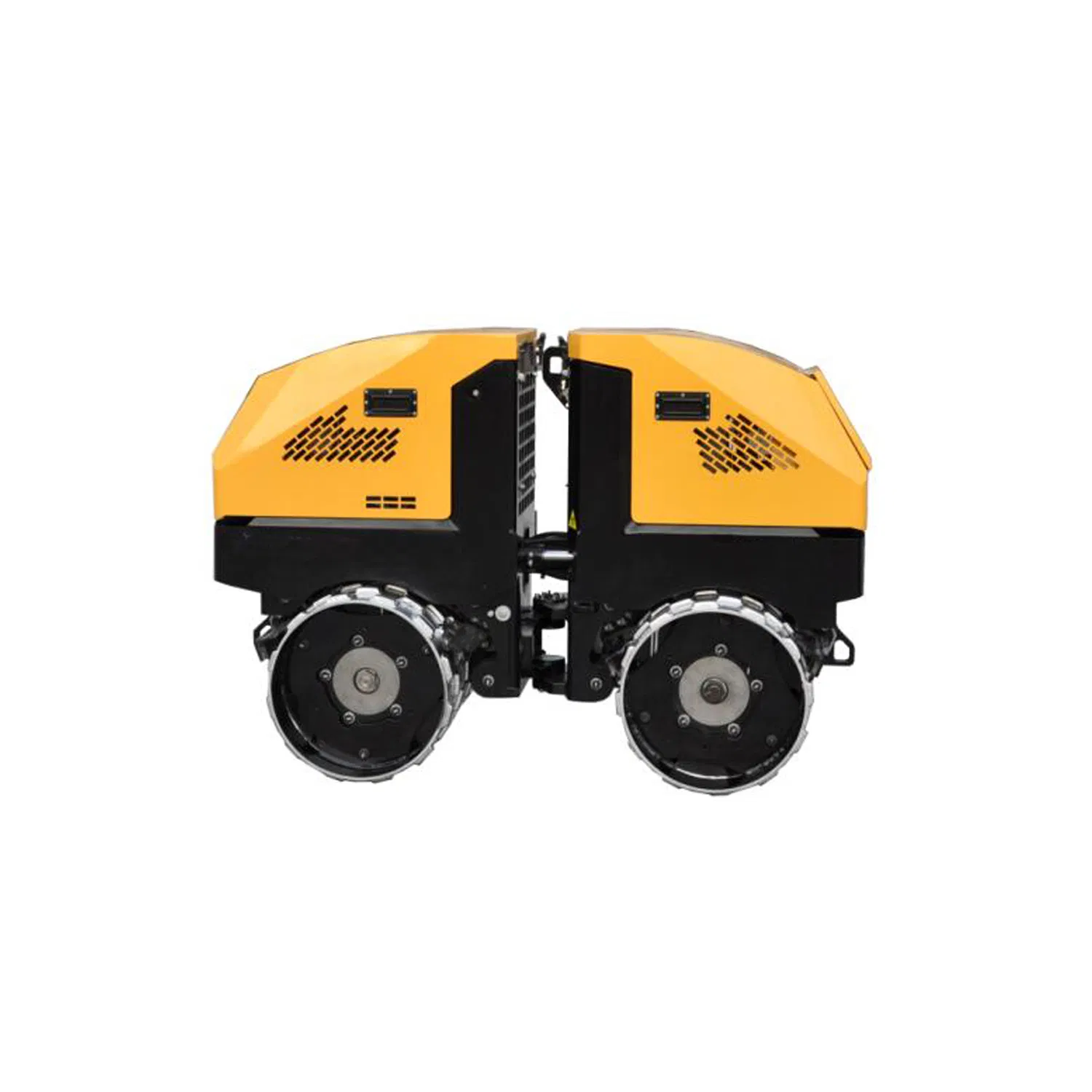

Remote control trench roller RWYL202C

Remote control trench roller is self-developed and designed for efficiency. This product fills a critical technical gap in localized construction equipment.

🎮

Key Features:
1. Comprehensive remote controller: manages start, stop, forward/backward, steering, vibrating, and water systems.
2. Enhanced Safety: Provides maximum protection for operators, especially in limited or hazardous work areas.
3. Premium Engine: Equipped with high-performance engines for reliability.
4. Full Hydraulic System: Hydraulic drive, vibration, and steering for smooth operation.

📊

Technical Specifications

Category	Specification
Model	RWYL202C
Run Performance
Travel Speed	1.2km/h (low) - 2.4km/h (high)
Turning Radius	1700mm
Climbing Capacity	50%
Compaction Details
Static Load (F/B)	98/90 N/cm
Nominal Amplitude	1.7mm
Vibration Frequency	42Hz
Exciting Force	70kN / 35kN (Hydraulic control)
Engine Parameters
Engine Model	YANMAR / HONDA Options
Engine Type	Diesel/Gasoline, Water cooled, 4-stroke
Power Output	20hp / 3000rpm
Fuel Tank Volume	30L
Dimensions & Weight
Steel Wheel Width	600mm / 850mm
Steel Wheel Diameter	520mm
Total Dimensions	1900 x 850 x 1300 mm
Max Working Weight	1635kg

📸

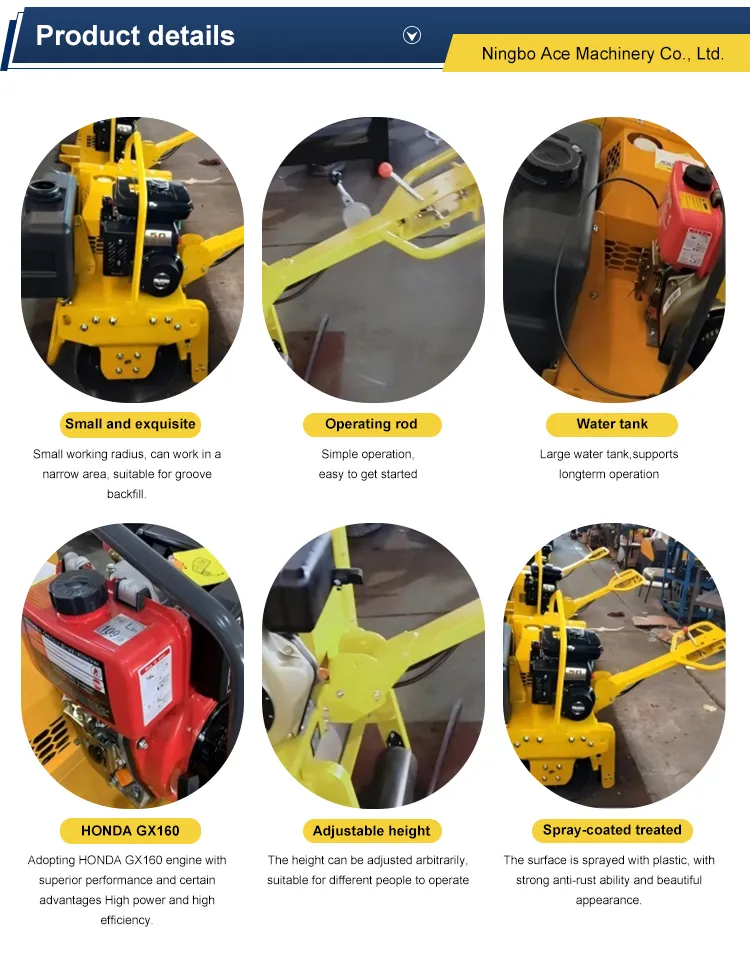

Product Showcase

🔥

Related Hot Products

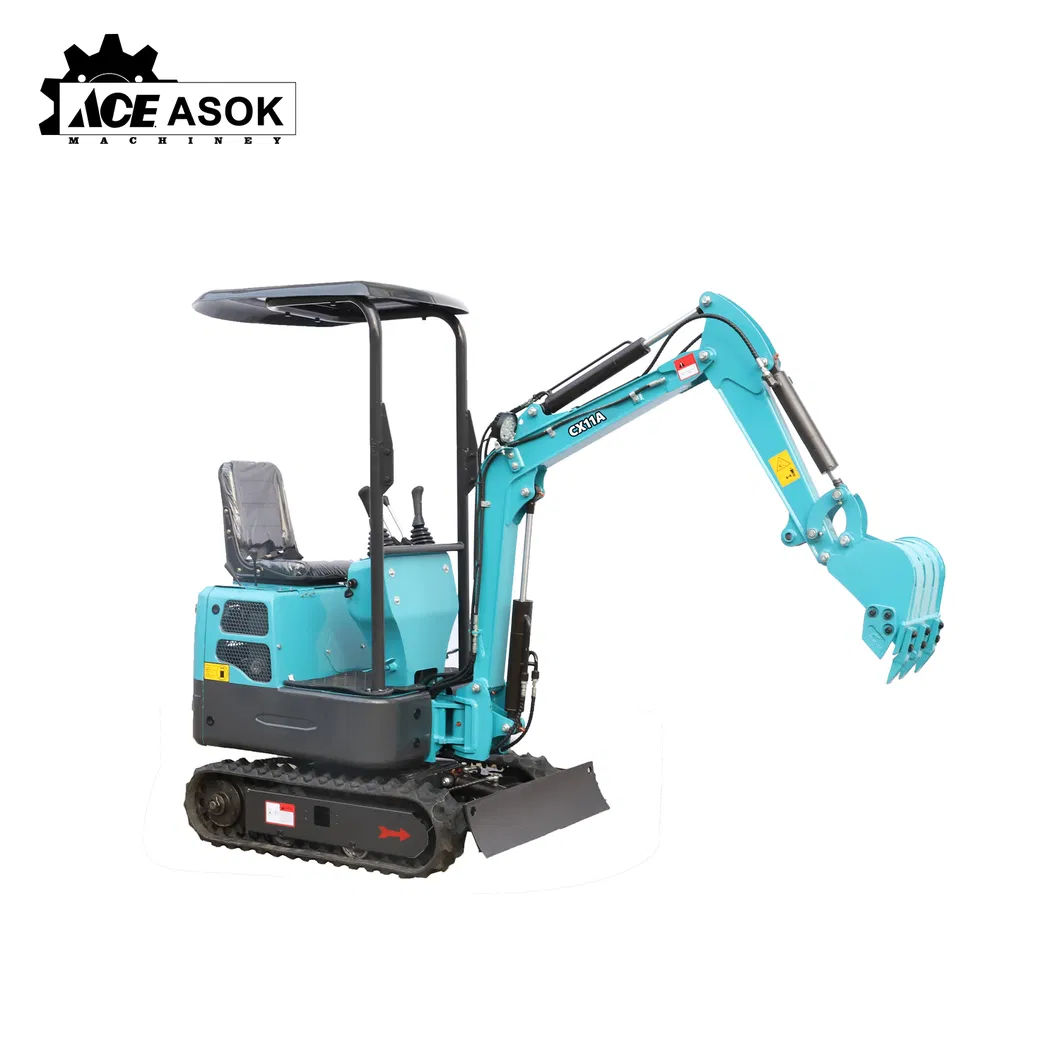

Excavator

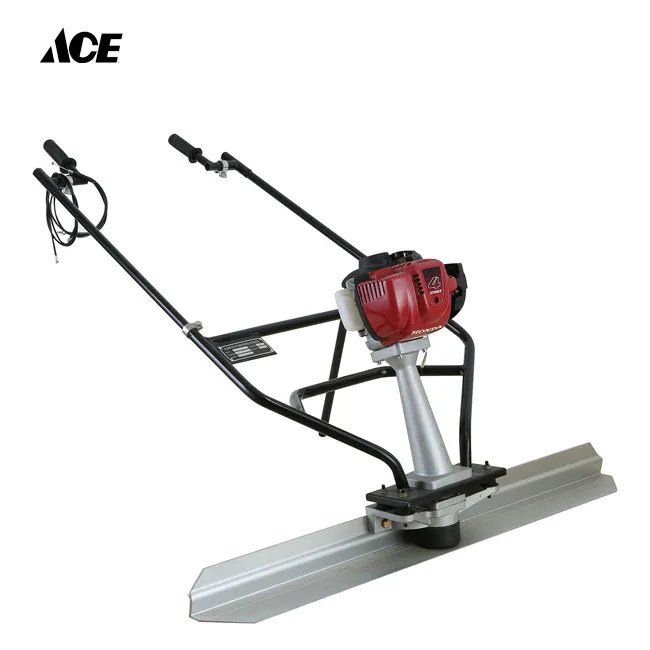

Surface Screed

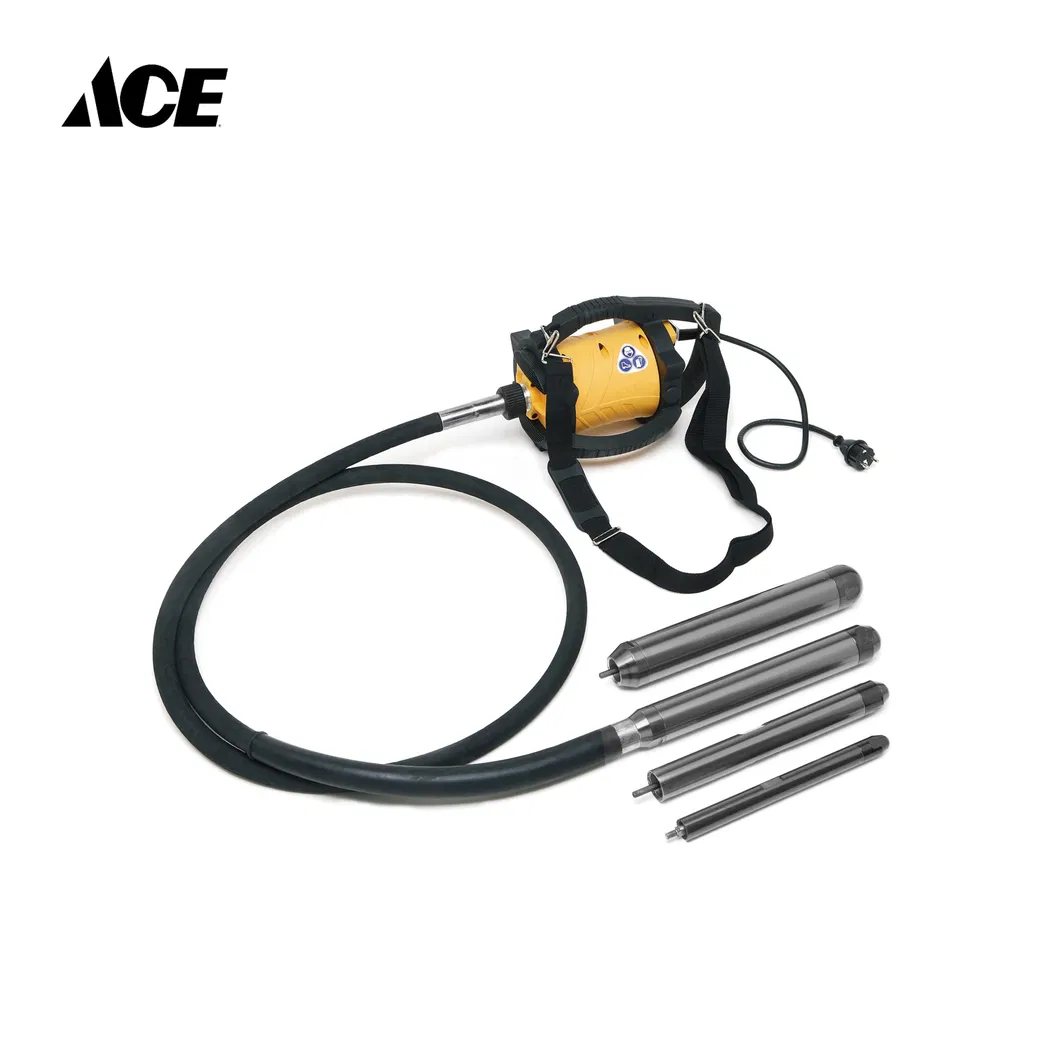

Concrete Vibrator

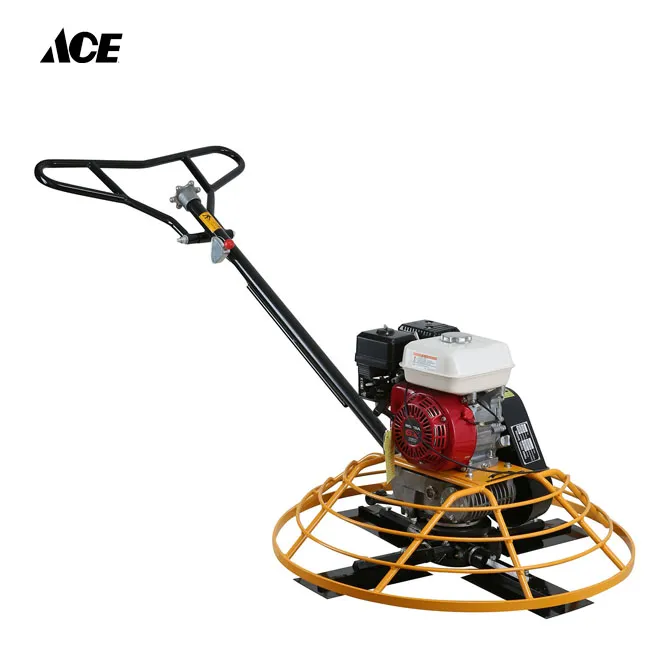

Power Trowel

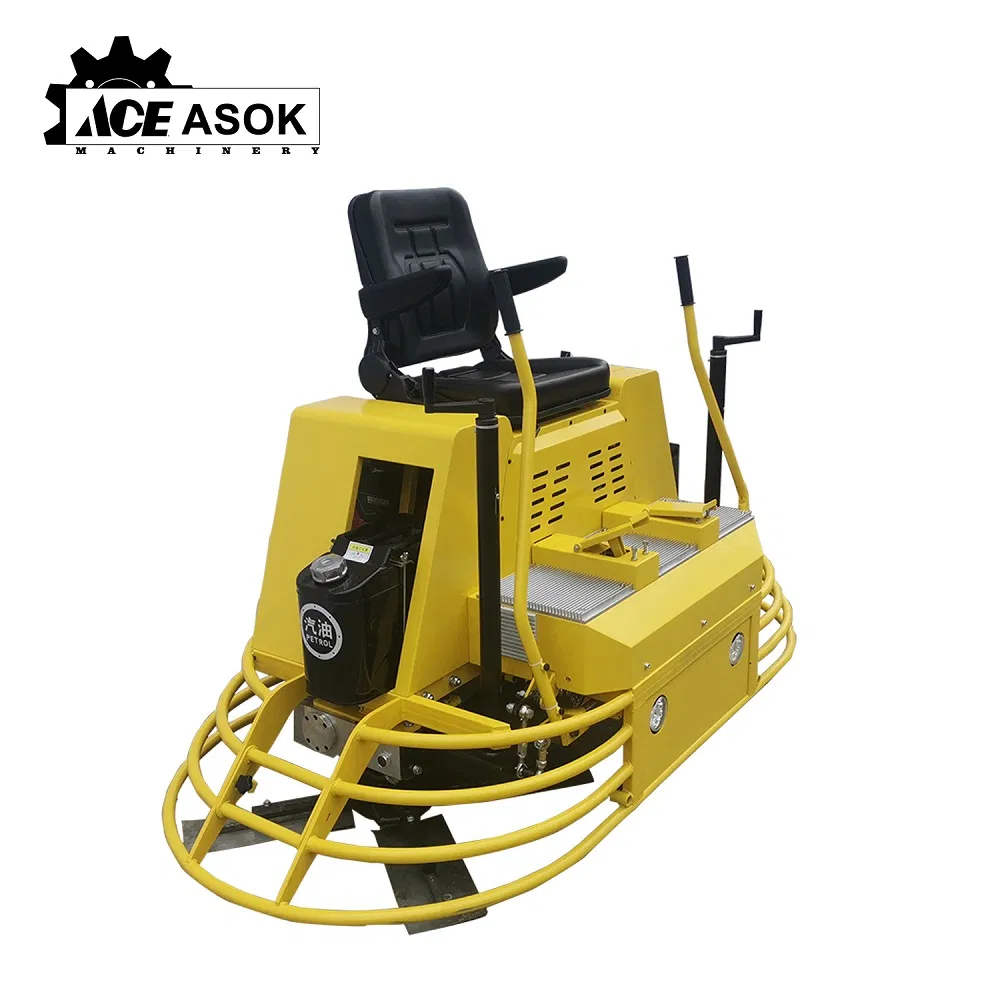

Remote Trowel

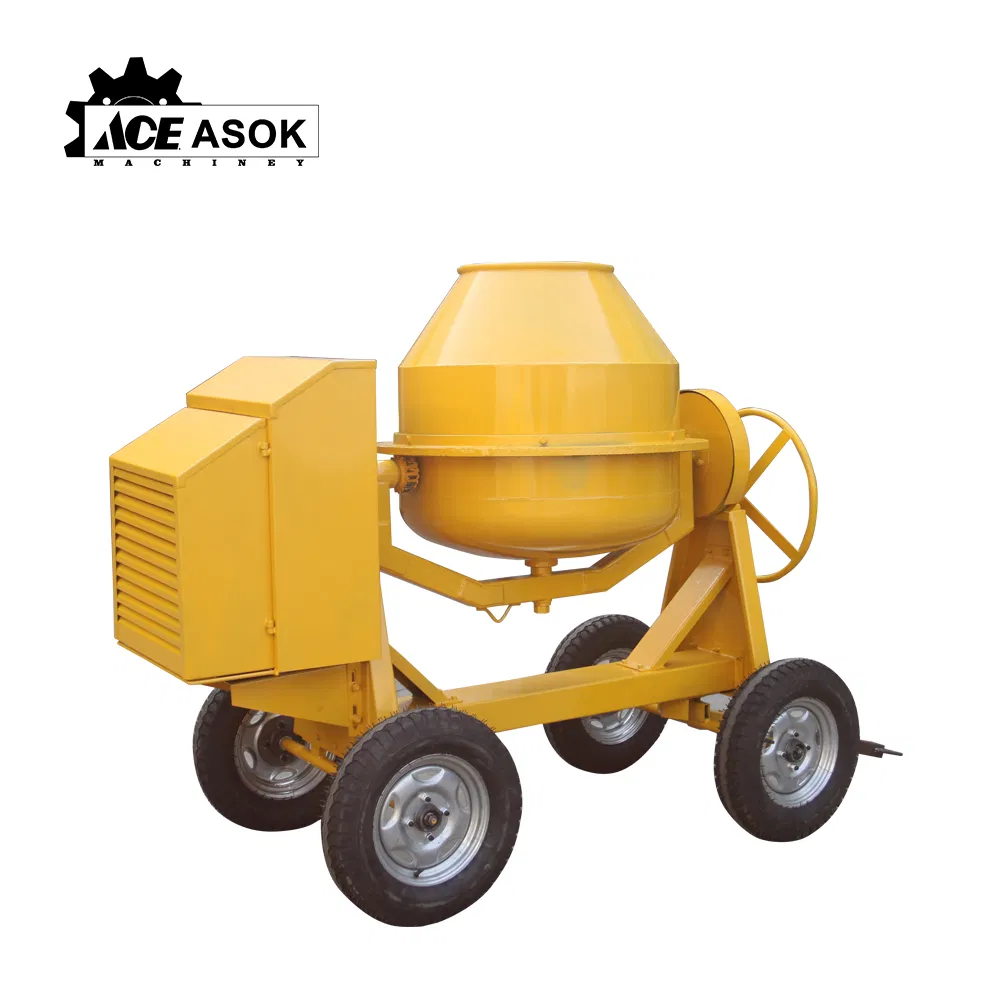

Concrete Mixer

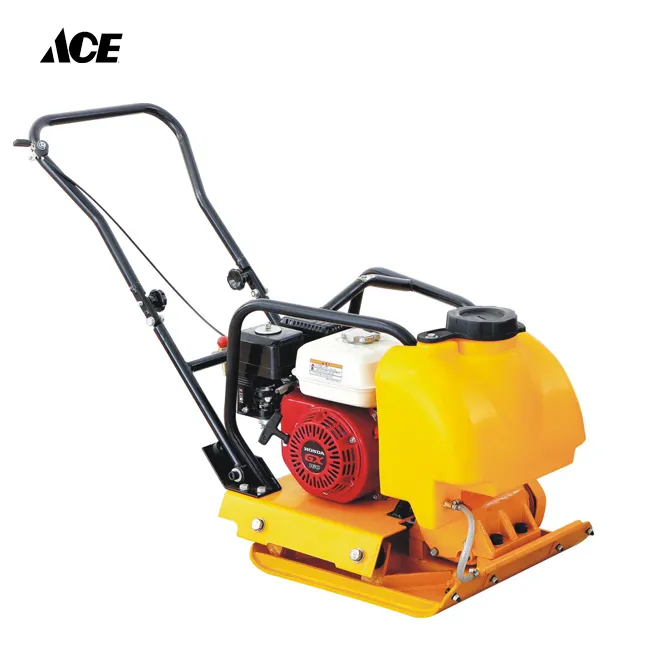

Plate Compactor

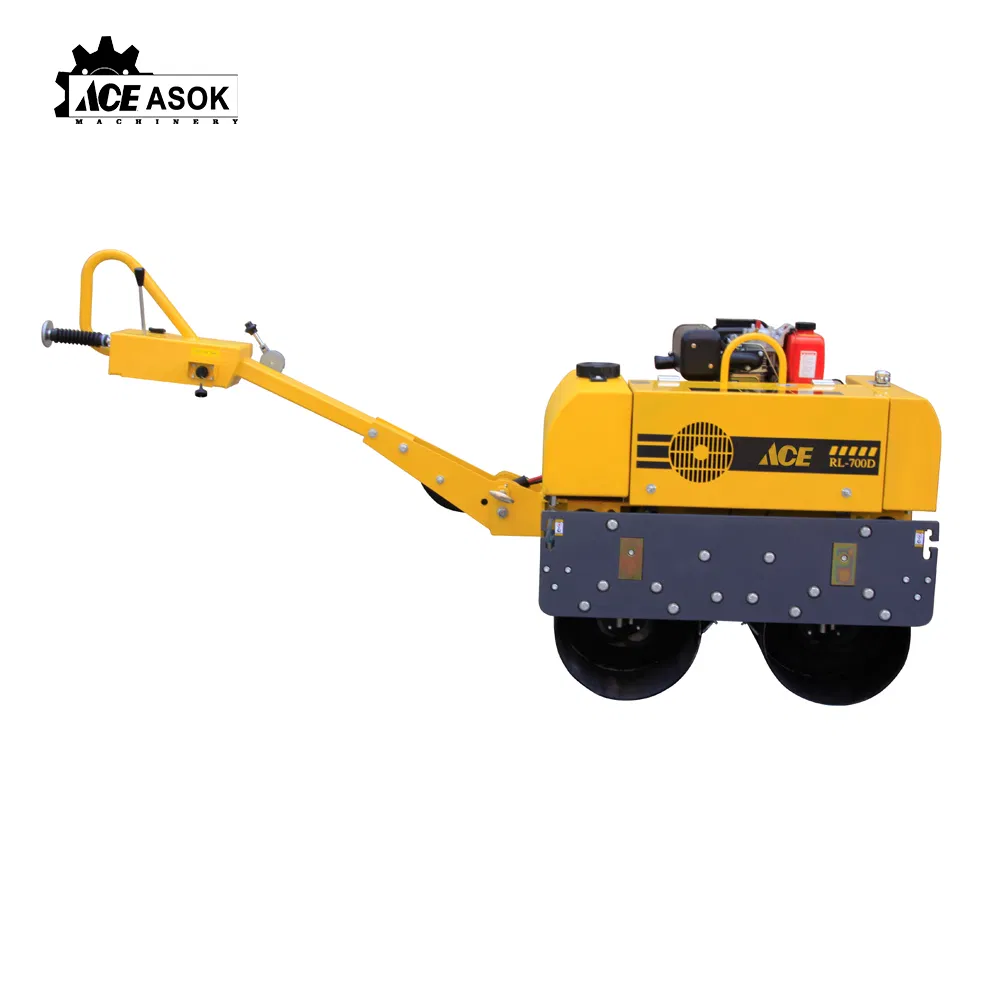

Vibratory Roller

Frequently Asked Questions

Q1: What are the main advantages of a remote control trench roller?

The main advantages include increased operator safety by keeping them away from dangerous slopes or confined spaces, and high precision control for vibration and steering via the remote unit.

Q2: What is the maximum compaction depth for the RWYL202C?

This model is designed to reach a compaction depth of up to 40cm, depending on the soil type and conditions.

Q3: Which engine options are available for this machine?

The RWYL202C can be equipped with high-quality Honda GX690 gasoline engines or Yanmar diesel engines, both providing approximately 20HP of power.

Q4: Can the roller work on steep inclines?

Yes, it has a theoretical climbing capacity of 50%, making it suitable for various grades and trench work.

Q5: What functions can be controlled via the remote?

The remote controller can manage engine start/stop, forward and backward movement, steering, vibration activation, and the water spraying system.

Q6: Is the machine certified for international markets?

Yes, the product is manufactured under ISO 9001:2000 quality standards and carries CE certification for international compliance.
