| Weight | ||
| Operating weight | Narrow 1660/Wide 1800 | KG |
| Dimensions | ||
| Working width | Narrow 560/Wide 820 | mm |
| Machine length | 1915 | mm |
| Machine height | 1430 | mm |
| Turning radius | Narrow 1600 inside, 2210 outside/Wide 1470 inside, 2310 outside | mm |
| Drum diameter (including bumps) | 580 | mm |
| Wheel width | 1005 | mm |
| Drive | ||

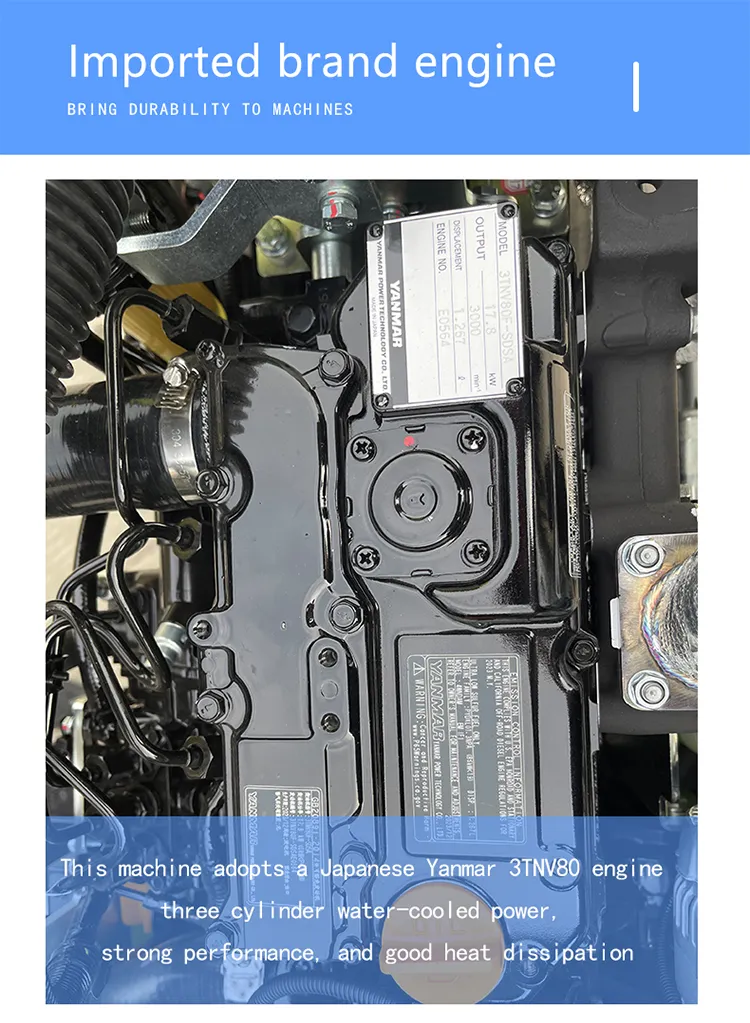

| Engine manufacturer | YANMAR | - |
| Model | 3TNV80F-SDSA | - |
| Engine type | 4-stroke water-cooled diesel engine | - |
| Number of cylinders | 3 | - |
| Output power | 17.8 | kw |
| Speed | 3000 | rpm |

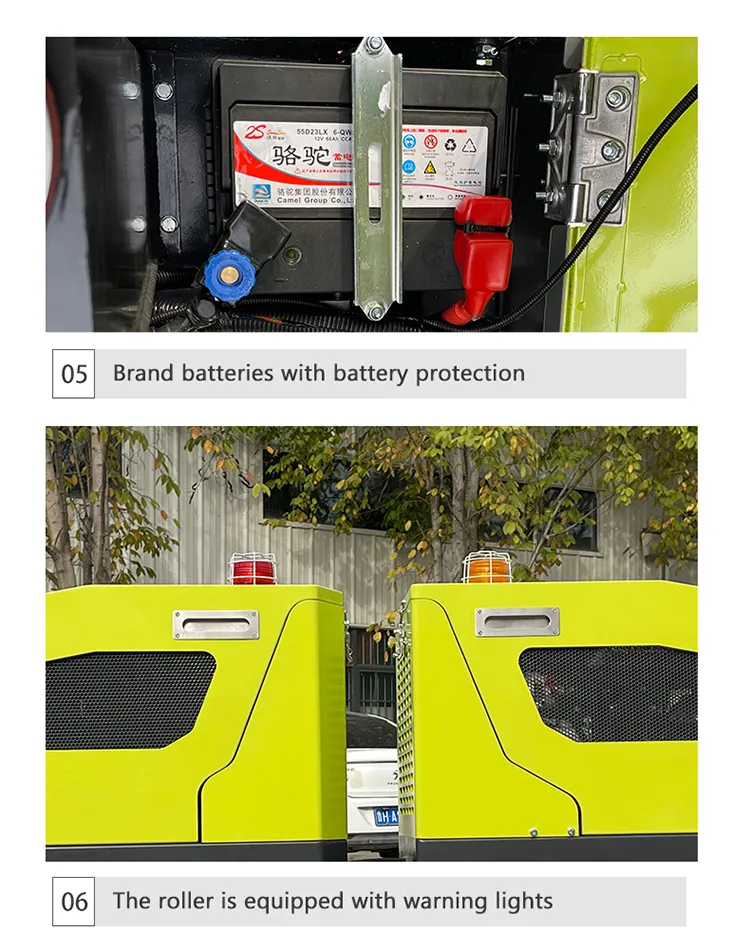

| Electrical equipment | 12 | v |
| Engine oil | 3.4 | l |
| Fuel consumption | 282 | g/kwh |
| Travel characteristics | ||
| Drive mode | Dual-wheel drive motor in parallel | - |
| Speed | Low speed 1.25/High speed 2.5 | km/h |
| Theoretical climbing ability | 45 | % |
| Steering | ||

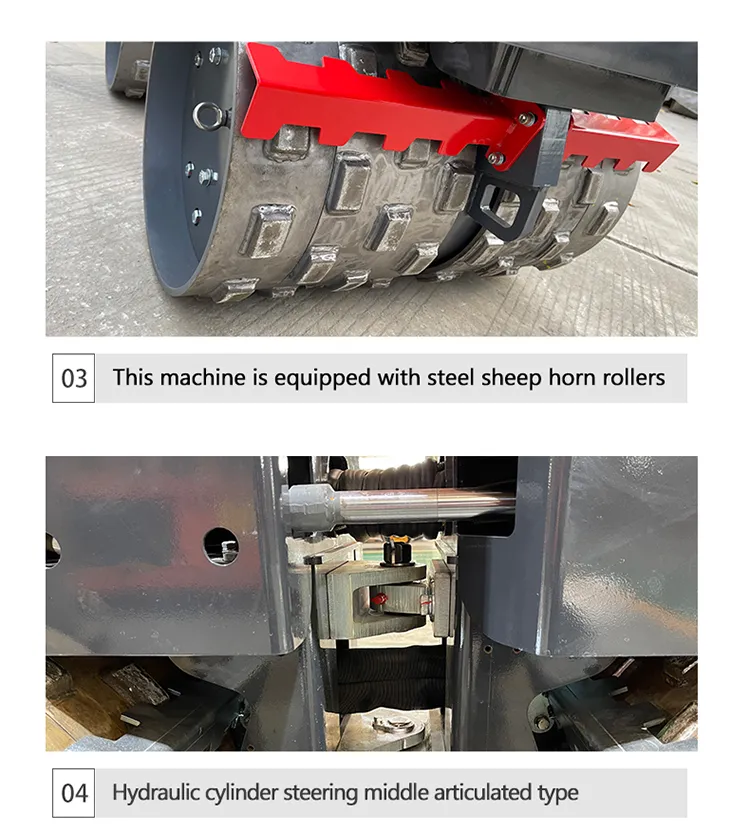

| Steering mode | Hydraulic cylinder | - |
| Steering system | Intermediate articulated | - |
| Steering angle | 30 | ° |
| Vibration system | ||
| Vibration drum | Front + rear | - |
| Drive type | Hydraulic motor vibration | - |
| Vibration frequency | 42 | hz |
| Vibration force | Low amplitude 15*2/High amplitude 30*2 | KN |
| Capacity | ||
| Hydraulic tank | 38.5 | l |
| Fuel tank | 25 | l |
