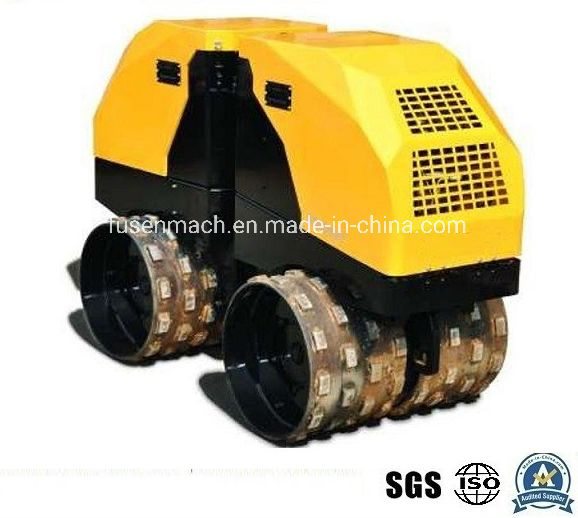

1.6 Ton Remoto Control Trench Roller with Honda/Yanmar Engine 20HP

1 / 5

1.6 Ton Remoto Control Trench Roller with Honda/Yanmar Engine 20HP

Customization:	Available
After-sales Service:	Life Time
Warranty:	12 Month

Send Inquiry

Product Description

Basic Specifications

Model NO.

FS202/FS202C

Type

Road Roller

Working Method

Vibration

Axle

Biaxial Dual-Drum

Grinding Wheel Type

Light Grind

Compaction Depth

30cm

Engine Type

Petrol Engine

Travel Speed

35cm/s

Centrifugal Force

27KN

Certification

CS, CE, ISO 9001:2008

Condition

New

Engine

Yanmar

Rated Power

20HP

Width of Steel Drum

600/850mm

Specification

1635kg

Origin

China

★

Product Highlights

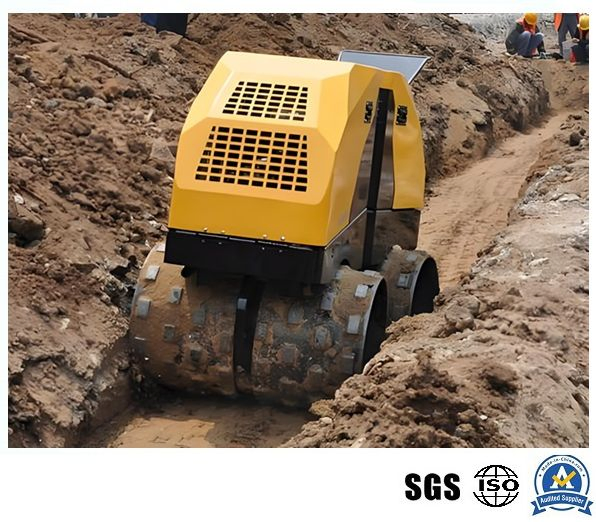

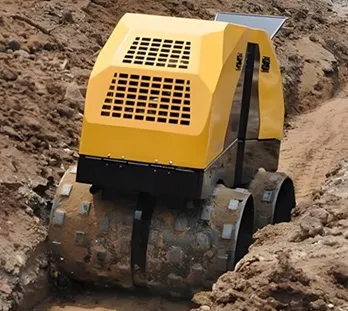

Remote Trench Road Roller with 20hp Yanmar Engine

The remote control trench roller is self-developed and designed to fill critical gaps in utility and construction applications. With several national patents, this equipment ensures high performance in challenging environments.

The remote controller controls start, stop, forward/backward, steering, and vibrating functions.
Real-time monitoring of oil temperature, water temperature, and system status via remote.
Enhanced safety for operators, specifically designed for limited or dangerous work areas.
Equipped with famous Honda or Yanmar engine for reliability.
Full hydraulic drive, vibration, and steering system.

⚙

Technical Specifications

Model: FS202C
Speed	1.2km/h (low) / 2.4km/h (high)
Turning Radius	1700mm
Climbing Capacity (Theory)	50%
Compaction Details
Static Load Forward/Back	98/90N/cm
Nominal Amplitude	1.7mm
Vibration Frequency	42Hz
Exciting Force	70kN/35kN (Hydraulic control)
Engine Performance
Model	Honda / Yanmar
Type	Gasoline engine (air cooled, double cylinder) OR Diesel engine (water cooled, 3 cylinder)
Power	20hp / 3000rpm
Fuel Tank Volume	30L
Dimensions & Weight
Width of Steel Wheel	600mm / 850mm
Total Size (LxWxH)	1900 x 850 x 1300mm
Packing Size	2010 x 950 x 1460mm
Max. Working Weight	1635kg

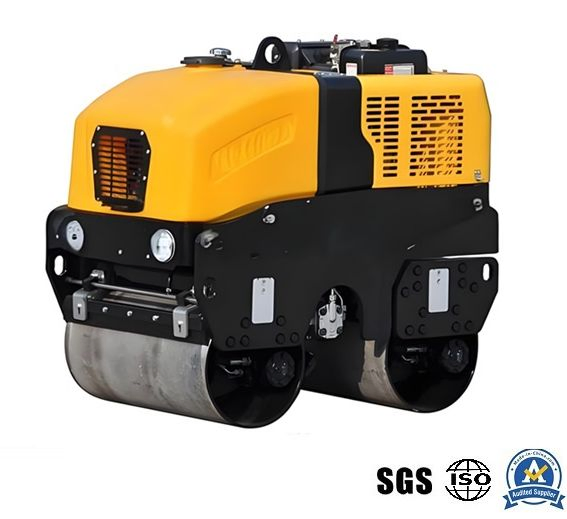

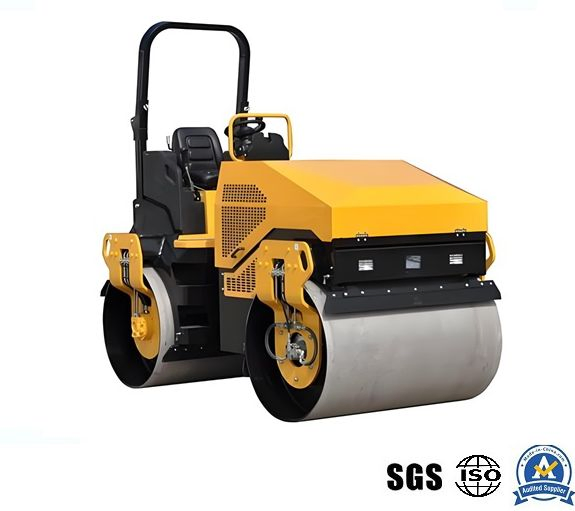

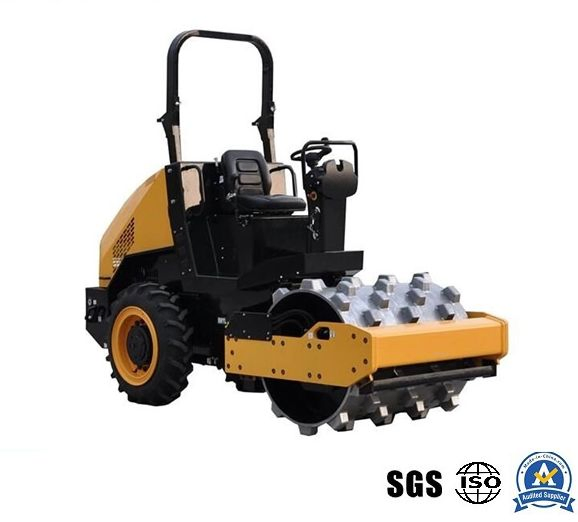

We offer various mini and small walk-behind single drum rollers, walk-behind double drum rollers, and ride-on rollers. All models are CE certified.

Frequently Asked Questions

1. What are the benefits of the remote control system? The remote control allows operators to manage start, stop, steering, and vibration from a distance, which is significantly safer in unstable or confined trench environments.

2. Which engine options are available for this trench roller? The machine can be equipped with either a 20HP Honda gasoline engine or a Yanmar diesel engine, depending on your project requirements.

3. What is the maximum compaction depth of the FS202C? This model provides a reliable compaction depth of up to 30cm, suitable for various soil and asphalt types.

4. Is the drum width adjustable? We provide options for steel drum widths of 600mm and 850mm to suit different trench sizes.

5. Does the machine monitor its own health? Yes, the integrated remote system monitors critical data such as oil and water temperatures to prevent engine damage.

6. What certifications does this road roller carry? The product is fully certified with CS, CE, and ISO 9001:2008 standards, ensuring international quality compliance.
