Home > Wheel Loader > Small Wheel Loader 1m3 Bucket Payloader Lw180fv

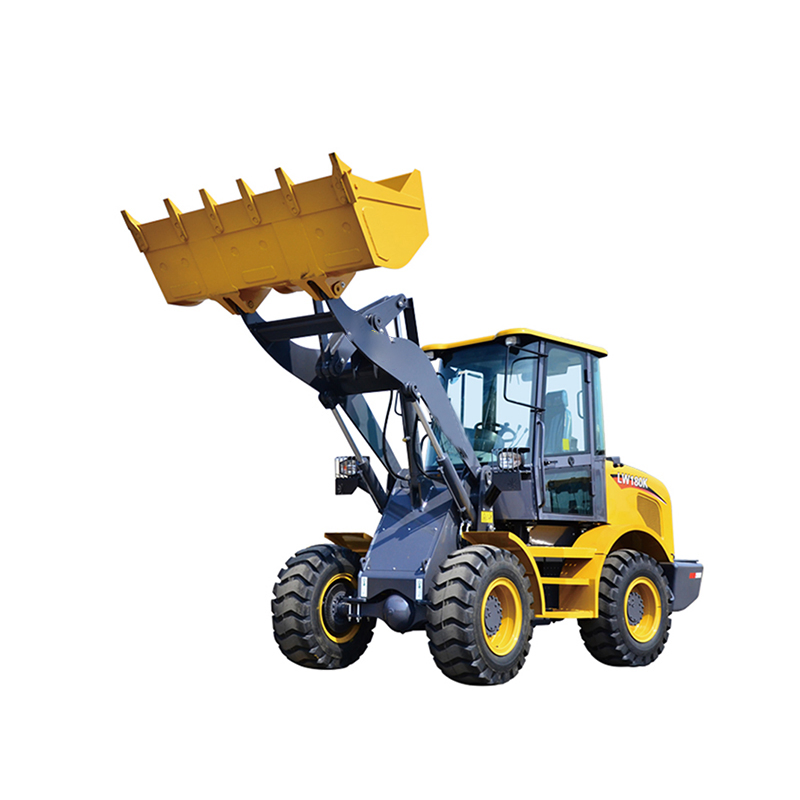

Small Wheel Loader 1m3 Bucket Payloader Lw180fv
Small Wheel Loader 1m3 Bucket Payloader Lw180fv
Small Wheel Loader 1m3 Bucket Payloader Lw180fv
Small Wheel Loader 1m3 Bucket Payloader Lw180fv
Small Wheel Loader 1m3 Bucket Payloader Lw180fv
1 / 5
Small Wheel Loader 1m3 Bucket Payloader Lw180fv
Small Wheel Loader 1m3 Bucket Payloader Lw180fv
Small Wheel Loader 1m3 Bucket Payloader Lw180fv
Small Wheel Loader 1m3 Bucket Payloader Lw180fv
Small Wheel Loader 1m3 Bucket Payloader Lw180fv

Small Wheel Loader 1m3 Bucket Payloader Lw180fv

Customization: Available
After-sales Service: Online Service
Warranty: One Year
Send Inquiry

Product Description

📋 Basic Information
Model NO.
LW180FV
Certification
ISO
Condition
New
Rated Load
1-3t
Transmission
Hydraulic - Mechanical
Walking Mode
Wheeled
Type
Small Loader
Engine
Yc4d80-T20
Rated Operating Load
1800kg
Production Capacity
200units/Month
🏗️ Product Description

Small wheel loader 1m3 bucket payloader LW180FV

LW180FV is the latest generation of loaders. The product adopts the international mainstream modelling, the best matching of the power train, and the working device is fully optimized. It is a high-quality, high-efficiency, cost effective small-sized loader widely used in housing construction, road maintenance, agriculture, forestry, water conservancy, sand and gravel yards and other fields.

🌟 Model Features
Reasonable Design: Adopts hydraulic mechanical drive and four-wheel drive, featuring larger drive force and digging force. Small turning radius for narrow working areas.
High Efficiency: Z type bucket linkage, single arm, lifting cylinder of high pivot, and strong digging force with short cycle times.
Energy Saving: Priority on-demand oil supply for hydraulic load-sensing steering; single pump valve system for economic energy use.
Easy Maintenance: Openable rear hood side door and full visibility cab provide a comfortable environment and excellent maintenance conditions.
📊 Technical Specifications
Description Unit Parameter Value
Rated operating loadkg1800
Bucket capacitym³0.9-1.1
Machine weightkg6200
Dump clearance at maximum liftmm2650-2970
Wheel basemm2300
Max. breakout forceKN≥58
Hydraulic cycle time-raises5
Overall machine dimension L*W*Hmm5980*2060*2950
Rated Power/SpeedkW/rpm58/2400

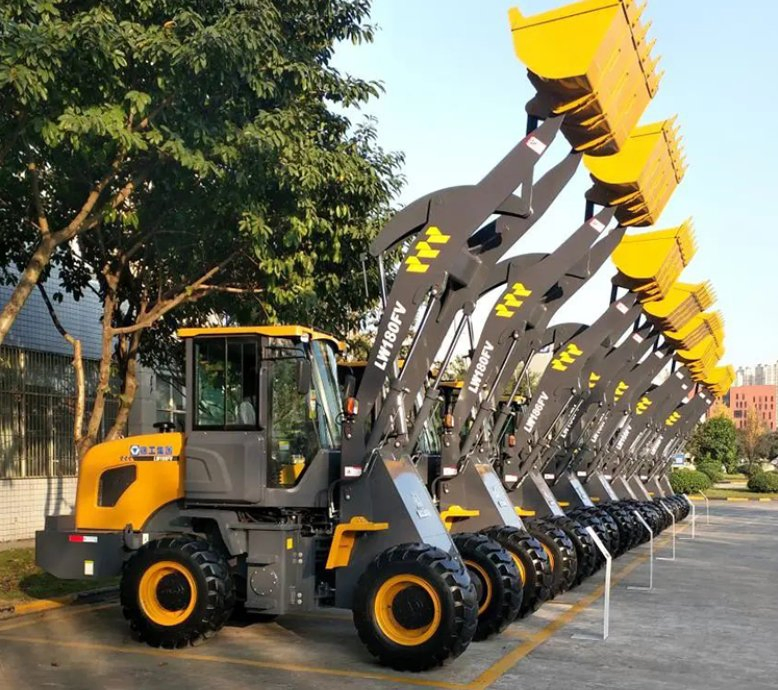

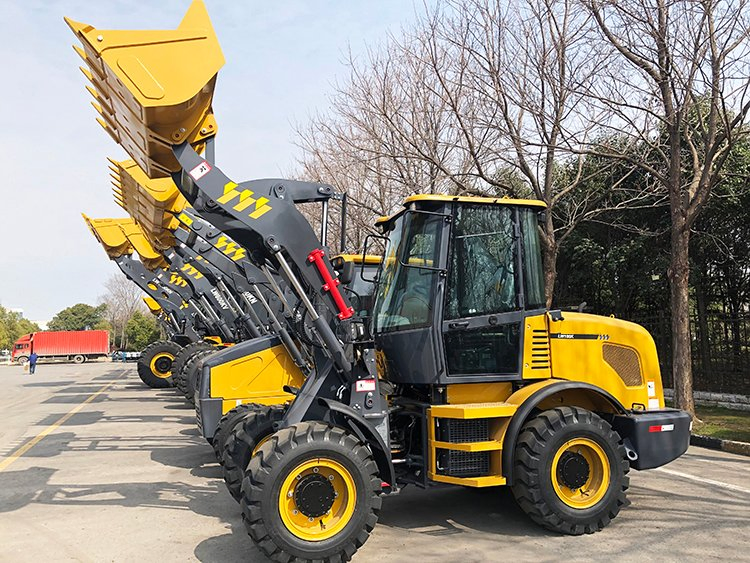

🖼️ Product Showcase

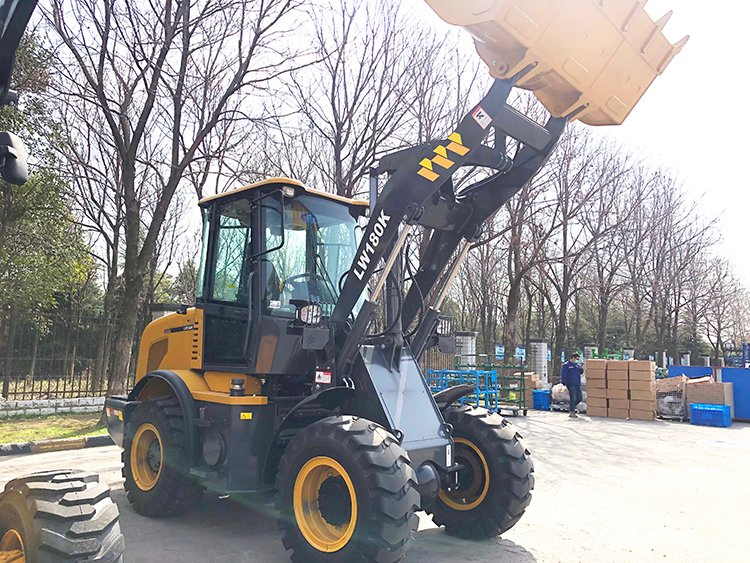

Wheel Loader View 1

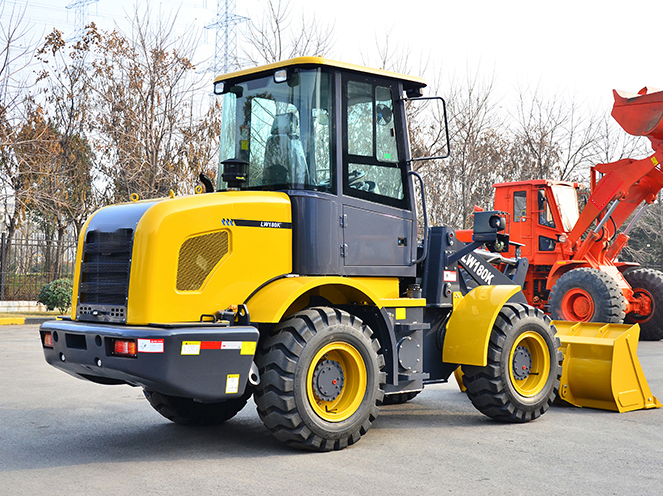

Wheel Loader View 2

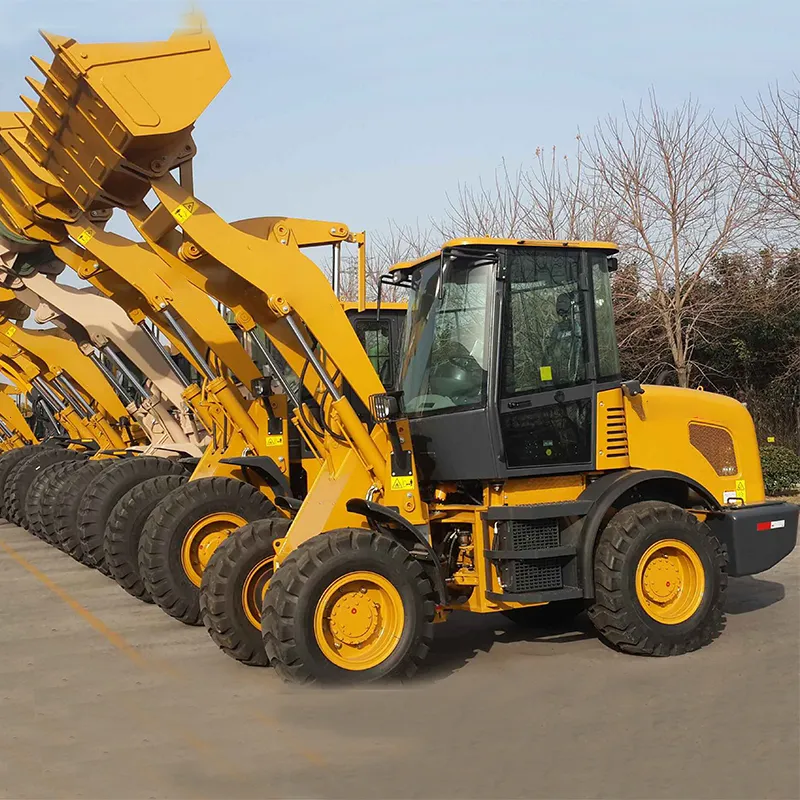

Wheel Loader Detail 1

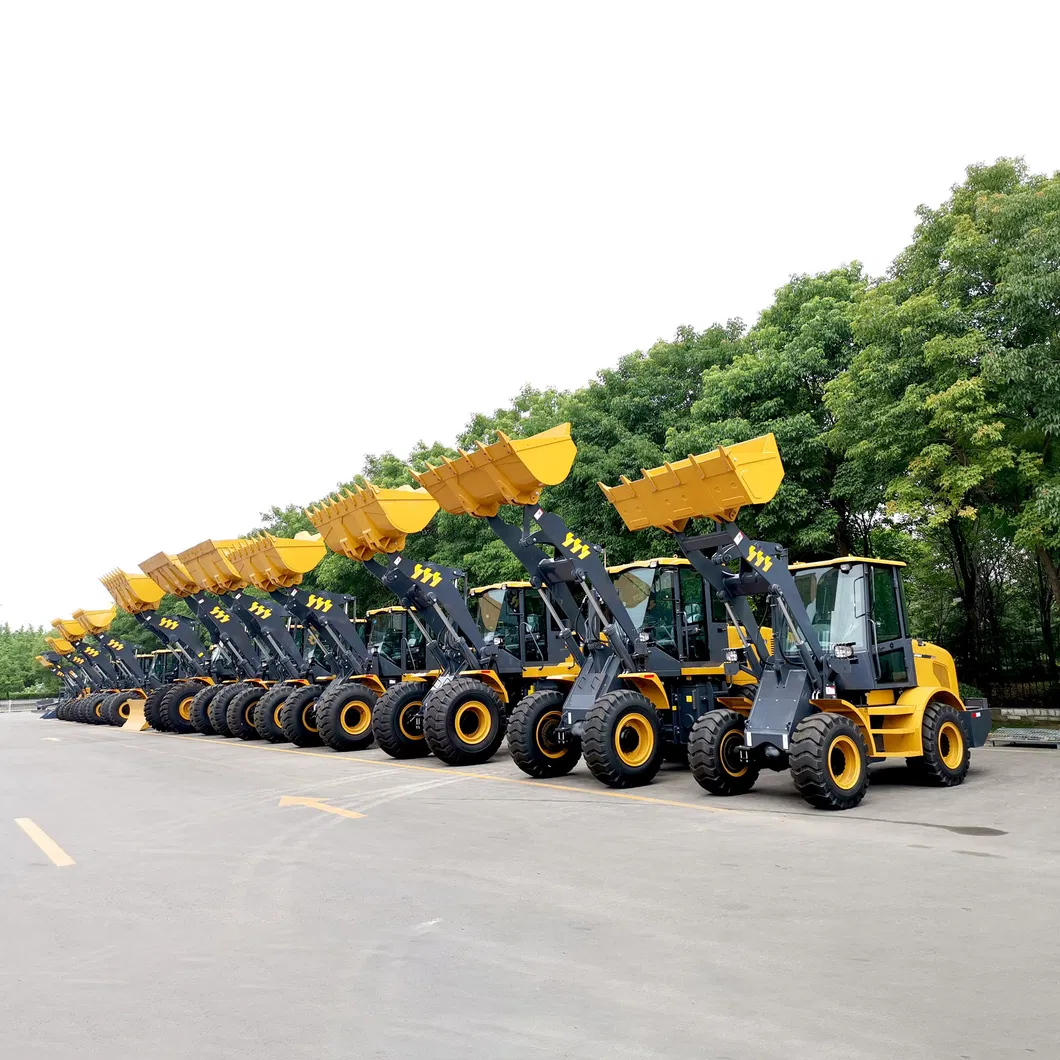

Wheel Loader Detail 2
❓ Frequently Asked Questions (FAQ)
Q1: What is the rated load capacity of the LW180FV? A: The LW180FV wheel loader has a rated operating load of 1800kg.
Q2: What type of engine is used in this loader? A: It is equipped with the YC4D80-T20 engine, providing a rated power of 58kW at 2400rpm.
Q3: Which industries are suitable for this equipment? A: It is ideal for housing construction, road maintenance, agriculture, forestry, water conservancy, and sand or gravel yards.
Q4: Does it support four-wheel drive? A: Yes, it features a four-wheel drive system with hydraulic mechanical transmission for superior drive and digging force.
Q5: What is the bucket capacity of the LW180FV? A: The bucket capacity ranges from 0.9 to 1.1 m³.
Q6: How efficient is the hydraulic system? A: The hydraulic cycle time for raising is only 5 seconds, with a total hydraulic cycle time of ≤8.5 seconds.
