Pan Mixer Features

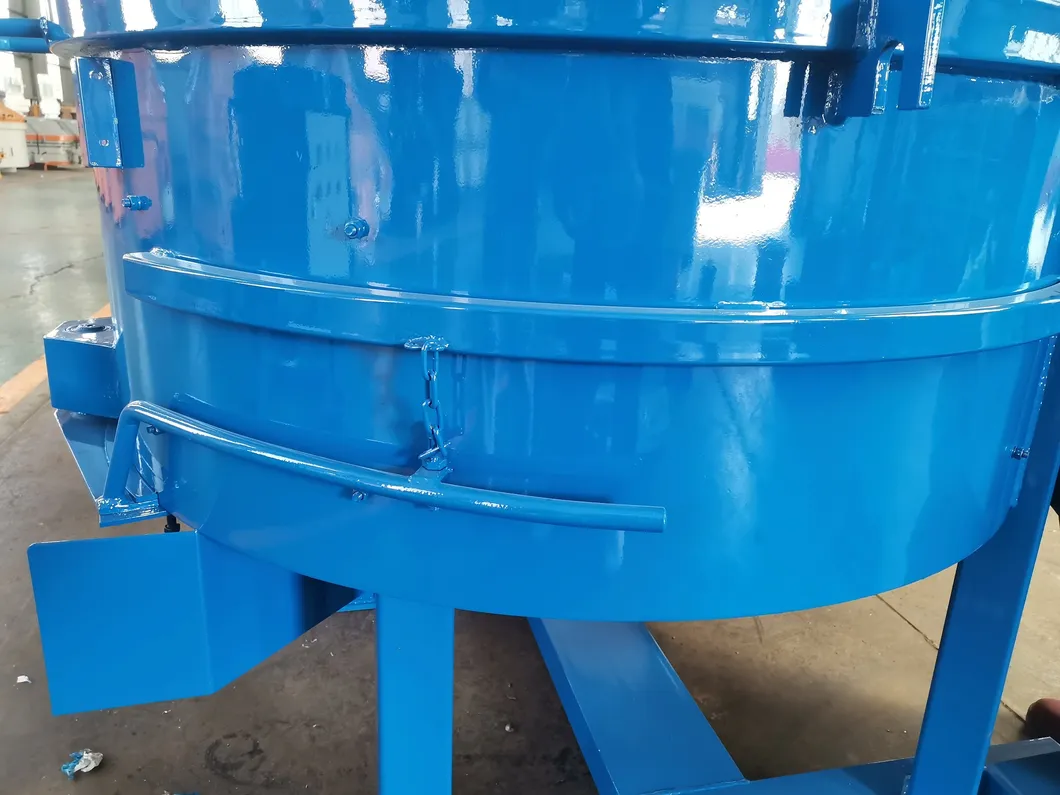

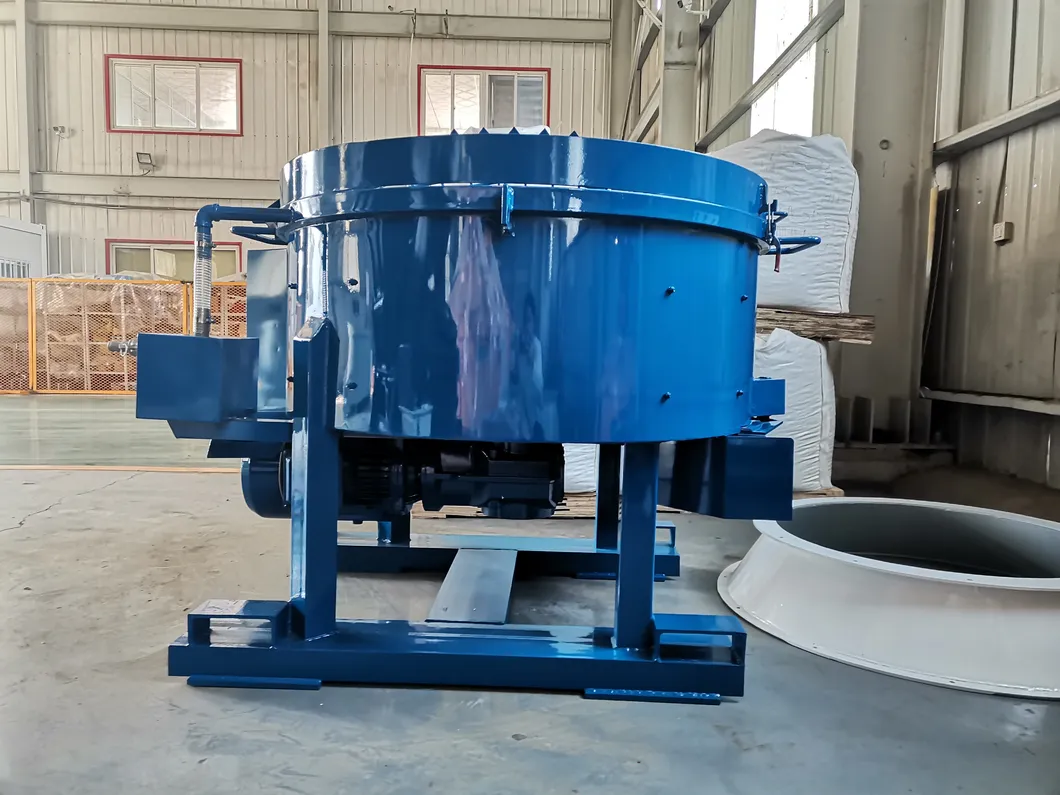

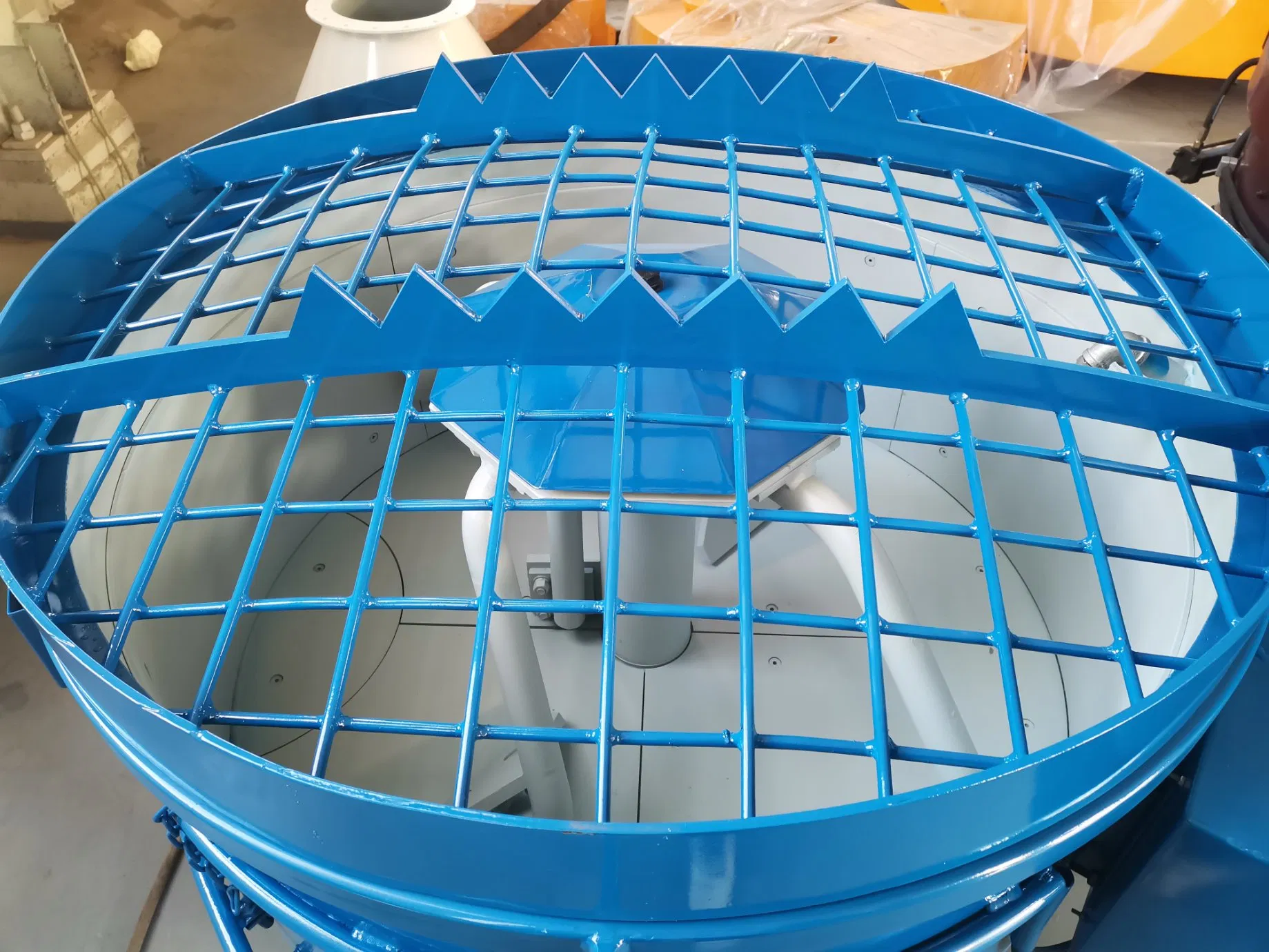

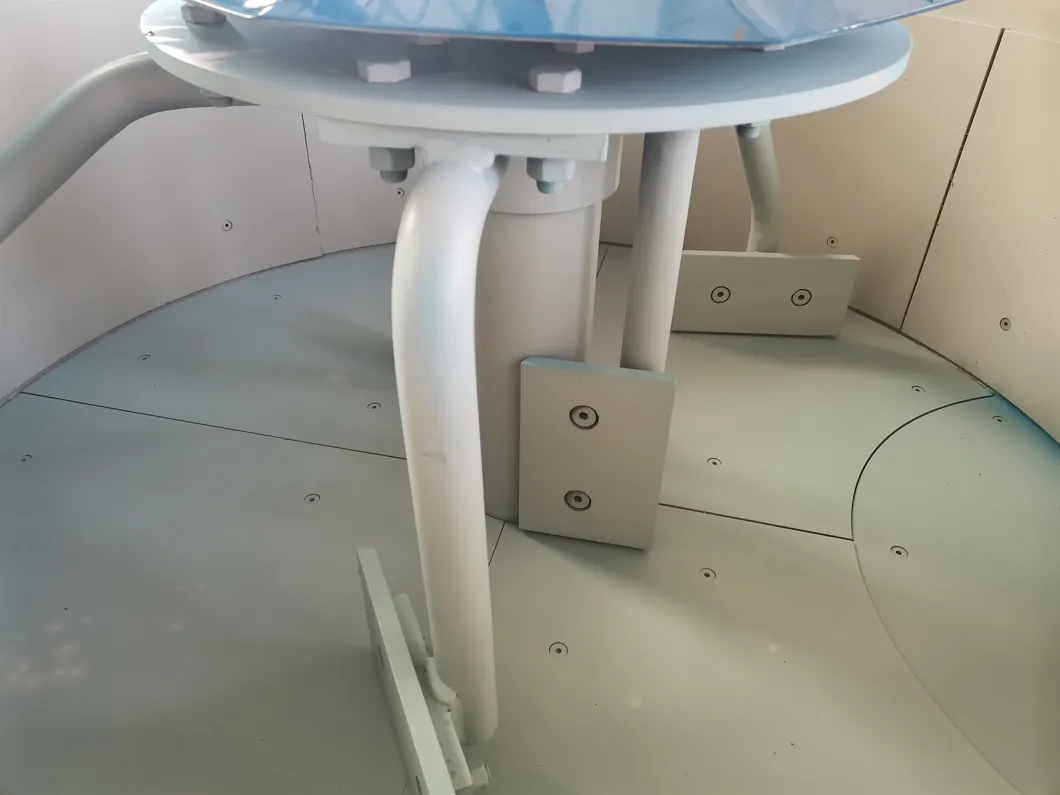

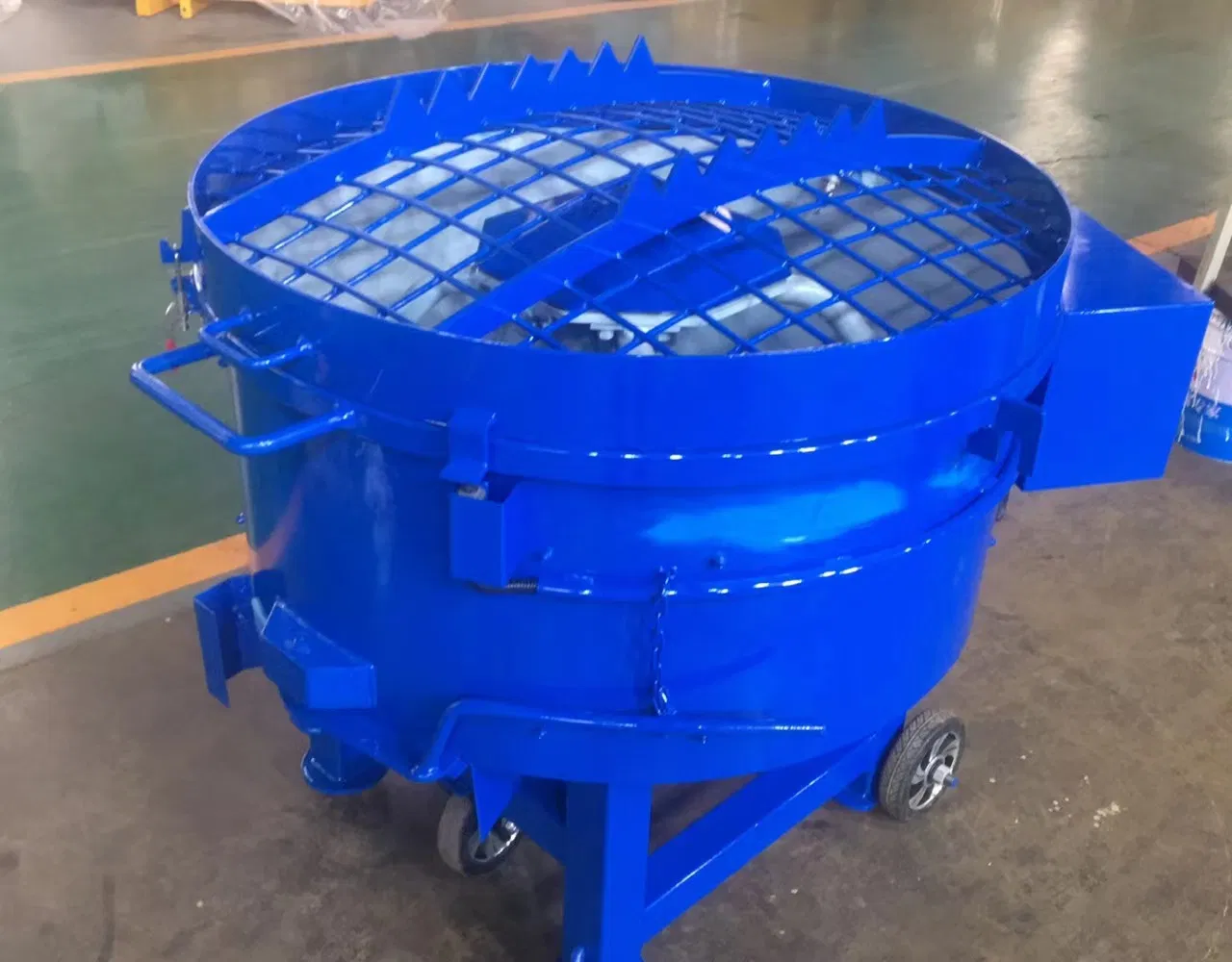

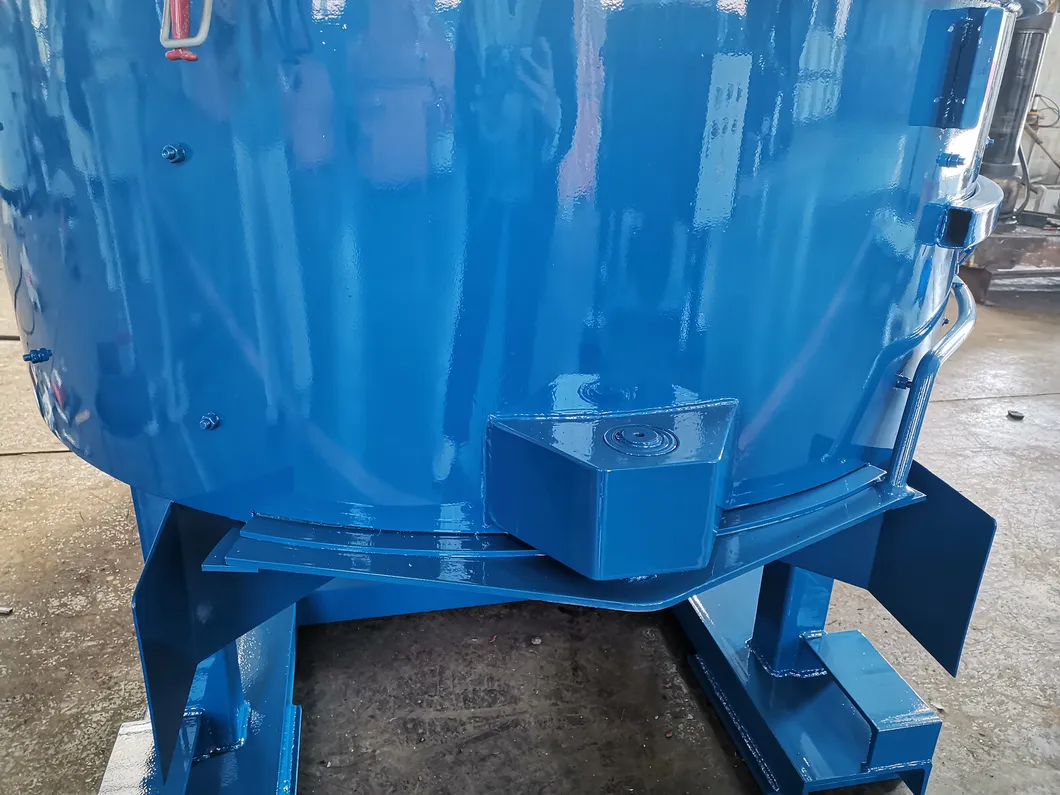

The refractory pan mixer is specially designed for mixing refractory, castables materials, etc. It is available in a stationary or practical mobile design and is characterized by top performance. To ensure easy movement at the working site, the refractory pan mixer is equipped with walking wheels. It features a high wear-resistant steel liner in the mixer bottom and inner wall, and five different purpose mixing arms to ensure materials mix evenly and avoid sticking.
| Model | Mixing Capacity (kg) | Feeding Height (mm) | Mixing Power (kw) | Rated Power | Weight (kg) | Dimension (mm) |
|---|---|---|---|---|---|---|
| SM100 | 100 | 4 | 4 | AC380V, 50HZ | 300 | 1500*1000*1300 |
| SM250 | 250 | 5 | 5.5 | AC380V, 50HZ | 560 | 1500*1300*1400 |
| SM500 | 500 | 5 | 11 | AC380V, 50HZ | 915 | 1800*1600*1400 |
| SM800 | 800 | 5 | 15 | AC380V, 50HZ | 1200 | 1500*2050*1300 |
| SM1000 | 1000 | 5 | 18.5 | AC380V, 50HZ | 2200 | 2290*2160*1490 |
