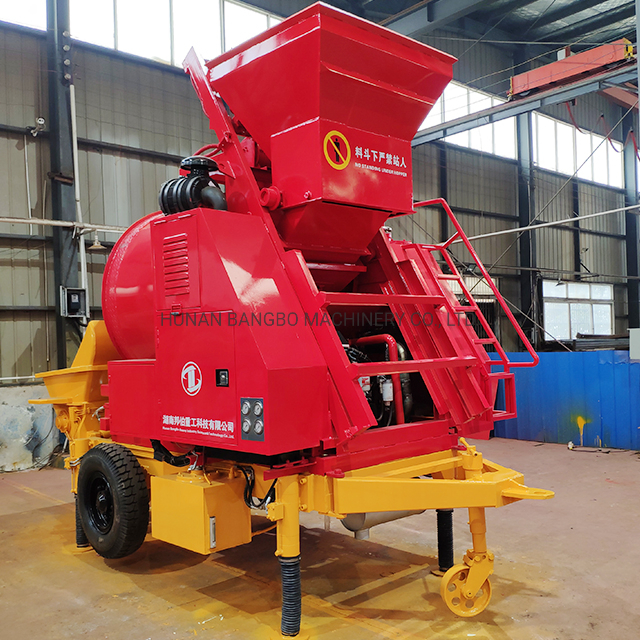

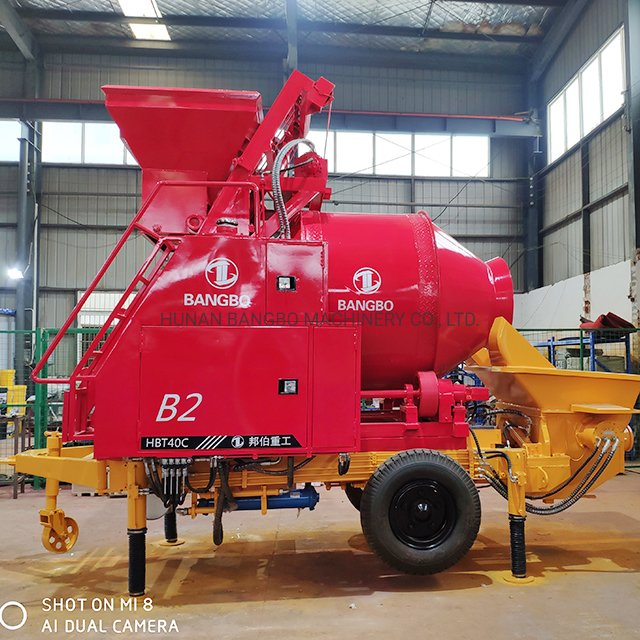

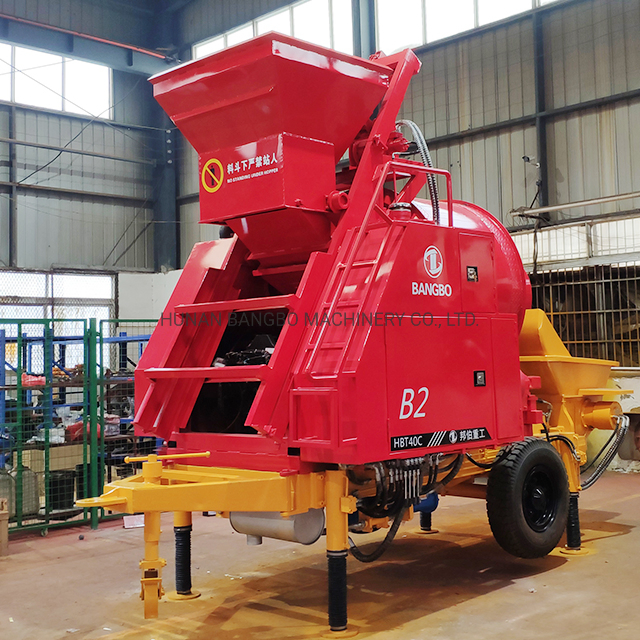

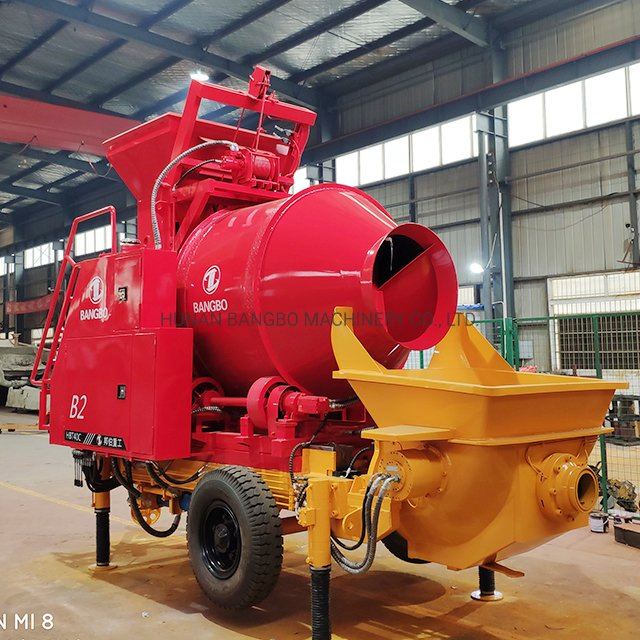

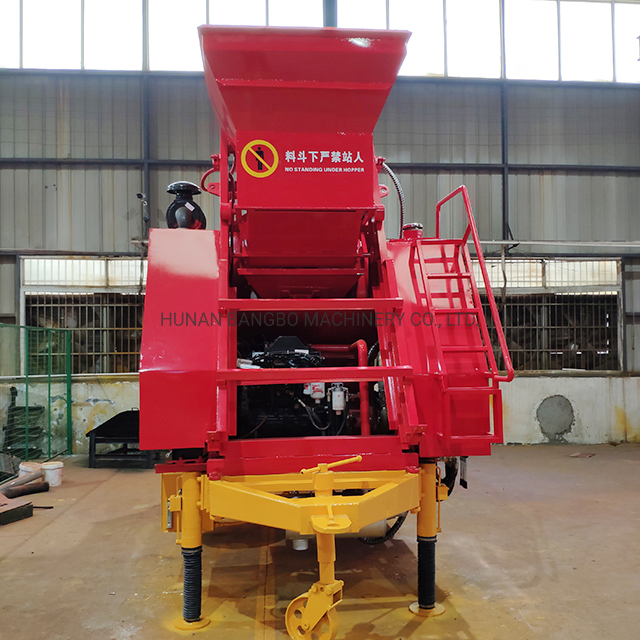

Self Loading Concrete Machine Portable Cement Mixer Pump Mini Pan Concrete Mixer with Pump

Customization:	Available
After-sales Service:	Provided
Warranty:	Provided

🟦 Basic Specifications

Model NO.

JBT30C-8008B3

Type

Concrete Pump

Shotcrete Type

Semi-Dry

Machining Process

Hydraulic

Structure

Cylinder Type

Productivity

30m3/H

Feeding Height

1080mm

Certification

ISO9001, CE

Power Type

Diesel

Power

62/72 Kw

Max Pressure

8 MPa

Horizontal Conveying

360-300m

Vertical Conveying

70-100m

Oil Tank Capacity

170L

Drum Diameter

1440mm

Weight

5500kg

⚙️ Product Description

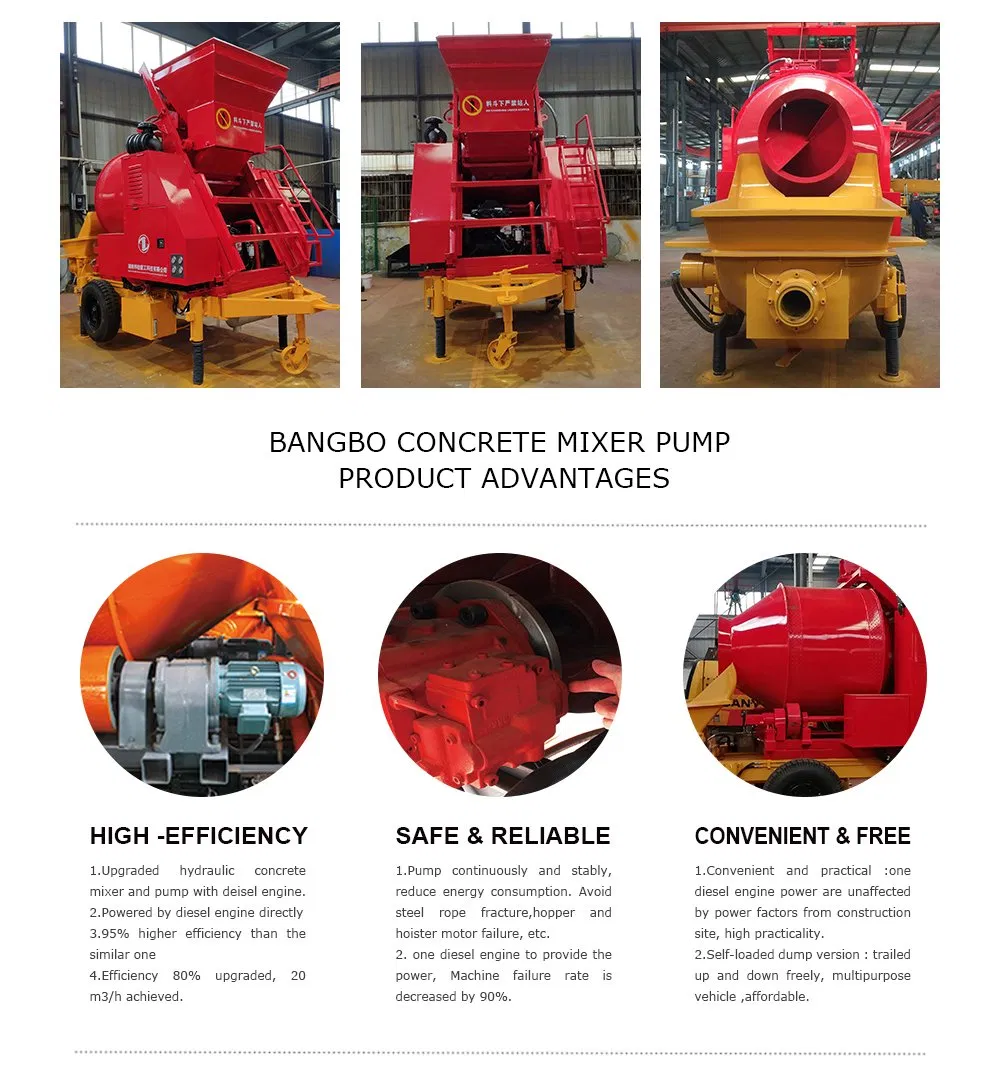

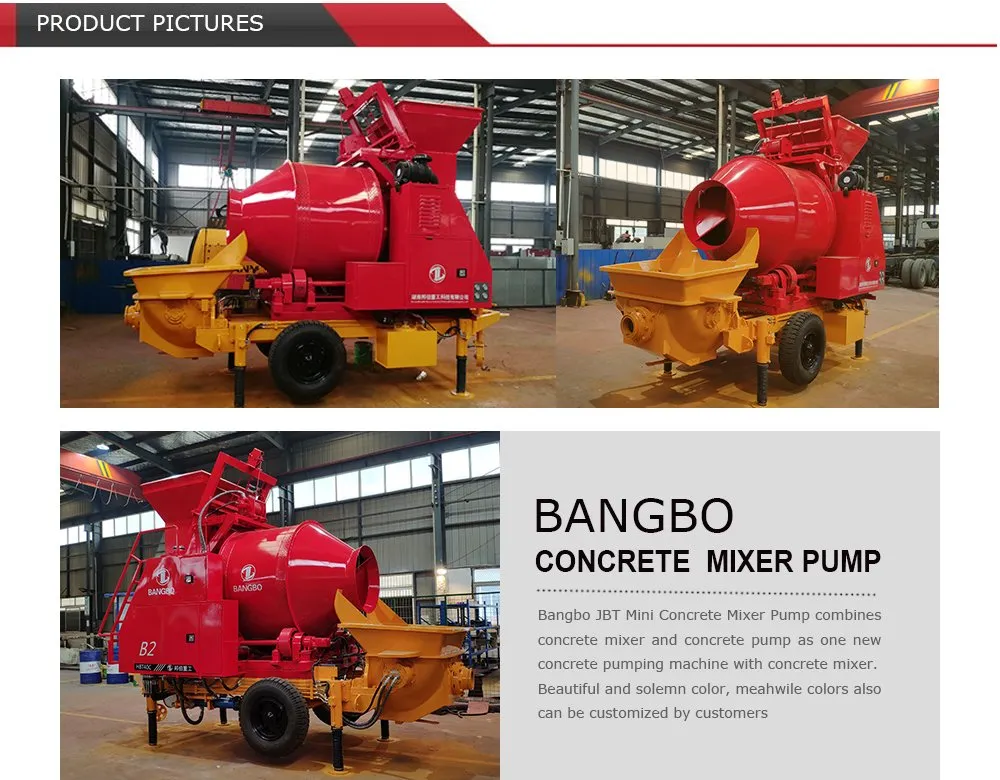

Self Loading Concrete Machine Portable Cement Mixer Pump

✔ Mixing and pumping perfect combination to save weight and transportation space.

✔ High work efficiency and reduced labor intensity.

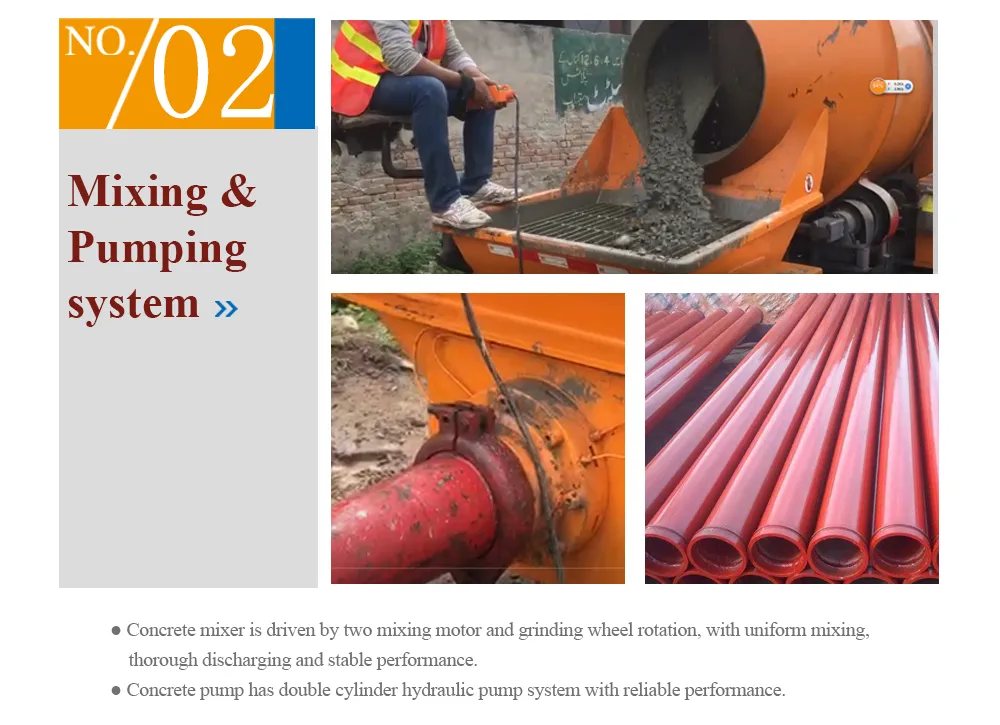

✔ Double cylinder hydraulic pumping system for stable performance.

✔ Capable of delivering crushed stone concrete safely and reliably.

✔ Long distance vertical and horizontal delivery capabilities.

📊 Technical Parameters

Parameter Item	Unit	Data
Production Name	-	Diesel Concrete Mixer Pump
Distribute Valve	-	"S" VALVE
Cooling Form	-	Water Cooling
Max Theoretical Output	M3/H	30
Max Horizontal Distance	M	200
Max Vertical Distance	M	70
Max Aggregates Diameter	MM	40-50

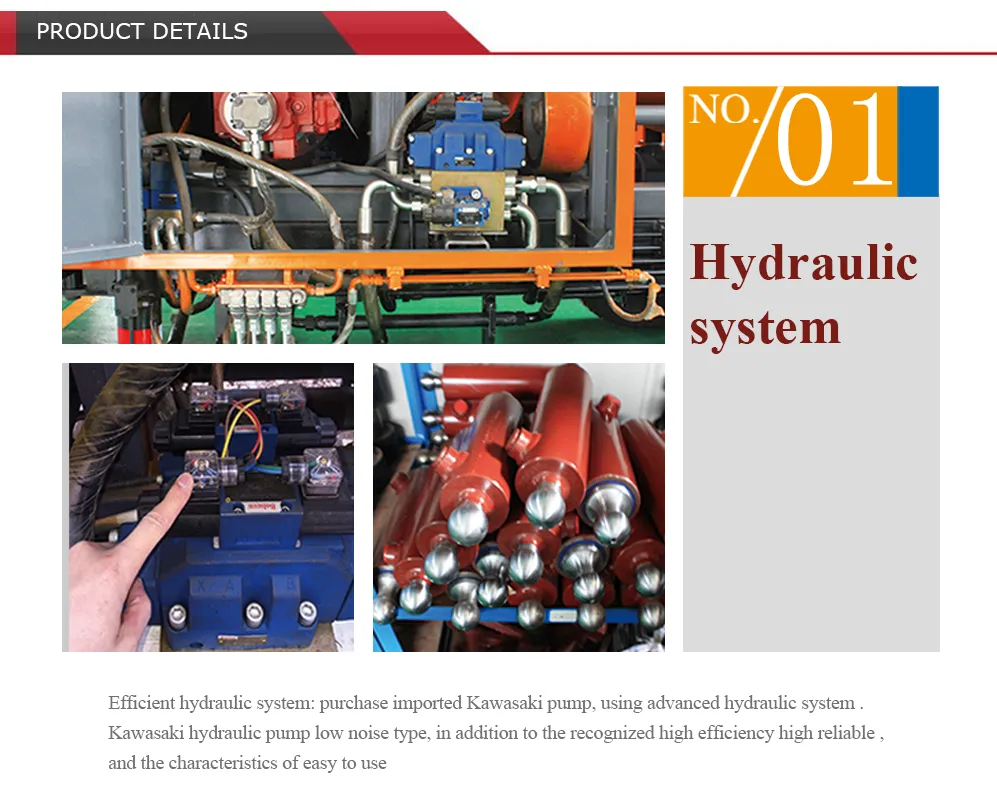

Main Hyd. Pump Brand	-	KAWASAKI
Main Hyd. Pressure	BAR	320
Mixer Rotary Speed	R/M	15
Delivery Cylinder Dia.	MM	200
Lifting Hopper Capacity	L	450
Drum Mixer Model	-	JS500

📸 Equipment Details

Professional design allowing for single-person operation, significantly saving labor costs while maintaining high efficiency in construction projects.

❓ Frequently Asked Questions

Q1: Are you a trading company or a manufacturer?

A: We are a factory. We can design and manufacture products as per specific customer requests.

Q2: How long is the warranty period for the machinery?

A: We offer a 12-month warranty for the machine (main body) starting from the date installation is completed.

Q3: What is the standard delivery time?

A: Generally, it is 7-10 days if the goods are in stock. If not, it typically takes 15-20 days depending on the quantity ordered.

Q4: What types of motor options are available for the mixer pumps?

A: We offer electric, diesel, and motor-driven options. For diesel, we use reliable brands such as Cummins, Deutz, or high-quality local engines.

Q5: What is the maximum pumping distance?

A: Our equipment can reach between 2 to 12 floors. We can customize solutions based on your required vertical and horizontal delivery distances.

Q6: What are the accepted payment methods?

A: Typically, a 30% down payment via T/T is required, with the 70% balance paid before delivery. We also support L/C and Western Union.
