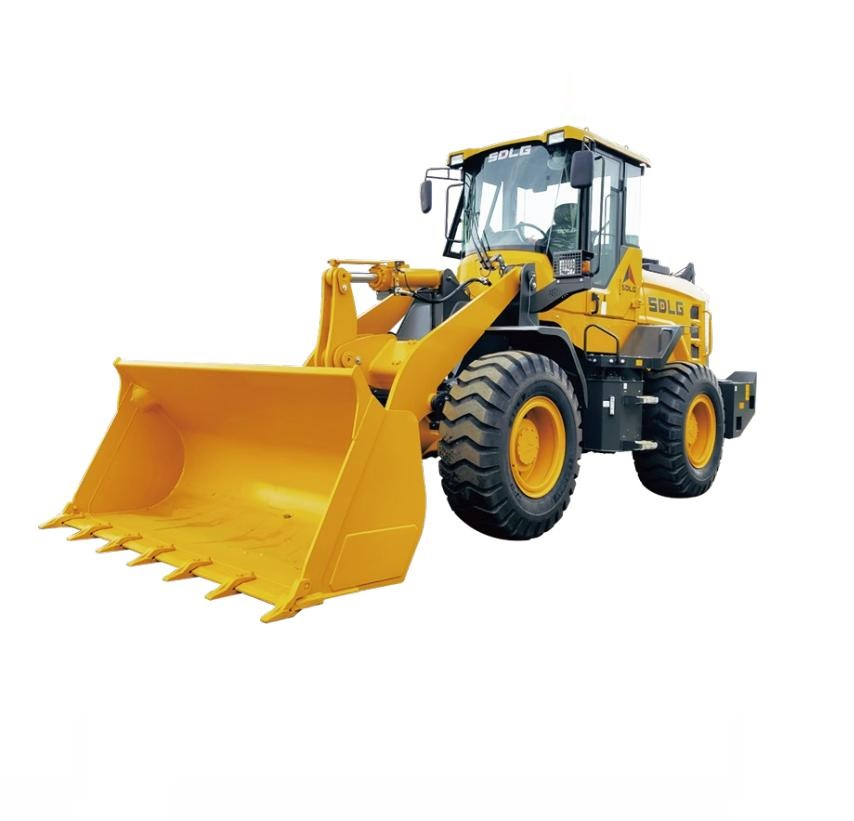

Sdlg Wheel Loader L936h Front Loader for Sale
Sdlg Wheel Loader L936h Front Loader for Sale
Sdlg Wheel Loader L936h Front Loader for Sale
Sdlg Wheel Loader L936h Front Loader for Sale
Sdlg Wheel Loader L936h Front Loader for Sale
1 / 5
Sdlg Wheel Loader L936h Front Loader for Sale
Sdlg Wheel Loader L936h Front Loader for Sale
Sdlg Wheel Loader L936h Front Loader for Sale
Sdlg Wheel Loader L936h Front Loader for Sale
Sdlg Wheel Loader L936h Front Loader for Sale

Sdlg Wheel Loader L936h Front Loader for Sale

Certification: TUV, ISO, RoHS, CE
Condition: New
Rated Load: 1-3t
Send Inquiry

Product Description

Basic Specifications

Model NO.
L936H
Transmission
Hydraulic - Mechanical
Walking Mode
Wheeled
Engine
Wp6g125e22
Rated Load
3000kg - 3500kg
Bucket Capacity
2.1m³
Rated Power
92kw
Operating Weight
11230kg

Product Description

The L936H is a versatile loader designed for loading and unloading loose materials. Known for its high reliability and multi-purpose capabilities, it is widely utilized in farms, small mining operations, timber plants, and urban construction projects.

1
Equipped with the Weichai turbocharged engine meeting China II emission standards, providing strong power and exceptional reliability.
2
Features a planetary transmission case with two forward and one rear gear positions. The single-stage four-element twin-turbo hydraulic torque converter ensures high transmission efficiency.
3
Load-sensing full hydraulic steering and pilot-control hydraulic systems offer light, flexible operation and high efficiency.
4
Adopts reinforced front and rear frames that have undergone 200,000 fatigue tests, ensuring strong bearing capacity and machine stability.
5

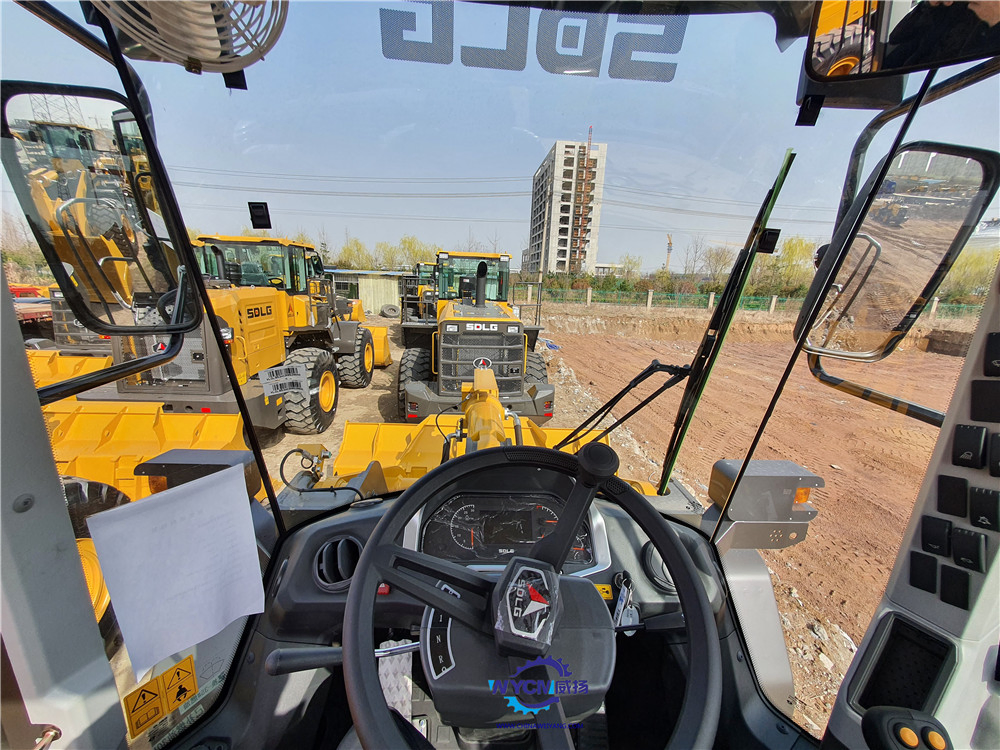

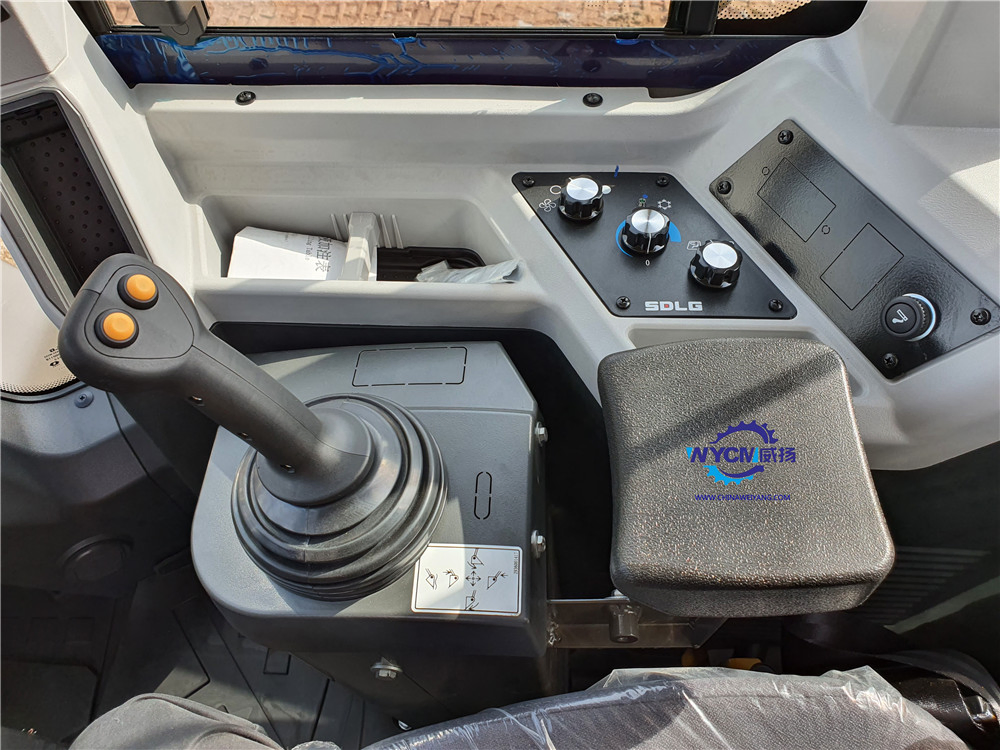

New steel structure cab with wide vision and large operating space. Features internal trimmings, excellent sealing, and optional AC/ROPS/FOPS for driver comfort.
6

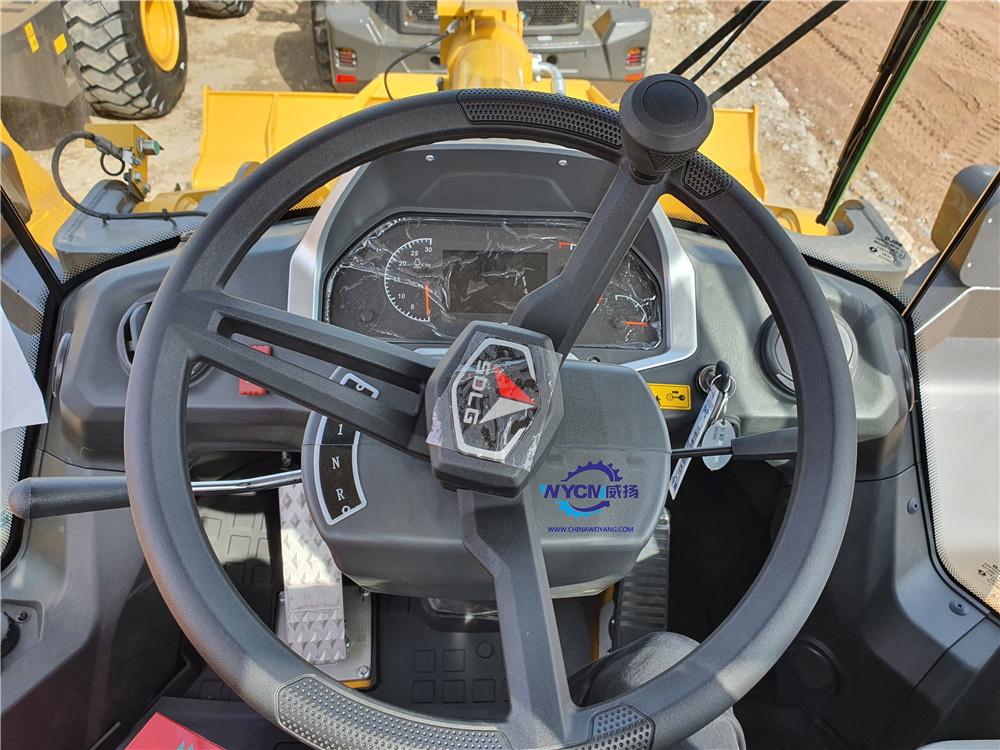

Digitized stepping dashboard for high human-machine interaction. Centralized electrical control allows for convenient inspection and maintenance.
7

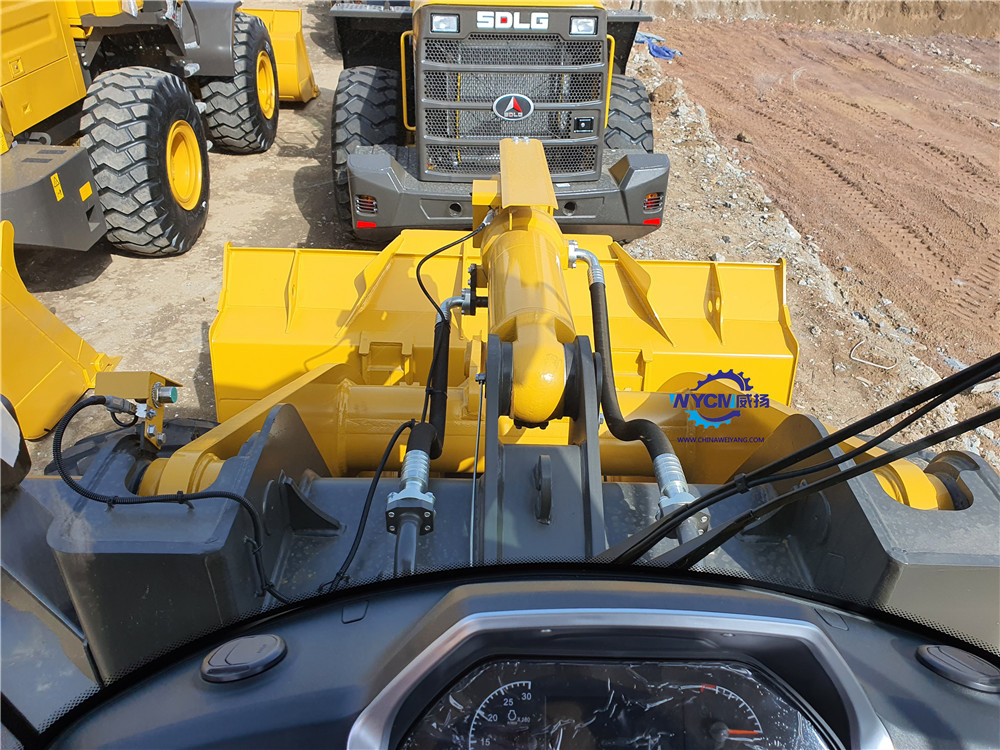

Optimized bucket design with a thickened anti-friction bottom plate, reducing cutting resistance and improving fullness coefficients.

Technical Parameters

Item Specifications Item Specifications
Overall Dimension (L×W×H) 7320×2520×3170mm Operating Weight 11230kg
Wheelbase 2850mm Max. Tractive Force ≥100kN
Max. Dumping Height 2930-3278mm Max. Breakout Force ≥96kN
Engine Model WP6G125E22 Rated Power/Speed 92kw / 2200r/min
Transmission Type Planetary Power Shift Max. Speed 38km/h
Brake System Air over hydraulic disc Steering System Load-sensing fully hydraulic
Fuel Tank Capacity 140L Hydraulic Oil Capacity 128L

Detailed Photos

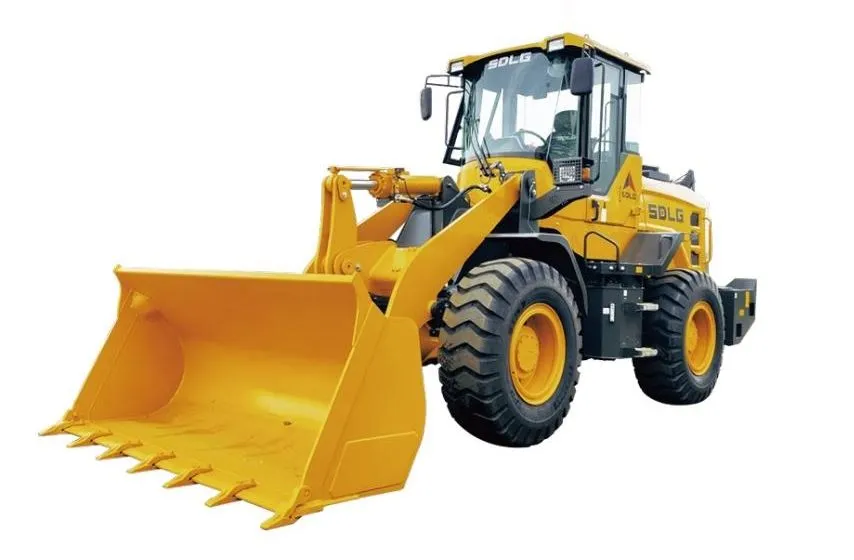

L936H Front Loader Display
L936H Wheel Loader View
L936H Construction Equipment

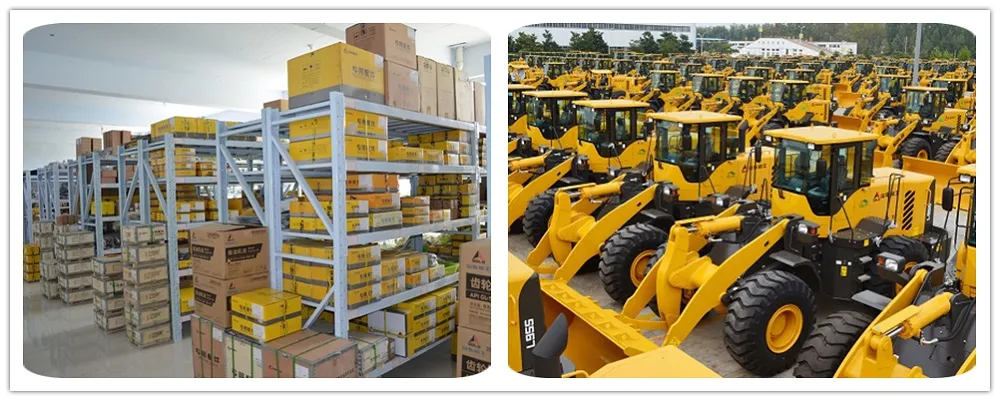

Loader Components
Loader Detail View
L936H Working View
Loader Mechanical Structure

Frequently Asked Questions

What is the engine specification for the L936H?
The L936H is equipped with a Weichai WP6G125E22 turbocharged engine, providing 92kw of power and meeting China II emission standards.
What is the maximum load capacity and bucket size?
The loader has a rated load capacity of 3000kg to 3500kg and features a standard bucket capacity of 2.1m³.
Is the L936H suitable for rough terrain?
Yes, with its wheeled walking mode, reinforced frames, and powerful hydraulic systems, it is ideal for farms, mines, and construction sites.
What features ensure operator comfort?
The machine features a new steel structure cab with wide vision, ergonomic internal trimmings, and optional air conditioning and ROPS/FOPS protection.
How is the machine maintained?
It uses a digitized stepping dashboard for easy interaction and centralized electrical control for quick inspection and maintenance of electrical components.
What are the dimensions and travel speed?
The overall dimensions are 7320×2520×3170mm, and it can reach a maximum forward speed of 38km/h.
