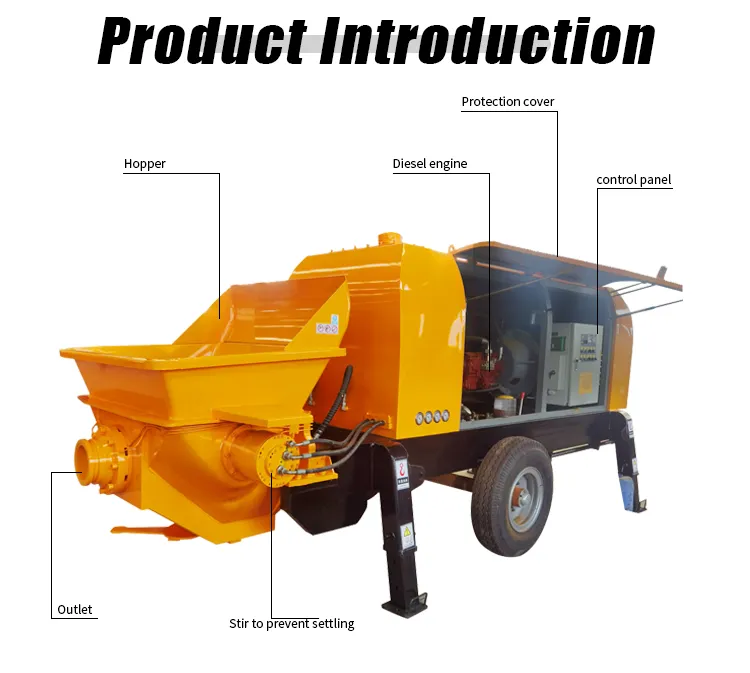

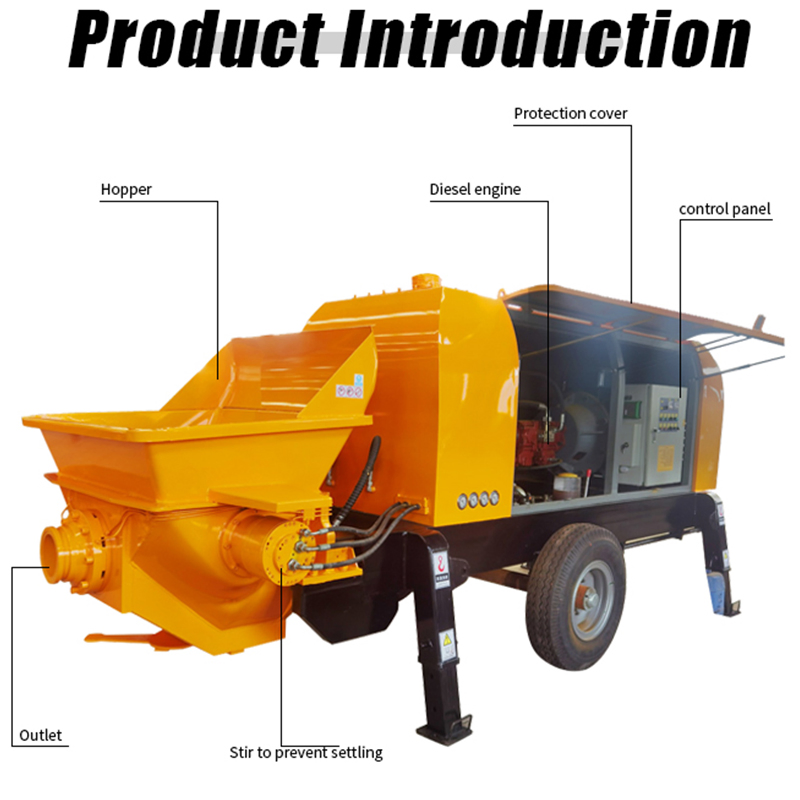

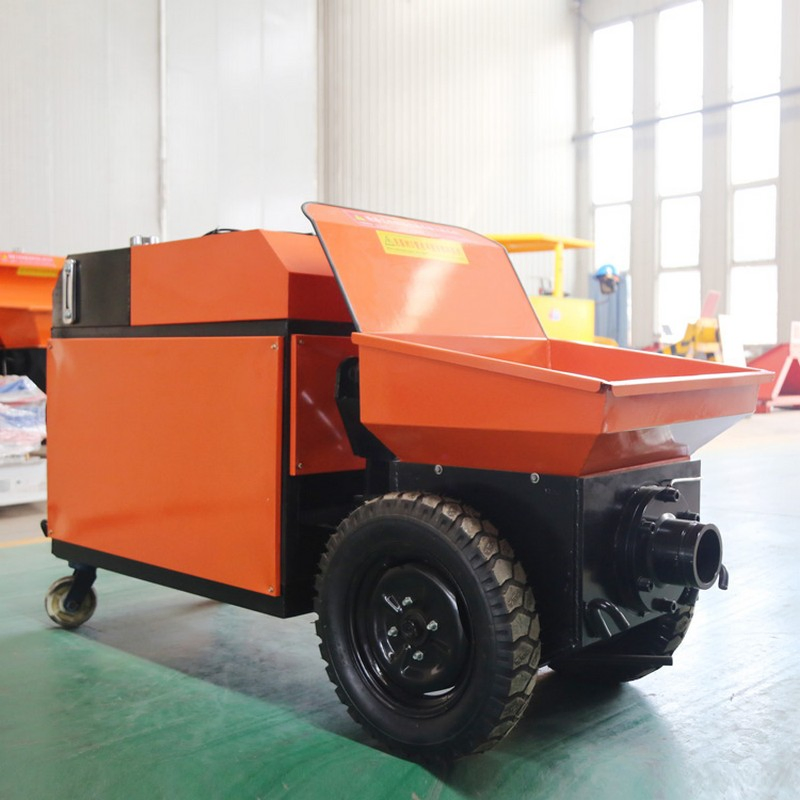

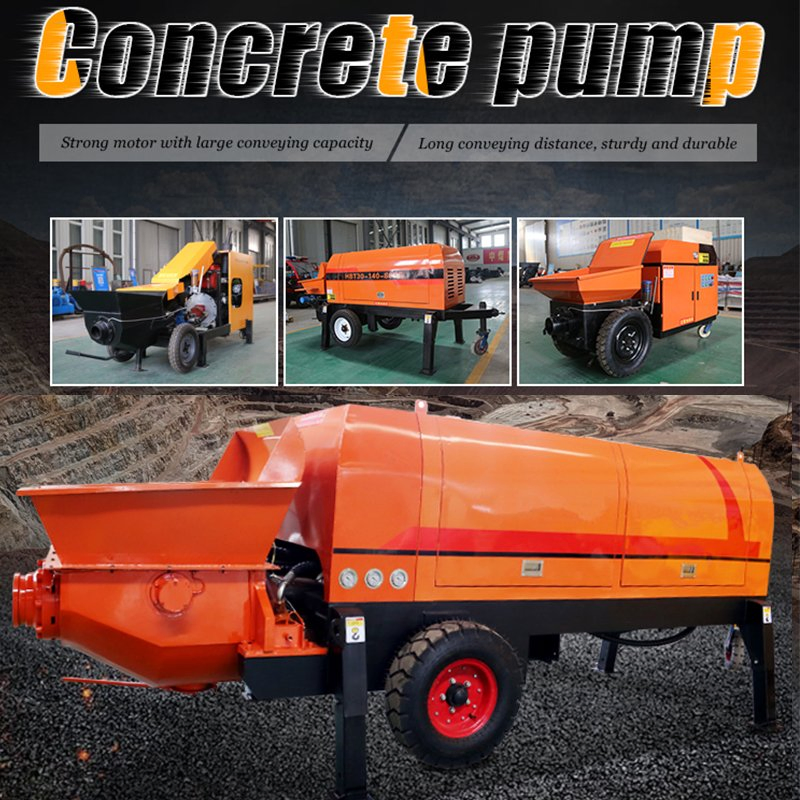

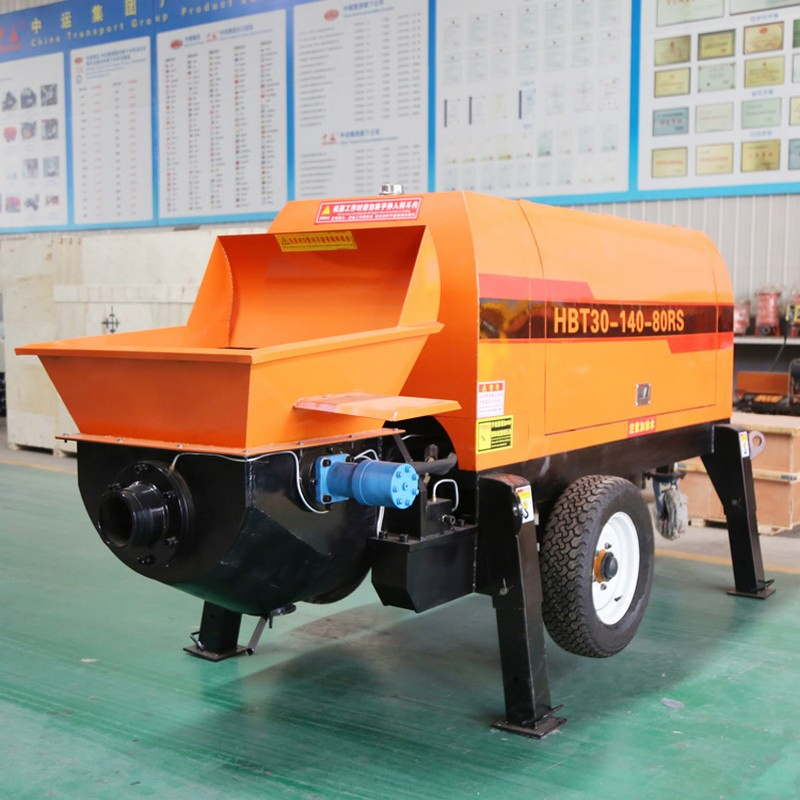

Introduction of Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine

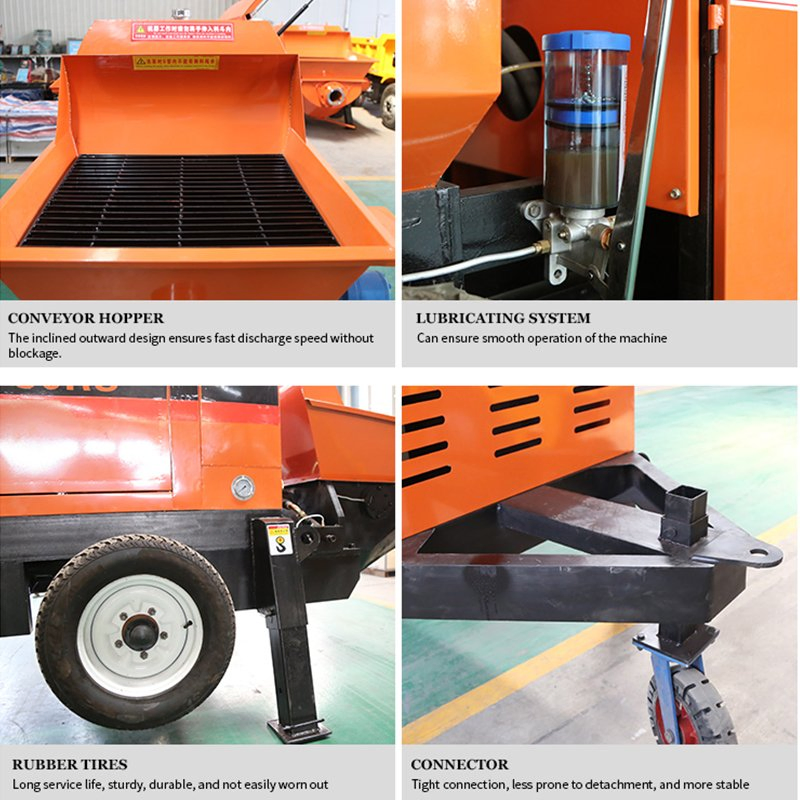

The construction site fine stone mortar pump is applied in high-rise building ash mortar and fine stone concrete transportation, secondary structure column grouting, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting, tunnel Backfill grouting anchor support in subway and mine construction. This product adopts hydraulic feeding, and the double-cylinder reciprocating operation of vibrating net filter can completely transport various mortars, fine stone concrete, etc. It features large displacement, high pressure, labor saving, and flexible movement, making it an ideal mortar conveying equipment.
| Project | Unit | HBTS25 | HBTS40 | HBTS60 | HBTS80 |
|---|---|---|---|---|---|
| Maximum theoretical delivery | m³/h | 23 | 40 | 60 | 80 |
| Maximum outlet pressure | Mpa | 8 | 13 | 13 | 13-16 |
| Maximum transport distance | m | 100/300 | 200/800 | 240/1100 | 240/1100 |
| Motor Power | kw | 30 | 55 | 90 | 90-110 |
| Feeding height | mm | 1200 | 1200 | 1350 | 1350 |
| Max particle size | mm | ≤50 | ≤40 | ≤40 | ≤40 |
| Concrete slump | cm | 15-23 | 15-23 | 15-23 | 15-23 |
| Duct inner diameter | mm | Φ125 | Φ125 | Φ125 | Φ125 |
| Host weight | Kg | 1900 | 3400 | 5000 | 5600 |
| Dimensions (L×W×H) | mm | 3300×1600×1800 | 4300×1600×1800 | 5500×1800×2000 | 5800×1800×2000 |
