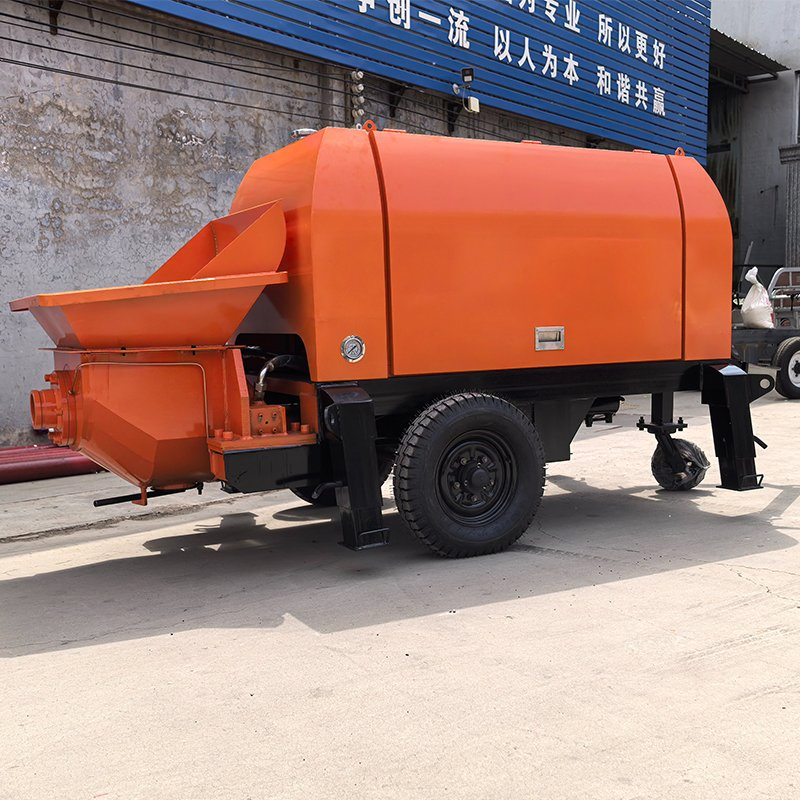

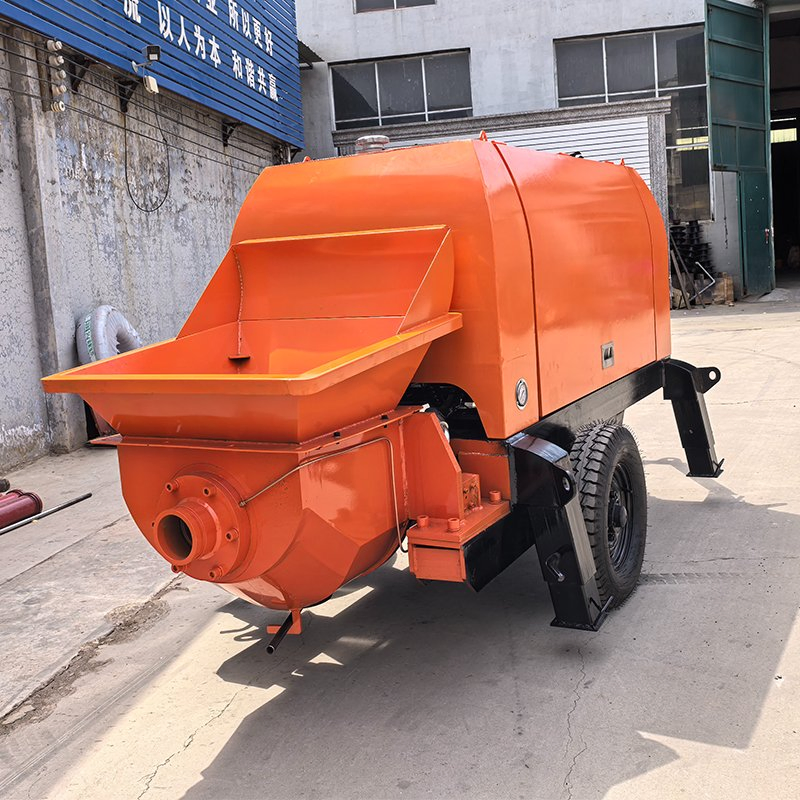

Industrial Grade Concrete Transfer Pumps (Diesel/Electric)

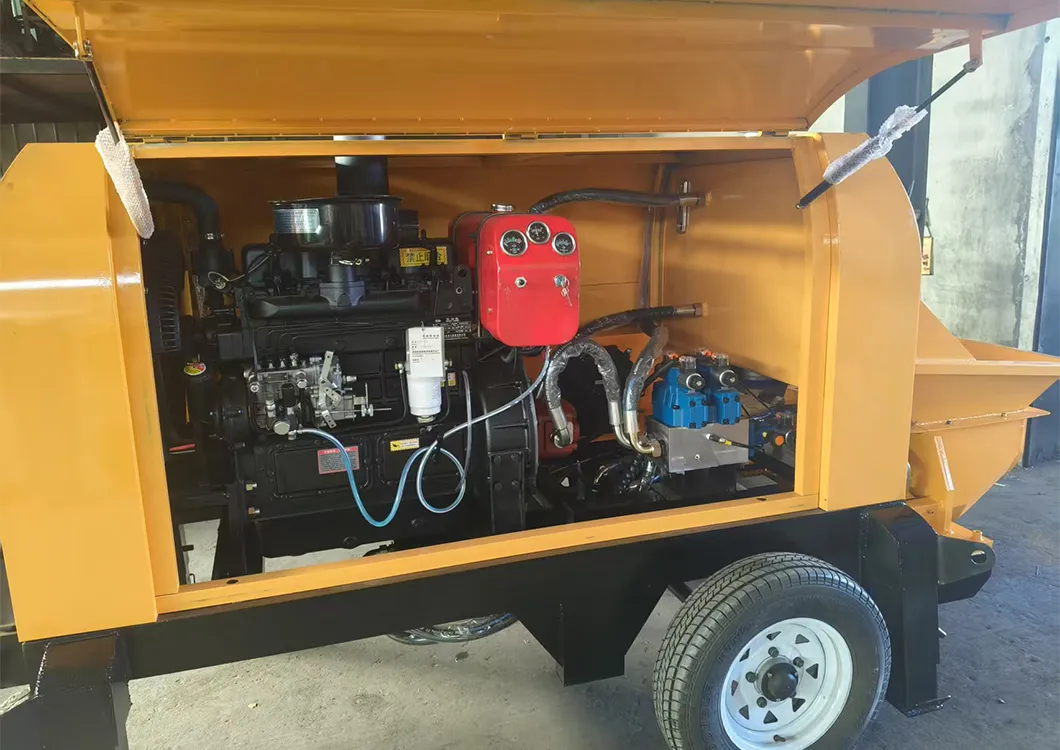

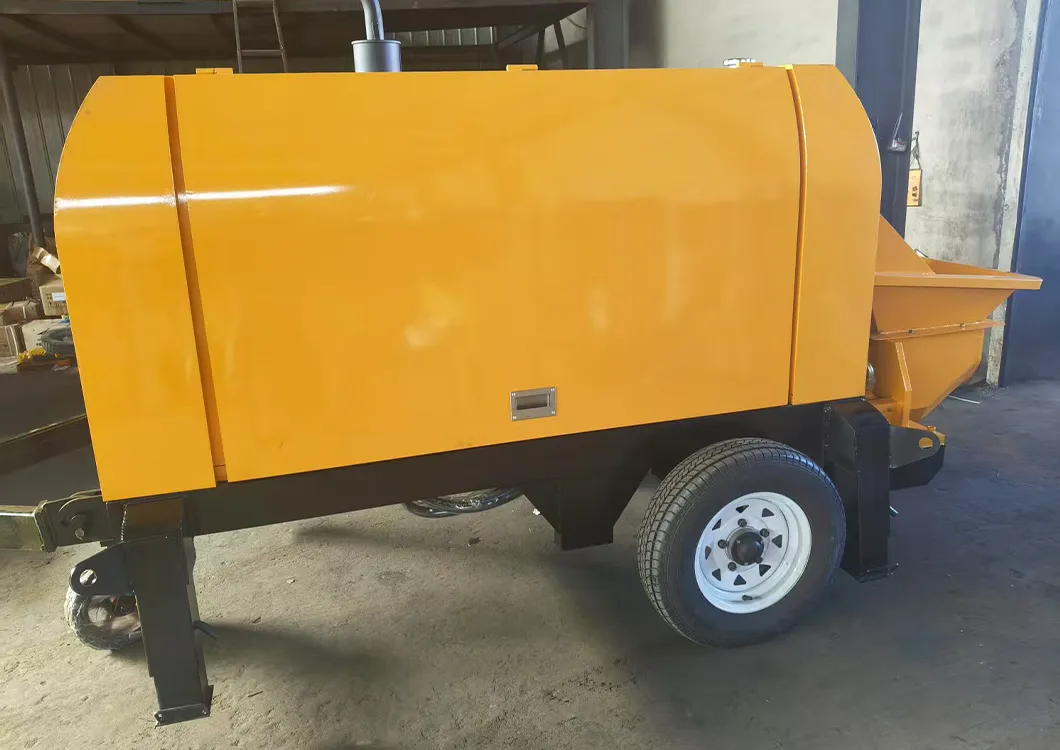

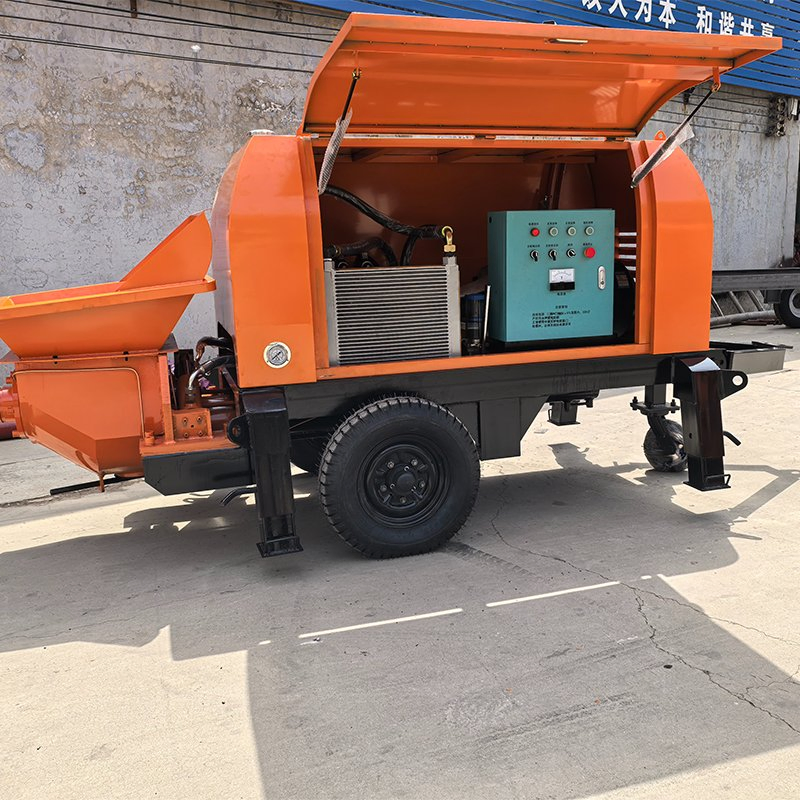

The advantages of our small concrete pump are obvious. In terms of mobility, the large-size solid tire with the bottom universal wheel allows for flexible movement on construction sites or across different pouring positions. The operation panel with integrated control buttons makes management easy to understand, and the open-shell design facilitates maintenance and repair. Its compact structure makes it ideal for narrow spaces, interior decoration, and rural housing projects. The practical hopper design with a large opening reduces concrete residue and improves transportation efficiency.

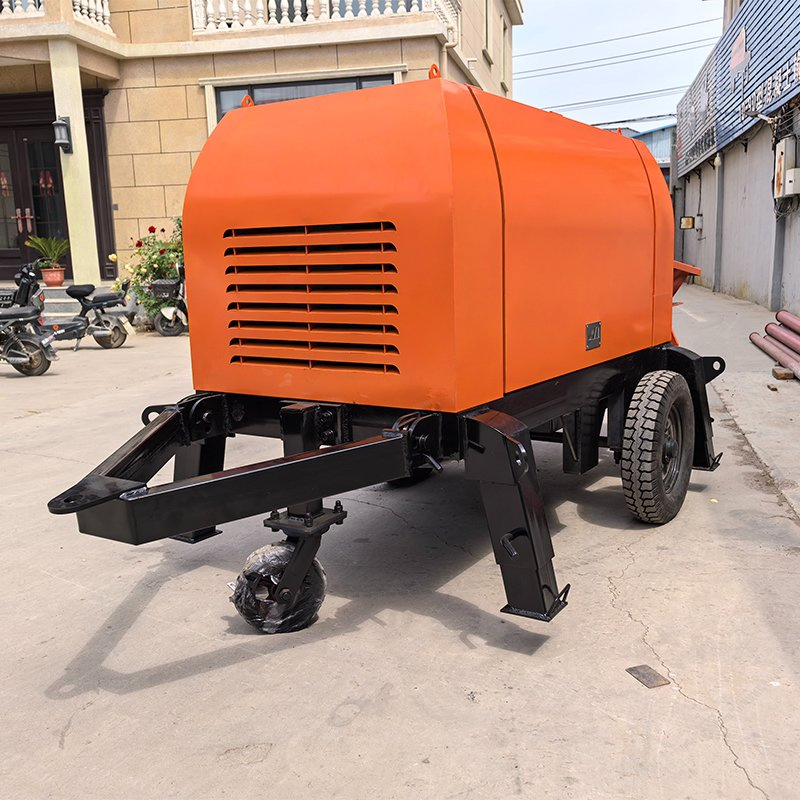

Equipped with tires and universal wheels for rapid deployment at construction points.

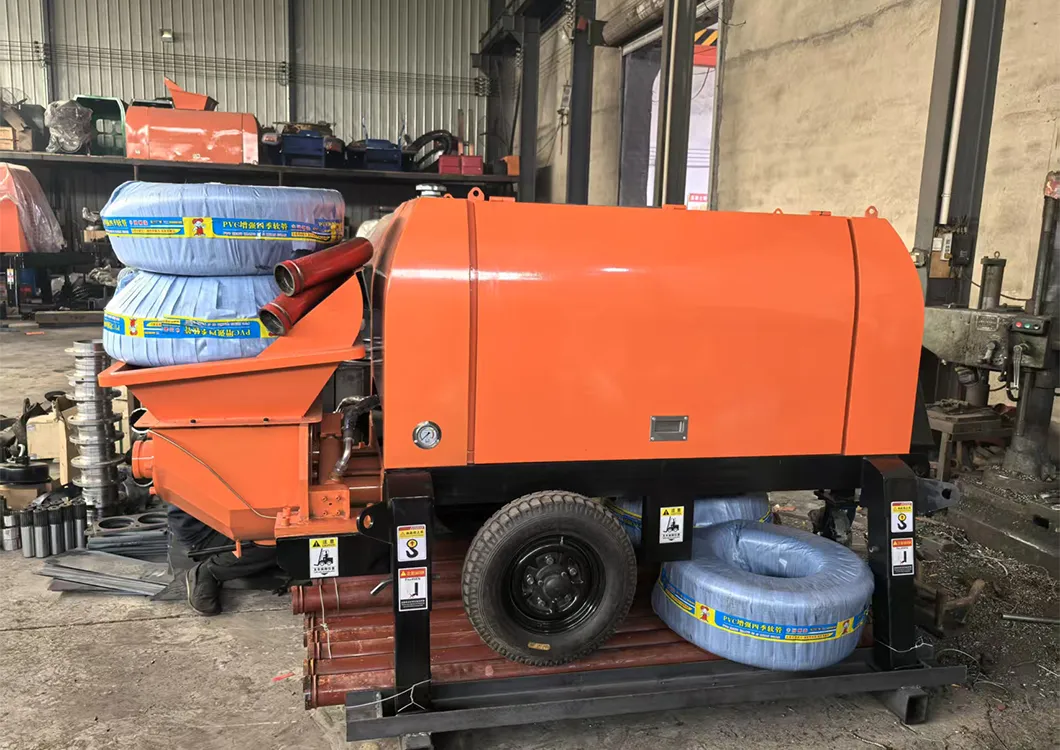

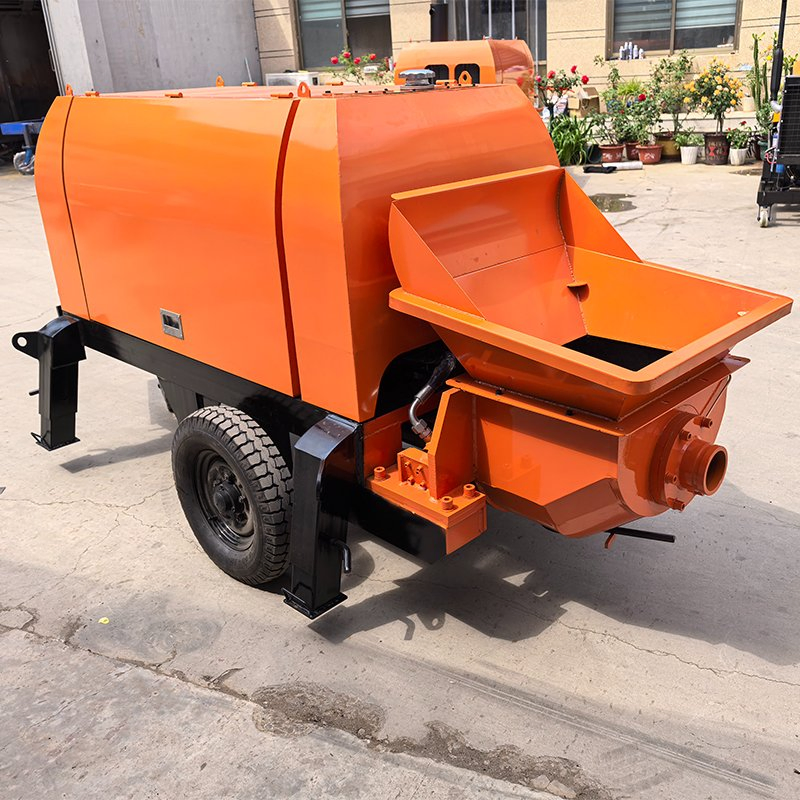

Inclined large open hopper for easy loading and reduced residue.
Using mature pumping technology and stable mechanical structure, the equipment ensures continuous operation under standard construction intensity, minimizing delays caused by equipment failure.
| Project | Unit/Brand | Data |
|---|---|---|
| Main motor/Diesel engine | kw | 22kw/4102 |
| Theoretical workload | m³/H | 8-10 |
| Work pressure | Mpa | 18 |
| Stone diameter | mm | ≤20 |
| Cylinder size | mm | 80*550mm |
| Cylinder size of the mold | mm | 120*610mm |
| Main oil pump | - | 63 Gear pump |
| Electronic control system | - | Standard Industrial Control |
| Heat dissipation system | Air-cooled | 1417 |
| Outlet diameter | mm | 100mm |
| Inner diameter of the pipe | mm | 80/100mm |
| Transmission distance (Small pebble) | m | Altitude: 30-40 | Length: 80-100 |
| Length*Width*Height | mm | 3300*1400*1400mm |
| Weight | kg | 1200 |

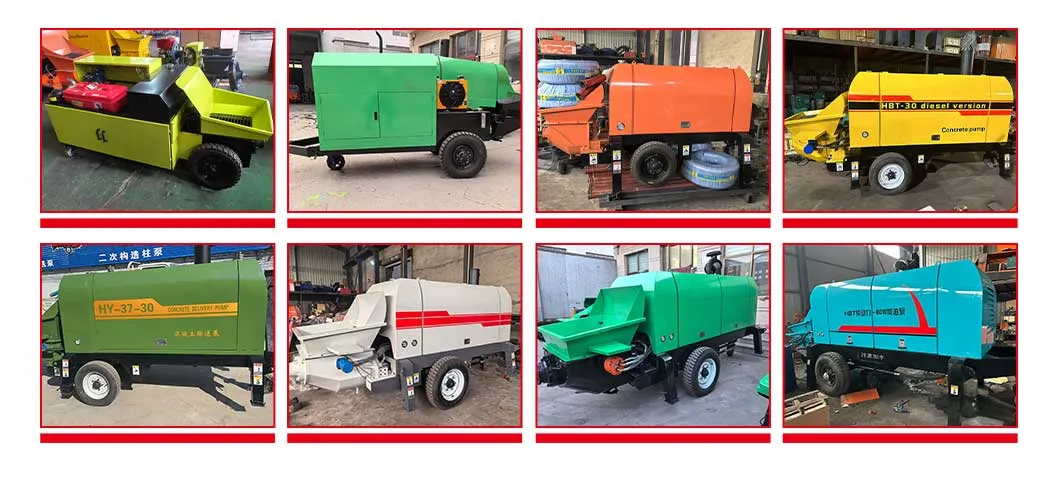

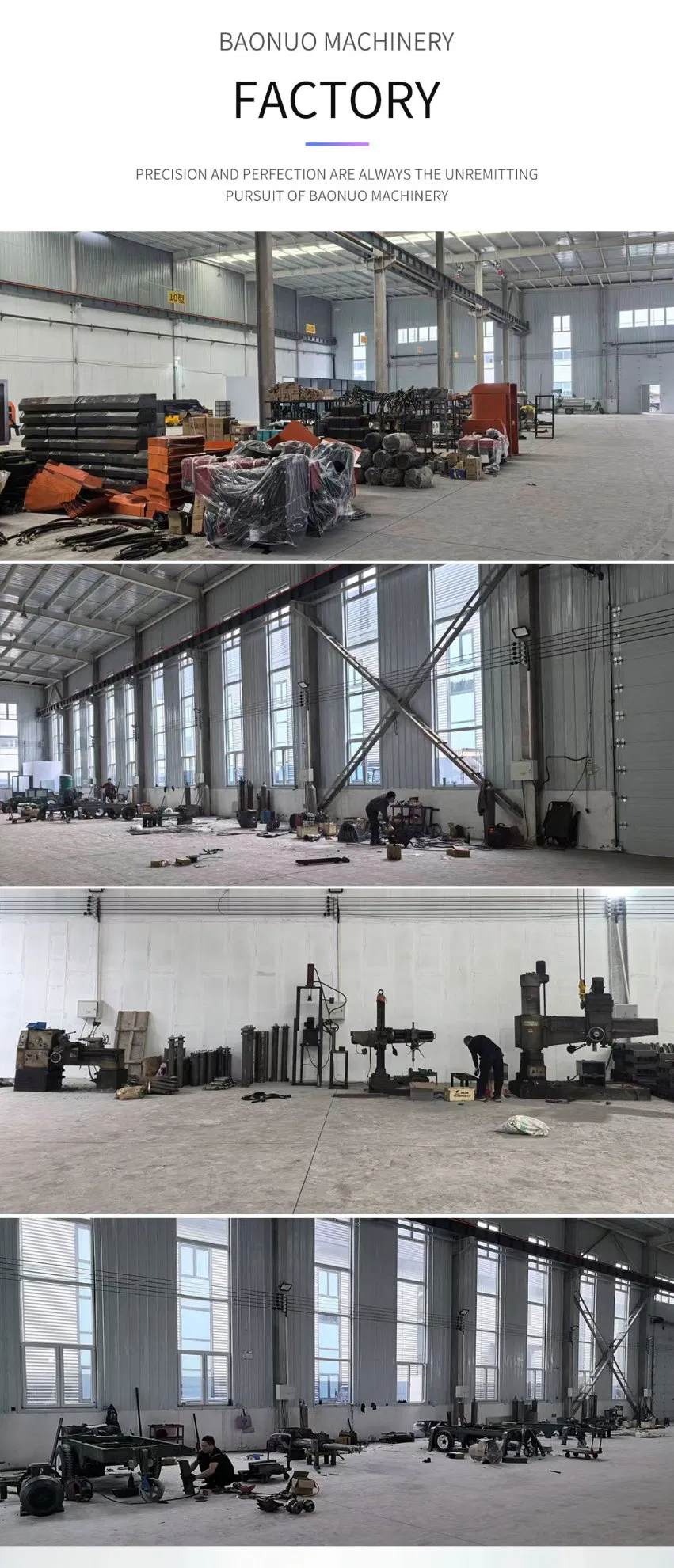

Our manufacturing facility is a professional concrete equipment manufacturer integrating research and development, production, and sales. We are committed to the innovation of concrete pumps, fine stone pumps, and mortar pumps. Our main products include secondary construction column pumps (type 10-90) and secondary structure loading machines.
Precision and perfection are our unremitting pursuit. We adhere to the cultural concept of "using strength to deliver on the promise and use innovation to lead development." We are dedicated to providing high-level service and sustainable operations for all our global partners.
