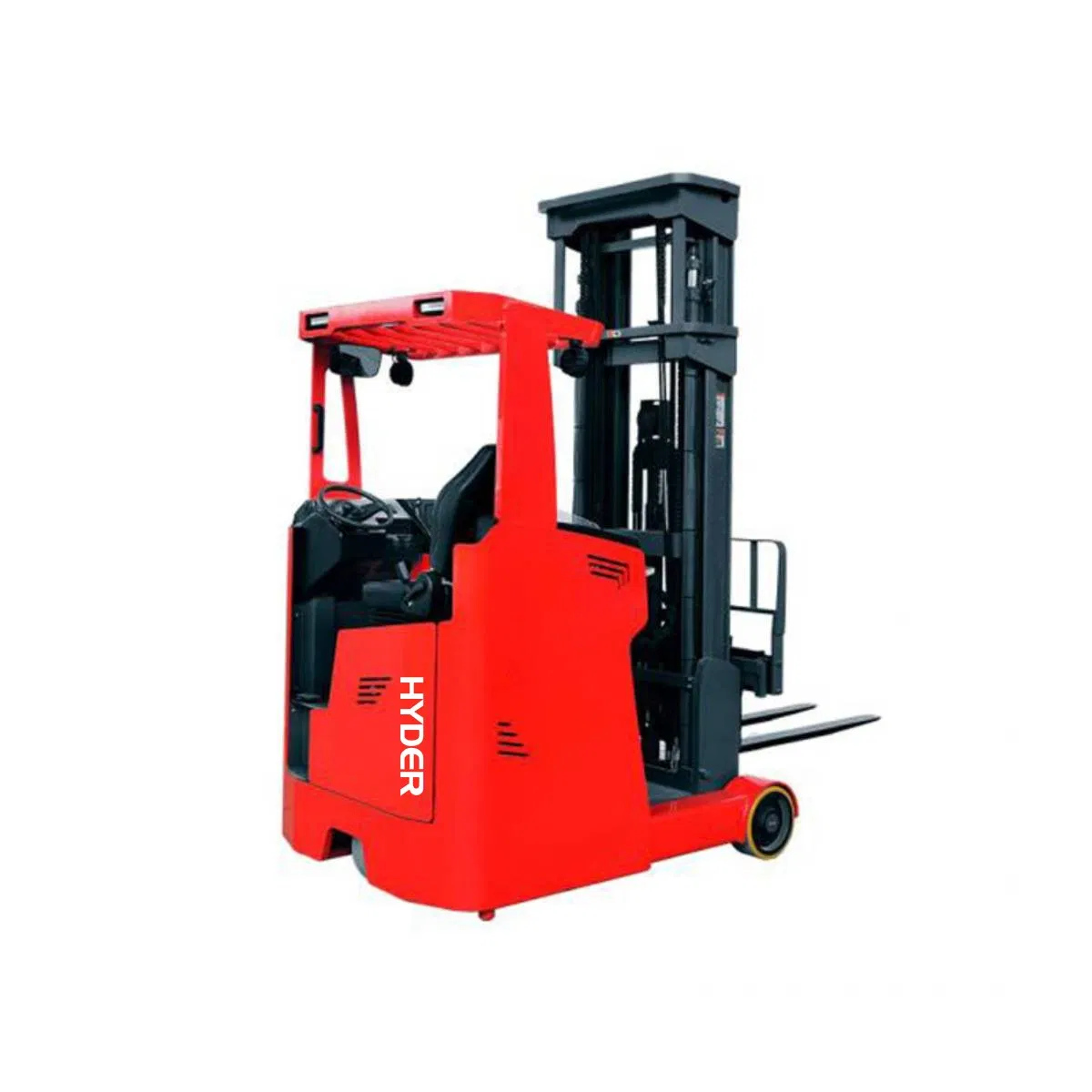

| Model | HTFZ20 / Htfz16 | Type | Reach Forklift |
|---|---|---|---|
| Power Source | Electric (AC Motor) | Load Capacity | 1.5t-2.5t |
| Lift Height | 7500mm-10000mm | Load Center | 500mm |
| Weight | 2370 kgs | Production Capacity | 3000 Sets/Year |

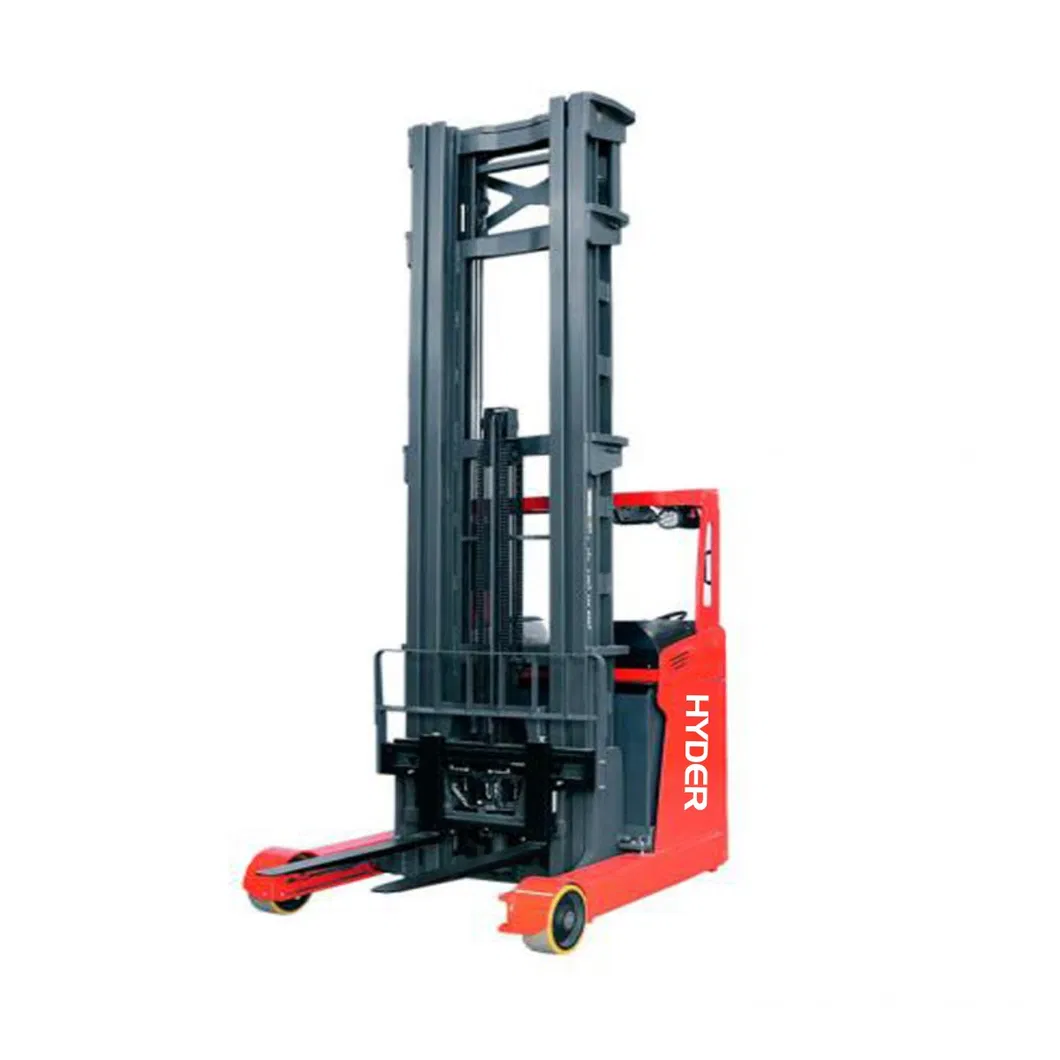

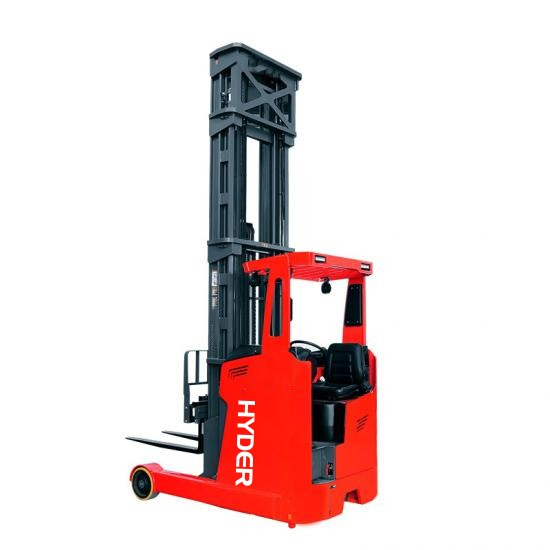

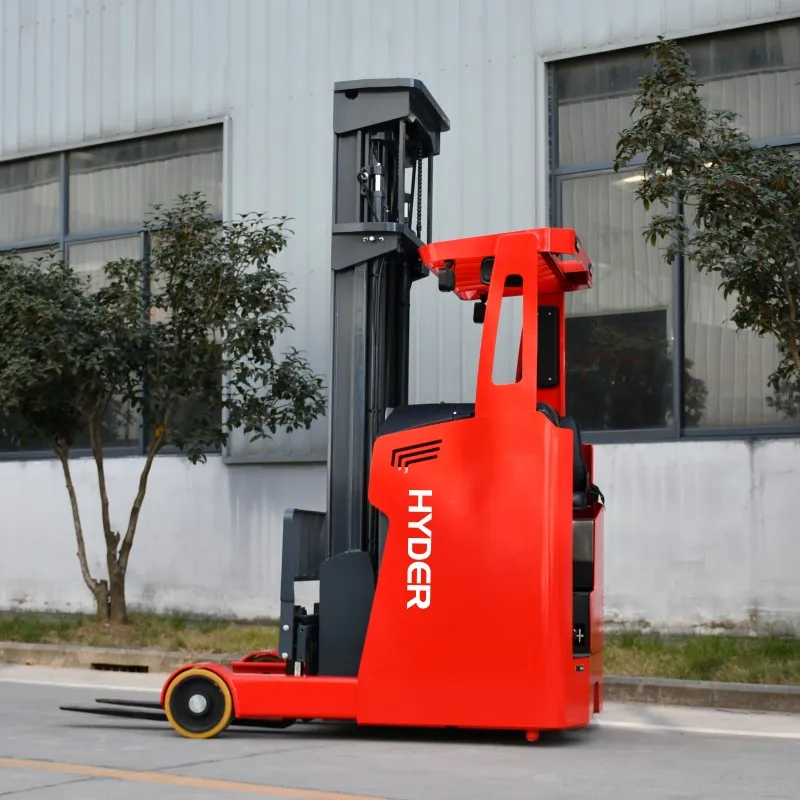

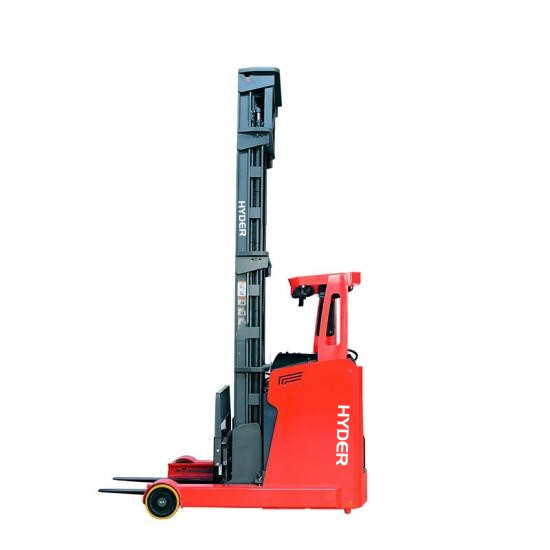

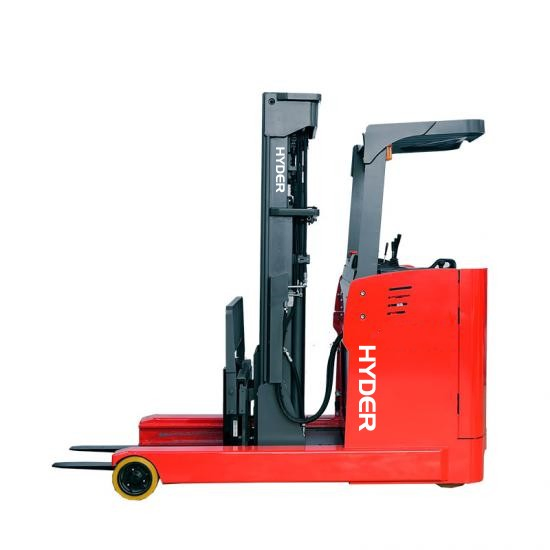

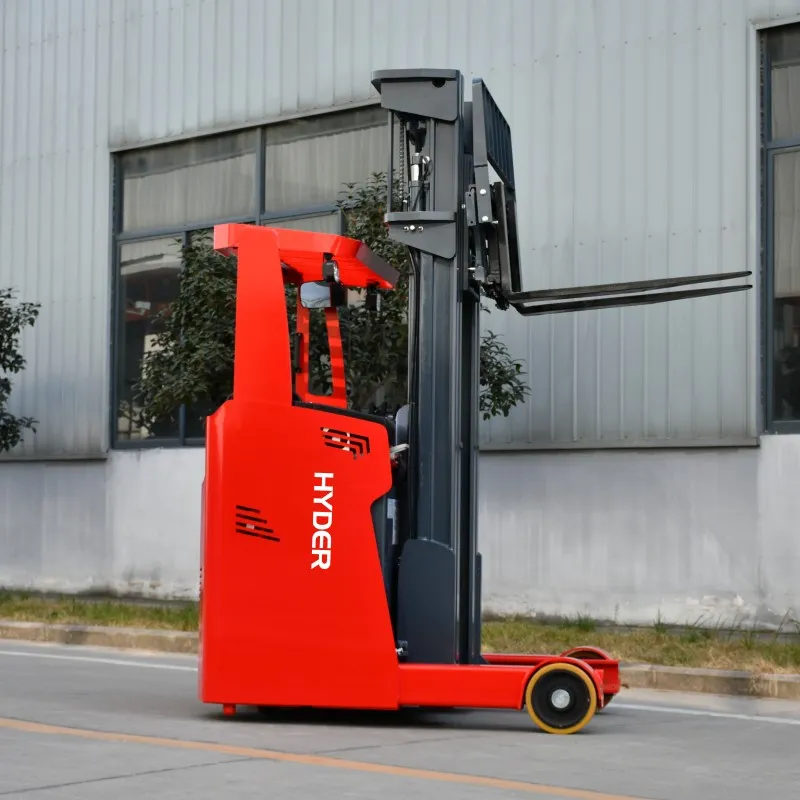

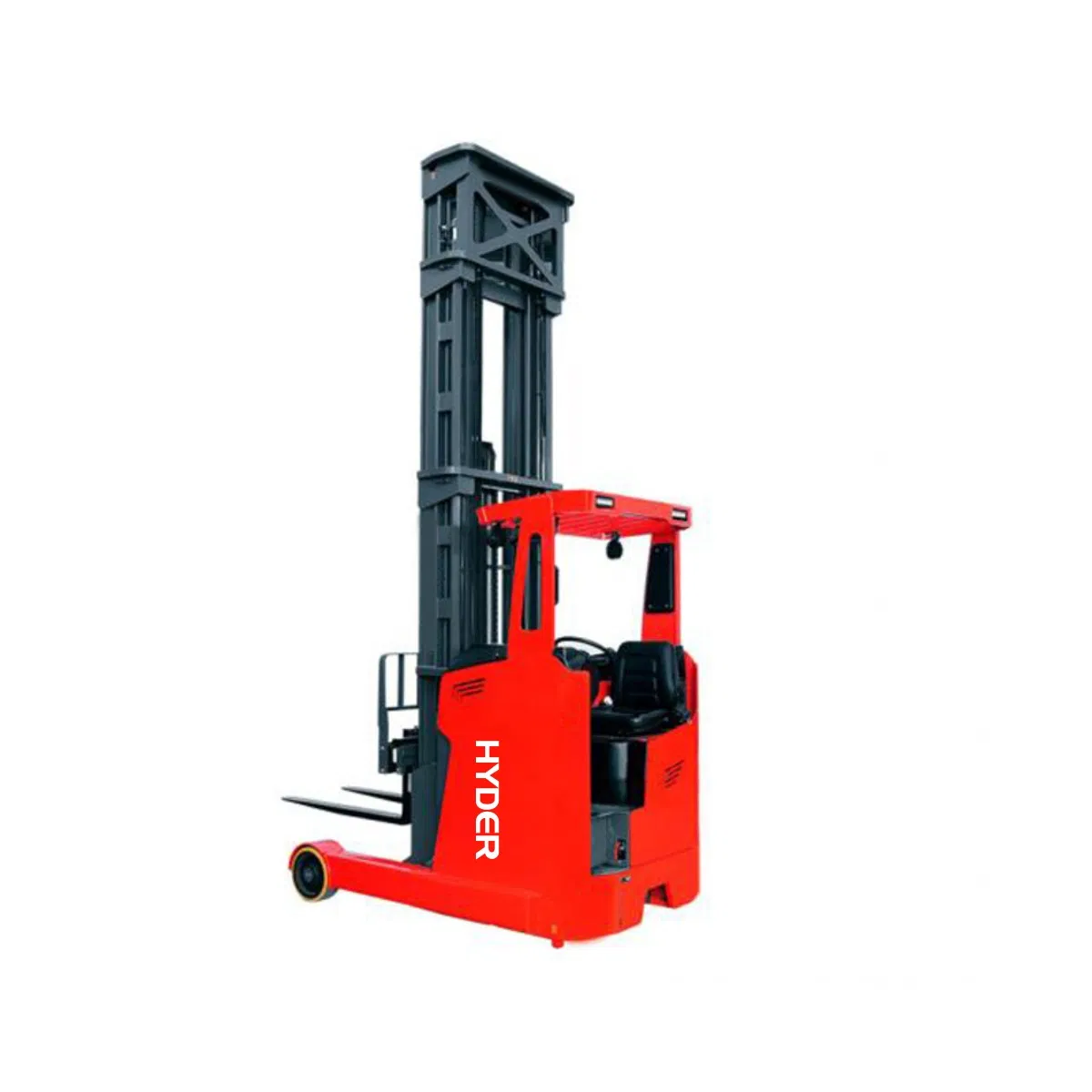

Reach Forklifts rely on the mast or fork frame to move back and forth to maintain balance. The mast drives the fork to move forward during operation, stretching out of the front wheel to pick up or put down goods. This design ensures the center of gravity remains within the support surface during transit, making it ideal for narrow warehouse environments.
| Parameter | HTFZ16 (Standard) | HTFZ20 (Standard) |
|---|---|---|
| Performance | ||
| Rated Capacity | 1600 kg | 2000 kg |
| Load Center | 500 mm | 500 mm |

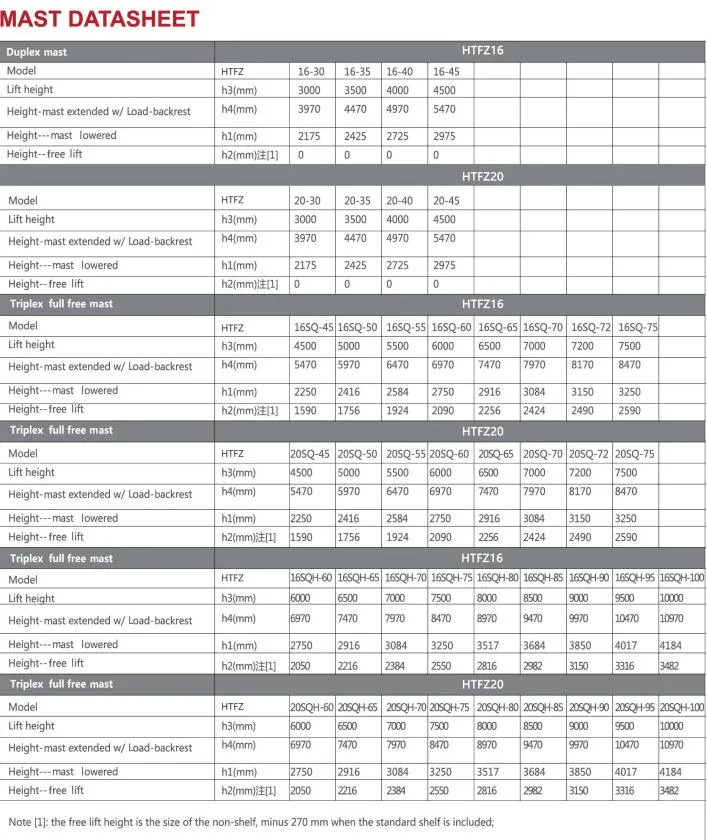

| Lift Height | 7500 mm | 7500 mm |
| Driving Speed (L/U) | 8.5/10 km/h | 8.5/10 km/h |
| Electric System | ||
| Drive Motor | 5.5 kw | 5.5 kw |

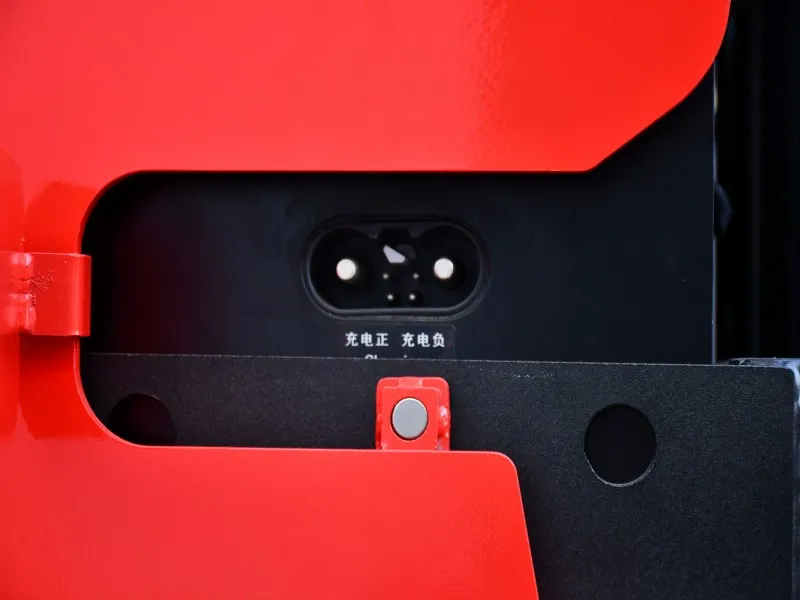

| Battery Voltage/Capacity | 48V/420Ah | 48V/560Ah |
| Steering System | EPS | EPS |
Our engineering team possesses over 17 years of experience in the forklift industry. We are dedicated to providing high-end intelligent storage and logistics equipment. Our product lines include Pallet trucks, Stackers, and Electric forklift series. By integrating advanced technology and adopting customer feedback, we strive to improve work efficiency and reduce operational safety risks.
