Basic Specifications
Machining Process
Welded Molding Machine
Vibrating Amplitude
23t/Min
Certification
ISO9001: 2000, CE
Application
Pouring Concrete
Control Type
Wireless Remote Control

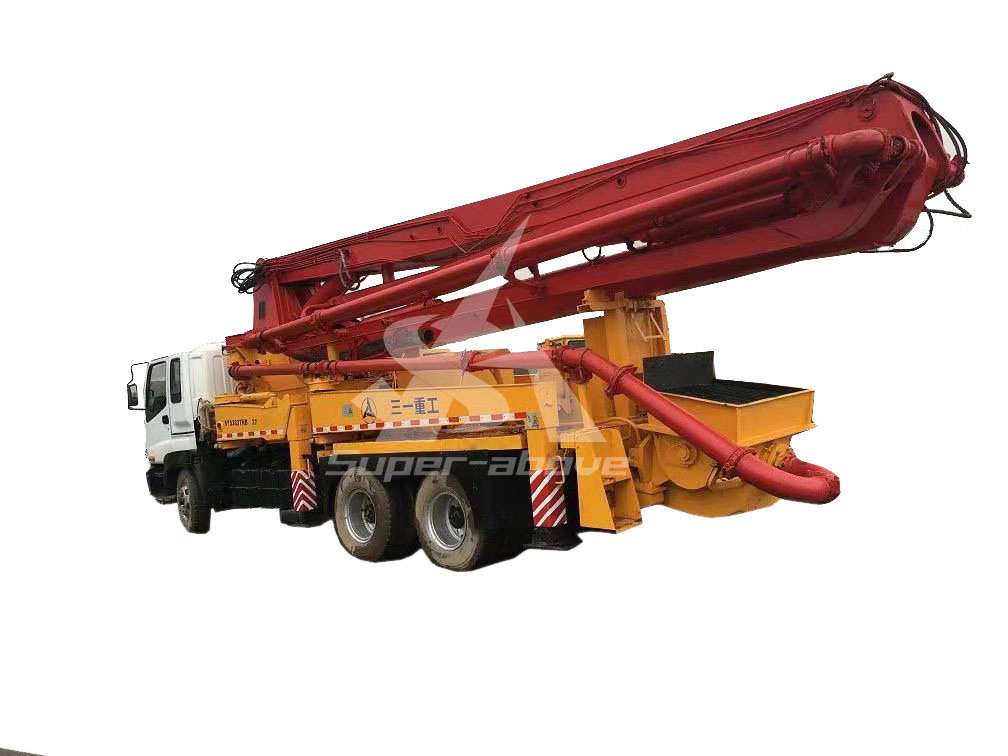

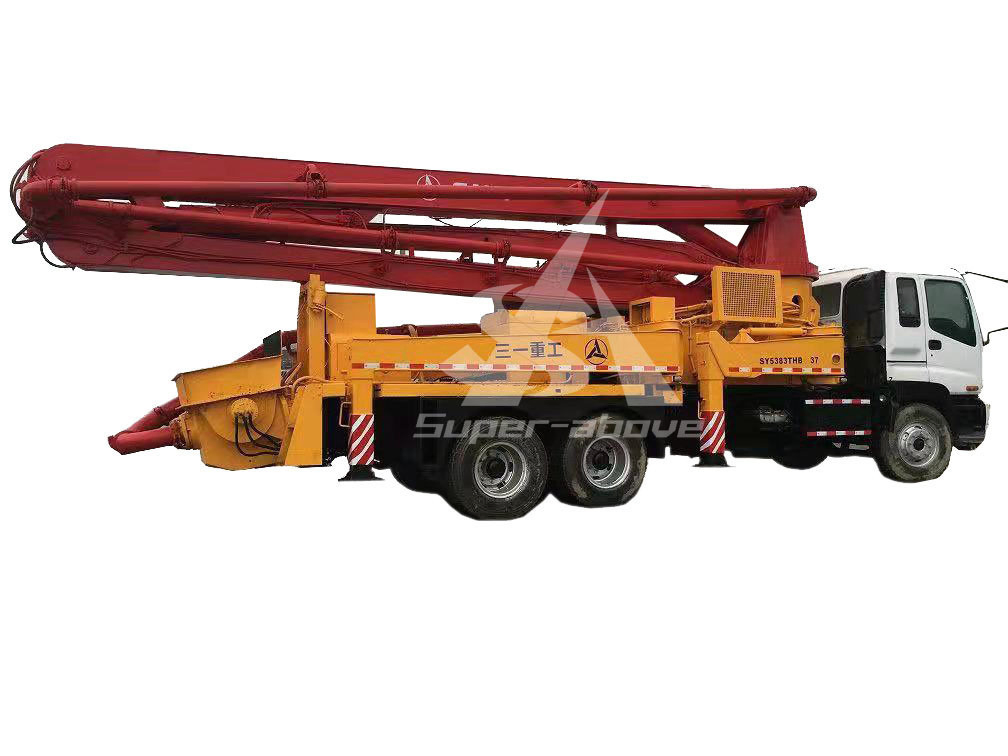

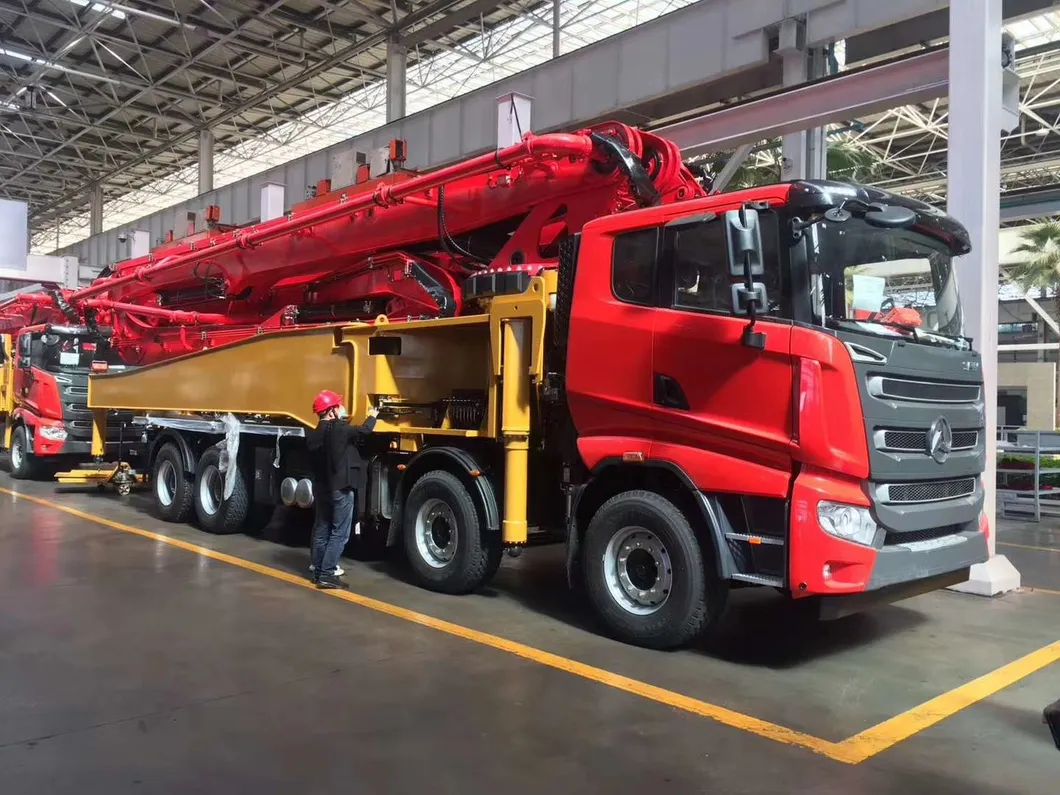

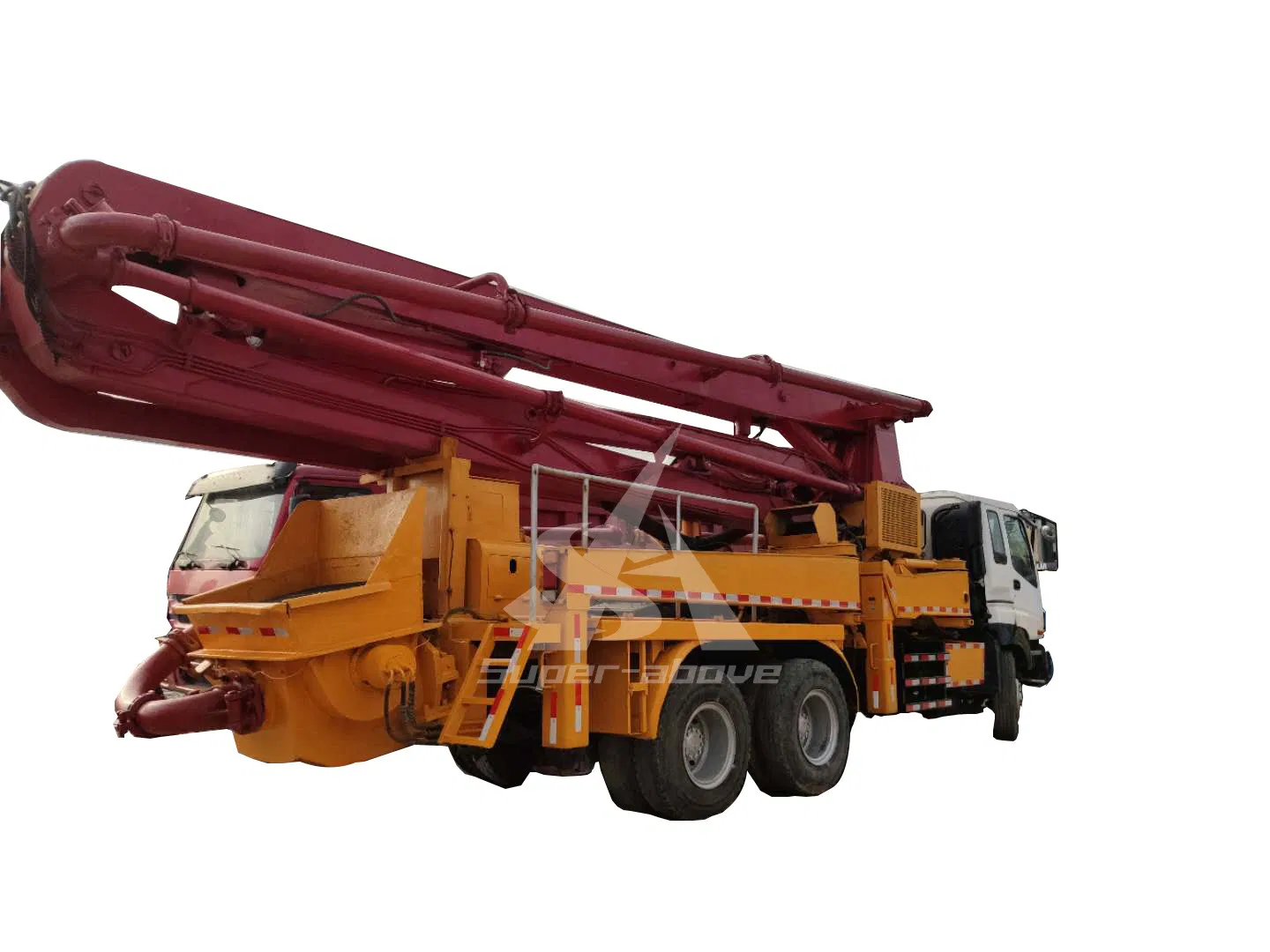

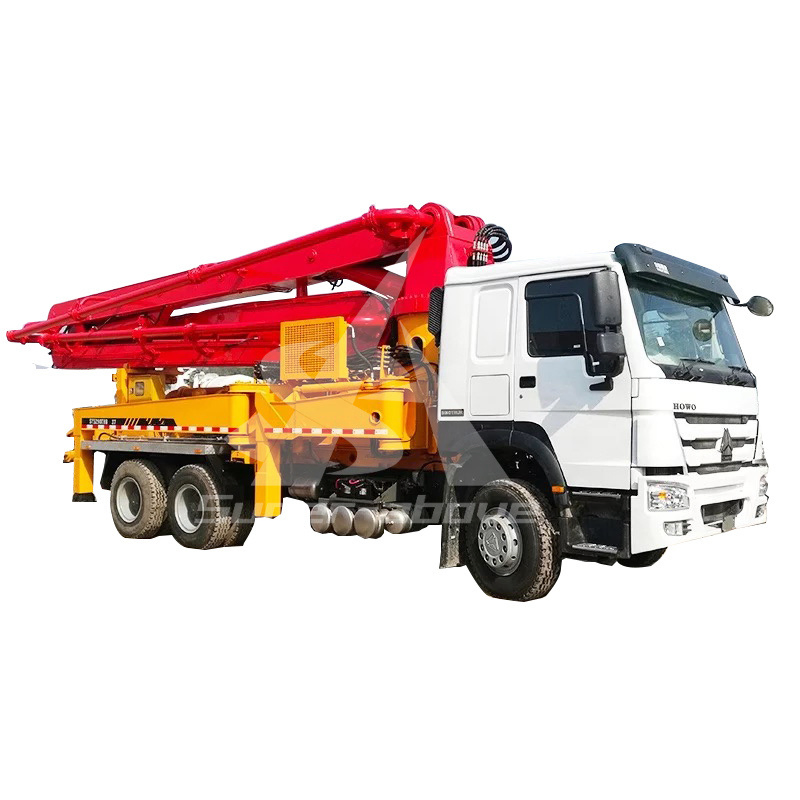

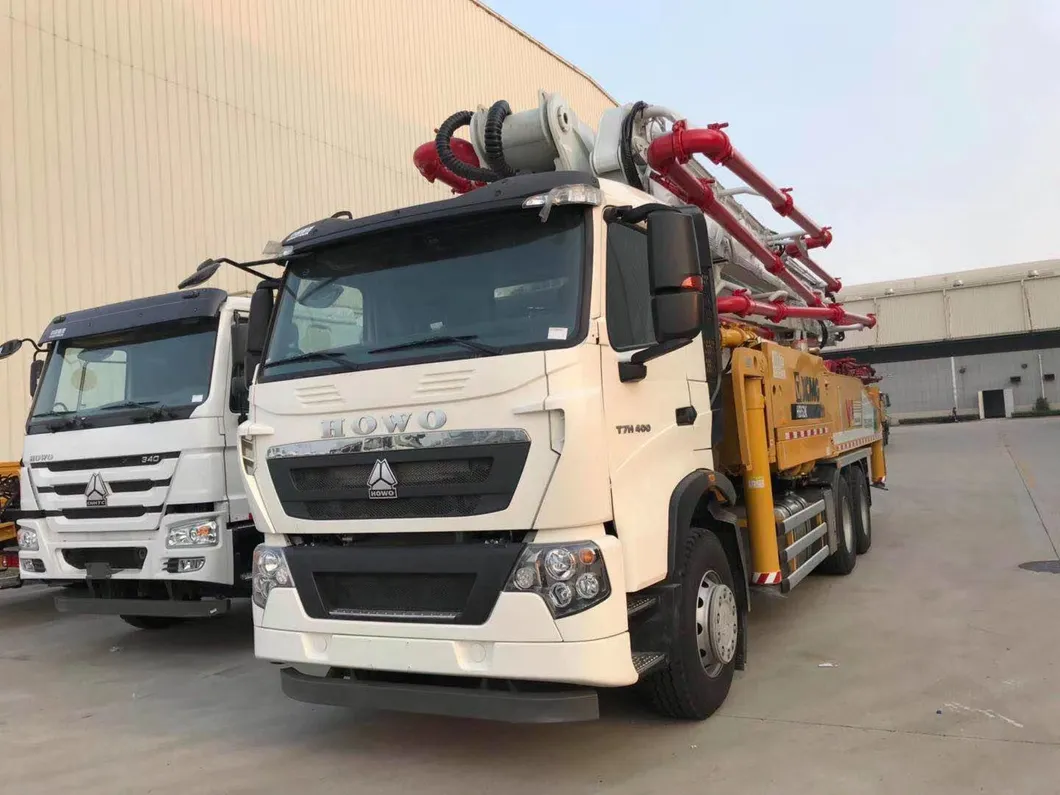

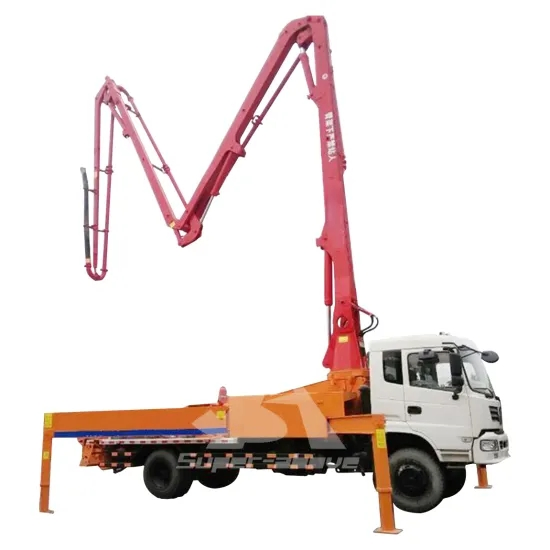

37m Truck Mounted Concrete Cement Boom Pump
Core Technologies
- Rotary Anti-Swing Control: Reduces boom swing amplitude by 60% using new rotary brake technology.
- High Abrasion Wear Parts: Integration of advanced technology extends service life. Straight pipes and elbows reach 20-30k cubes; delivery cylinders reach 100-140k cubes.
- Fault Self-Diagnosis: Real-time monitoring and diagnosis reduce troubleshooting time by 70%.
- Intelligent Arm System: Automatic boom opening/retraction and limited activity height to prevent obstacle damage.
- Overload Protection: Safety valve device automatically releases pressure if the boom load is too large.
- Oil Level Detection: Automatic alarm and pumping stop if hydraulic oil is insufficient.
Technical Data
| Item Description |
Unit |
Parameter (SAMP5203THB30-4M) |
| Pumping System | Max. Theor. Output (High/Low) | m3/h | 66/111 |
| Max. Theor. Pressure (High/Low) | MPa | 10/6 |
| Hopper Capacity | L | 600 |
| Concrete Cylinder Dia.×Stroke | mm | φ230×1650 |
| Max. Aggregate Dimension | mm | 40 |
| Placing Boom | Structure Type | - | 30-4M |
| Max. Placing Height | m | 37 |
| Horizontal Distance | m | 26 |
| Slewing Angle | - | ±270° |
| Chassis | Engine Power | kW | 249kw |
| Overall Dimensions | mm | 10340x2496x3770 |
| Fuel Standard | - | Nation V |
Main Advantages
- Large Displacement: Equipped with Φ230mm cylinder for 125m3/h pumping with over 88% material absorption.
- Electronic Commutation: Precise pumping increased efficiency by 7% over conventional systems.
- Energy Saving: Integrated valve system reduces pressure loss and saves 17% energy.
- Dual Pumping Modes: Includes full power and energy-saving modes to lower fuel consumption.
- Advanced Control: Features a central controller with high-definition display and LCD remote control.
- Precise Maneuverability: Imported multi-way valve allows for man-machine integration and quick hose positioning.
Pumping System: Schwing Technology | Chassis Options Available

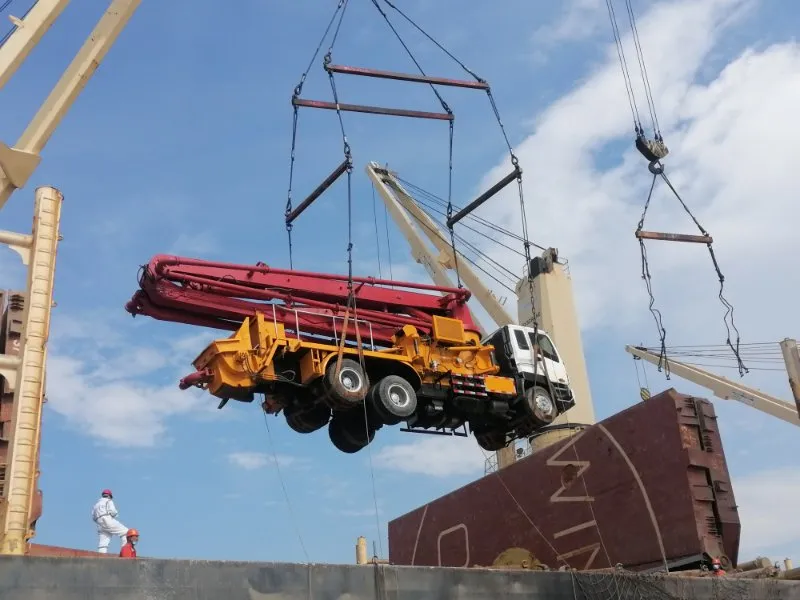

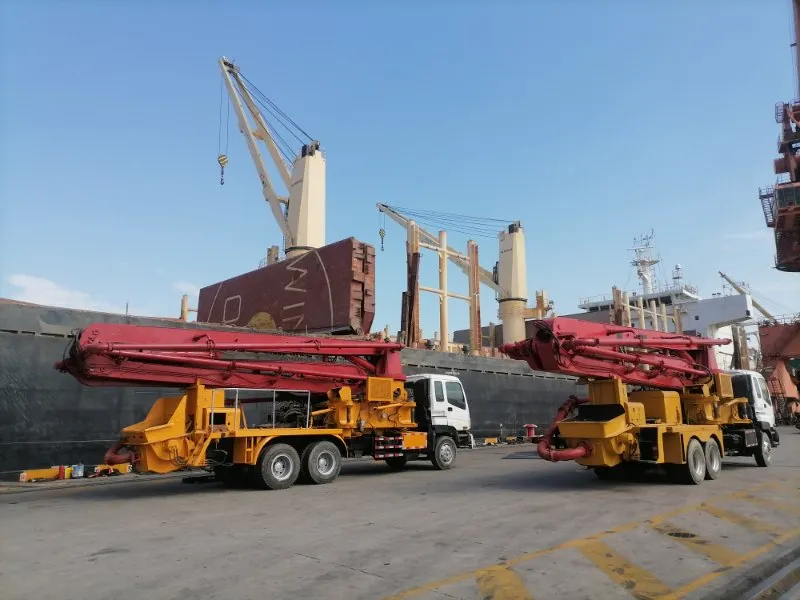

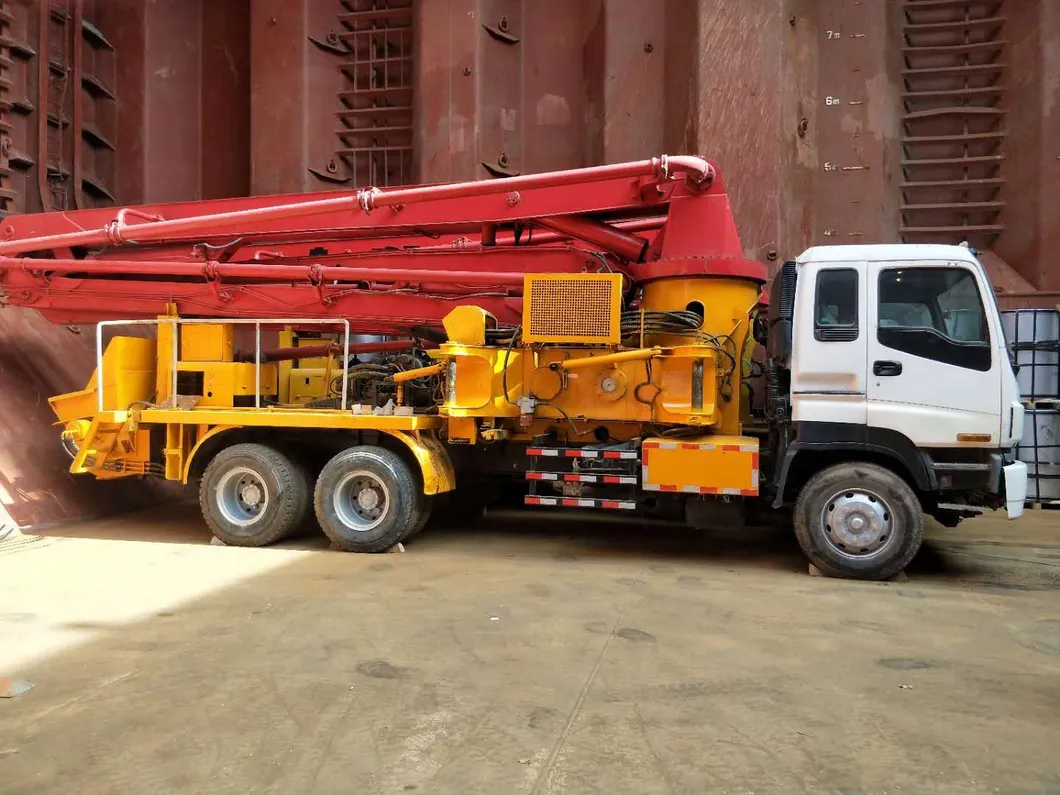

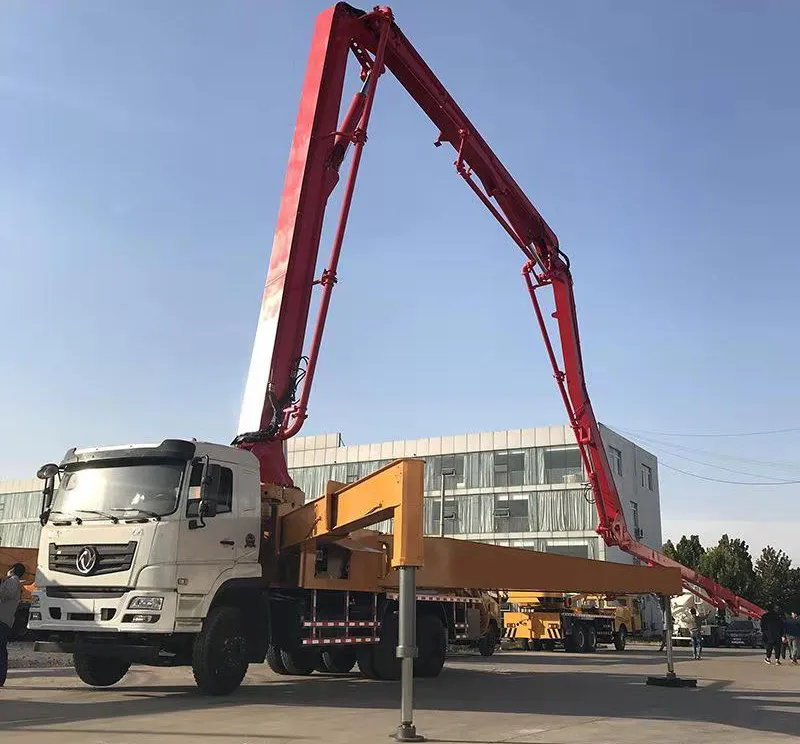

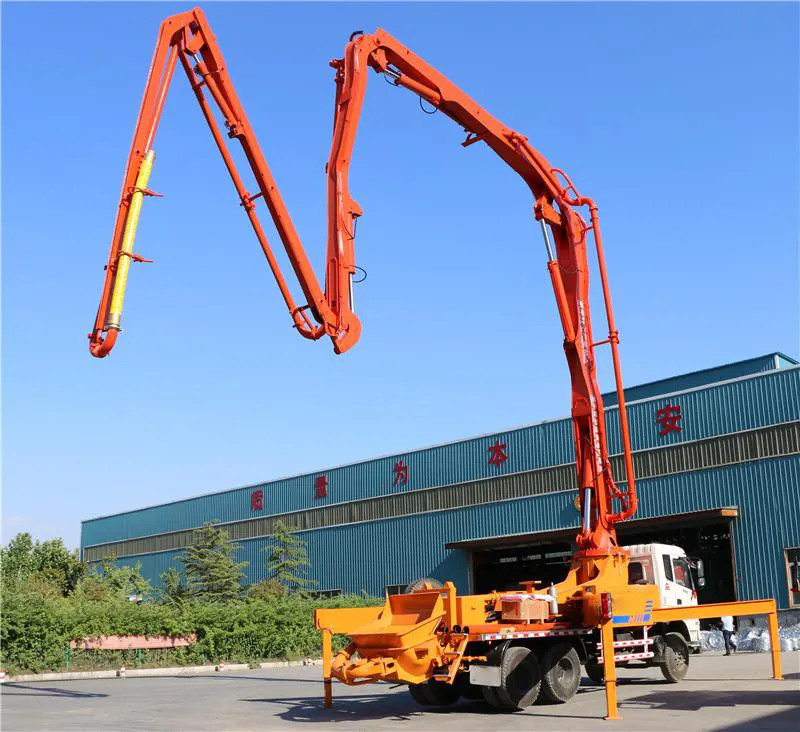

Factory Testing & Delivery
Frequently Asked Questions
What is the maximum pumping height of this truck?
The truck is designed with a placing boom that reaches a maximum height of 37 meters.
How does the rotary anti-swing technology benefit the operation?
It utilizes new rotary brake technology to reduce the boom's swing amplitude by 60%, ensuring more stable and precise concrete pouring.
What is the productivity capacity of the pumping system?
The system provides a maximum theoretical concrete output of up to 111m³/h under low pressure and 66m³/h under high pressure.
Does the machine have a self-monitoring system?
Yes, it features fault self-diagnosis technology that monitors the device status in real-time, reducing troubleshooting time by approximately 70%.
What kind of protection is available for the boom?
The boom is protected by overload protection technology, which includes a safety valve that automatically releases oil pressure if the load becomes too large.
Can the pumping mode be adjusted for fuel efficiency?
Yes, the machine is equipped with dual pumping modes (full power and energy-saving) that adjust engine speed in conjunction with pumping volume to lower fuel consumption.
