As one of the leading manufacturers of various kinds of skid steer loaders and attachments, we have been a pioneer in the industry since 2003. We were the first to cooperate with European counterparts for the mass production of skid steer loaders and attachments.

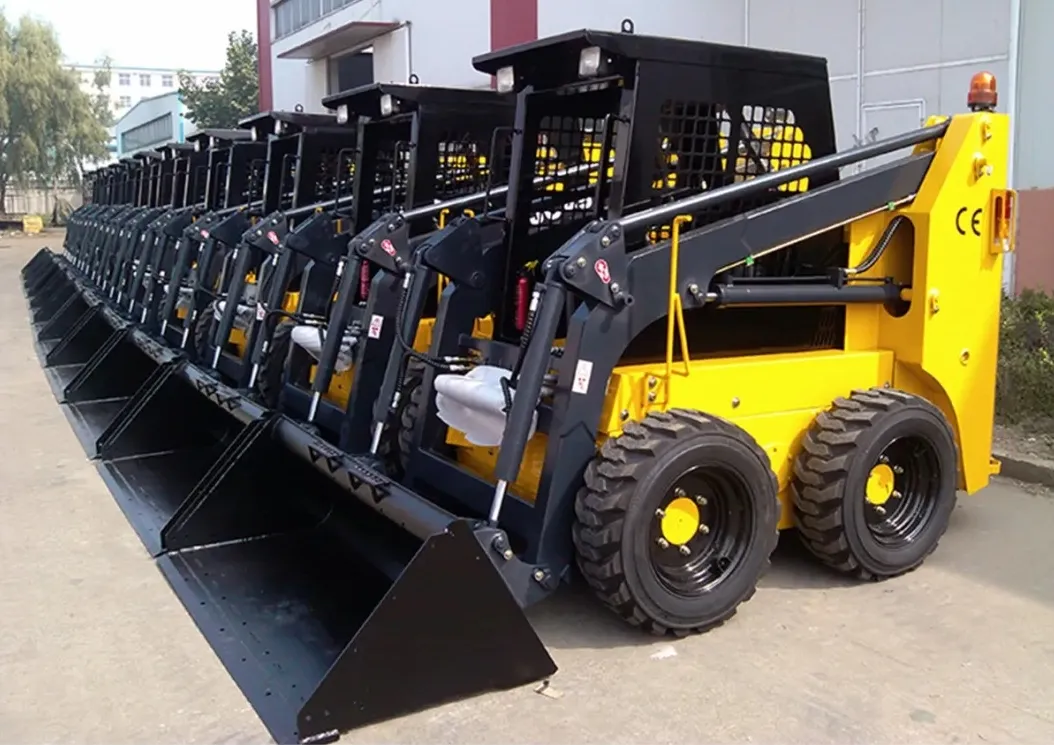

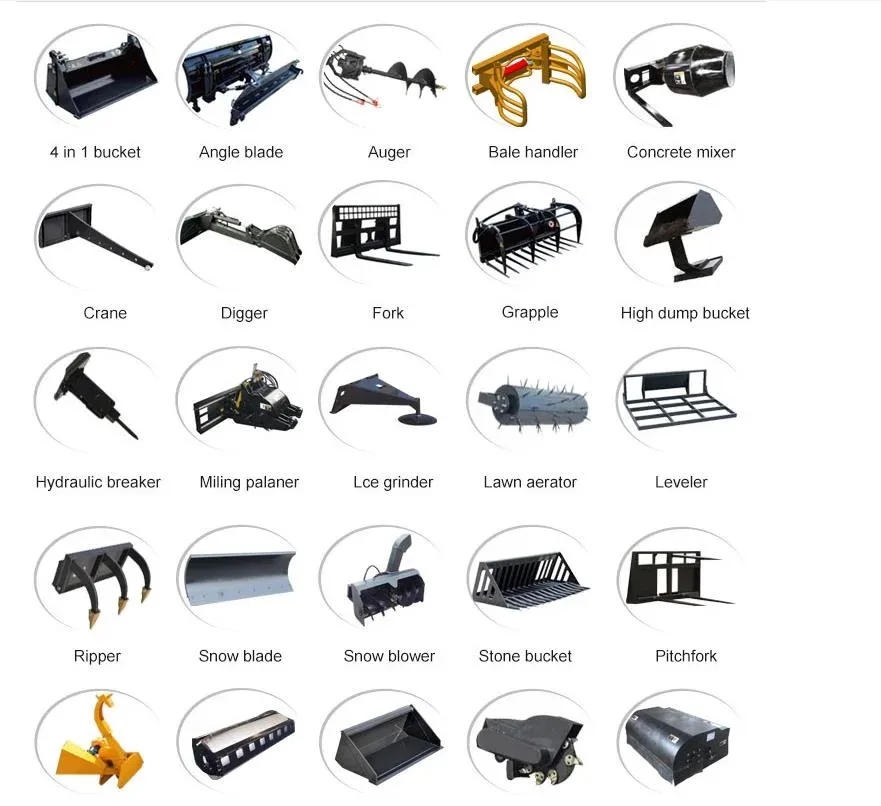

Our main product range includes wheel type skid steer loaders, crawler type skid steer loaders, and a comprehensive array of attachments. Horsepower ranges from 20HP to 140HP with rated loading capacities from 300kg to 1800kg.

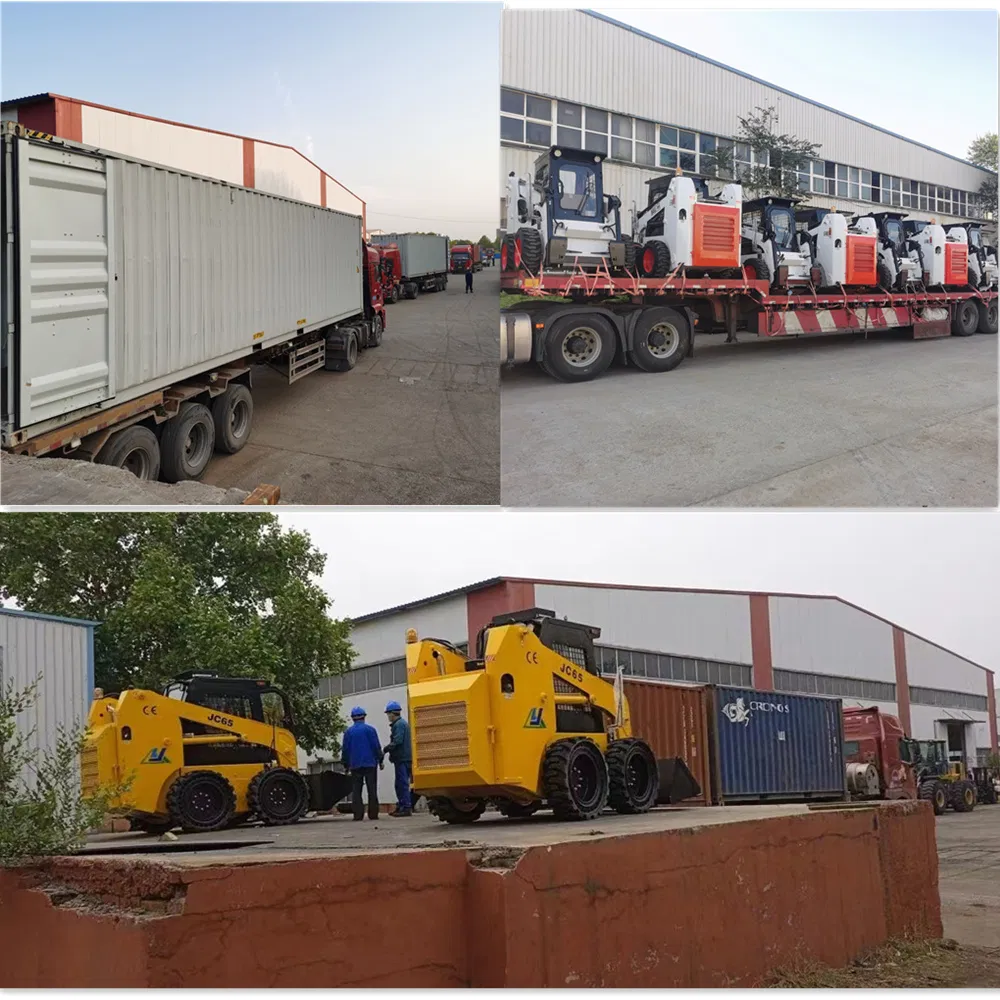

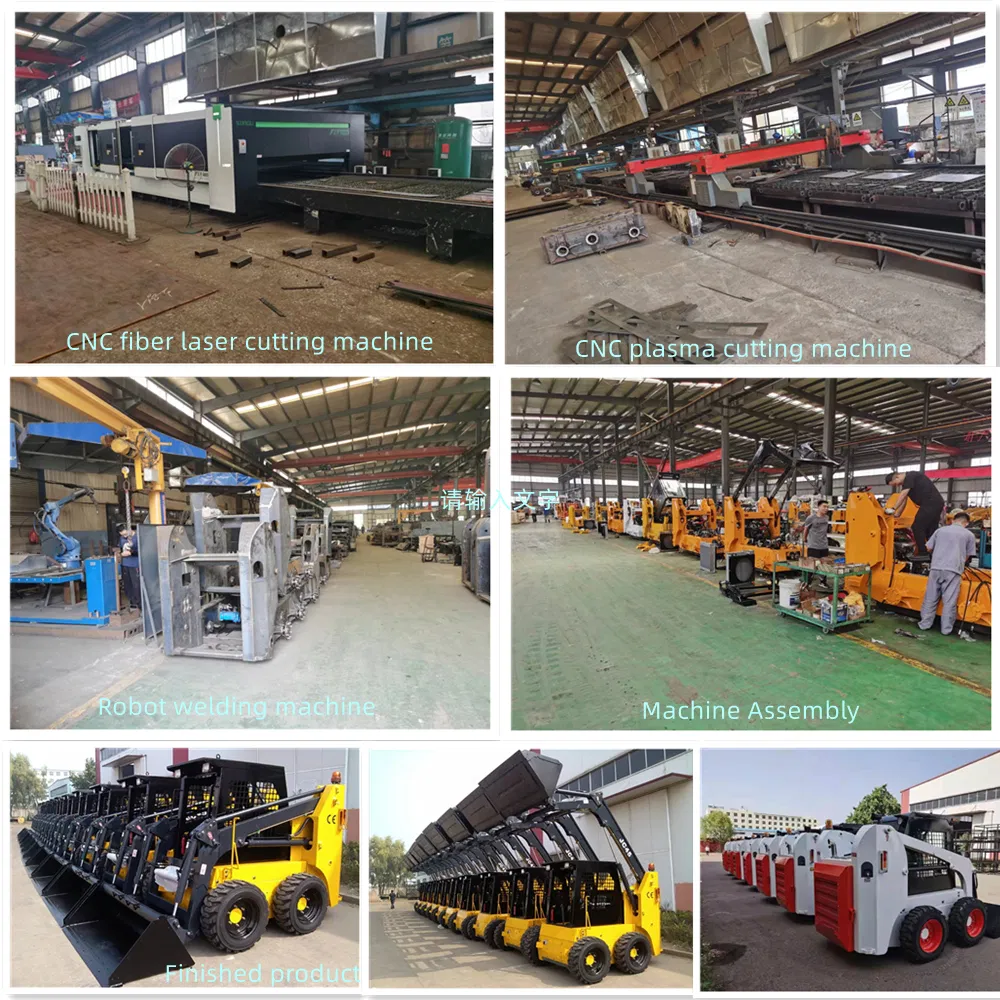

With an annual production of approximately 600 units of loaders and 7000 sets of attachments, 90% of our products are exported globally to North America, Europe, South America, the Middle East, Southeast Asia, and Russia.

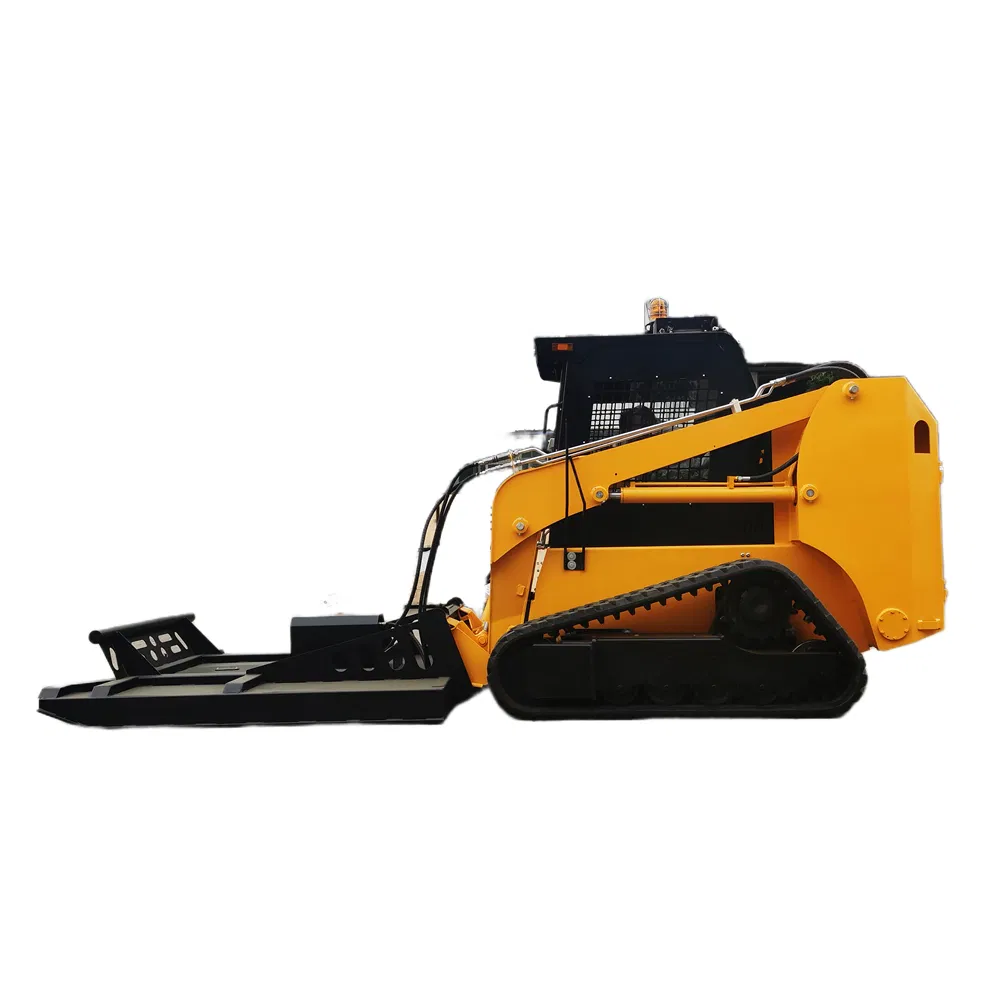

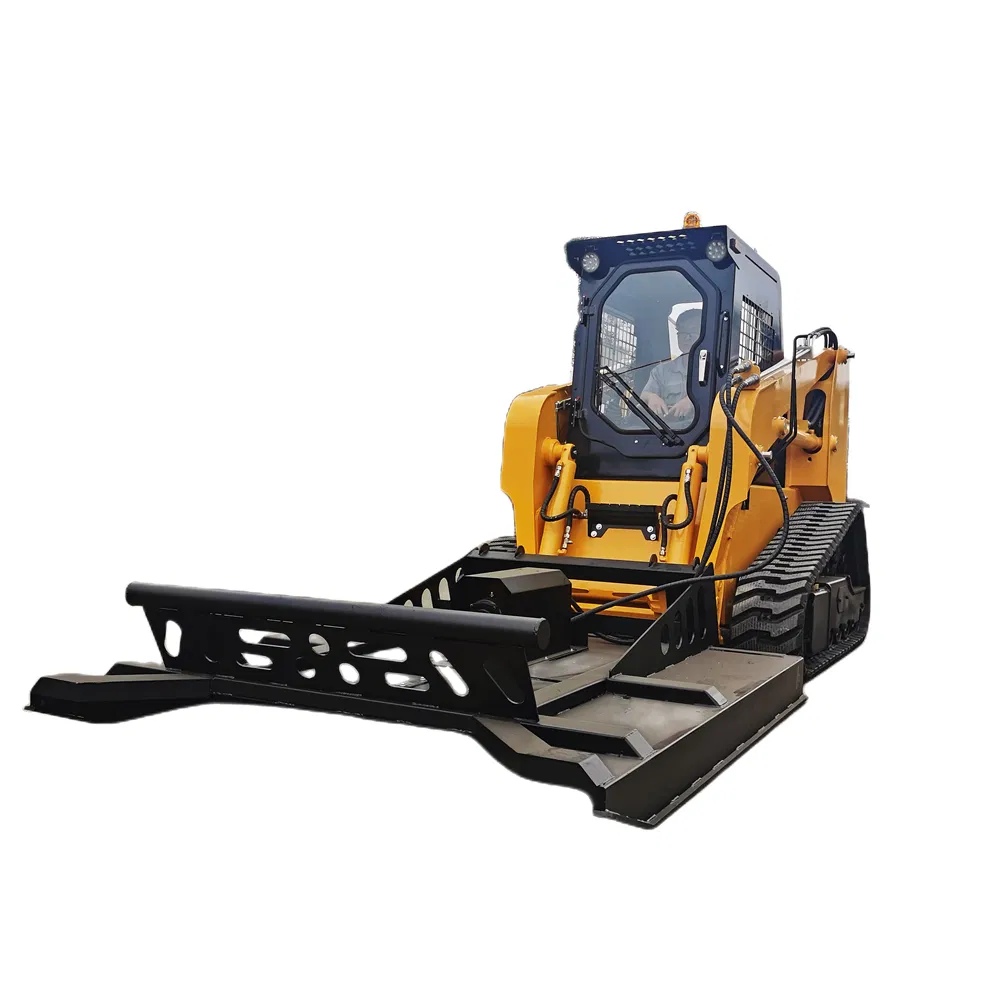

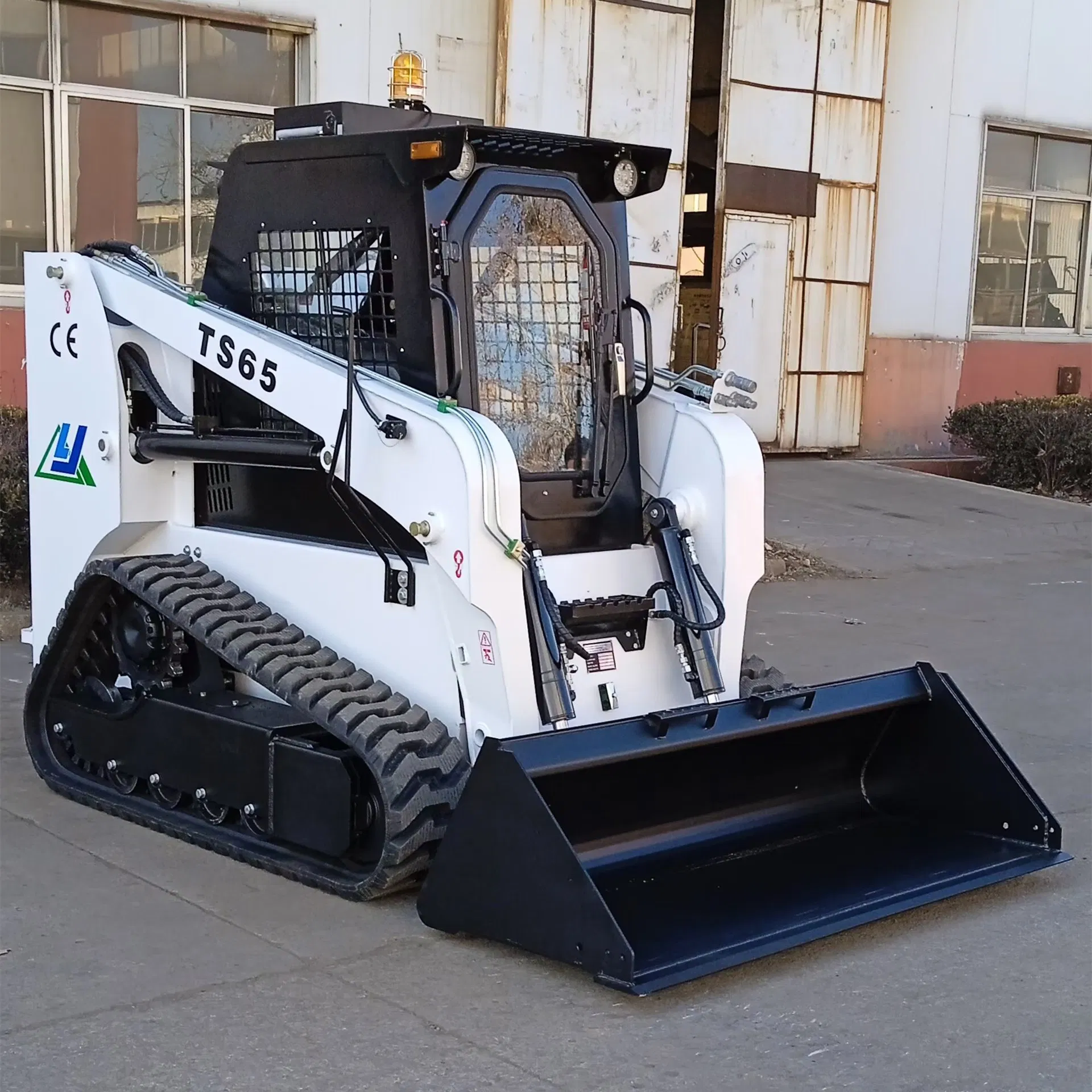

| Performance Parameter | Specification |
|---|---|
| Engine | Cummins EPA4 engine, 55KW |
| Rated Load | 1000kg |
| Tipping Load | 2000kg |
| Rated Bucket Capacity | 0.5cbm |
| Total Weight | 3800kg |
| Maximum Running Speed | 12km/h |
| Maximum Climbing Capacity | 20° |
| Hydraulic Flow | 80L~140/min |
| Track Model | 320*86 |
| Fuel (Diesel) Capacity | 90L |
| Code | Item Description | Dimension (mm/°) |
|---|---|---|
| A | Loader operation height | 3480mm |
| B | Height to bucket hinge pin | 2900mm |
| C | Maximum height to the cab top | 2150mm |
| E | Total length without accessory | 2750mm |
| F | Total length with standard bucket | 3500mm |
| H | Discharging height (fully lifted) | 2230mm |
| J | Discharging distance (fully lifted) | 715mm |
| P | Clearance above ground level | 200mm |
| W | Total width (tire edge) | 1782mm |
| X | Total width (bucket edge) | 1830mm |
