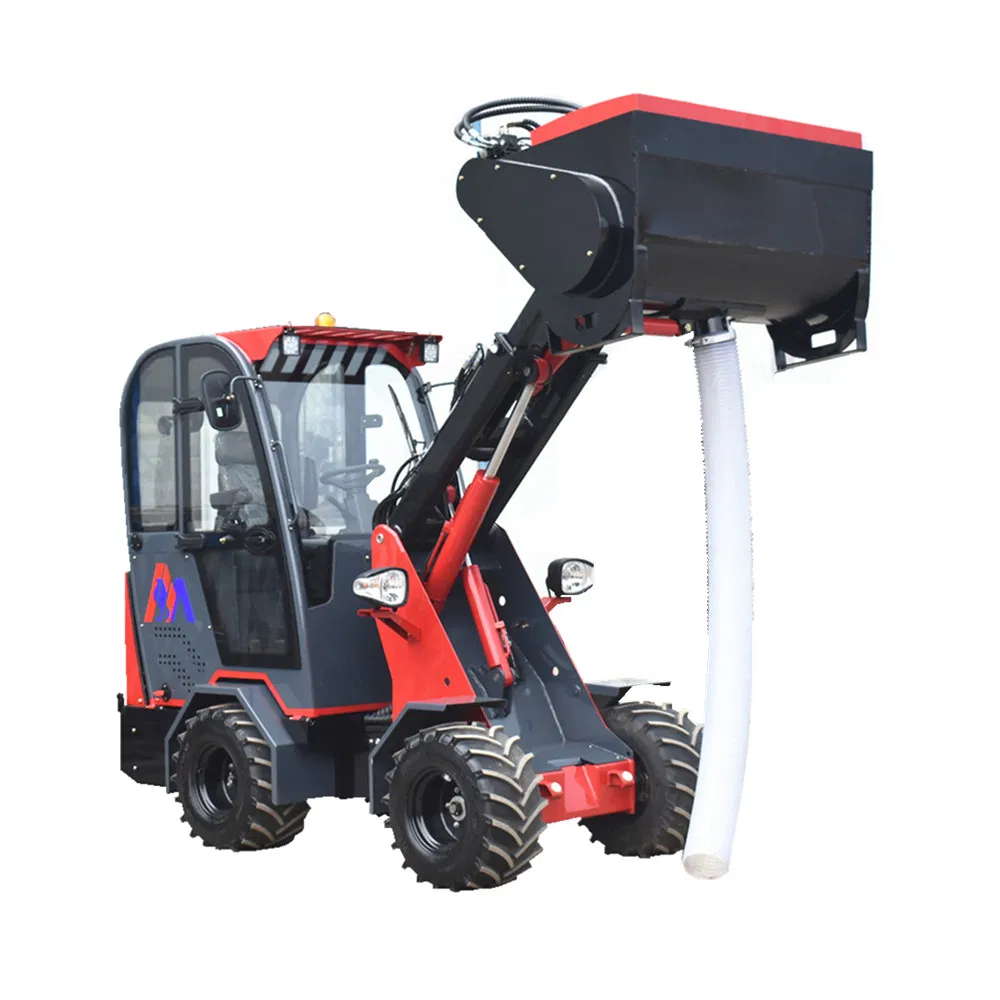

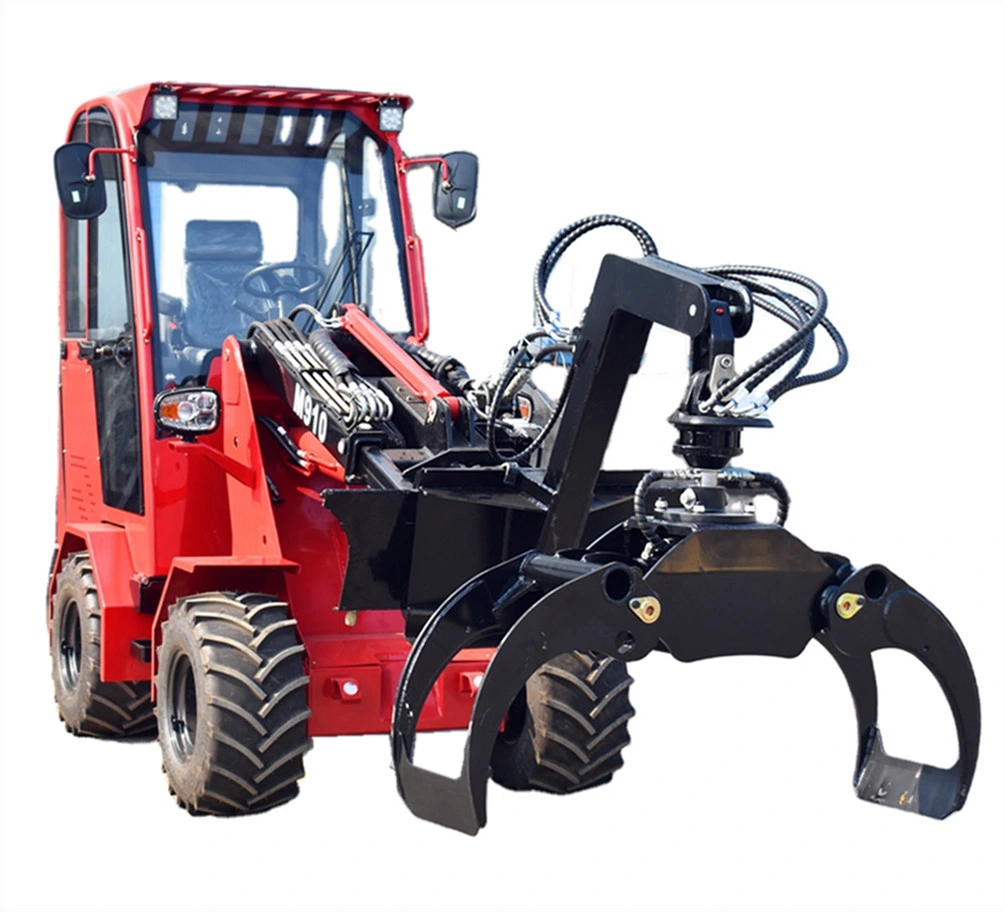

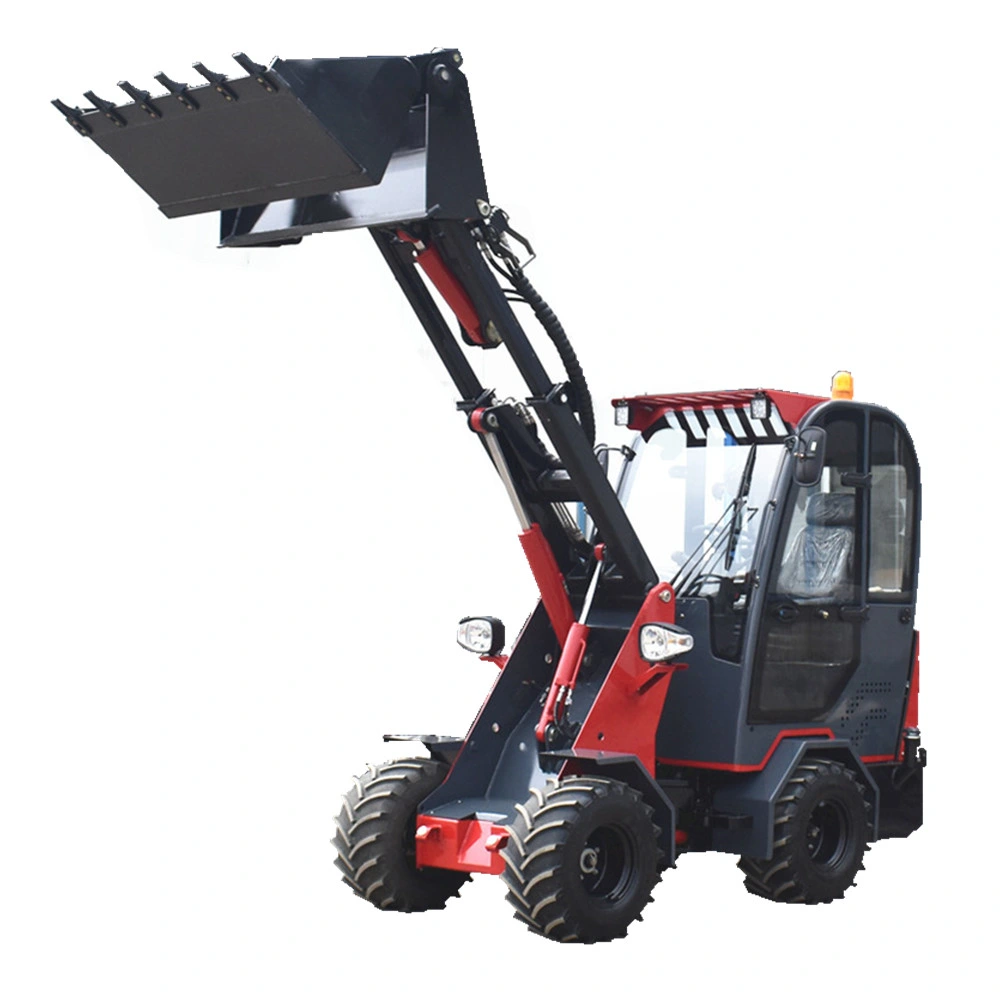

Europe Mini Compact 4WD Articulated Front End Tractor 1t 1.5t 2t Telescopic Boom Wheel Loaders for Farming

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Info

Model NO. M910 Certification CE, Rops Fops
Rated Load 1-3t Transmission Hydrostatic
Walking Mode Wheeled Type Small Loader
Engine Yanmar/Yunnei/Kohler Power 45HP
Max. Lifting Height 3000mm Operating Weight 1850kg
Wheel Drive 4WD Production Capacity 800 Sets Per Year

Product Description

Mini 4WD Front End Loaders 1ton/1.5ton/2 ton Wheel Loaders

  • Heavy duty telescopic boom, self-leveling and boom floating
  • 4WD hydrostatic direct drive motors, automatic transmission, high efficiency
  • Quick coupling and quick hitch system
  • Both front and rear hydraulic output for various attachments
  • Yanmar engine, Italian pump and valves; EPA Tier4 and EU 5 engines optional
  • 9-functions joystick
  • Flexible articulation and differential lock for all rough terrain
  • Tiltable cabin, fully access to inner parts

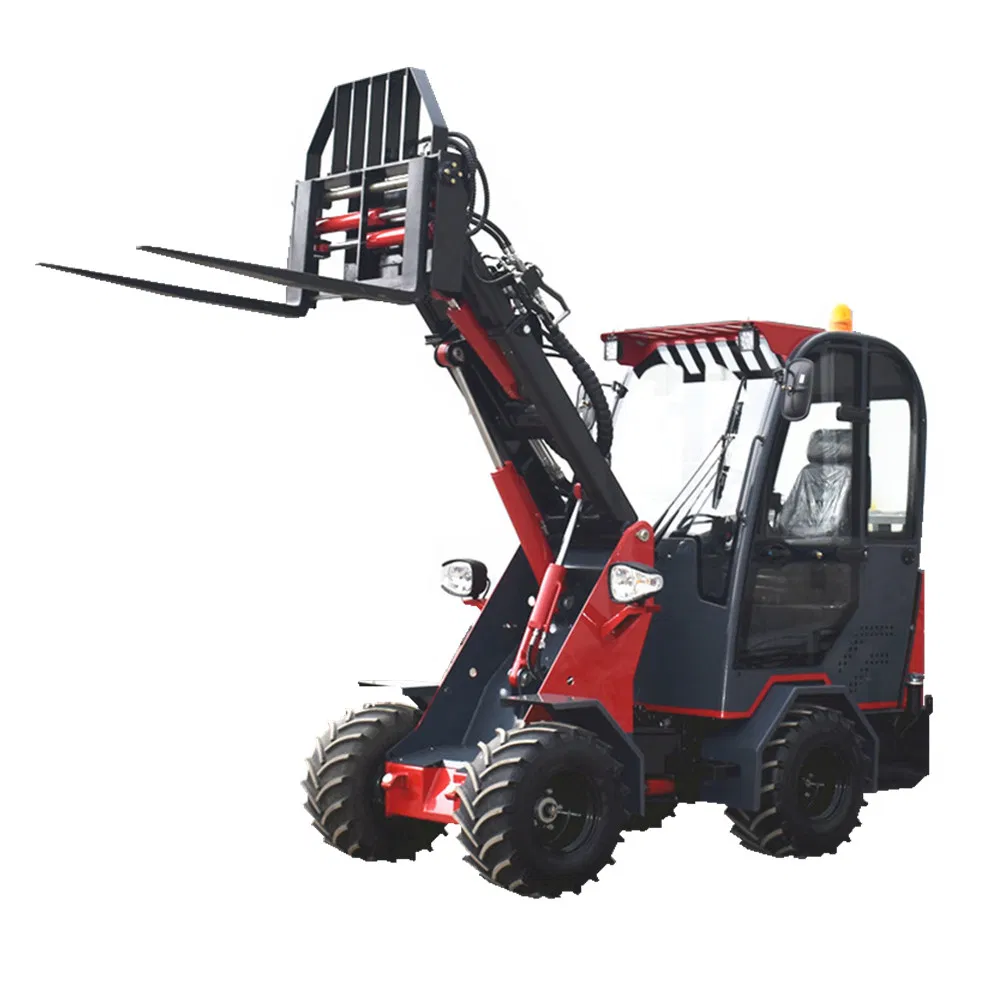

Telescopic Boom Wheel Loader

Product Parameters

ModelM910 mini telescopic wheel loader
Dimension (LxWxH)2690 X1300 X 2280mm
Max. lifting height (extended)3030mm
Max. dumping height2630mm
Bucket capacity0.5cbm
Max. loading capacity1000kg
Speed0-12 km/h
Weight1850 kg
Working oil flow33.5L/minx2
Rated power45hp

Detailed Photos

Telescopic Boom

  • Max. reach 3000mm
  • Boom floating & Self levering
  • Hydraulic quick hitch
Boom Detail

Control System

  • Multifunction joystick control
  • Standard heating system
  • Forward/Reverse foot pedal
Control Detail

Driving & Working System

  • Tipping cabin for easy maintenance
  • Piston pump + 4 hydraulic motors
  • Twin pump for working system

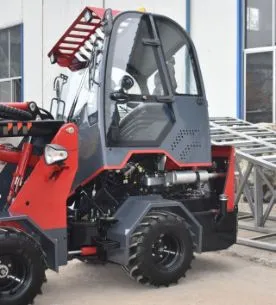

Engine Detail

Customized Service

Service Detail

Product Application

Loader+Tractor, one Multi-purpose helper for all your works

Front part is loader: Equipped with telescopic boom, hydraulic output, and quick hitch system for attachments like bucket, fork, grapple, auger, and more.

Rear part is tractor: Features hydraulic output, 3-point hitch, and hydraulic PTO for rotary tillers, mowers, and trailers.

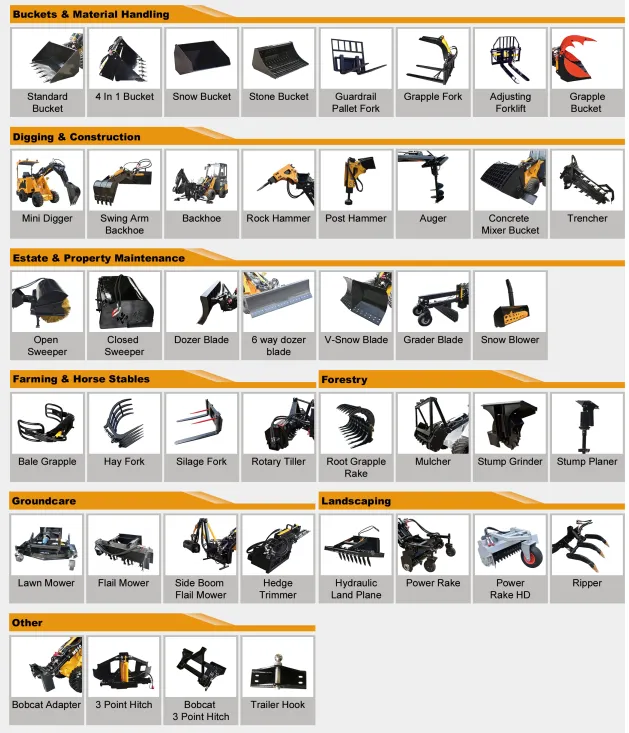

Applications

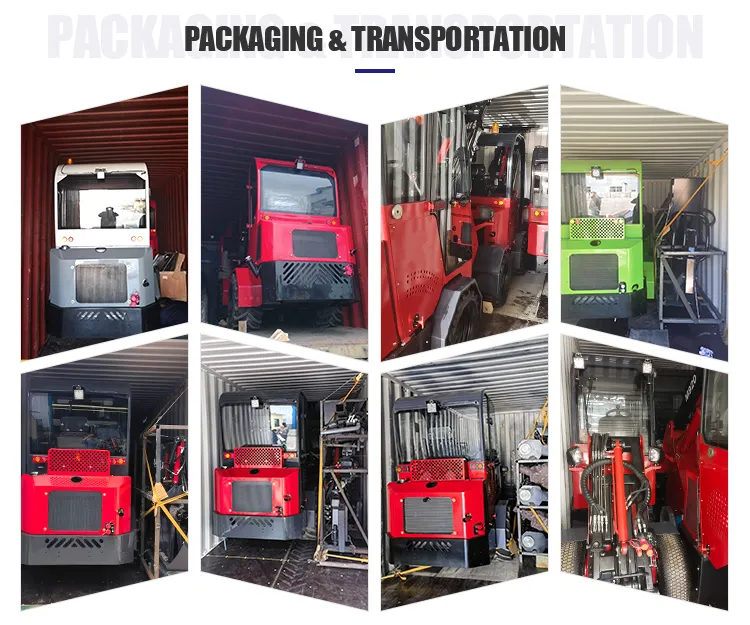

Packaging & Shipping

The compact design allows the loader to be driven into containers directly, fully assembled.

  • 2 sets / 20ft GP
  • 4 sets / 40ft GP
Shipping

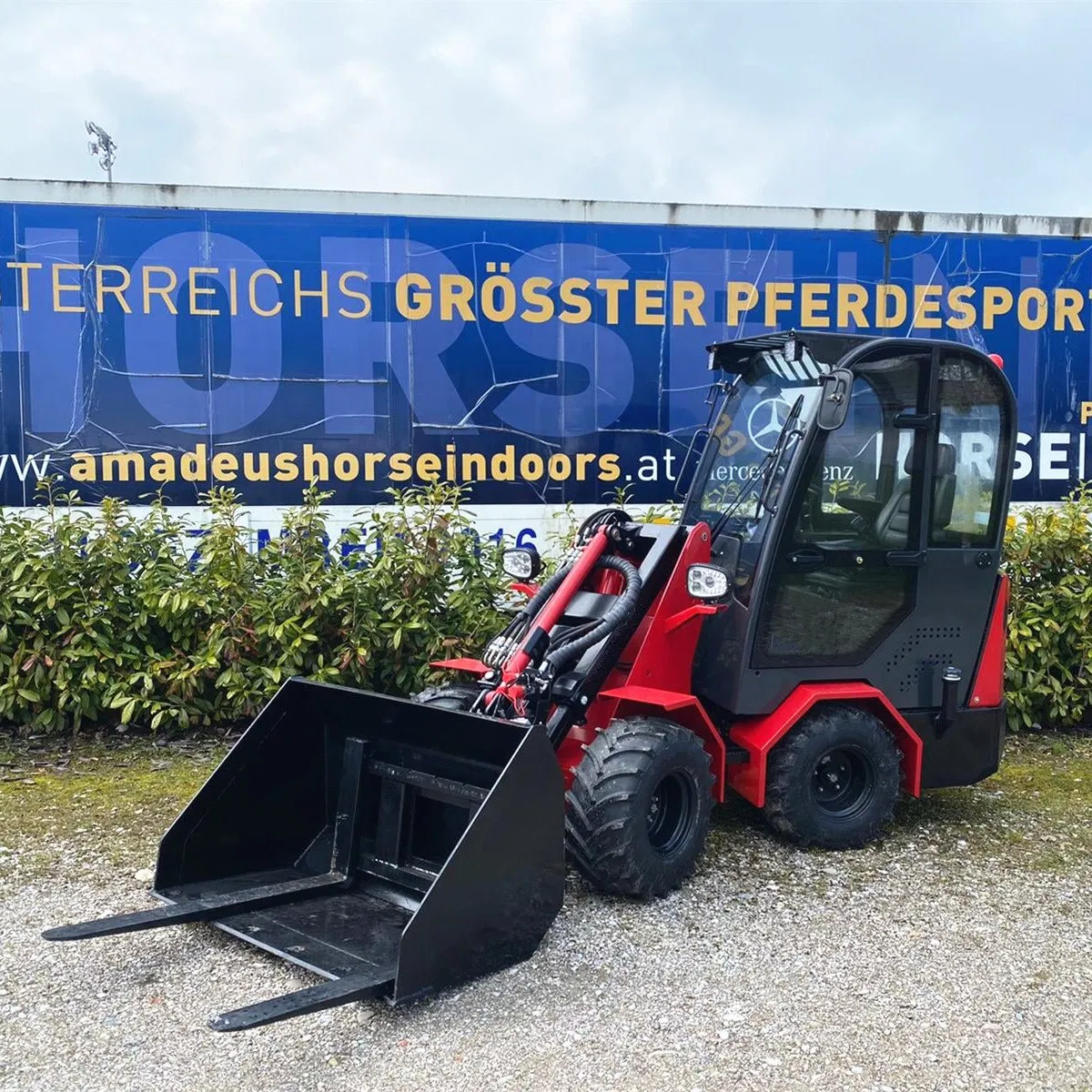

Customer Case & Feedback

Our multifunction telescopic loaders serve customers globally across various industries, maintaining a reputation for quality and performance.

Case 1 Feedback

Company Profile

Professional manufacturer with multiple patents and "National High Tech Enterprise" status. All products are designed for heavy-duty work and long-term reliability.

Factory Production
Certificates Solutions

Frequently Asked Questions

1. What is the maximum lifting height of the M910 loader? The M910 features a telescopic boom that can reach a maximum lifting height of 3030mm when fully extended.
2. Which engine options are available for this model? We offer multiple engine options including Yanmar, Chinese brands, and engines meeting Euro V or EPA Tier 4 Final standards.
3. Can the loader handle rough terrain? Yes, the loader is equipped with 4WD hydrostatic direct drive and flexible articulation with a differential lock specifically for rough terrain performance.
4. What kind of attachments can be used with the M910? Thanks to the quick hitch system and hydraulic outputs, it can use over 40 types of attachments including buckets, forks, augers, hammers, and lawn mowers.
5. How is the maintenance access on this machine? The M910 is designed with a tiltable cabin, providing full and easy access to the internal components and engine for maintenance.
6. How many units can be shipped in a standard container? Due to its compact design, you can fit 2 sets in a 20ft GP container or 4 sets in a 40ft GP container, shipped fully assembled.
