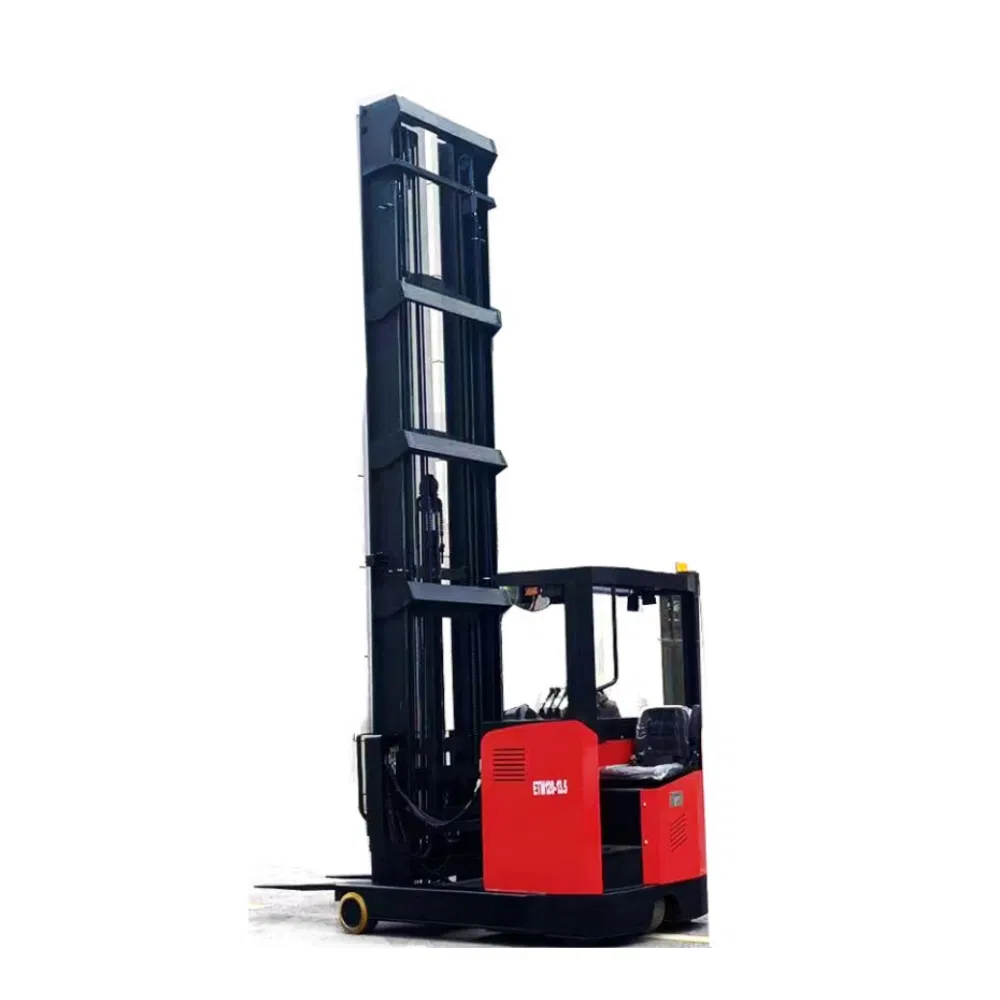

Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast

1 / 5

Factory Price New Design Seating Type 2ton Electric Reach Truck with High Lifting 10m 11m 12m 13m Warehouse Narrow Aisle Battery Stacker with 3 Stage Mast

Customization:	Available
After-sales Service:	1year
Warranty:	1year

Send Inquiry

Product Description

📋 Basic Info

Model NO.

ETV120

Cab Location

Adjustable

Type

Reach Forklift

Power

AC Motor

Load Capacity

≤1T

Fuel

Electric

Load center

>500mm

Lift height

>5000mm

Condition

New

Color

Red Blue Yellow

Wheel

Pneumatic Tyre

Battery

48V

Reach Distance

650mm

HS Code

8427109000

📦 Packaging & Delivery

Package Size

220.00cm * 125.00cm * 550.00cm

Gross Weight

2200.000kg

Transport Package

Moistureproof Package in Container

🚀 Product Description

Factory Price: 1.5 Ton, 1.8 Ton, 2 Ton, 2.5 Ton Electric Reach Truck Forklift.
Lifting Range: 5m, 6m, 7m, 8m, 10m, 12m, 13m, 13.5m Lifting Height with EPS.

Specification	Unit	ETV120
Power	-	Battery
Operation	-	Seated
Load Capacity	Q(kg)	2000
Lift Height (Max)	h3(mm)	3000
Load Center	c(mm)	500
Axle centre to fork face	x(mm)	380
Wheelbase	Y(mm)	1500
Service Weight	kg	3300
Tyre Type	-	PU Wheel
Tyre size, front	mm	D406*152
Tyre size, rear	mm	Φ340*104
Height of mast lowered	h1(mm)	2086
Overall length	l2(mm)	2440
Overall width	b1(mm)	1260
Turning radius	Wa(mm)	1820
Travel speed (load/no load)	Km/h	8/8.3
Battery voltage/capacity	V/Ah	48V/500AH
Speed control system	-	ZAPI/CURTIS/SME

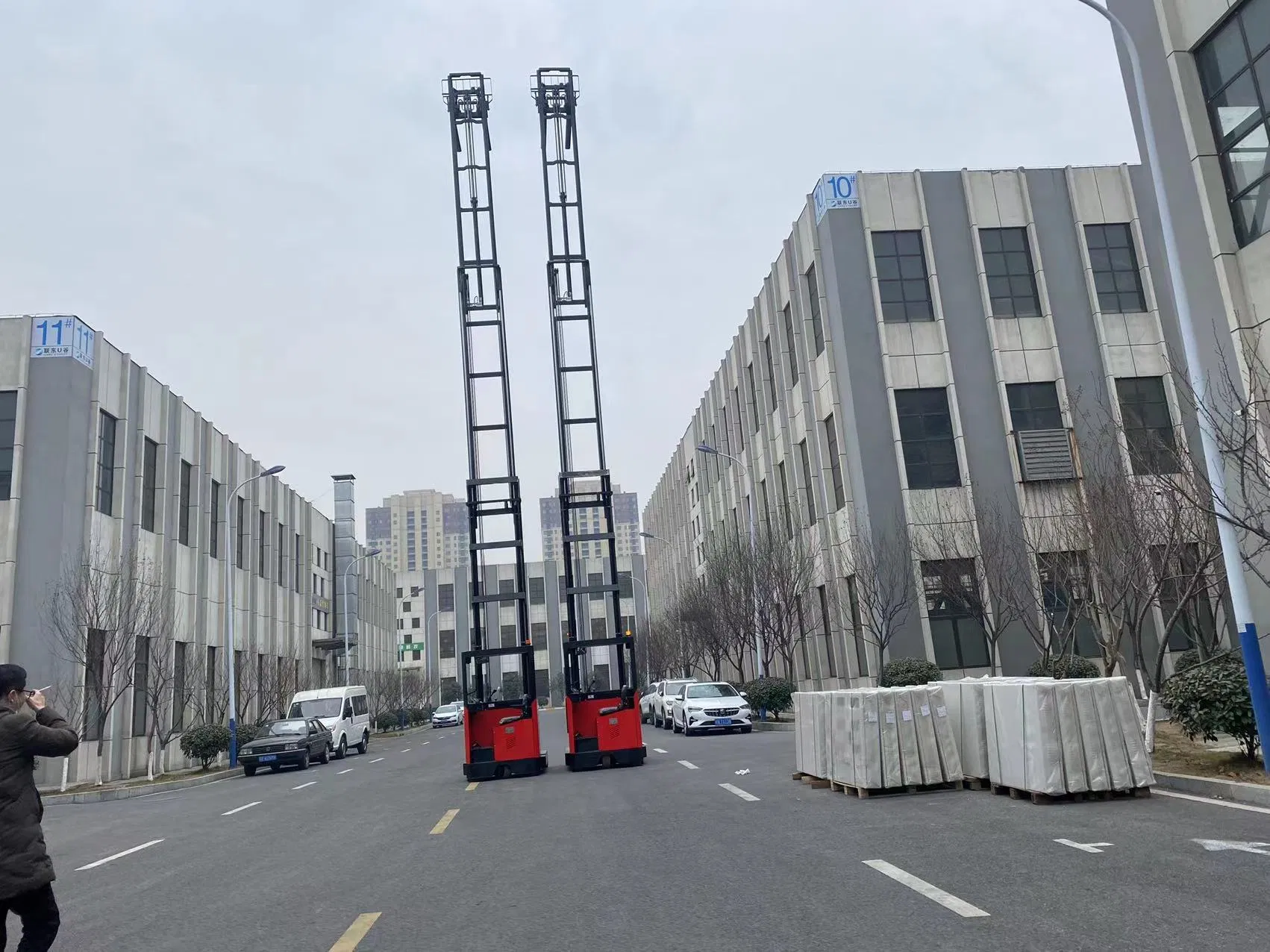

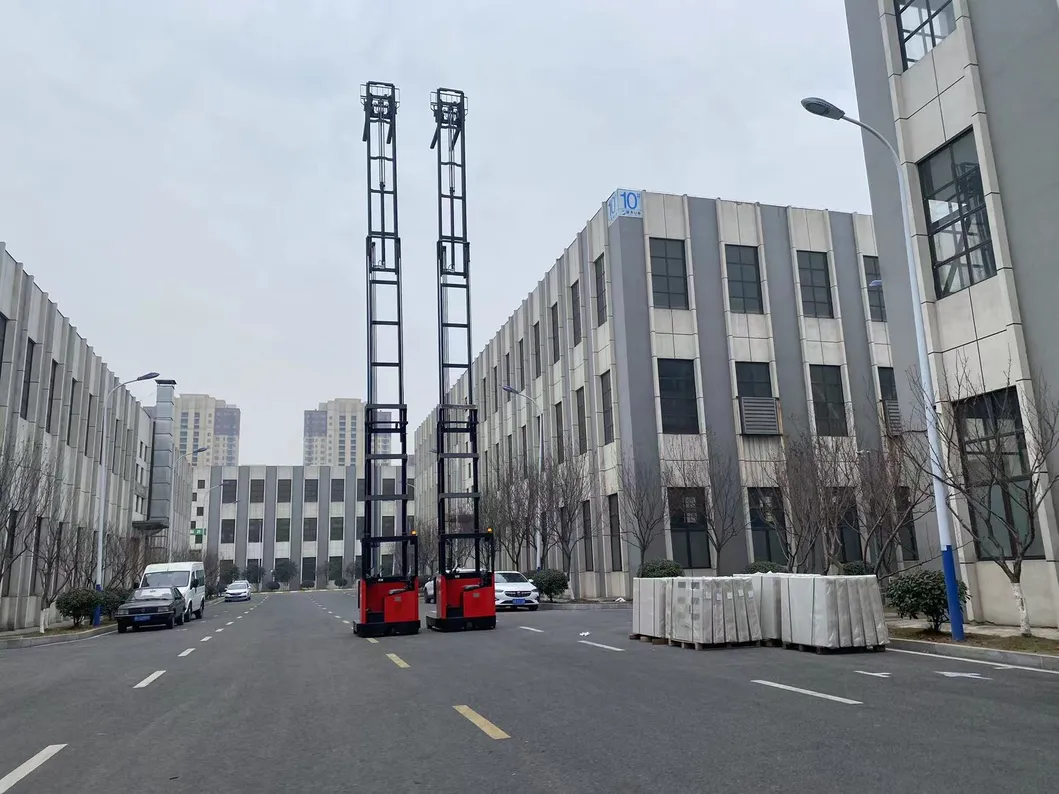

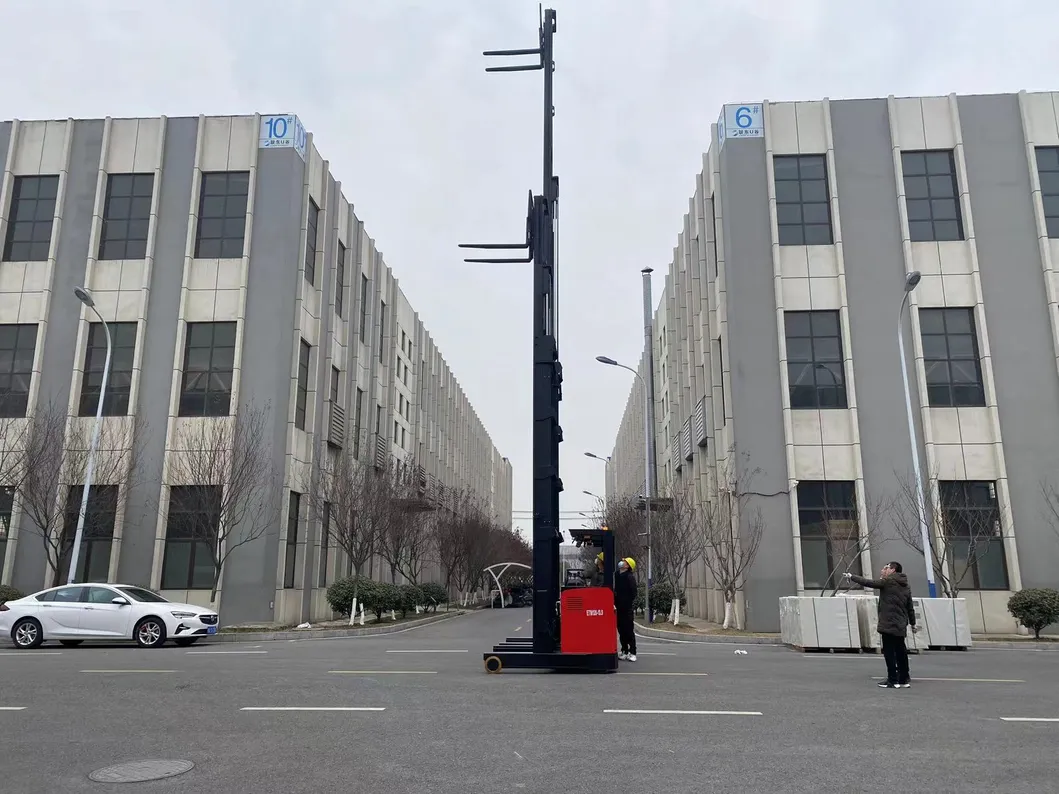

🖼️ Product Gallery

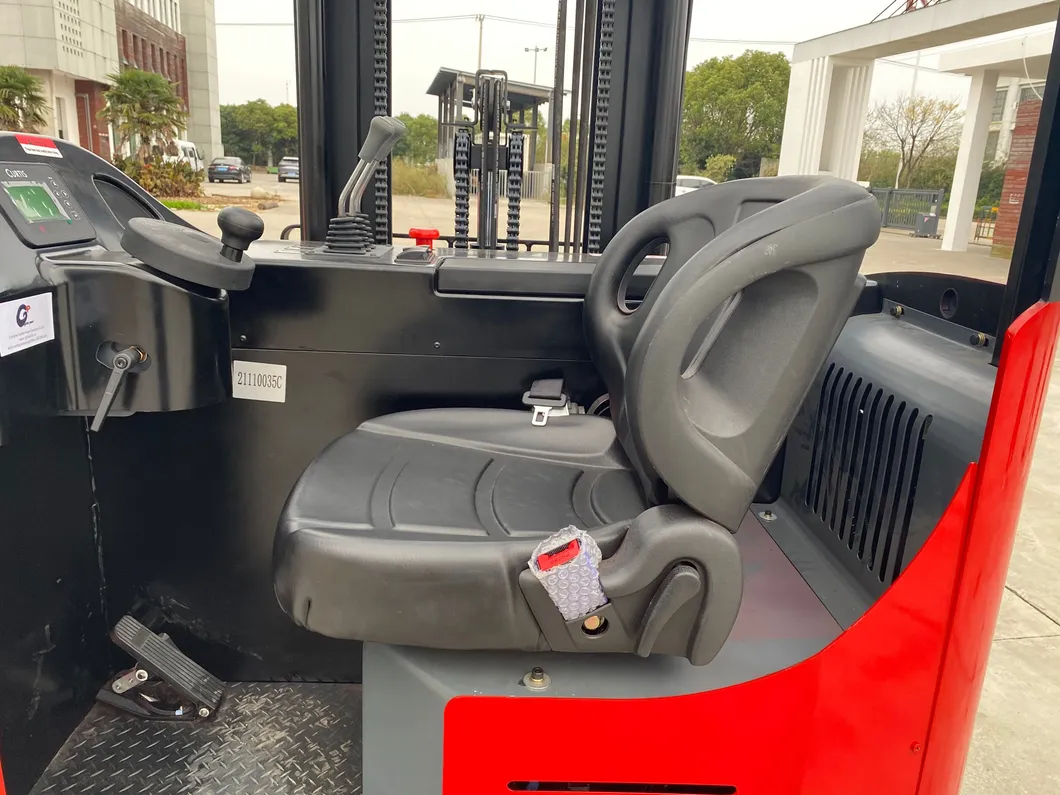

🔍 Detail Showcase

❓ Frequently Asked Questions

1. What is the maximum lifting height of the ETV120 electric reach truck?

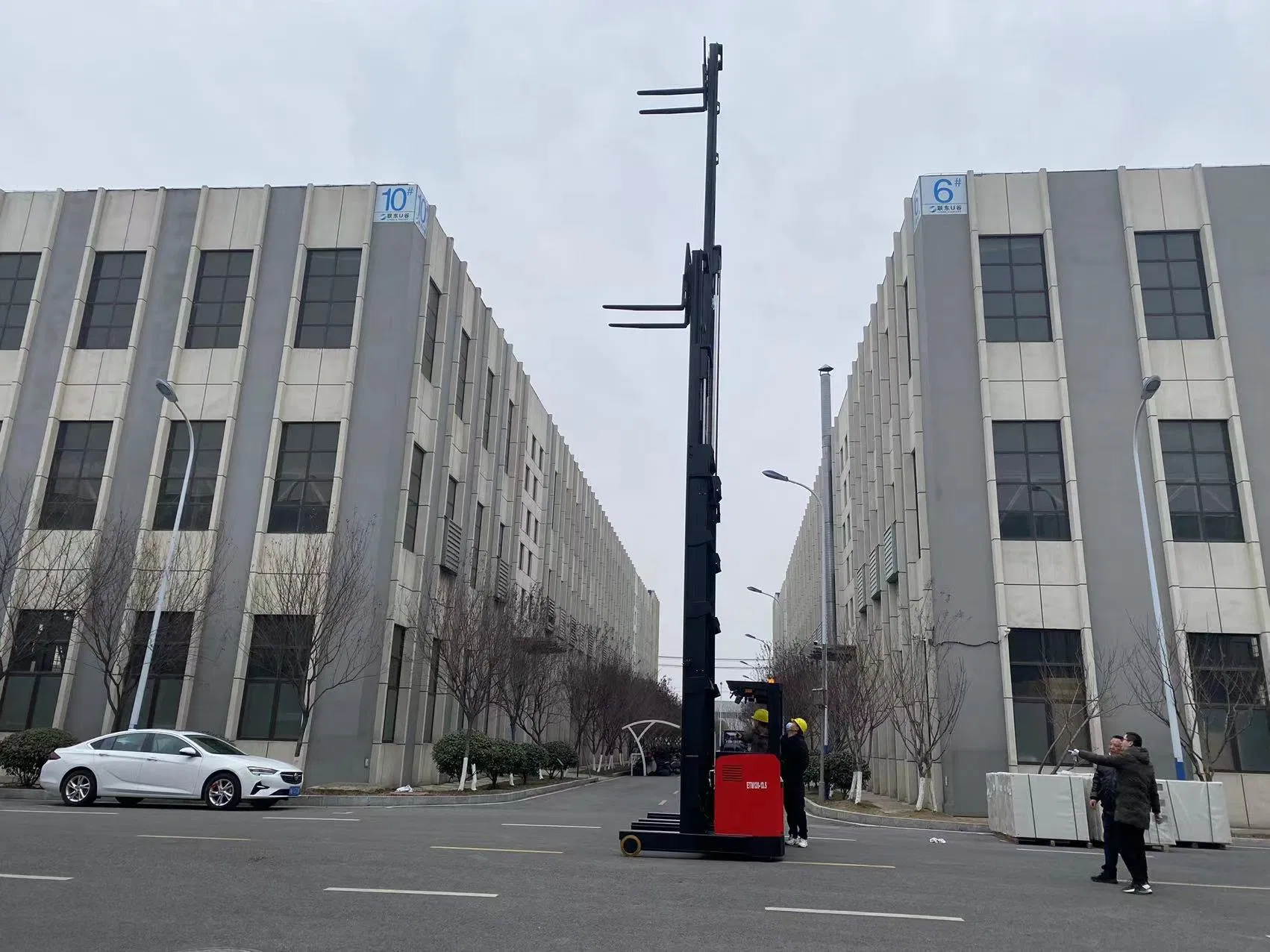

The ETV120 series offers various mast options with lifting heights reaching up to 13.5 meters, making it ideal for high-rack warehouse storage.

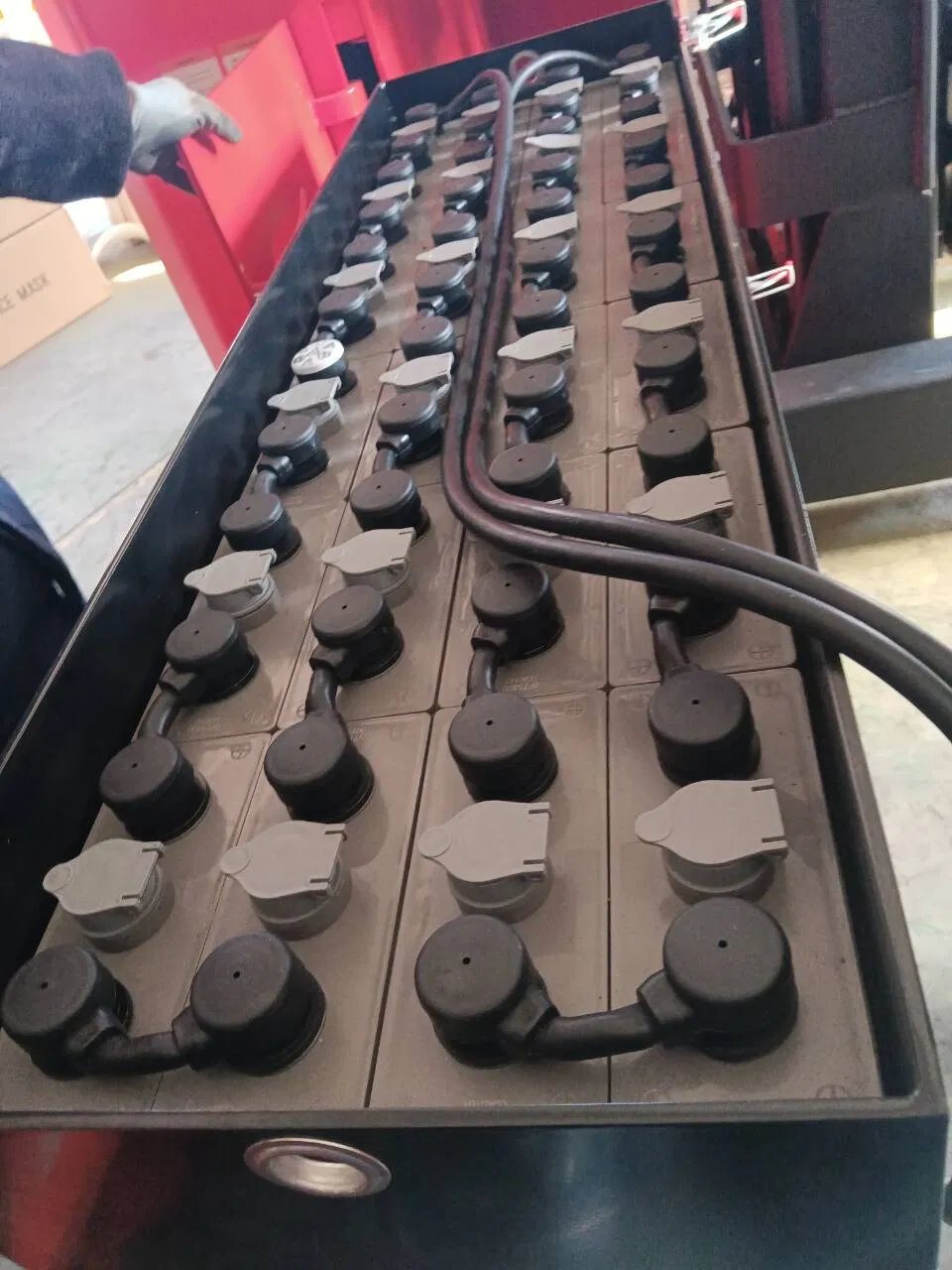

2. What type of battery and power system does this forklift use?

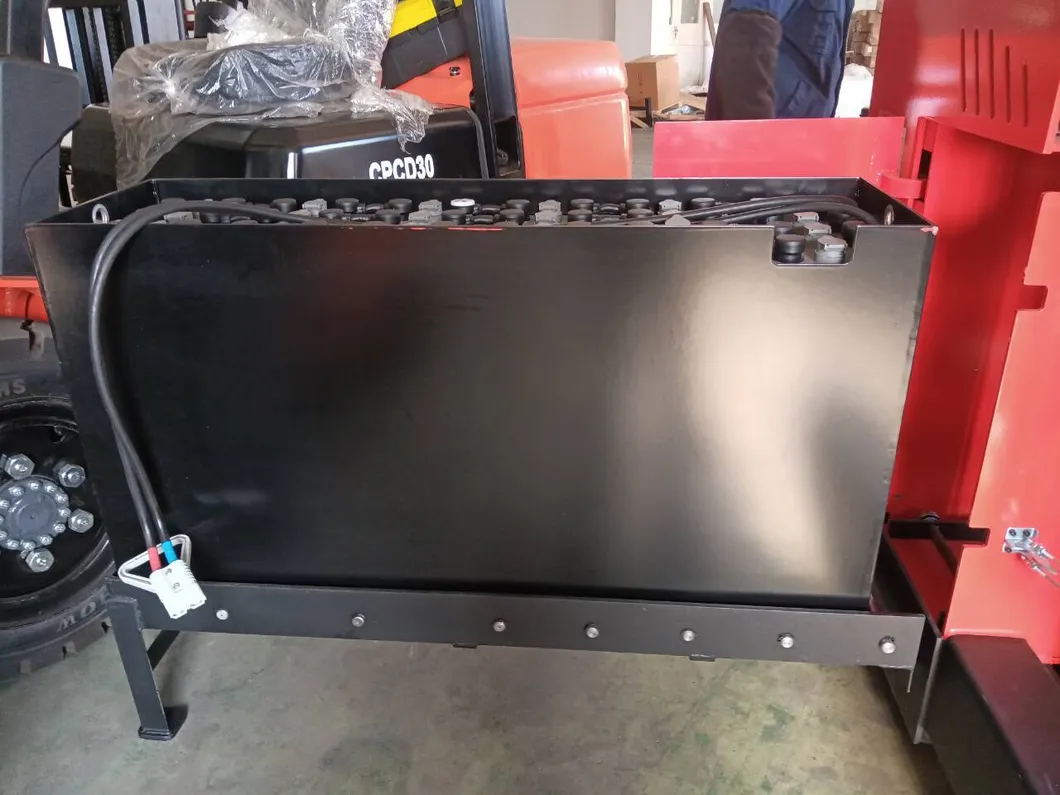

It is powered by a 48V/500AH battery and features an efficient AC motor system for reliable performance and low maintenance.

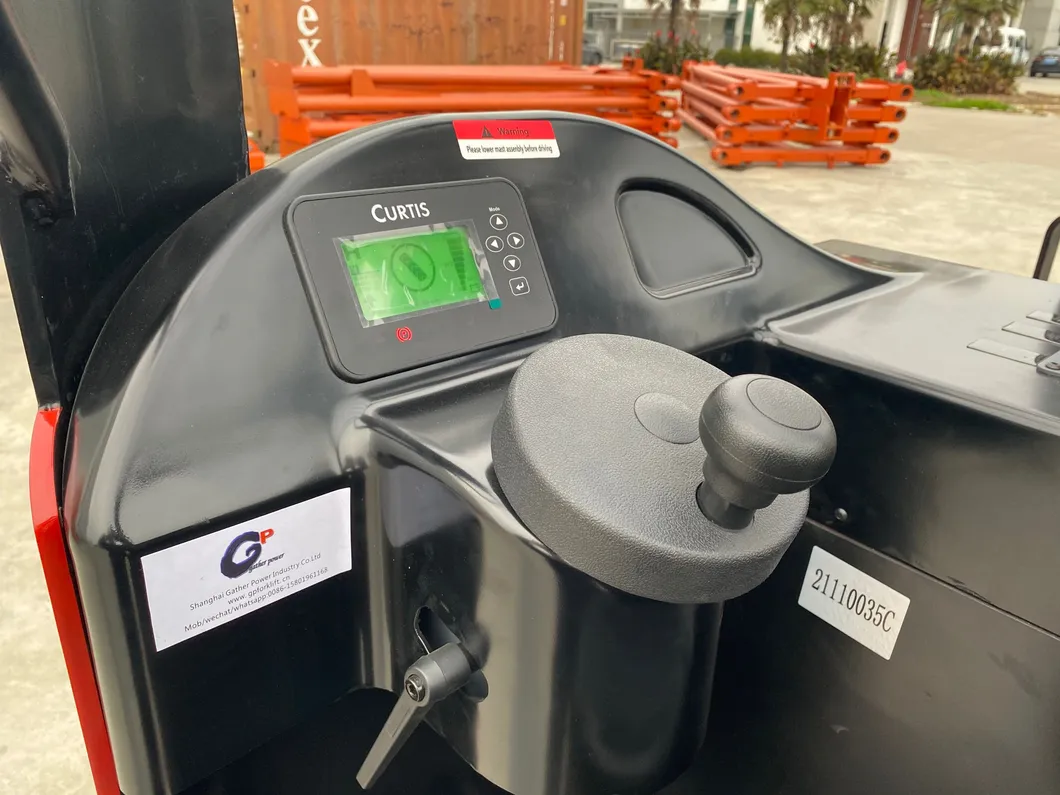

3. Can the control system be customized?

Yes, the reach truck is compatible with high-quality speed control systems such as ZAPI, CURTIS, or SME to suit different operational preferences.

4. Is this reach truck suitable for narrow aisles?

Absolutely. With a turning radius of approximately 1820mm and a specialized seated design, it is specifically engineered for narrow aisle warehouse operations.

5. What is the load capacity of the ETV120 model?

The standard load capacity for the ETV120 is rated at 2000kg (2 tons), though the range includes variants from 1.5 ton up to 2.5 ton capacities.

6. What type of tires are used for this electric stacker?

The vehicle is equipped with durable PU (Polyurethane) wheels, which provide excellent stability and floor protection in indoor warehouse environments.
