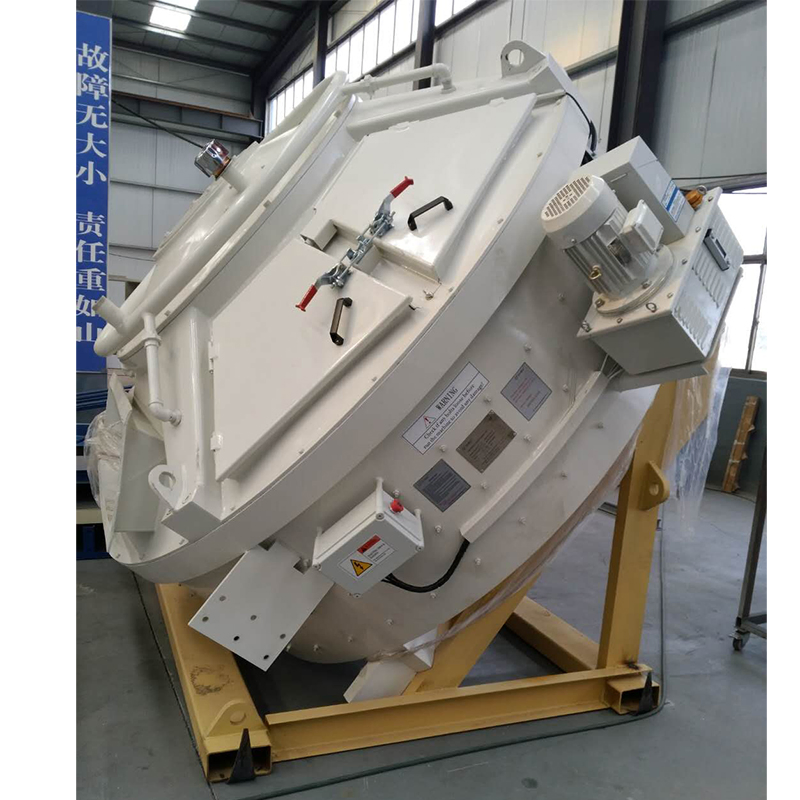

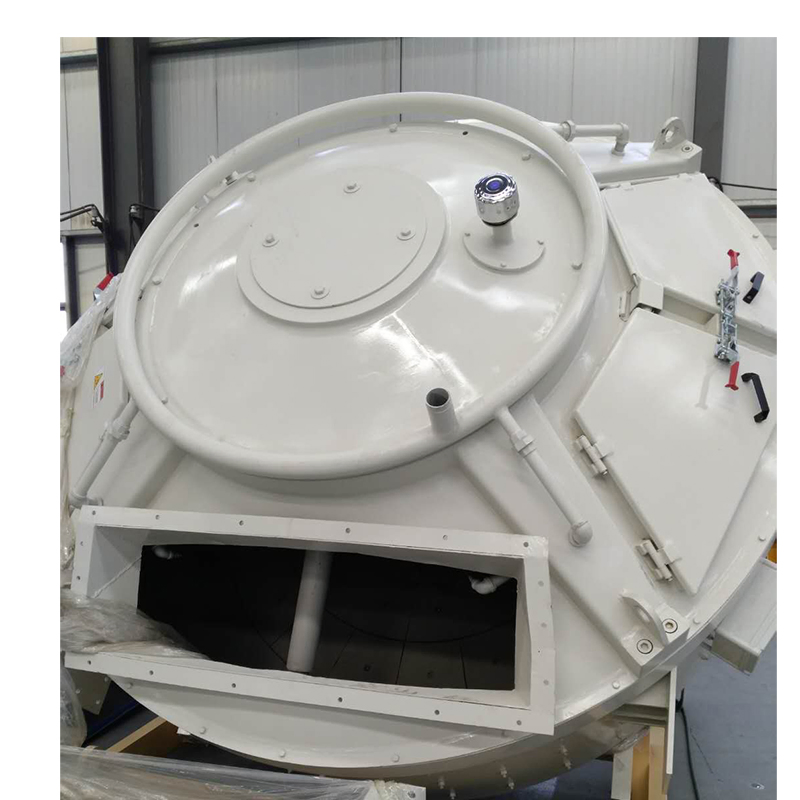

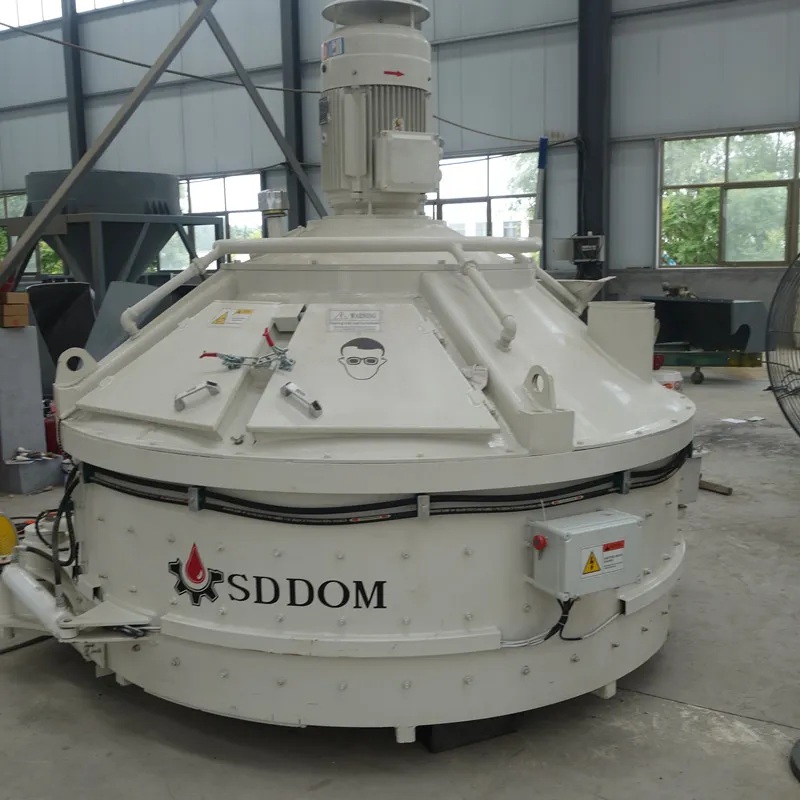

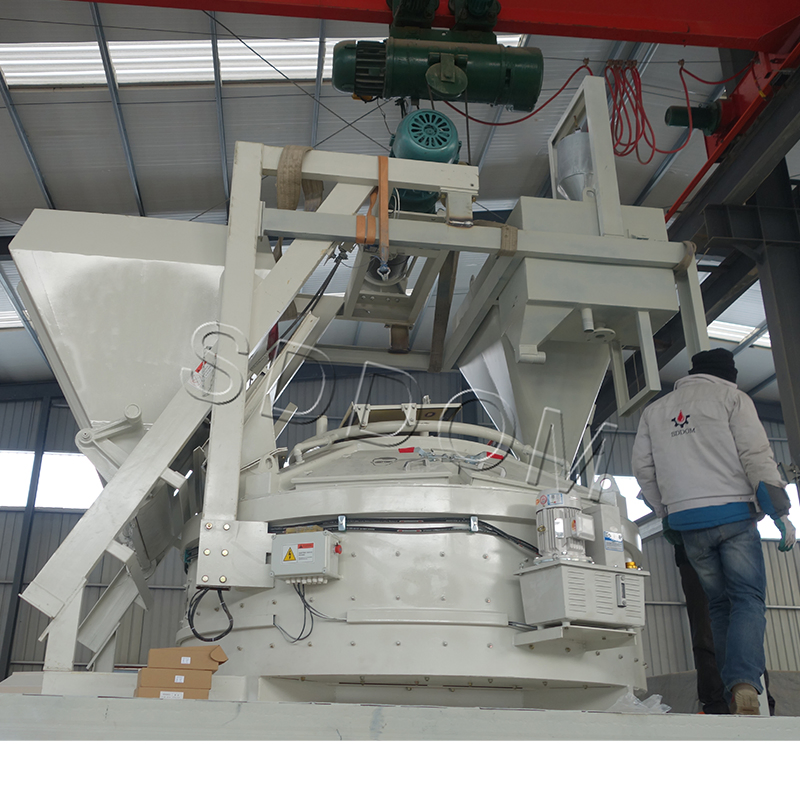

The Planetary electrical concrete mixer is designed according to European CE Standards. It significantly improves mixing efficiency compared with traditional types. These mixers with vertical shafts allow for rapid mixing of all types of quality concrete, including dry, semi-dry, and plastic varieties.
| Model | Filling Vol.(L) | Feeding Cap.(KG) | Compacted Concrete(L) | Power(KW) | Mixing Star*Blade | Weight(T) |
|---|---|---|---|---|---|---|
| MP250 | 375 | 600 | 250 | 11 | 1*2 | 1.8 |
| MP500 | 750 | 1200 | 500 | 18.5 | 1*2 | 2.5 |
| MP750 | 1125 | 1800 | 750 | 30 | 1*3 | 3.5 |
| MP1000 | 1500 | 2400 | 1000 | 37 | 2*2 | 5.5 |
| MP1500 | 2250 | 3600 | 1500 | 55 | 2*2 | 6.5 |
| MP2000 | 3000 | 4800 | 2000 | 75 | 3*2 | 8.5 |

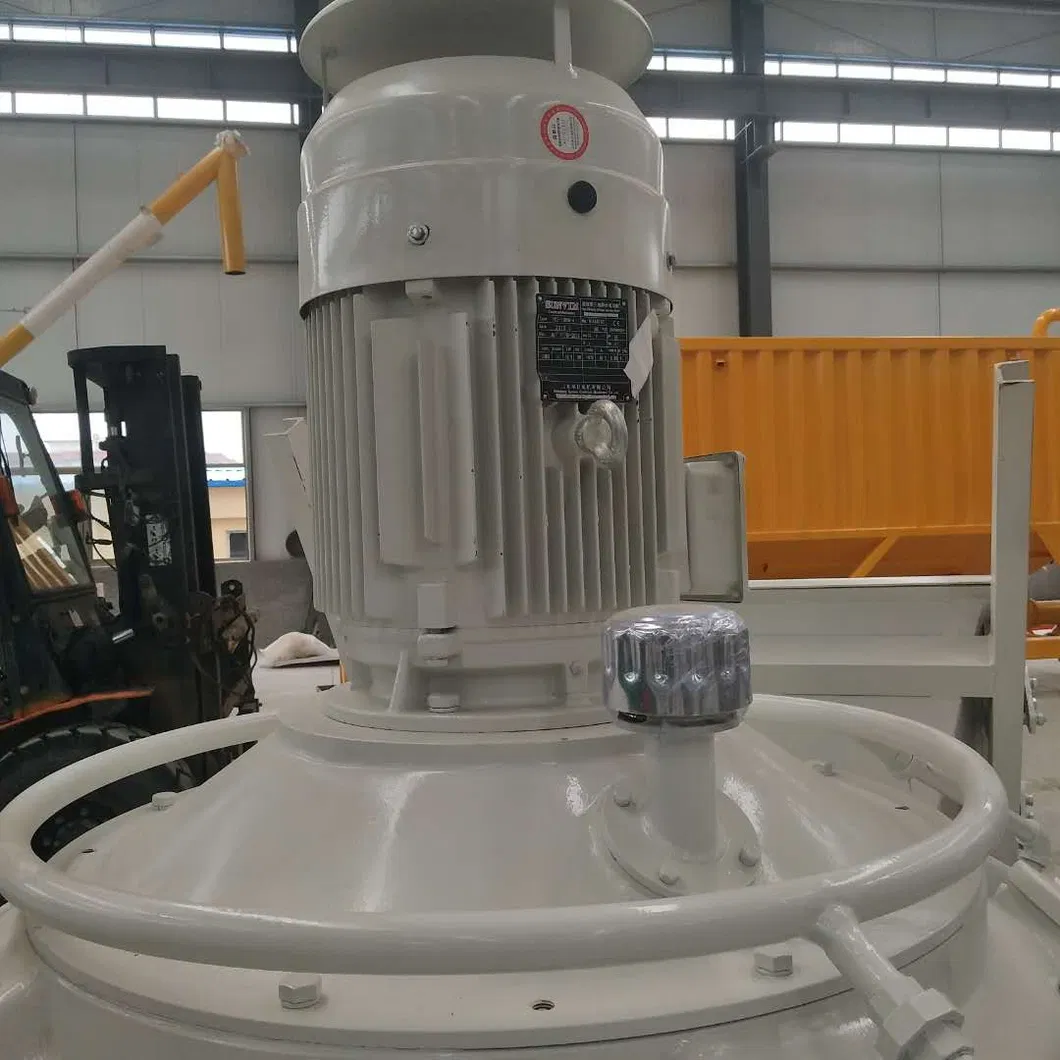

Features a hardened surface gear specialized for lower noise, longer torque, and durability. Even in strict production conditions, it distributes power effectively.
Compulsory mixing realized by composite moves of extruding and overturning. Specialized discharge scrapers increase productivity.

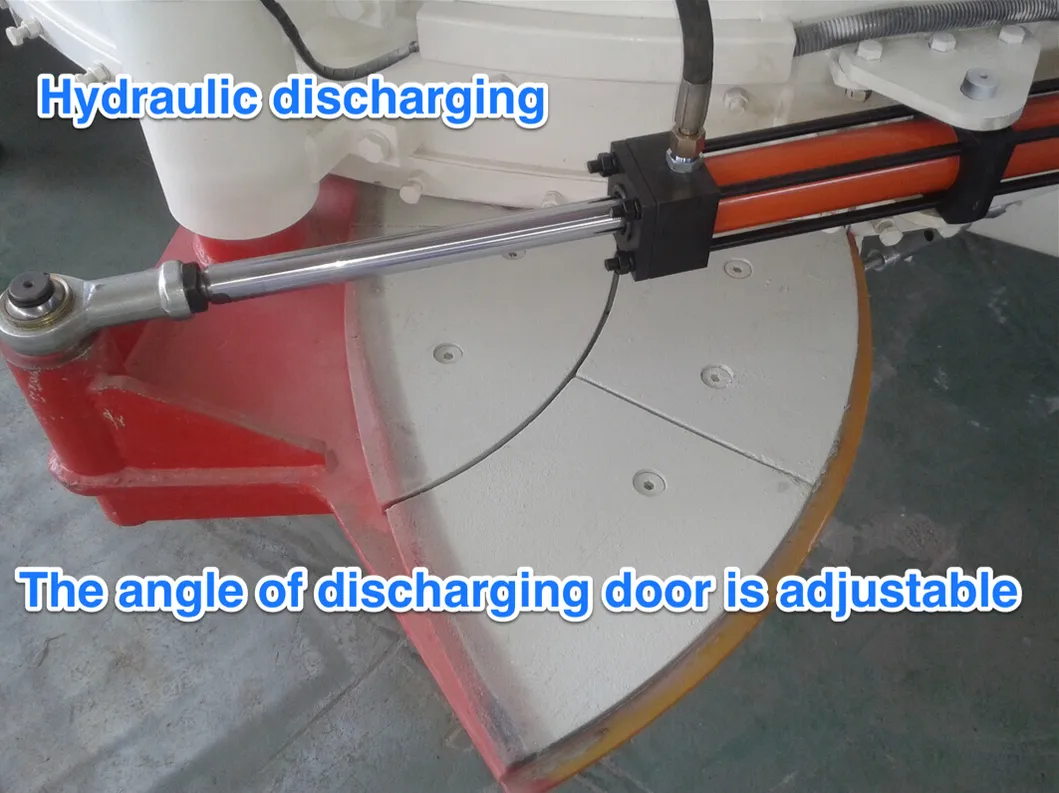

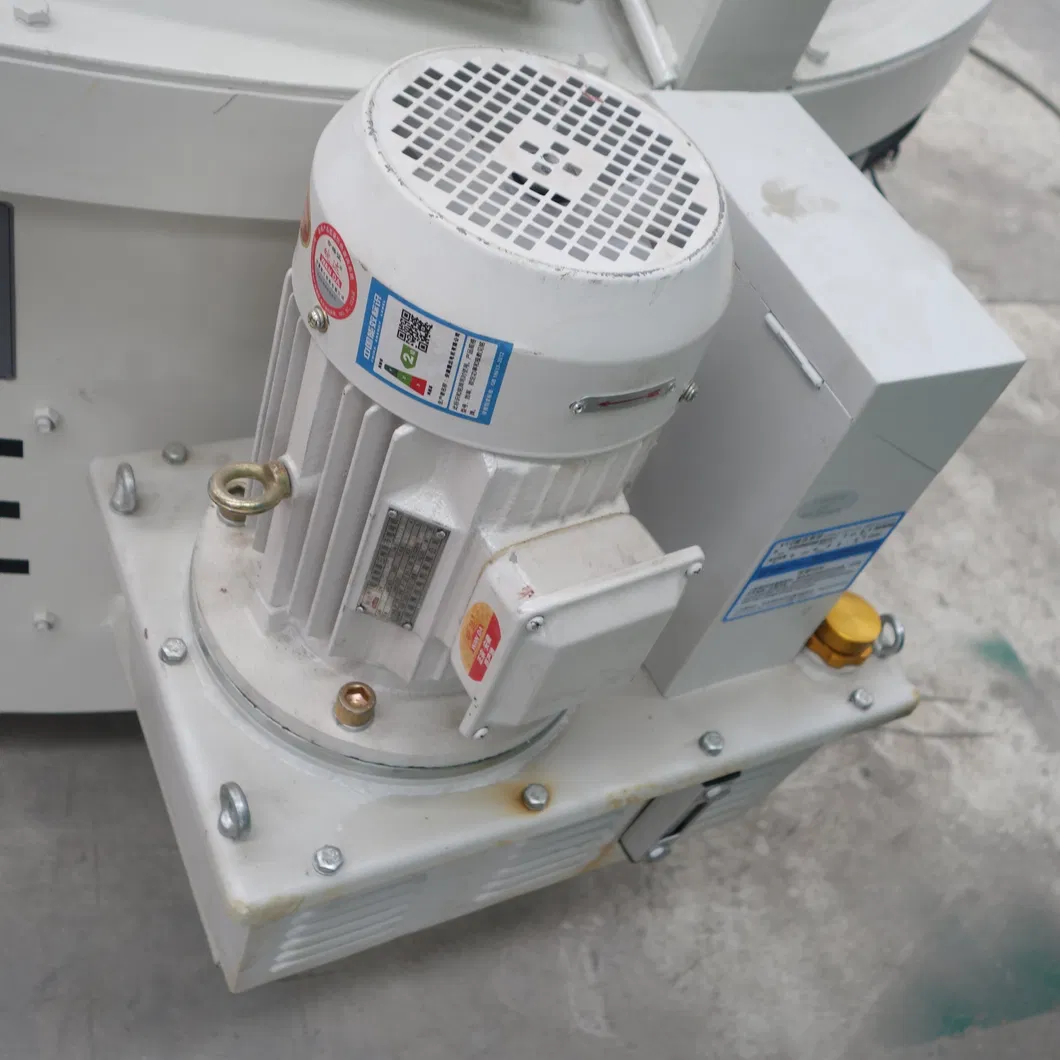

Available with hydraulic, pneumatic, or manual operation. Includes a special sealing device to ensure reliable closing.
Provides power for multiple discharging gates. Features an emergency manual override function.

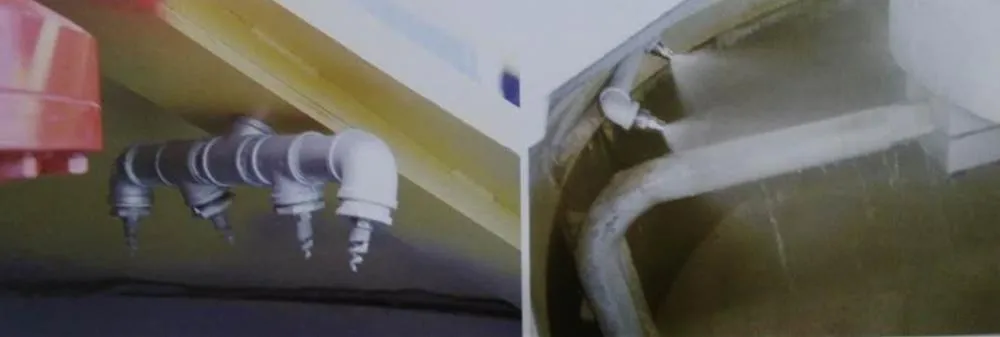

Spiral solid cone nozzles provide fine uniform atomization and large coverage area for consistent material mixing.

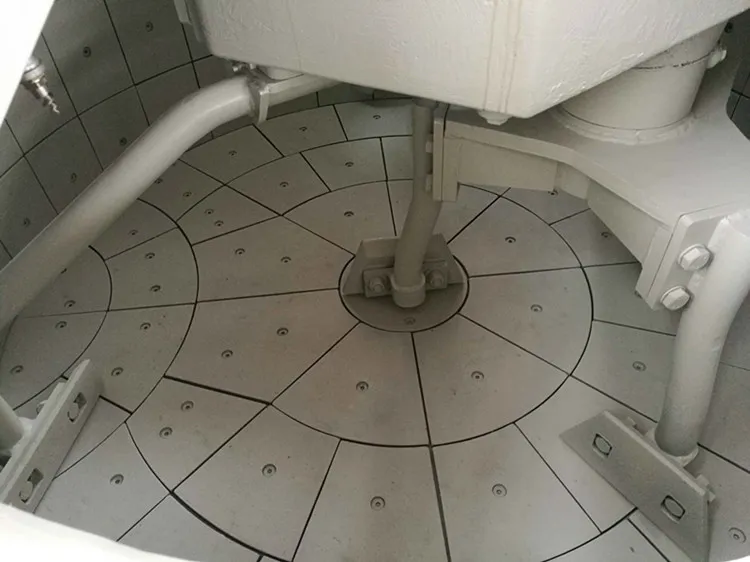

Diagram shows perfect mixing action from 6 to 60 seconds. The floor is swept by the mixing star every 4 revolutions.
