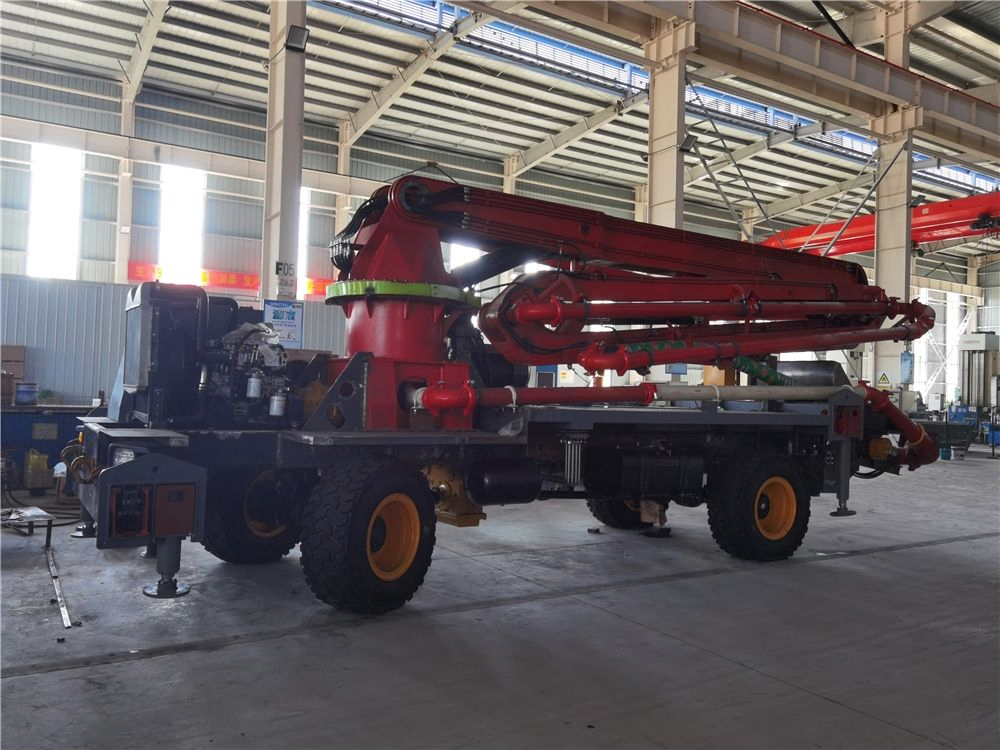

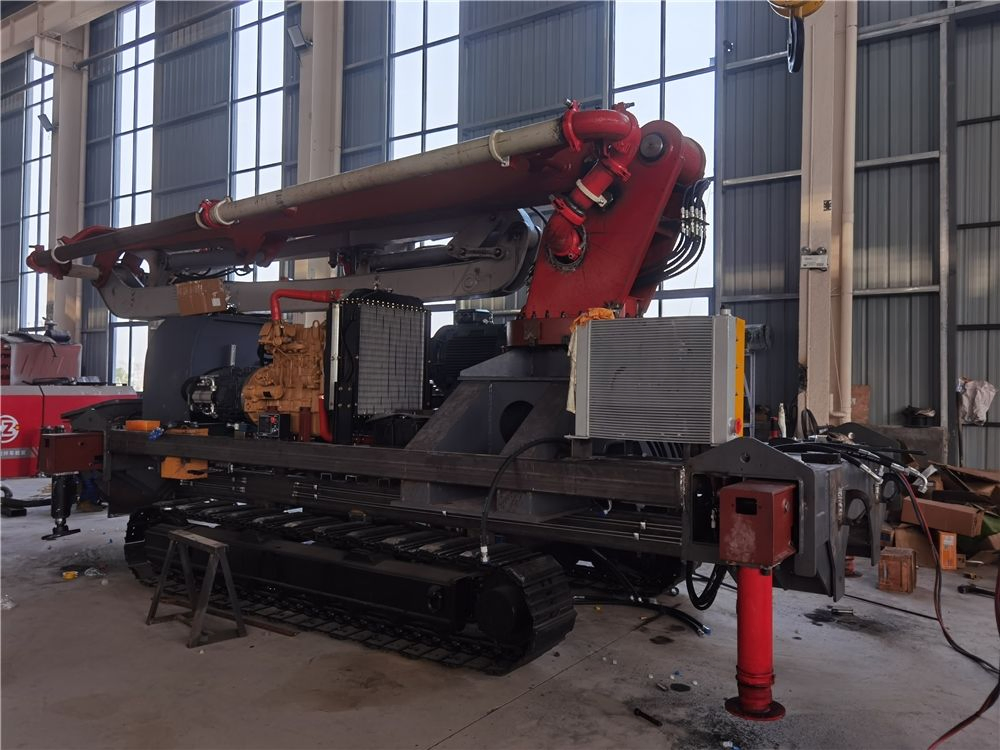

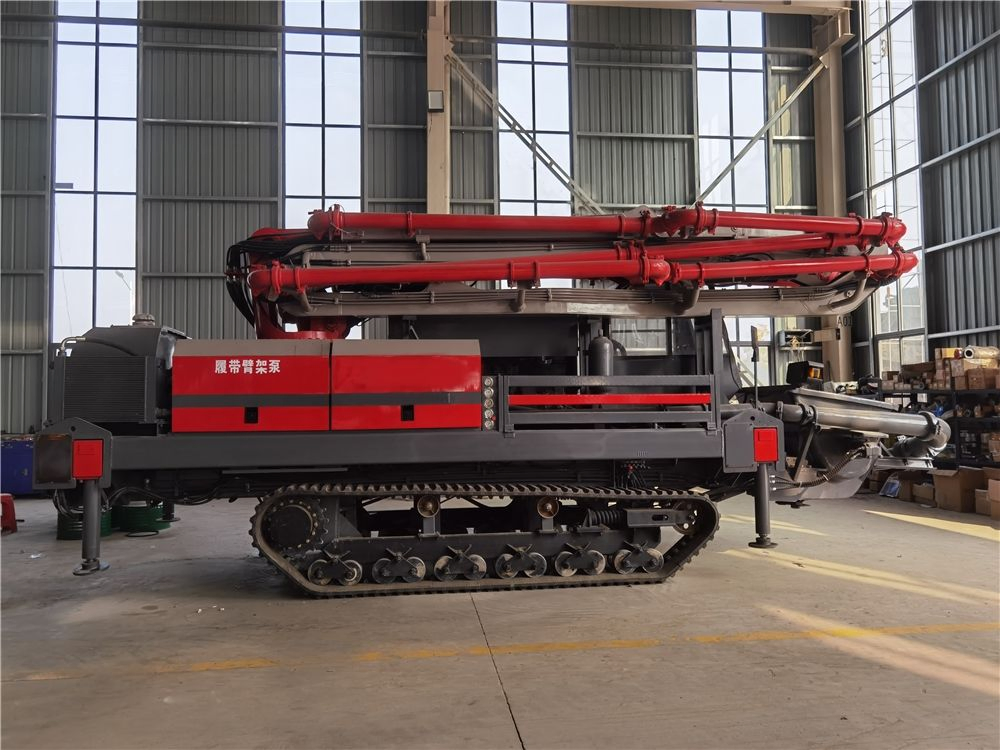

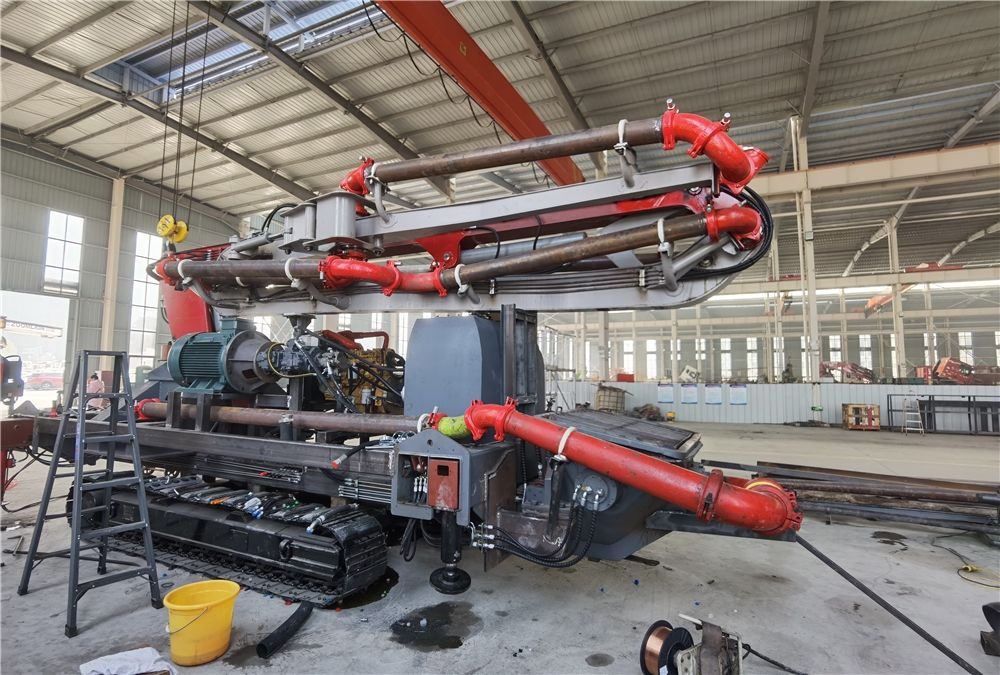

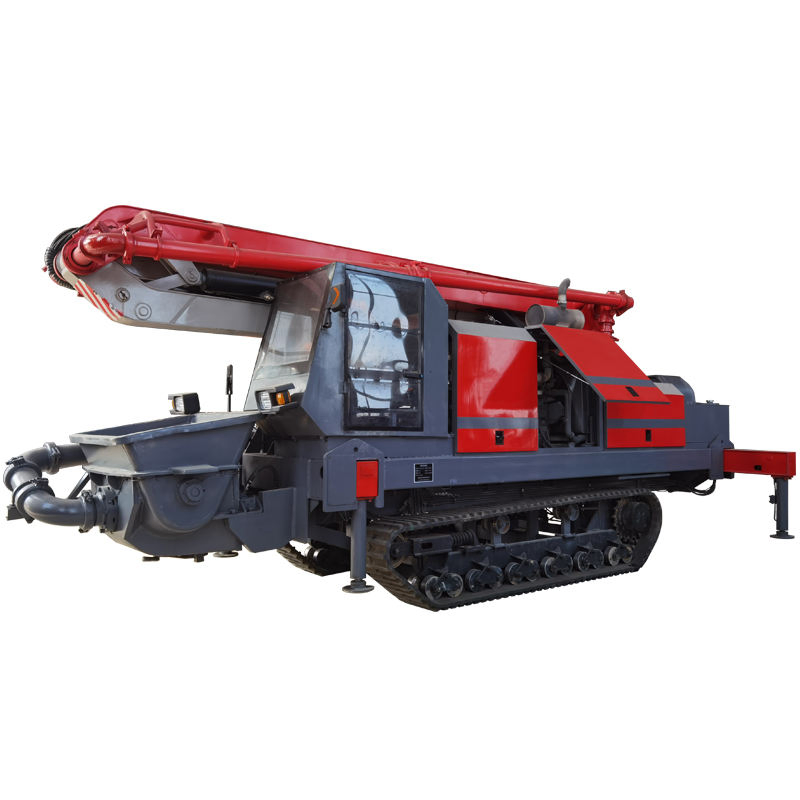

18m 21m 25m Crawler Swing Concrete Truck Mounted 18m Trailer Type Boom Pump

Customization: Available
After-sales Service: Support
Warranty: 1 Year

Product Description

Basic Information

Model NO.
Crawler type boom pump
Type
Concrete Pump
Shotcrete Type
Wet
Productivity
20-25m³/H
Feeding Height
1400mm
Condition
New
Color
White Green
Max. Vertical Distance
38m
Max. Horizontal Distance
38m
Power Type
Diesel
Hopper Capacity
700L
Max Aggregate Size
Less Than 40mm

Product Description & Key Attributes

Unique Selling Point: High operating efficiency for diverse building projects.
Parameter Details
Applicable IndustriesBuilding Material Shops, Manufacturing Plant, Construction works
Core ComponentsPressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC, Valve
Weight21050 kg
Dimensions (L*W*H)1000x2350x3500mm
Warranty1 Year
Chassis ModelHowo Isuzu Type
FunctionMixing and Pumping

Main Parameters Comparison

Model Specification 18m Model 21m Model
Max. Vertical Reach17.5m21m
Length of the Jib15.6m18m
Slewing Range180°360°
Theory Output Capacity40m³/h40m³/h
Max. Concrete Pressure9.5Mpa10Mpa
Pipeline Diameter125mm125mm
Overall Weight7100kg9200kg

Advanced Pumping System

Frequently Asked Questions

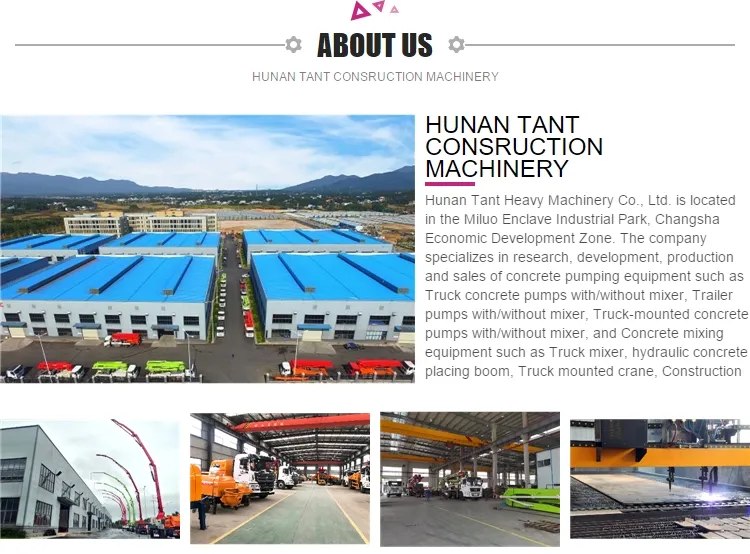

Are you a factory or a trading company?
We have our own manufacturing facility dedicated to producing high-quality concrete pumping equipment.
What is the brand of the oil pump used?
The equipment utilizes world-class components, typically featuring Germany Rexroth or Korea Kawasaki oil pumps.
Is the motor power electrical or diesel?
Both types are available. The electric version is designed for 380V 50Hz power supplies.
How long is the guarantee period?
We provide a 1-year warranty for non-easy-wear parts, strictly adhering to our quality assurance terms.
What are the accepted payment terms?
Generally, a 30% advance payment is required, with the balance due before delivery or via L/C.
Do you provide after-sales service?
Yes, we provide professional video technical support and have overseas technicians available for maintenance in various regions.
