Basic Info
Model NO.: JQ500
Capacity: 15m³/h & Above
Certification: CE, ISO
Condition: New
Main Material: Carbon Steel
Mixing Capacity: 250-499L
Mixing Drum: Circular Groove
Power Source: Electric
Stirring Type: Forced
Warranty: 1 year
Input Capacity: 500L
Output Capacity: 350L
Total Power: 5.5kw
Weight: 450kg
HS Code: 8474310000
Packaging & Delivery
Package Size: 125.0cm * 125.0cm * 150.0cm
Gross Weight: 450.000kg
Lead Time: 20 days (1-1 Pieces)
Product Description

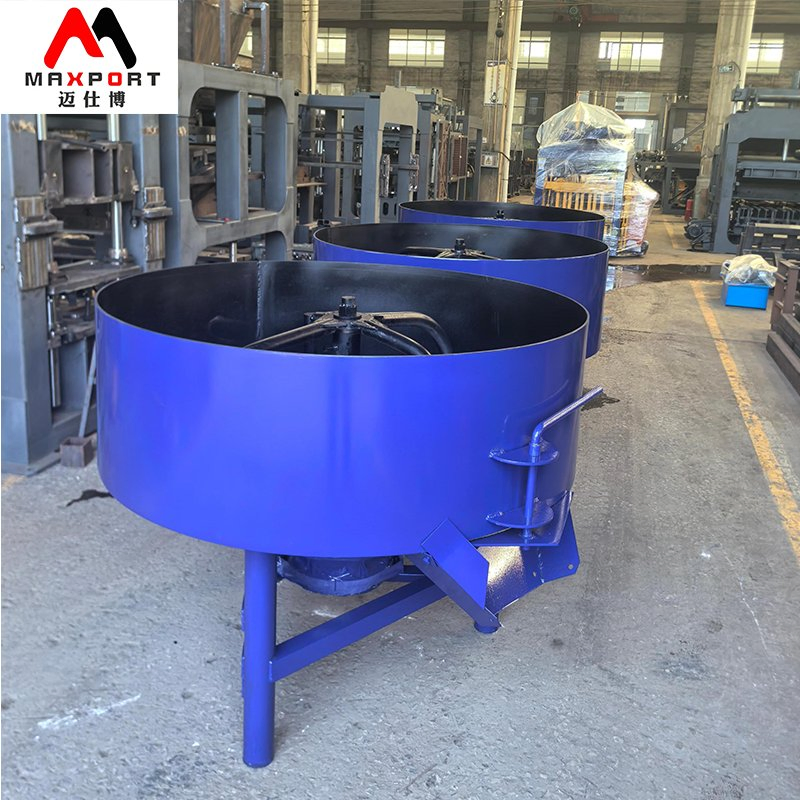

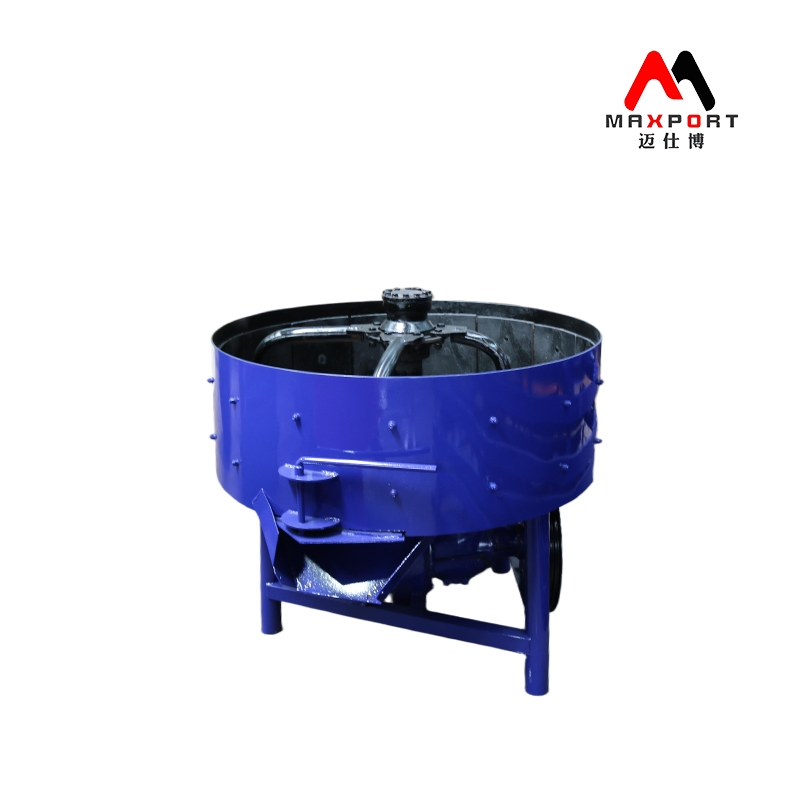

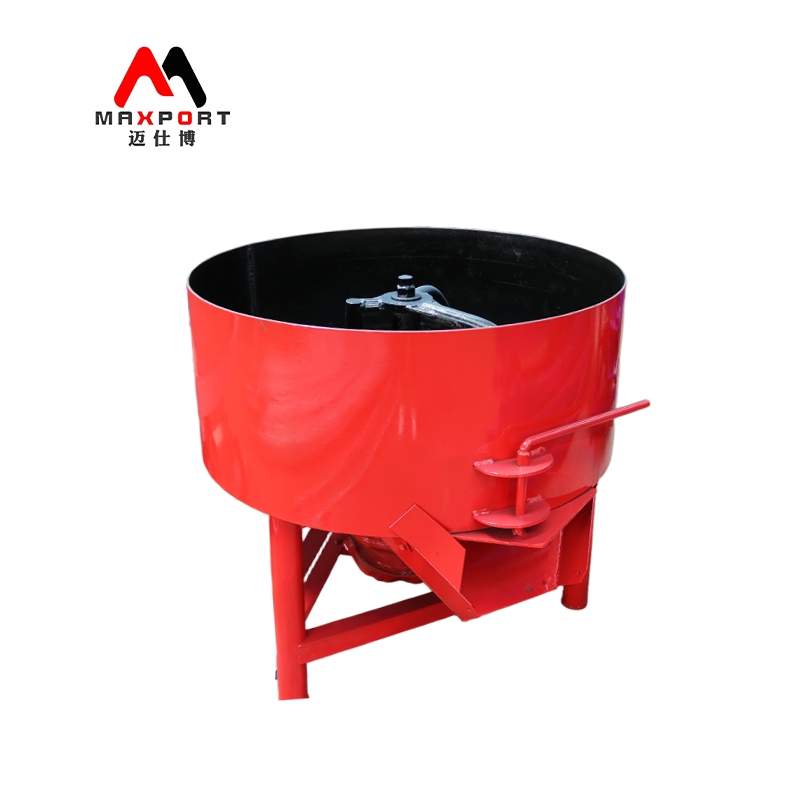

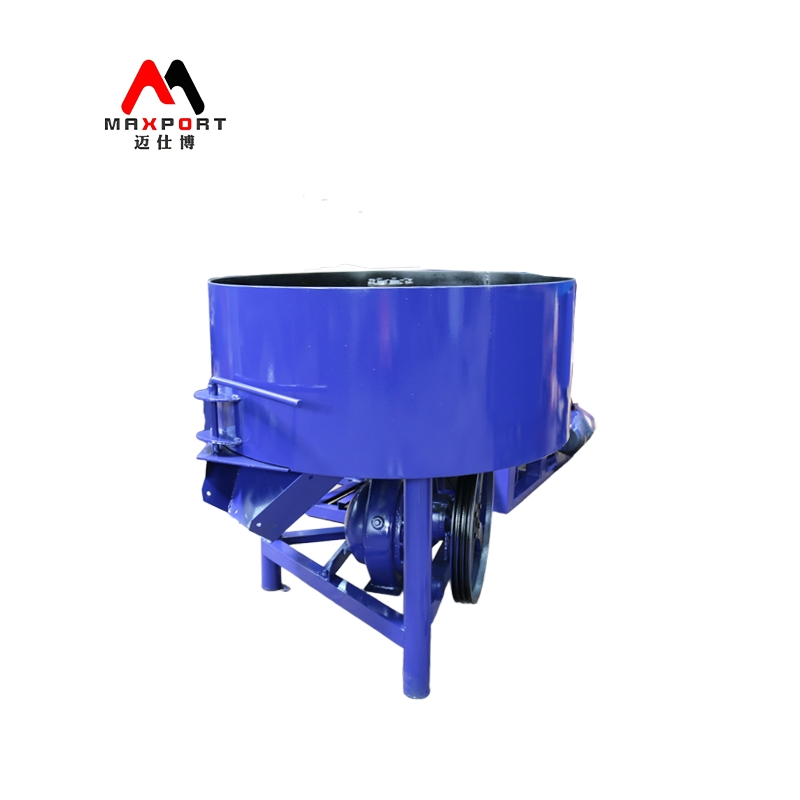

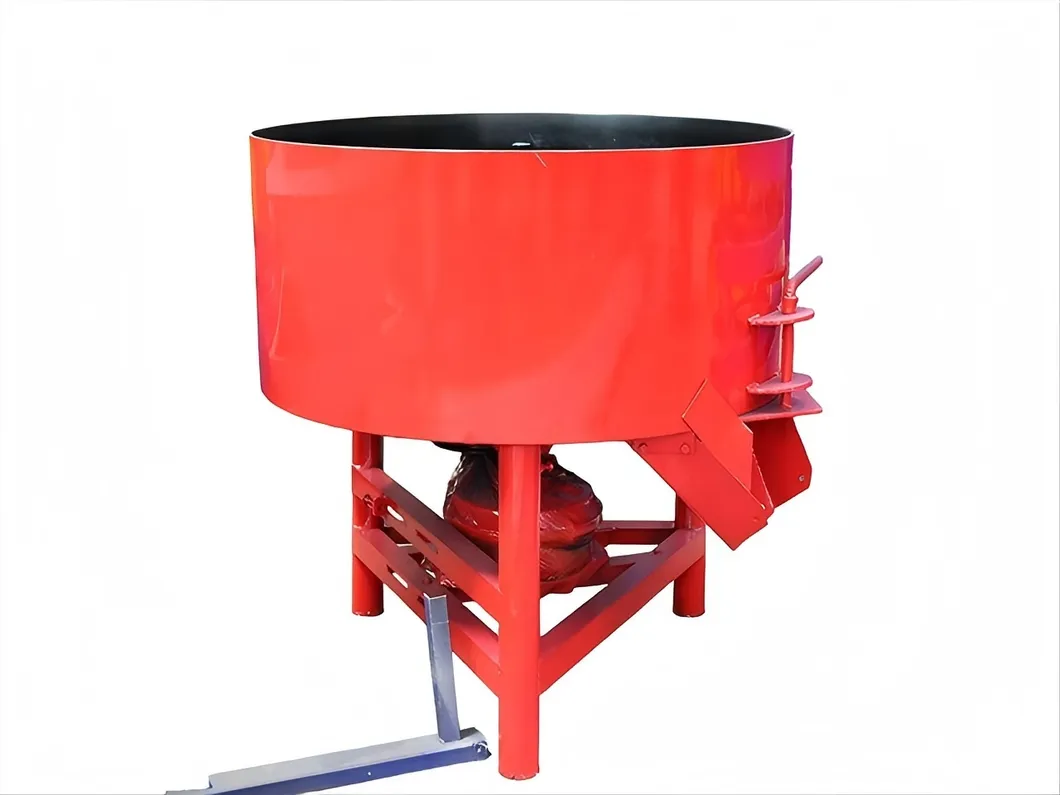

The Vertical Pan Mixer is a high-efficiency mixing device engineered specifically for blending concrete, mortar, and a wide range of dry or semi-dry materials. Featuring a vertical pan configuration paired with rotating mixing arms, it delivers consistent homogenization and reliable operational performance.
Ideal for application scenarios such as concrete block production lines, precast concrete manufacturing facilities, and construction material processing plants, this mixer has secured broad adoption across the building materials sector.
Product Parameters
| JQ Series Vertical Concrete Mixer Specification |
| Model |
JQ350 |
JQ400 |
JQ500 |
| Input Capacity |
570L |
650L |
800L |
| Output Capacity |
350L |
400L |
500L |
| Productivity |
≥10m³/h |
≥12m³/h |
≥15m³/h |
| Mixing Vane |
4 |
4 |
4 |
| Max Aggregate |
60/40mm |
60/40mm |
60/40mm |
| Dimension |
1250*1500mm |
1500*1500mm |
1600*1500mm |
| Total Power |
5.5kW |
7.5kW |
10.5kW |

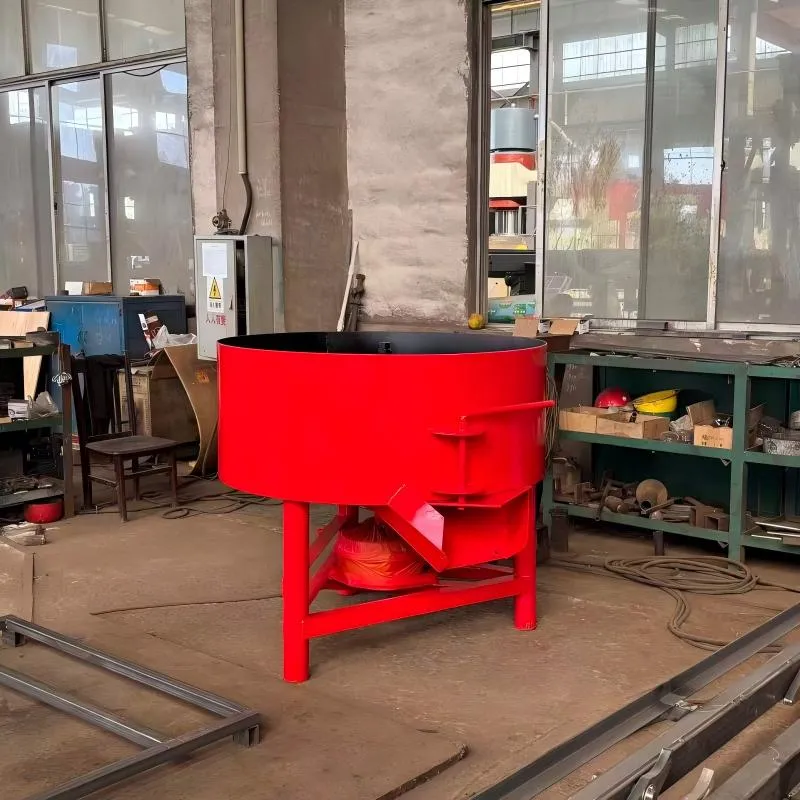

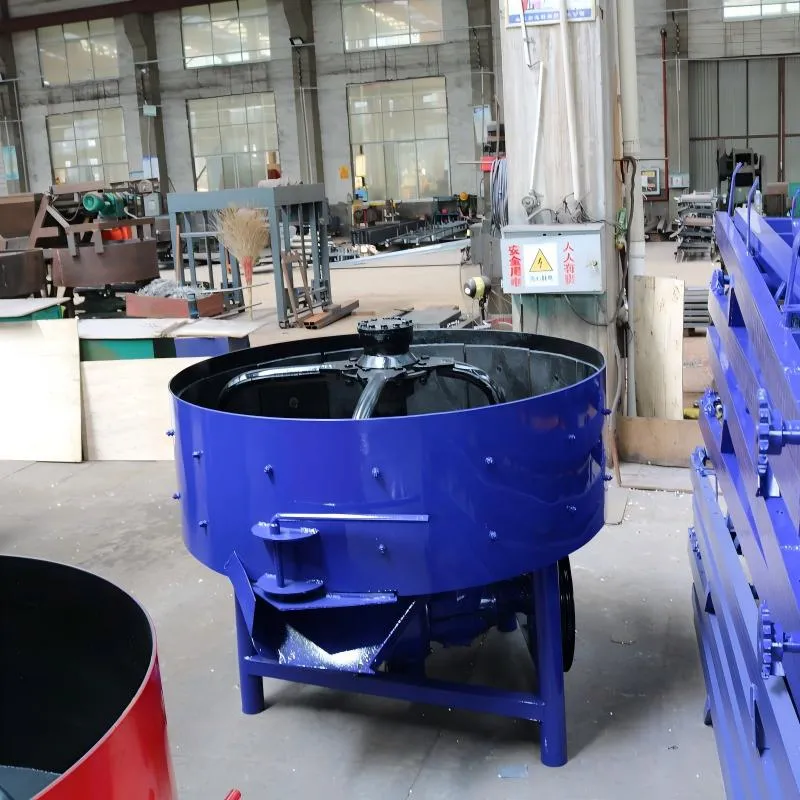

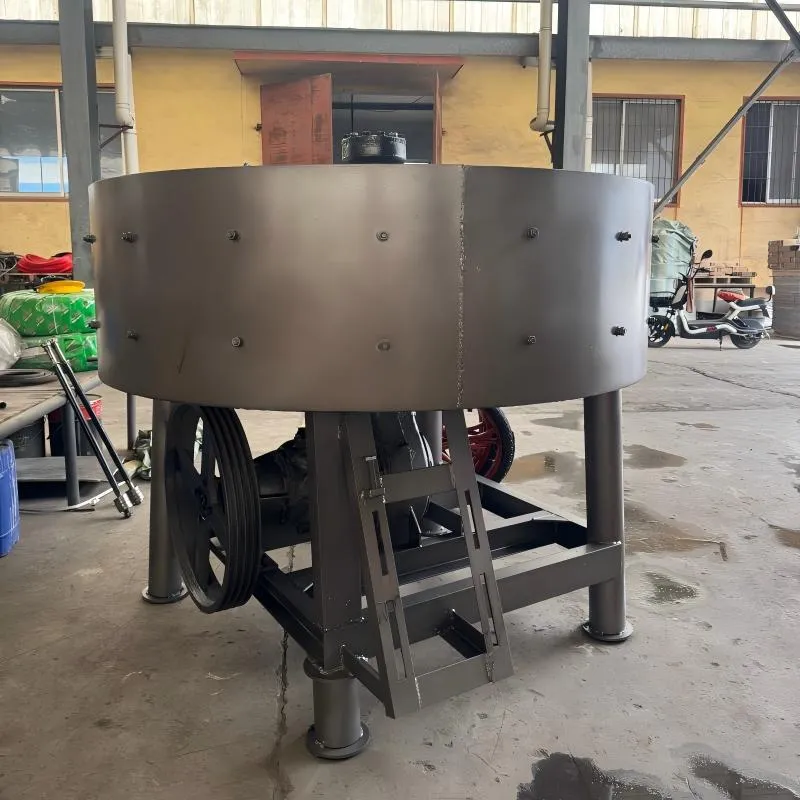

Detailed Photos

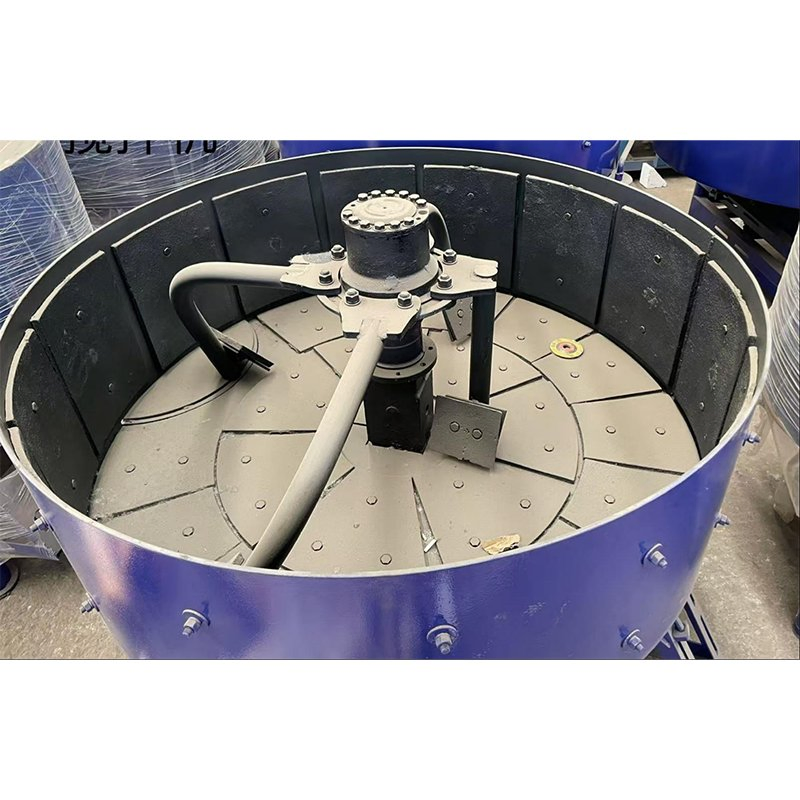

The mixing pan stays fixed in position, whereas the mixing arms spin at a steady speed—this design ensures a complete, dead-zone-free mixing of materials. Boasting a rugged structure and wear-resistant components, the machine delivers an extended service life and minimized maintenance expenses.
Key Features
High Mixing Efficiency & Consistent Homogenization
Achieves thorough and uniform material blending through a multi-arm system, effectively eliminating accumulation.
Streamlined Structure & Low Maintenance
Compact design with fewer vulnerable parts makes it easy to operate, especially where technical resources are limited.
Versatile Material Compatibility
Suitable for concrete, mortar, dry mixes, and lightweight aggregates for brick and precast production.
Durable Construction
Fabricated from wear-resistant steel to endure high temperatures and dusty environments.
Packaging & Shipping

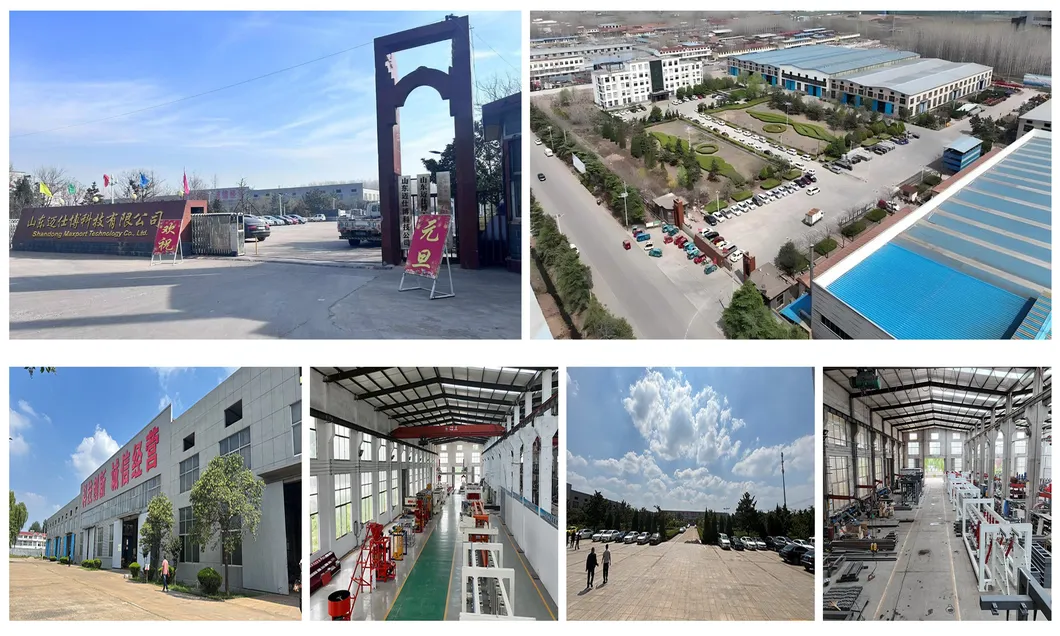

Production Capacity
With over 35 years of experience, we specialize in environment-friendly and energy-saving building material machinery.
4 Modern Production Bases
Total land area: 290,000 m²
1120+ Skilled Technical Staff
Annual Capacity: 7,000 sets
Certifications
Frequently Asked Questions
How do you handle shipping and delivery?
Delivery usually takes about 25-30 days for standard machines. Customized models may take longer depending on specifications. We keep you updated with estimated shipping schedules once your order is confirmed.
What are the accepted payment terms?
Our standard terms are 30% T/T in advance and the remaining 70% via T/T or L/C before delivery.
Do you offer overseas installation and commissioning?
Yes. Our experienced engineers can travel to your site for installation, training, and commissioning. We also provide 24/7 online video support.
What spare parts should I prepare?
We recommend stocking critical wear parts like spare molds. Spare parts are available upon request and typically delivered within 7-15 days.
Can you customize the machine according to our needs?
Absolutely. We offer services to tailor machine specs, colors, molds, and automation levels to your specific requirements.
What should we consider regarding site preparation?
Please ensure adequate land area, a stable foundation, reliable power supply, and access for installation equipment to reduce operational risks.
