Basic Information
| Model NO. | HB62V / HB69V / HB72V / HB75V |
|---|
| Type | Concrete Pump |
|---|
| Shotcrete Type | Wet |
|---|
| Machining Process | Hydraulic |
|---|
| Structure | Cylinder Type |
|---|
| Productivity | 180m3/h |
|---|
| Feeding Height | 61.1 / 68.1 / 71.1 / 74.1m |
|---|
| Certification | ISO9001: 2000, CE |
|---|
| Overall Weight | 44000 / 55000kg |
|---|
| Emission | Euro 3-5 |
|---|
| Pumping Pressure | Max. 10.2MPa |
|---|
Product Description

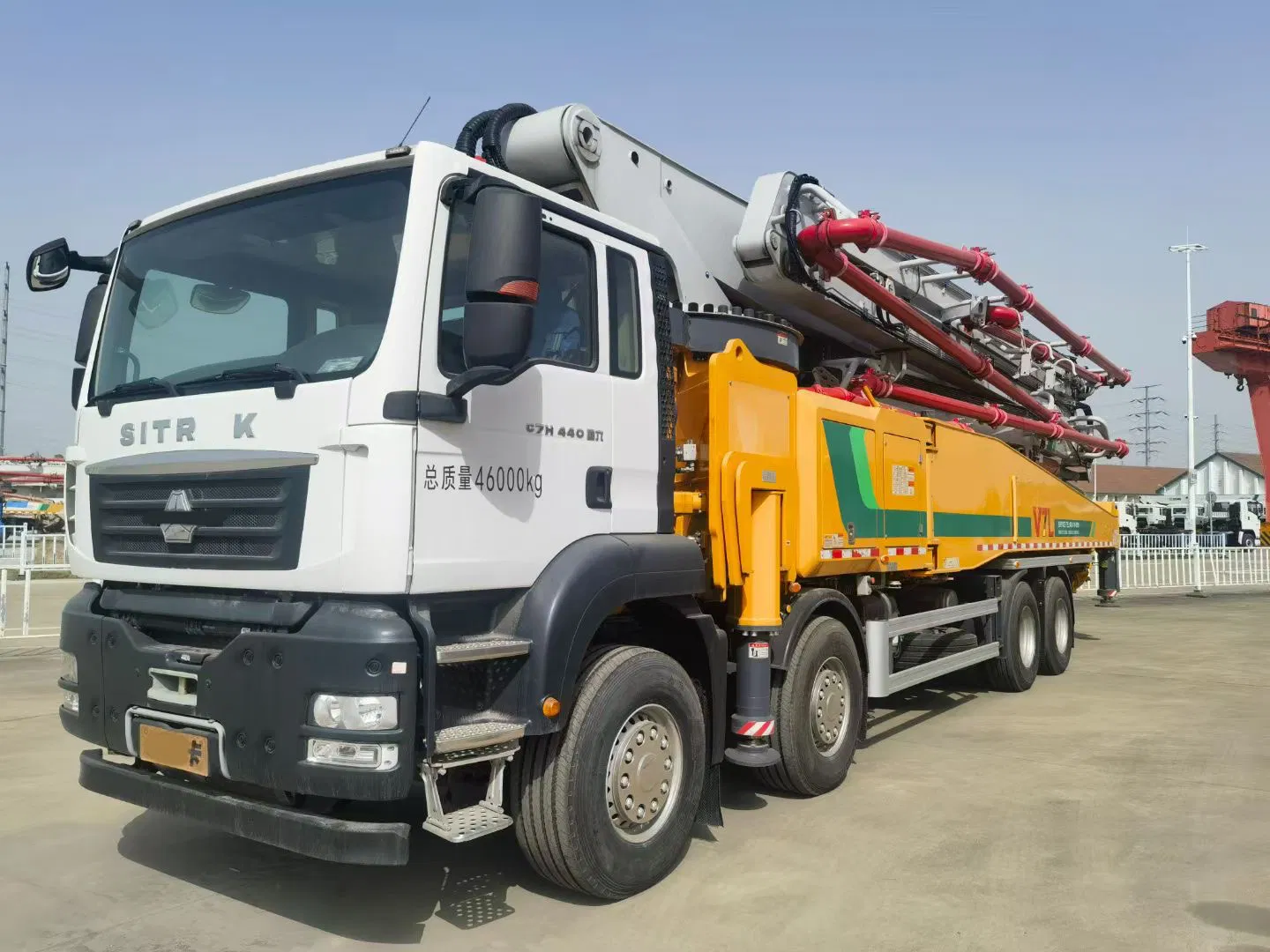

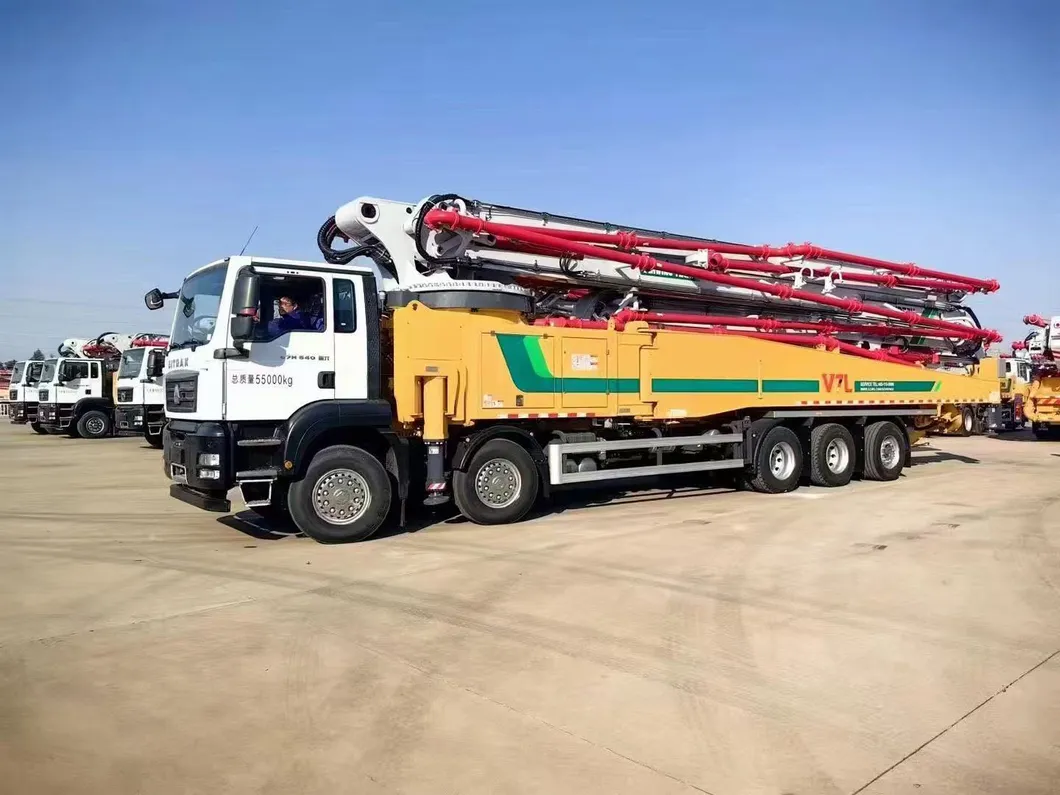

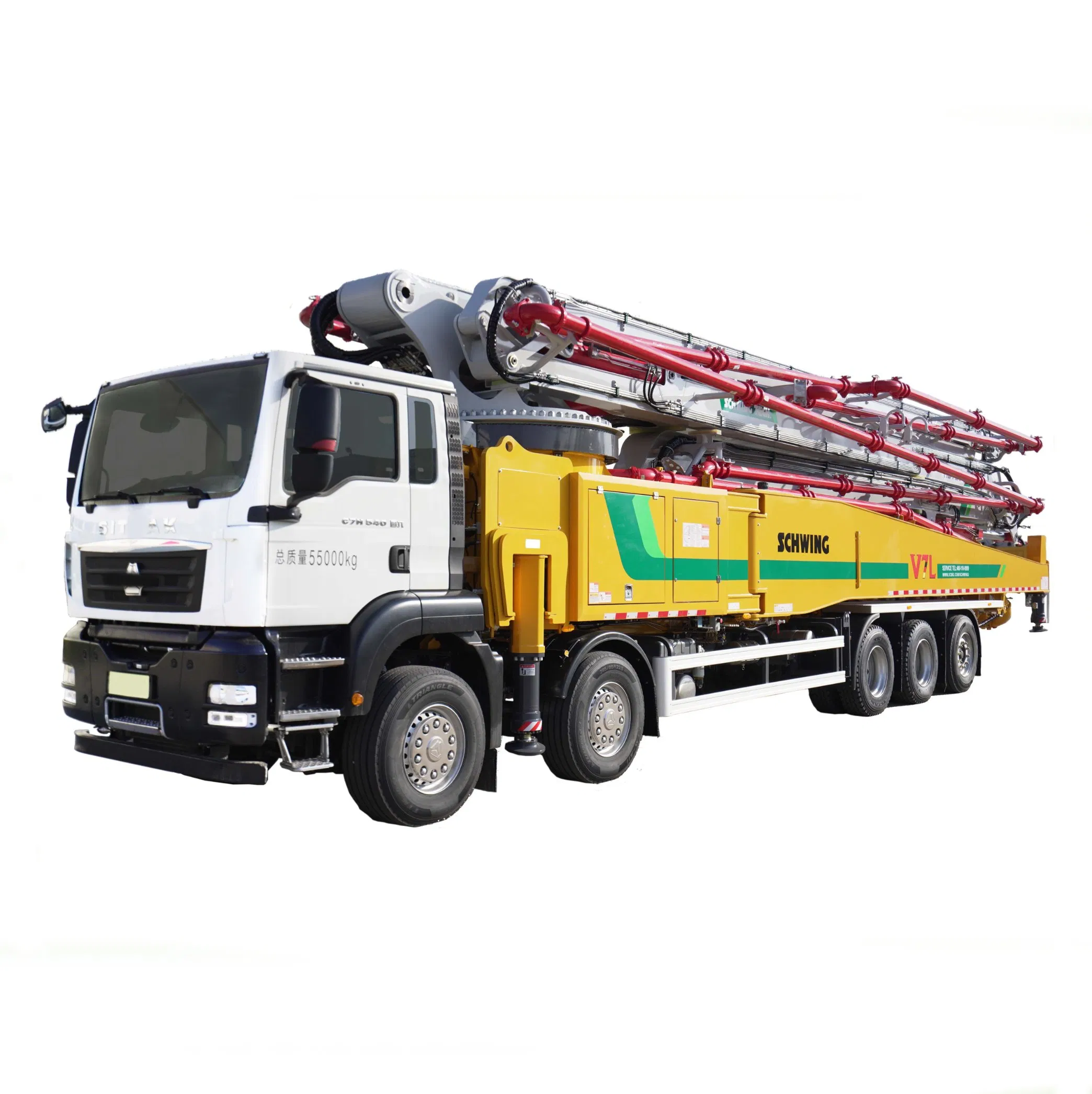

Medium-length Truck-mounted Concrete Pump Truck
Core Highlights

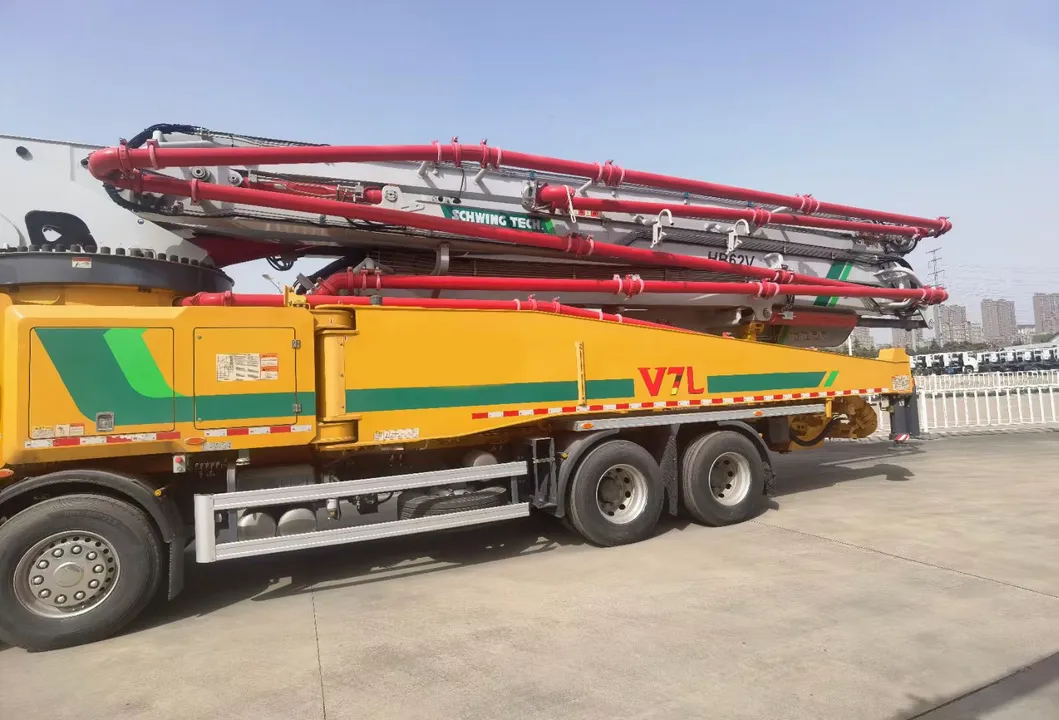

Stability
New generation micro-control technology realizes centimeter-level movement of the arm and ultra-stable, high-precision material distribution.

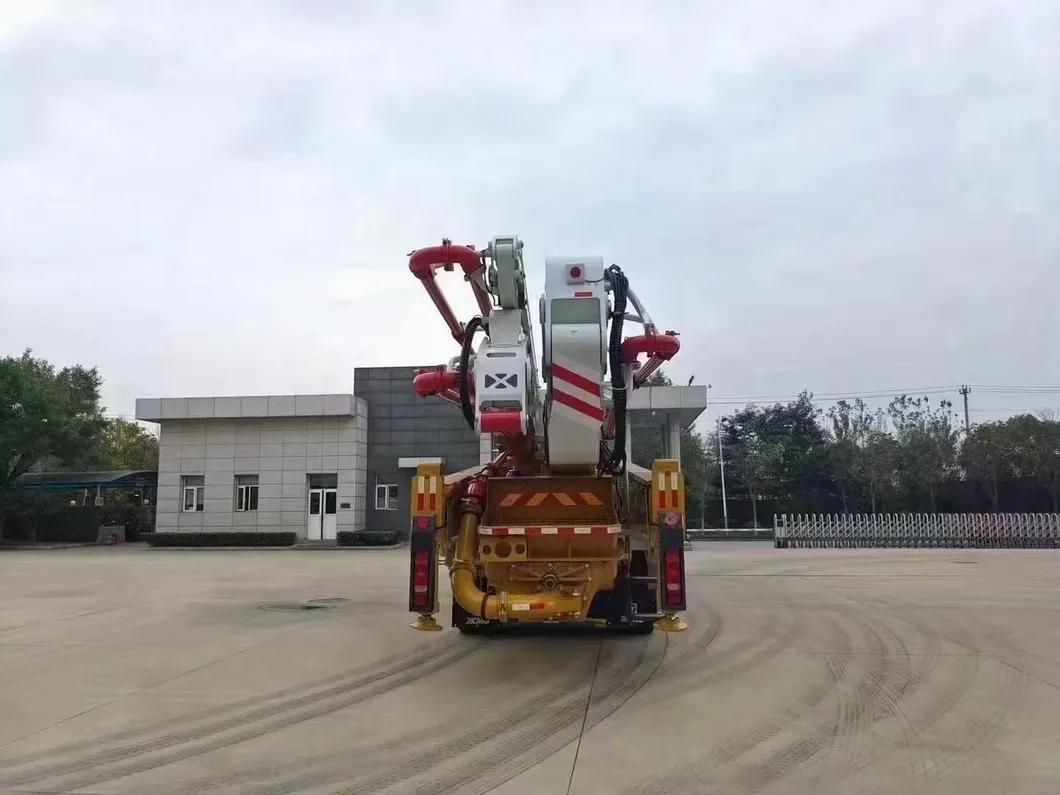

Energy Saving
Integrated main valve + skirt valve technology with adaptive working conditions for lower fuel consumption and minimal pressure loss.
Efficiency

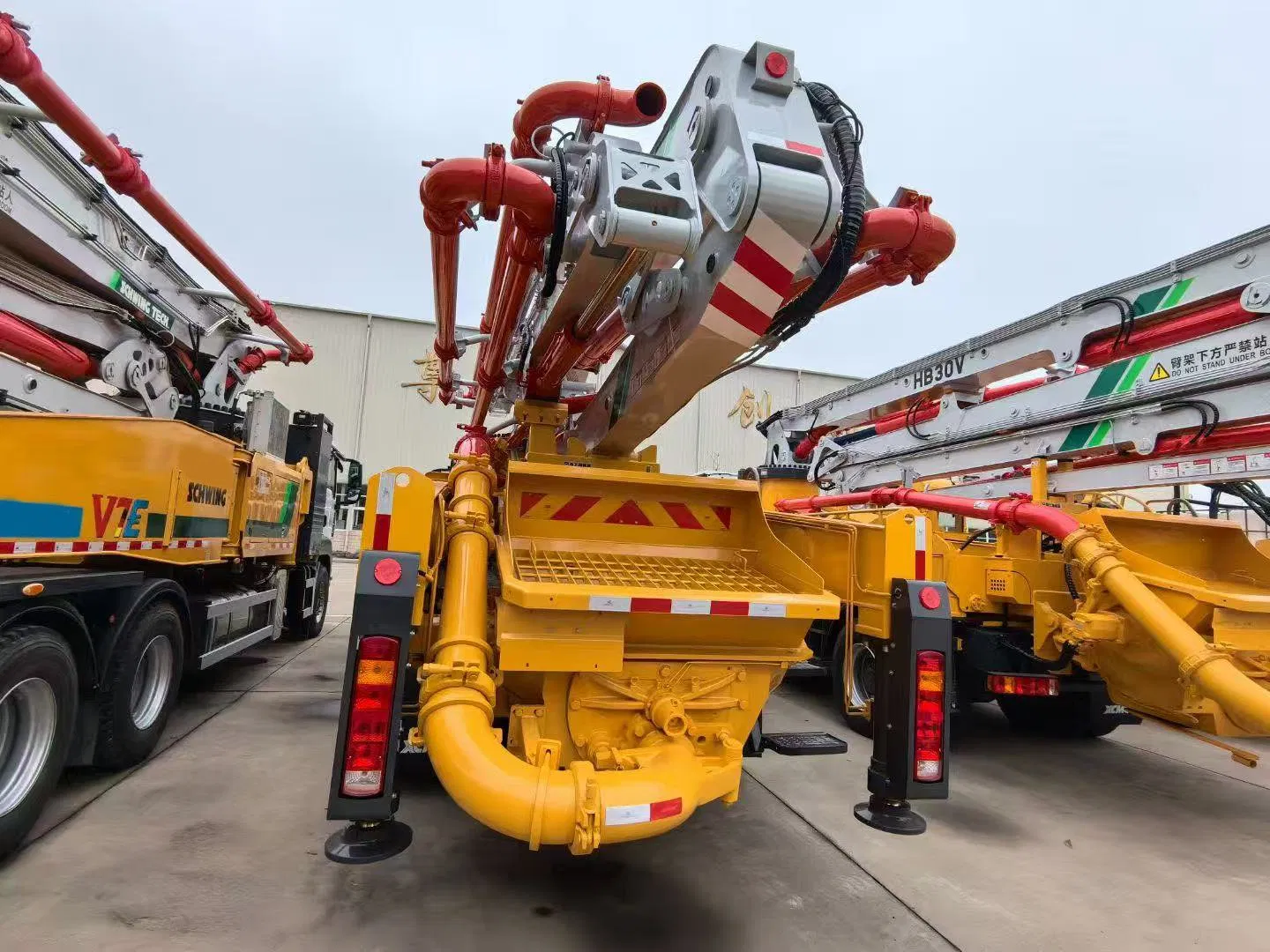

Streamlined hopper inner cavity ensures high suction efficiency and reduces material accumulation.
Reliability
High-precision reversing system with safety controller strategies for long-life wearing parts and system reliability.
Safety
Small footprint with stable support and unilateral operation capability, ensuring strong site adaptability.
Technical Parameters

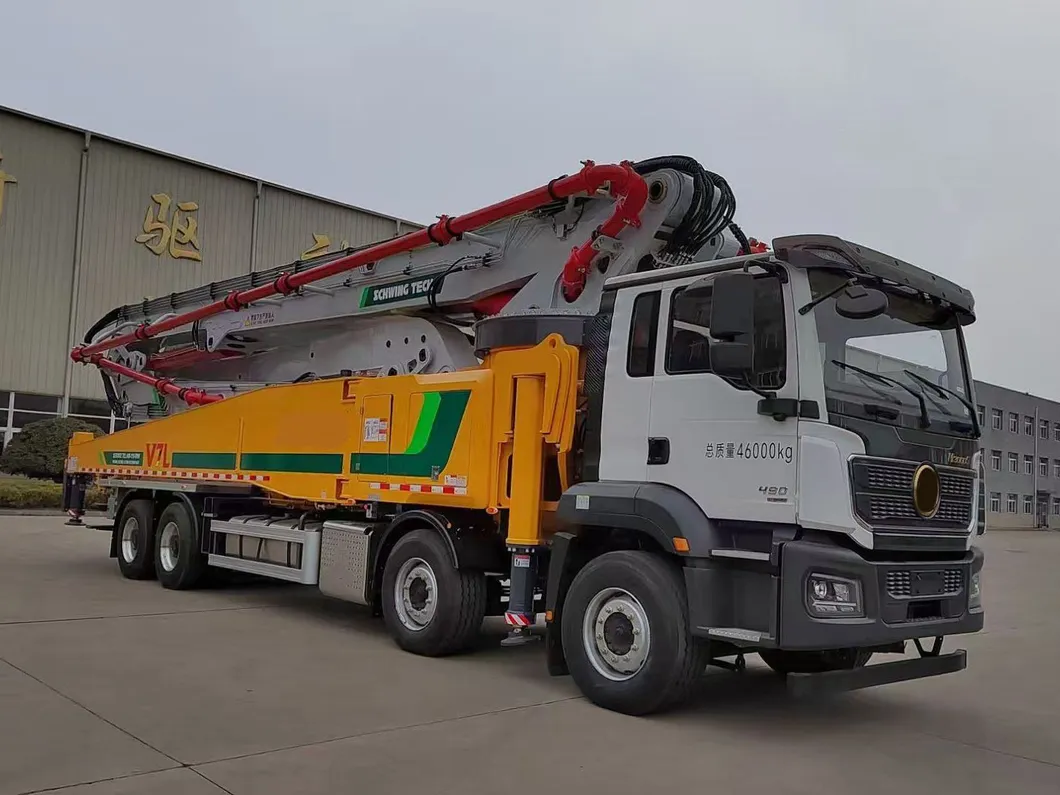

HB62V 62M Truck-mounted Concrete Pump
| Item | Unit | HB62V |
|---|
| Outline dimension | mm | 15300×2530×4000 |
| Overall weight | kg | 44000 |
| Chassis Brand | - | Benz AROCS4143 |
| Max. Power | kW | 315 |
| Reach height | m | 61.1 |
| Theoretical Capacity | m³/h | 180 |

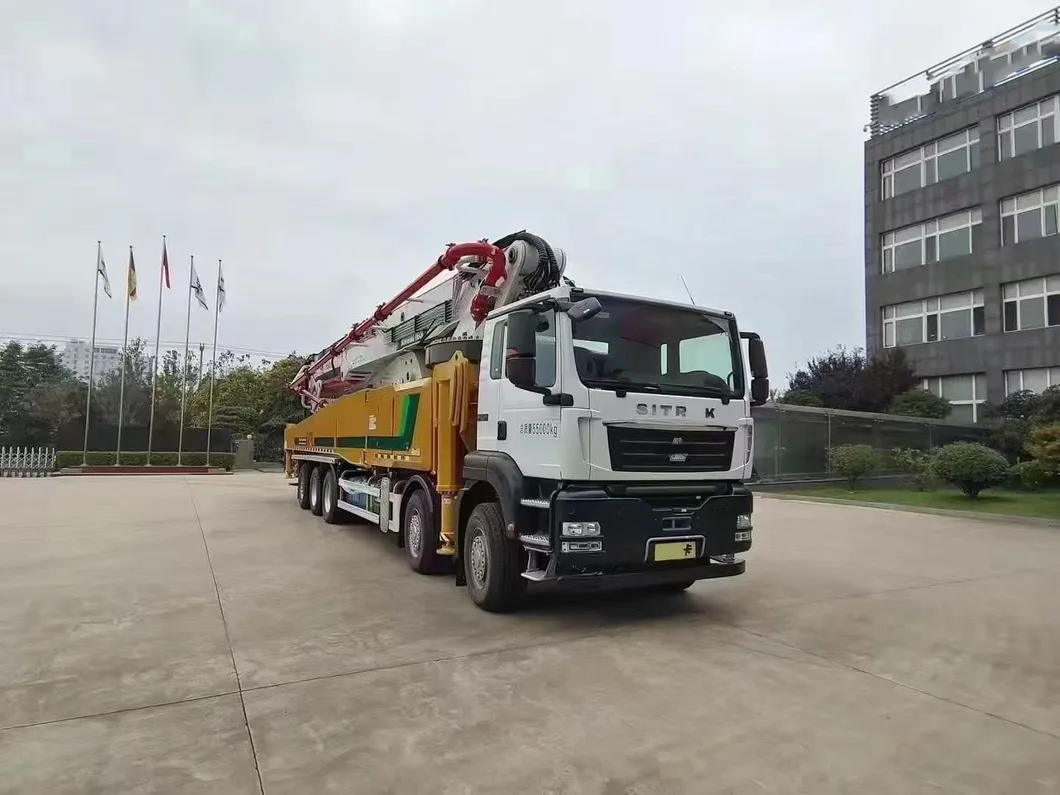

HB69V 69M Truck-mounted Concrete Pump
| Item | Unit | HB69V |
|---|
| Dimensions | mm | 15760×2550×4000 |
| Machine weight | kg | 55000 |
| Chassis Brand | - | Sitrak |
| Maximum Net Power | kw | 397 |
| Reachable height | m | 68.1 |
| Outrigger Type | - | X Legs |

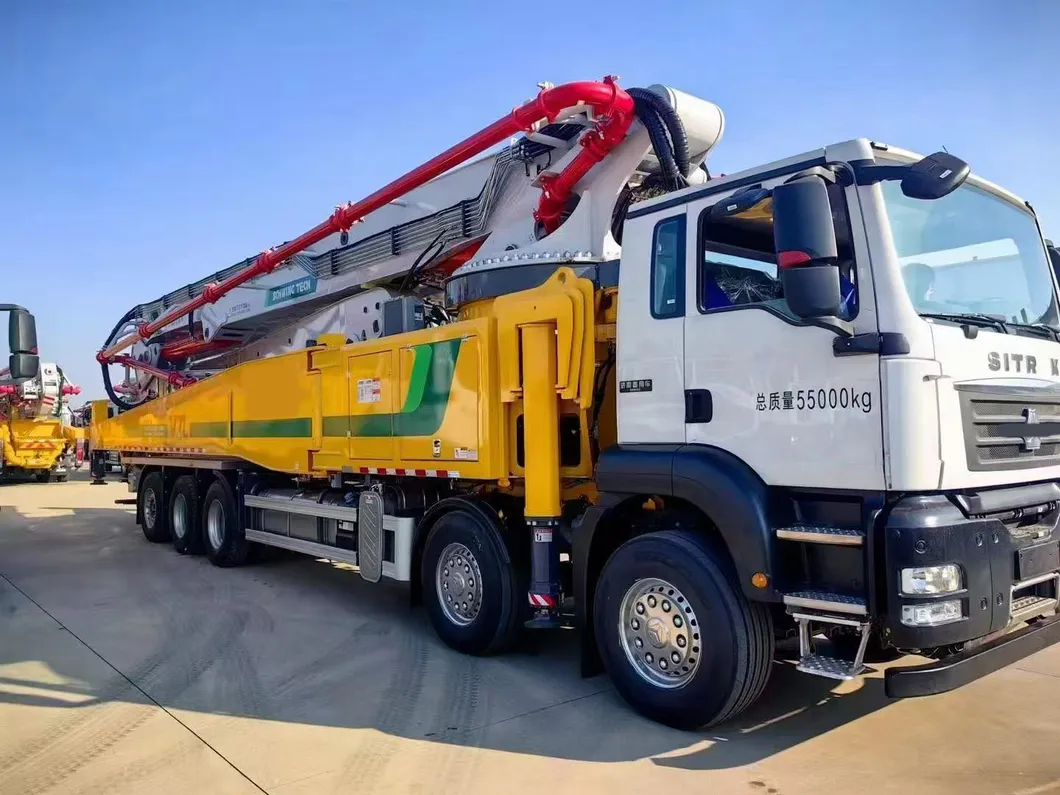

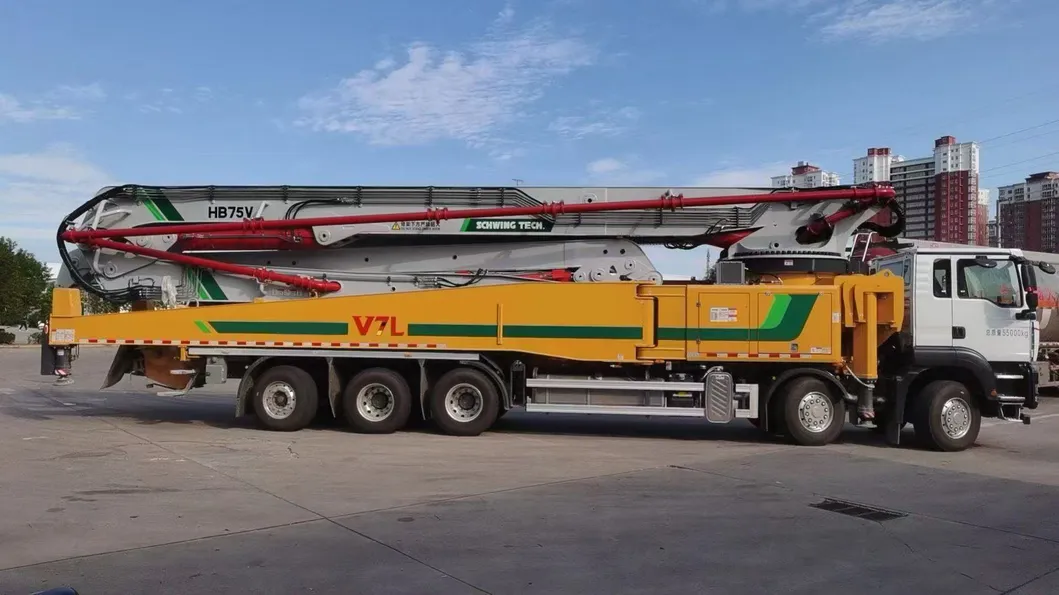

HB72V/HB75V Parameters
| Item | Unit | HB72V | HB75V |
|---|
| Dimensions (mm) | mm | 16290×2550×4000 | 16280×2550×4000 |
| Reach Height | m | 71.1 | 74.1 |
| Theoretical Capacity | m³/h | 180 | 180 |
| Max. Power | kw | 397 | 400 |
Frequently Asked Questions
What is the maximum reach height available for these pump trucks?
Our series offers various models with maximum reach heights ranging from 61.1 meters to 74.1 meters to suit different construction needs.
What type of chassis and engine are used?
We utilize high-quality chassis such as Benz AROCS and Sitrak, equipped with powerful diesel engines that meet Euro 3 to Euro 5 emission standards.

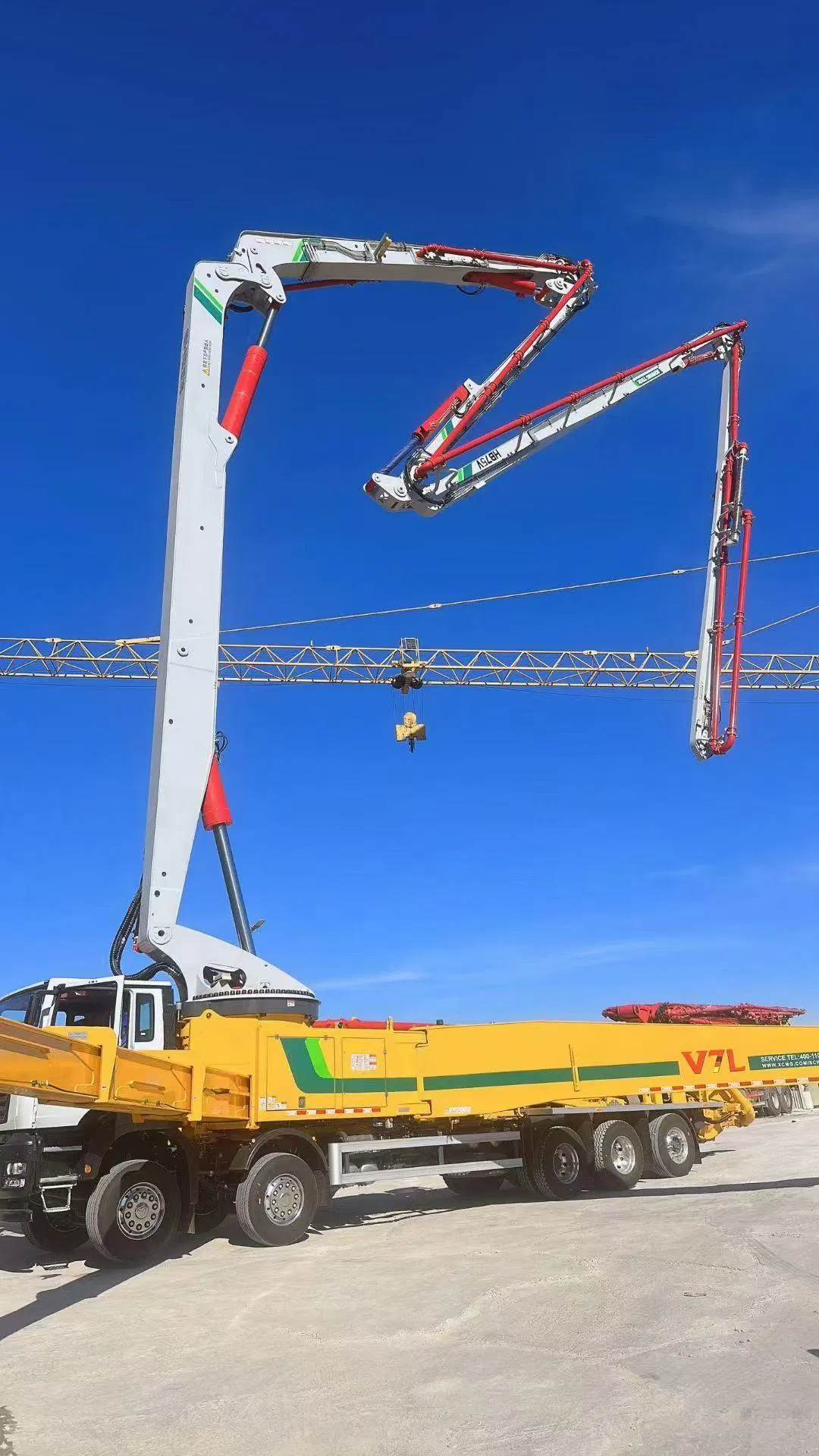

How is the stability of the boom controlled?
The trucks feature advanced micro-control technology that enables centimeter-level precision in boom movement, ensuring stable material distribution even at maximum height.
What is the theoretical productivity of the pumping system?
The entire series is designed for high-capacity projects, offering a theoretical concrete delivery capacity of up to 180 m³/h.
Are the outriggers suitable for tight construction sites?
Yes, the trucks are equipped with X-type legs (outriggers) and support unilateral operation, making them highly adaptable to sites with limited space.
What certifications do these concrete pump trucks hold?
All our concrete pump trucks are fully certified with ISO9001: 2000 and CE standards, ensuring international quality and safety compliance.
