Core Features & Safety:

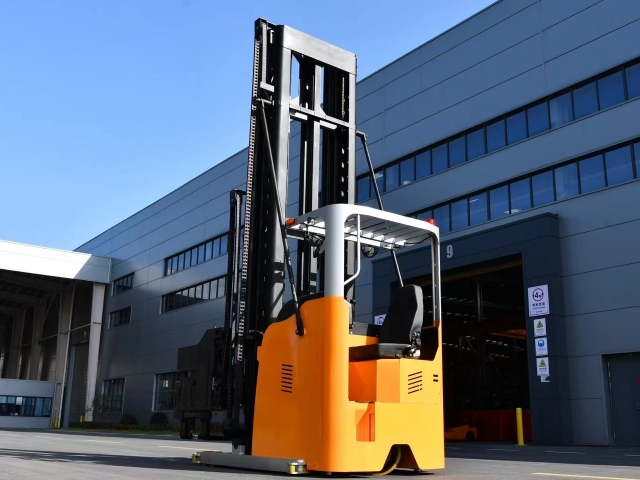

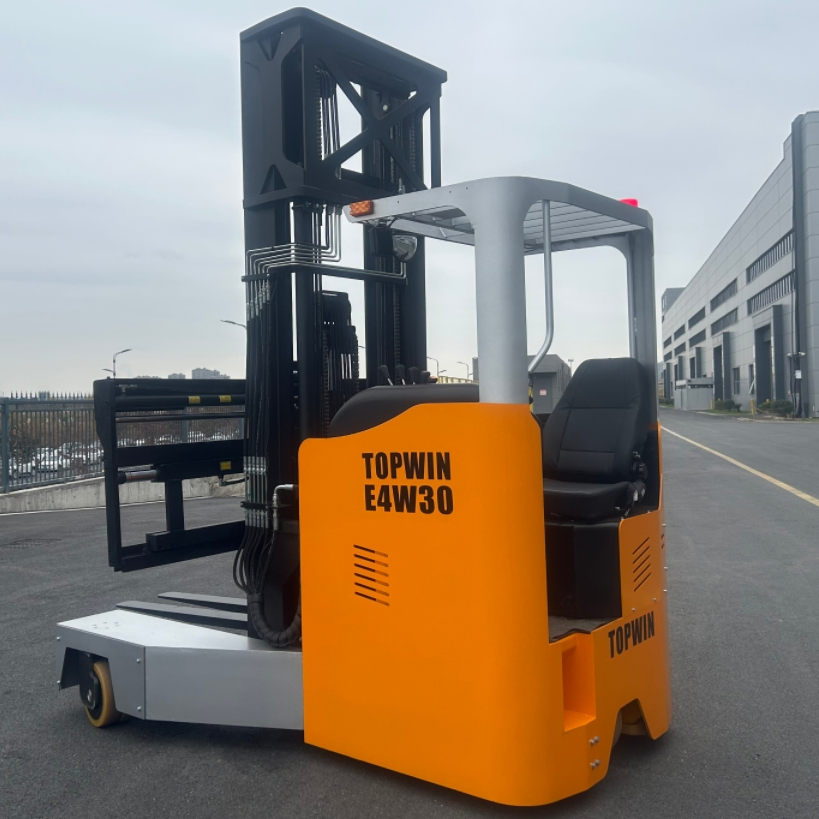

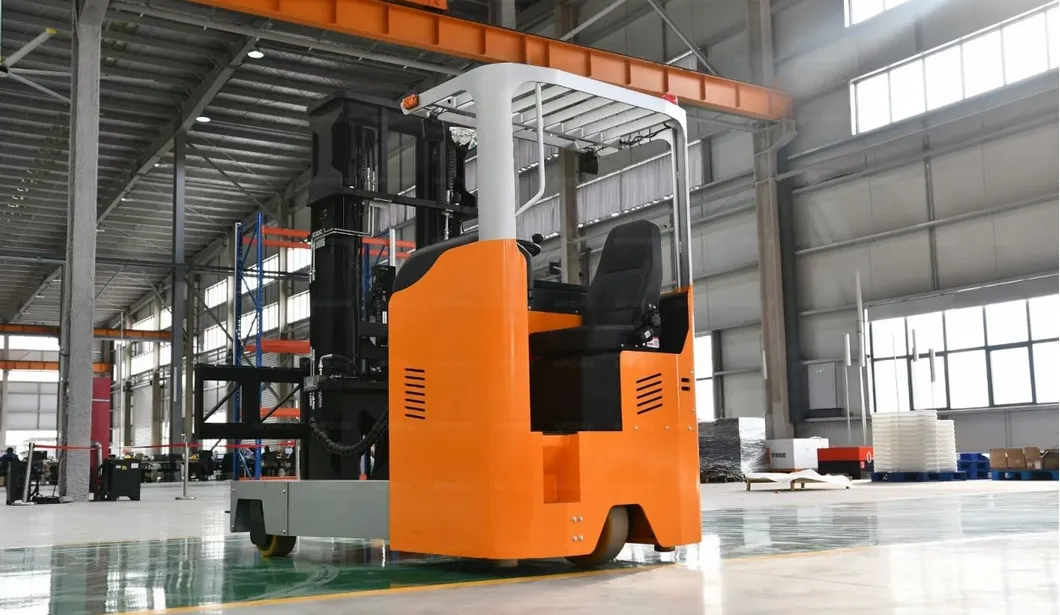

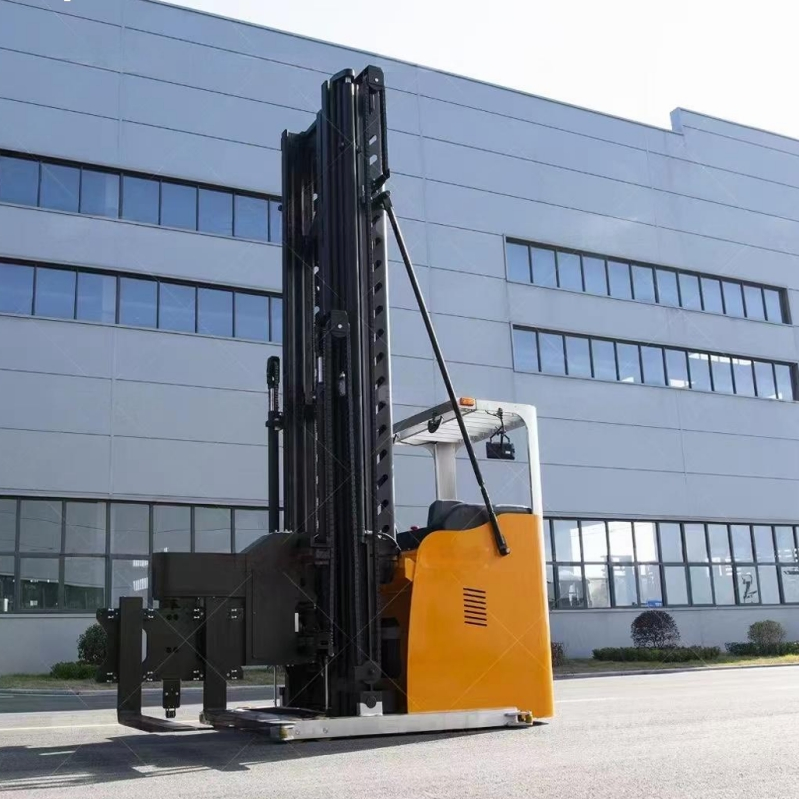

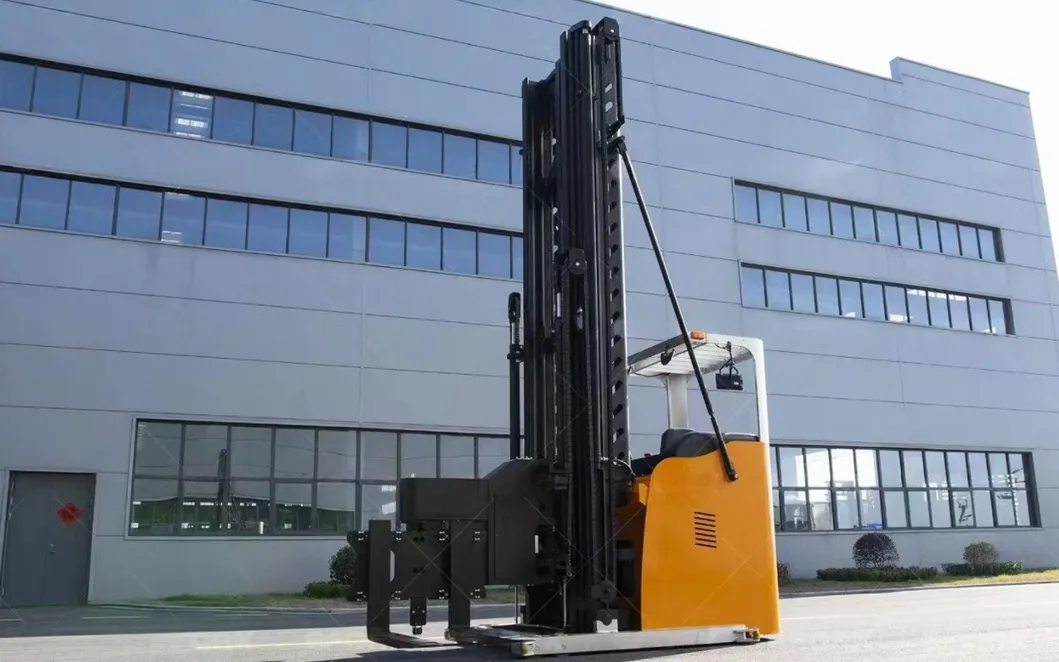

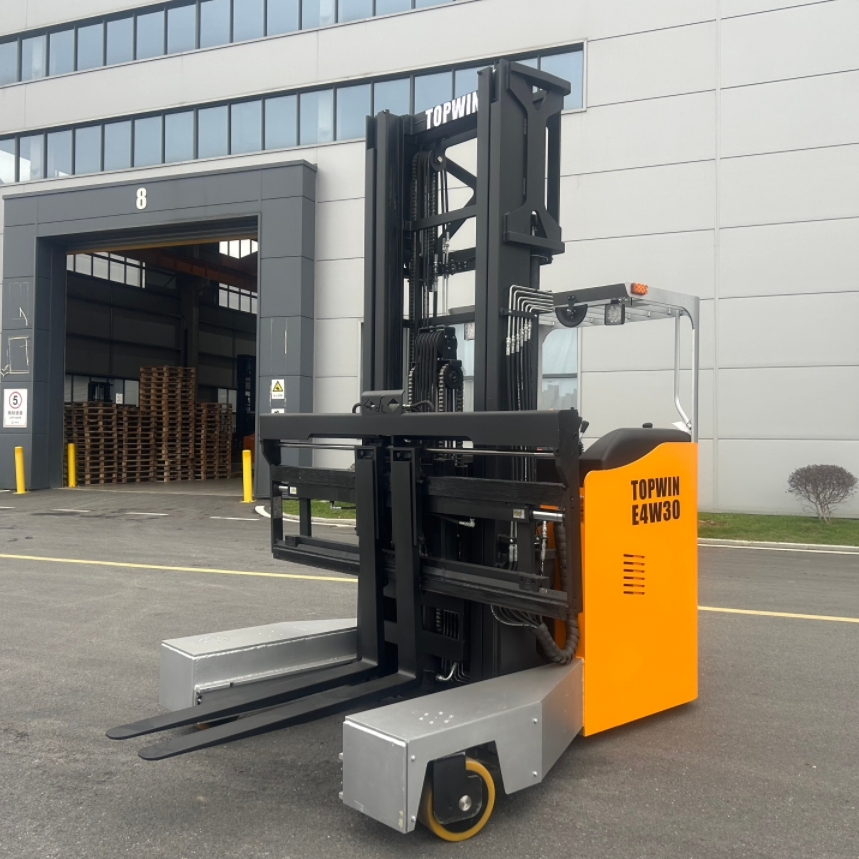

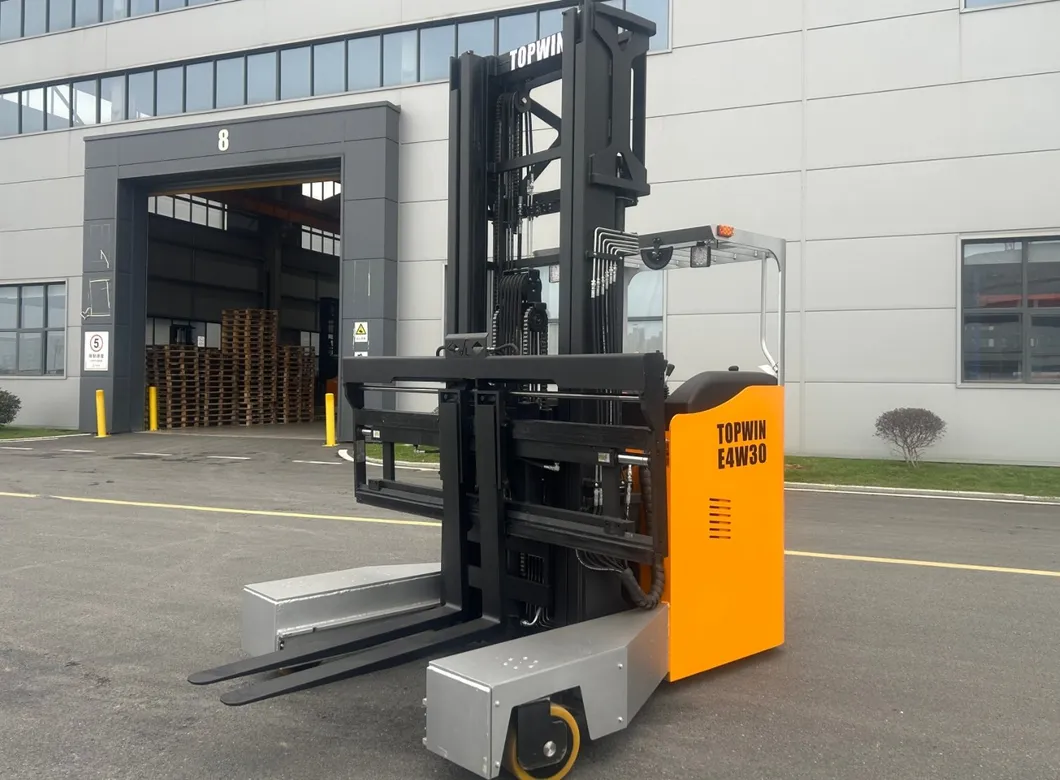

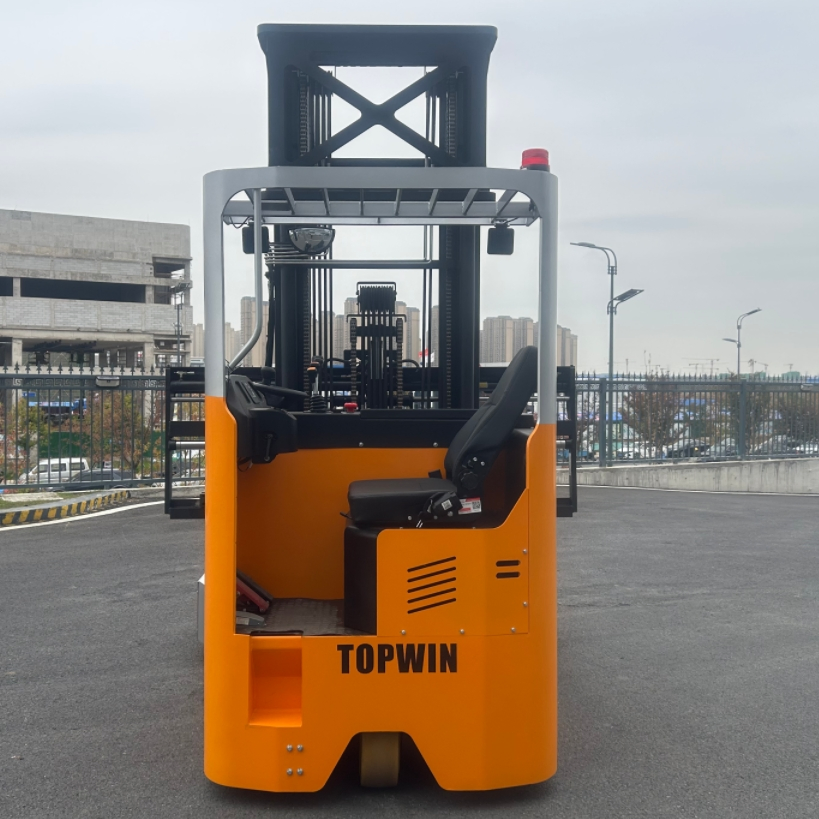

This Forklift Truck is a Three-Way Stacking Truck applied in narrow roadways, with a lifting height of 4.5-12m. It realizes the stacking and picking up of goods on both sides through the rotation and side-shift movement of the fork without needing to turn the vehicle.

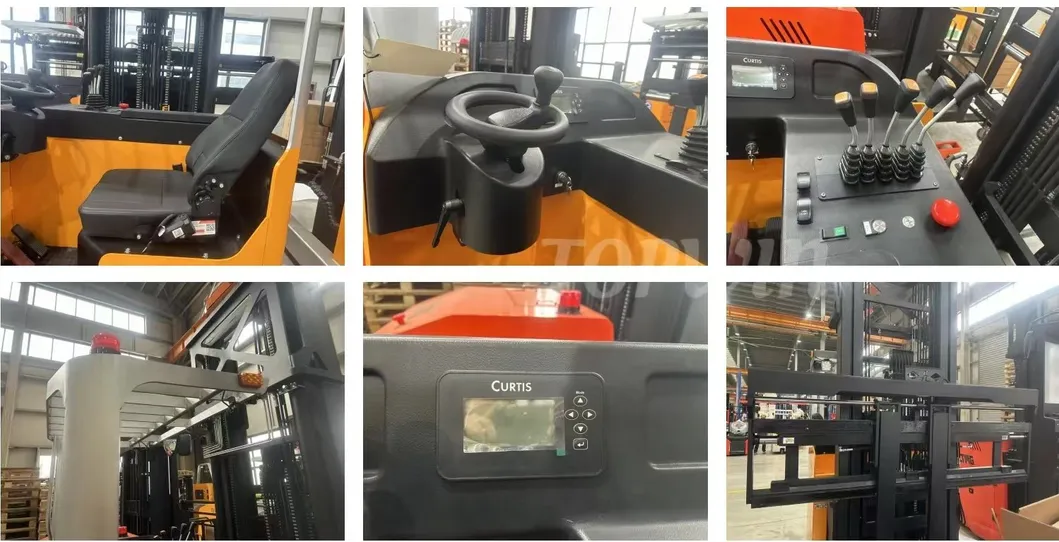

1. Superb Working Environment: Precise fingertip control of all mast movements and ergonomic adjustable seating.

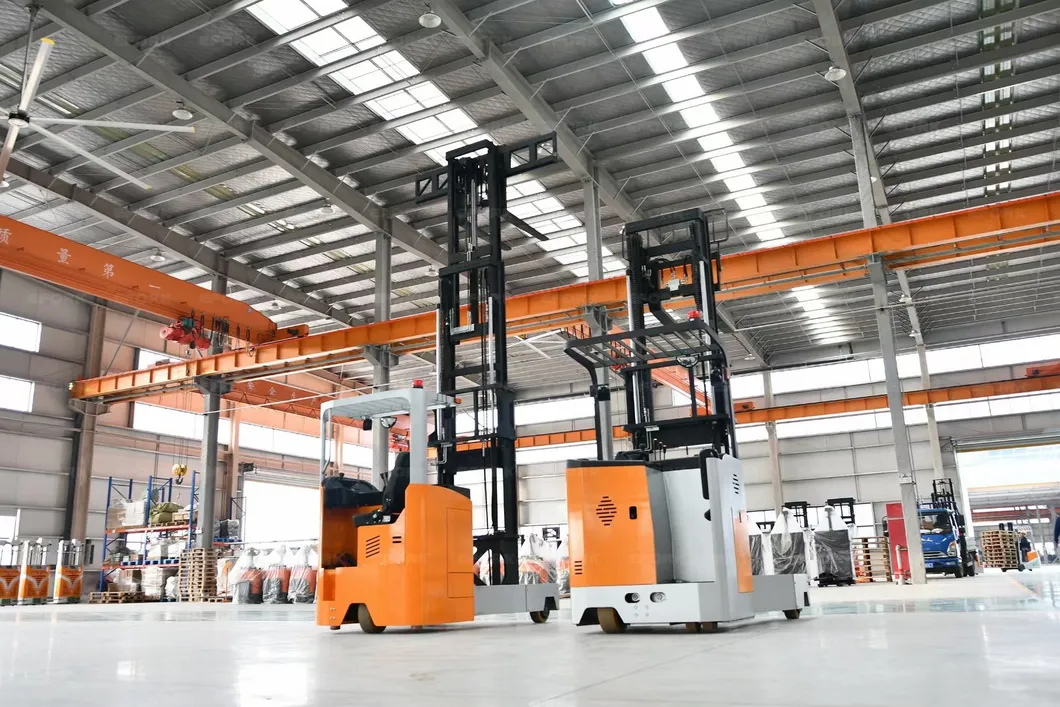

2. Stability: Chassis designed for maximum strength with a low center of gravity.
3. Precision: Responsive progressive electric steering with digital instrument display for real-time status.
4. Servicing: Maintenance-free AC motors and easy service access with up to 1000 operating hours between services.

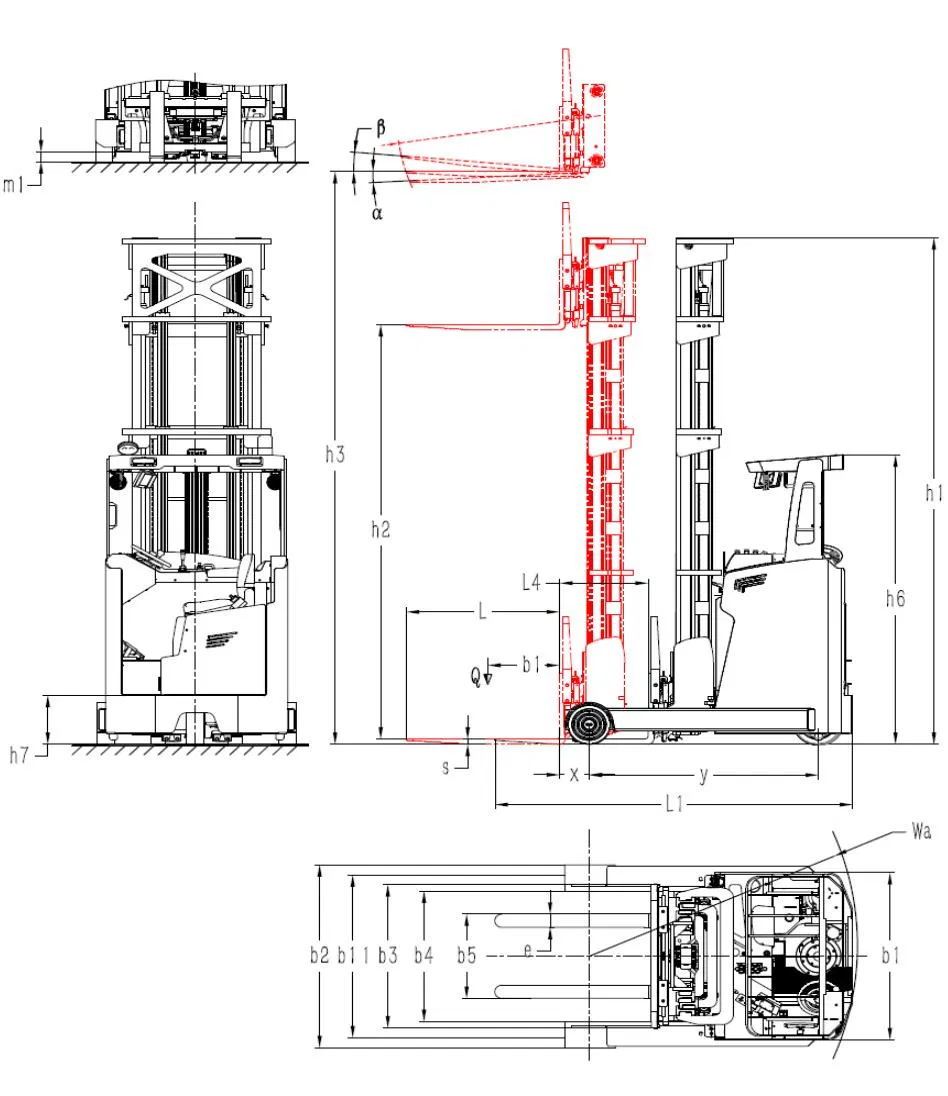

| Parameter Item | Unit/Code | Specification |
|---|---|---|
| Model | - | E4W30-60 |
| Load Capacity | Q(kg) | 3000 |
| Load Center | C(mm) | 500 |
| Wheelbase Distance | Y(mm) | 1824 |
| Service Weight | kg | 5100 |
| Wheel Type | - | PU |
| Lift Height | h3(mm) | 6000 |
| Overall Length | l1(mm) | 2650 |
| Overall Width | b1(mm) | 1900 |
| Turning Radius | Wa(mm) | 2055 |
| Travel Speed (Laden) | km/h | 7 |
| Drive Motor | kw | 8AC |
| Battery Type | - | Lithium |
| Battery Capacity | V/Ah | 48V350Ah |
Outdoor Capability: Unlike typical reach trucks, this model features durable wheels and high ground clearance suitable for both indoor and outdoor conditions, providing versatile operation and optimal visibility.

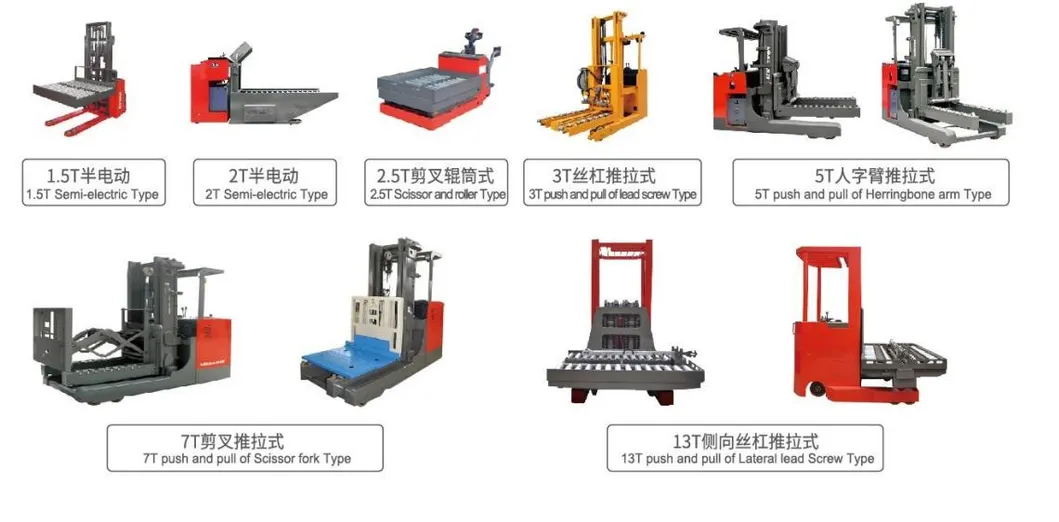

Our main storage equipment includes electric trucks, stacking cars, reach forklift trucks, towing vehicles, order pickers, AGV pilotless trucks, counter balanced weight forklifts, 3-Way Electric Pallet Stackers, and more, widely used in modern logistics.
