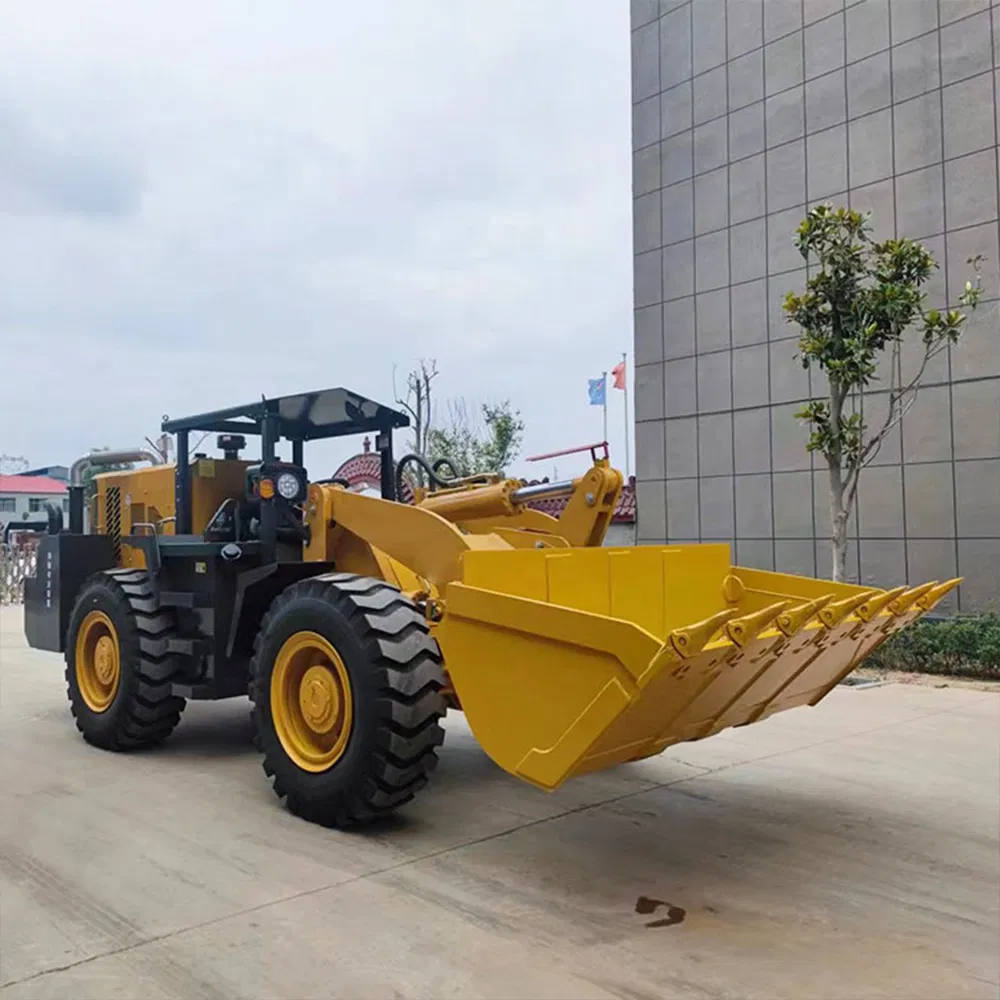

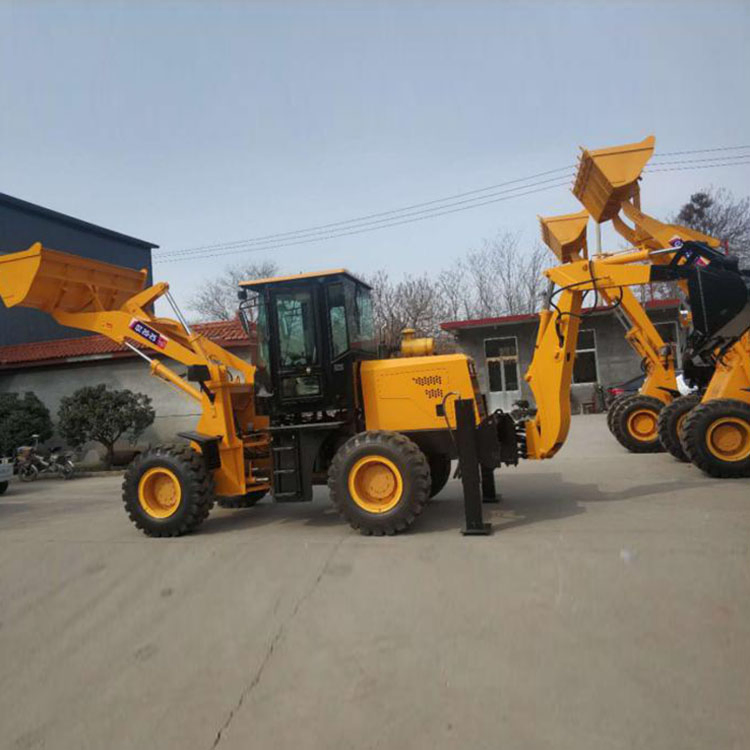

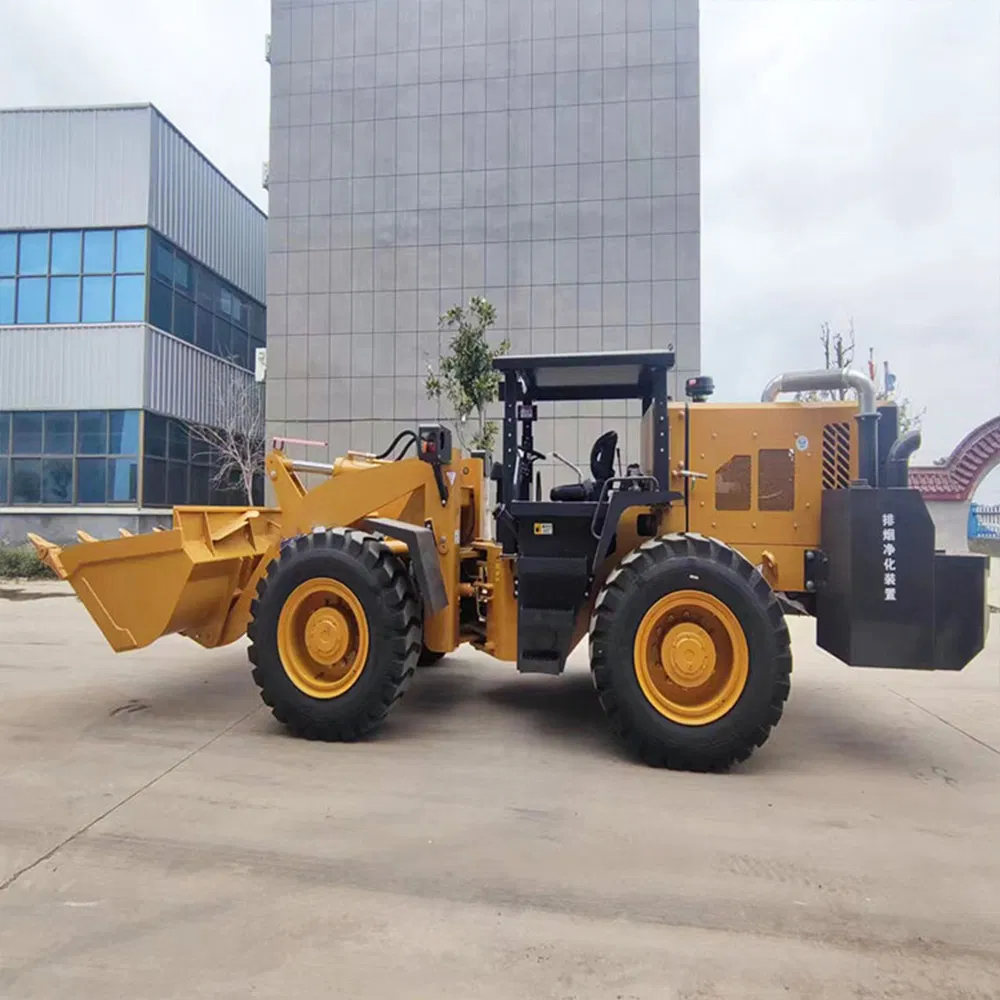

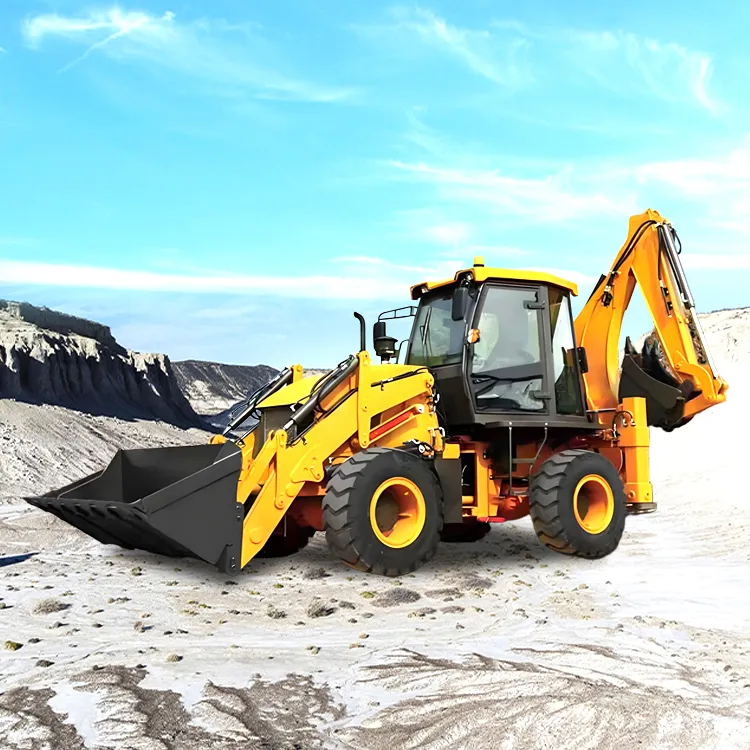

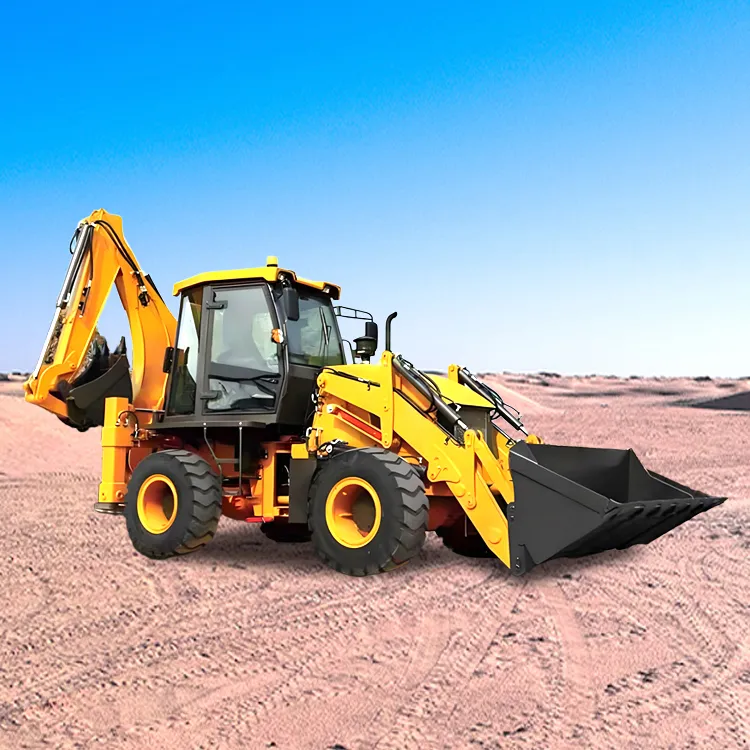

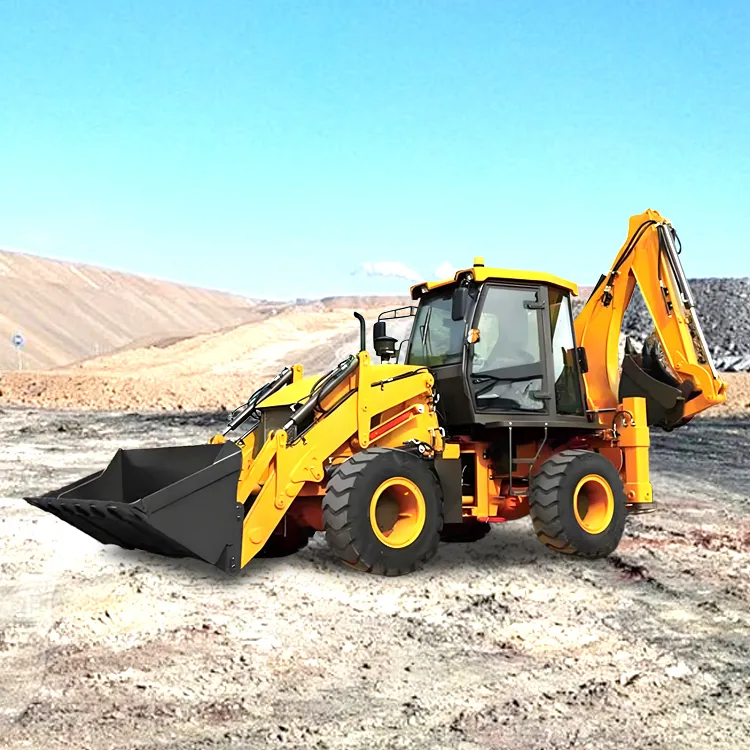

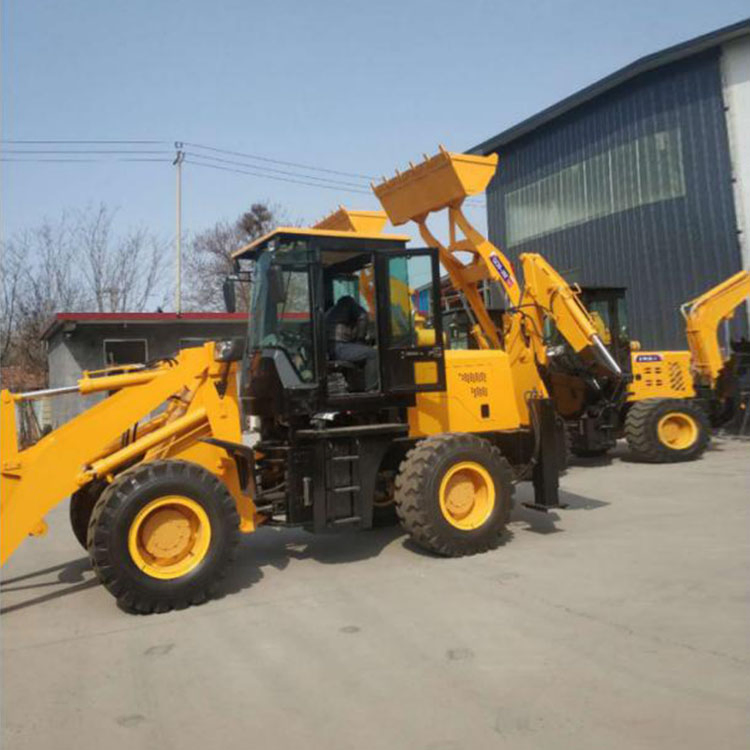

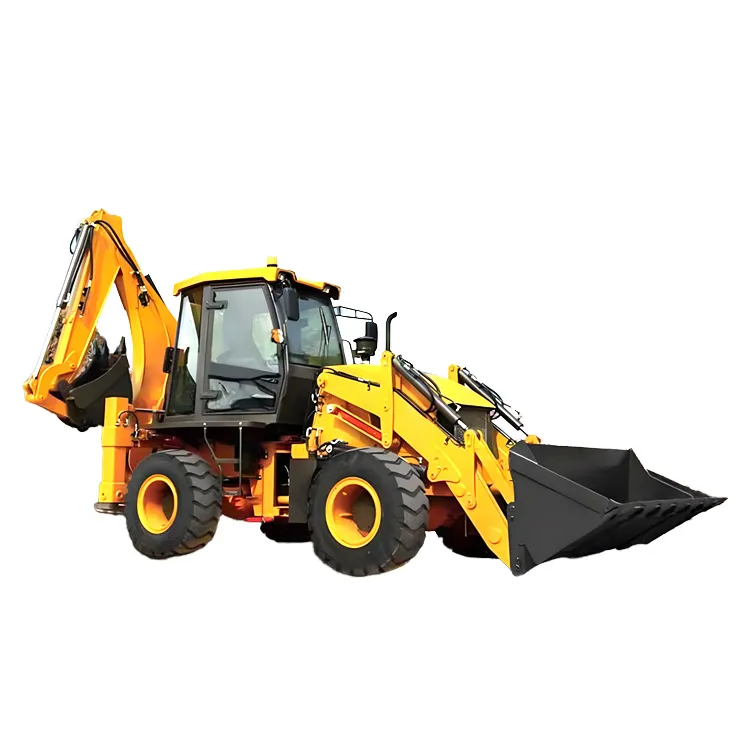

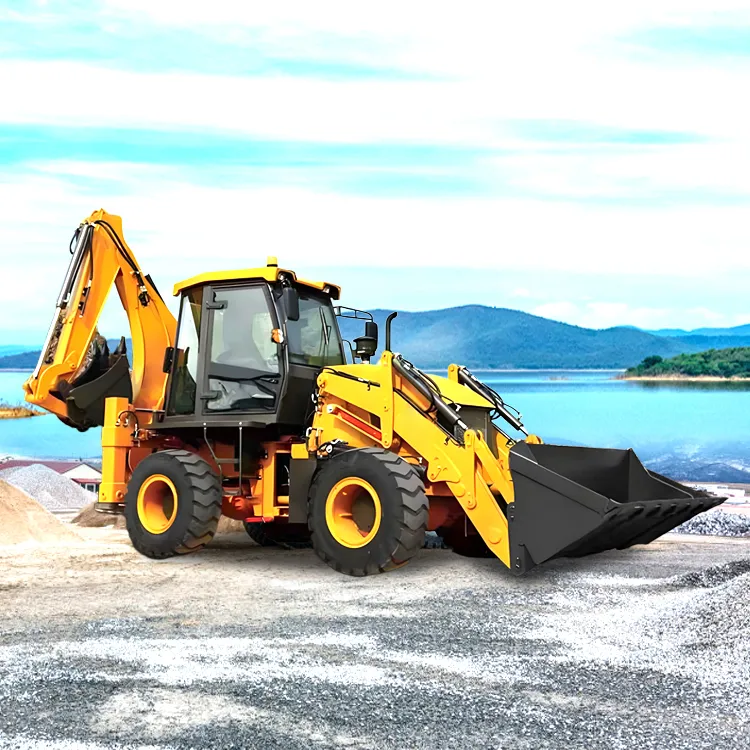

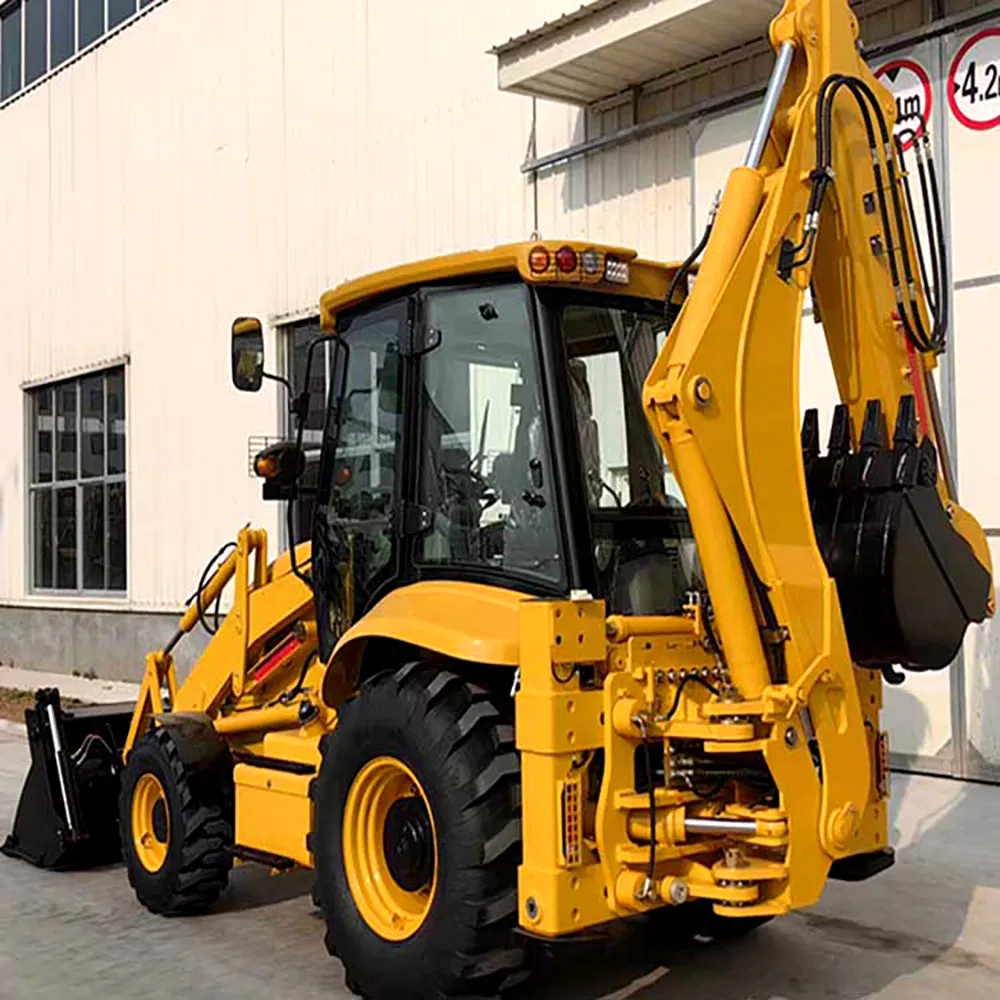

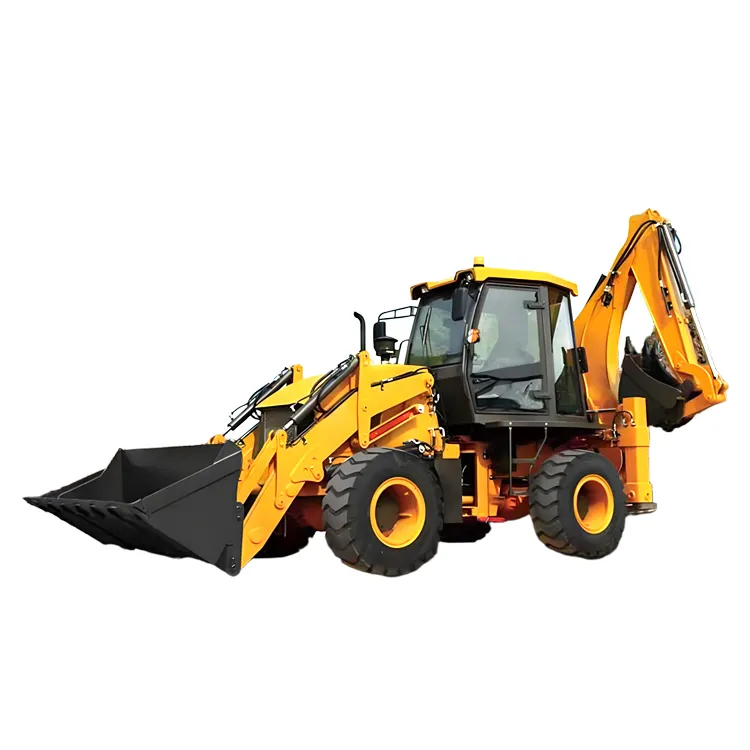

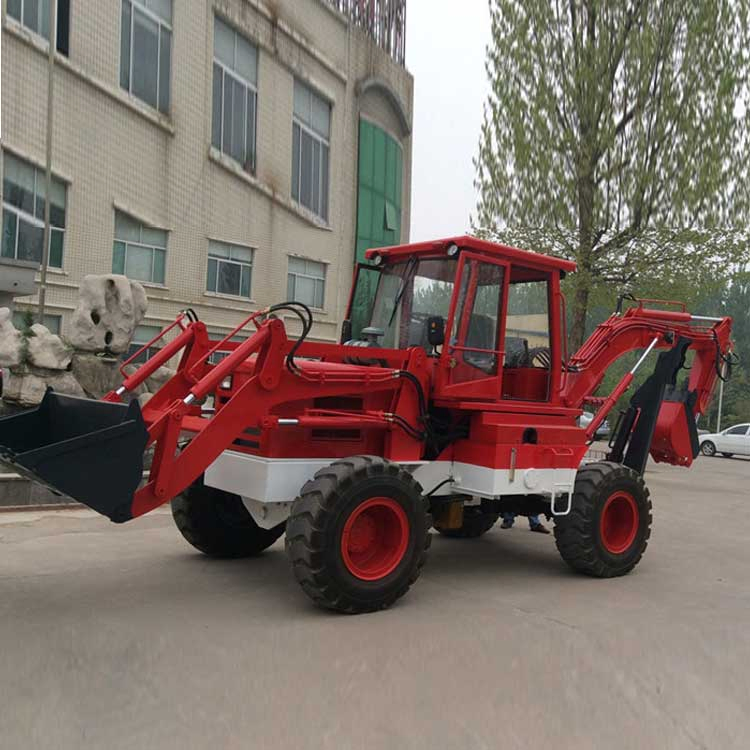

Versatile excavator-loader, a powerhouse of efficiency in the construction industry. This innovative machine combines the capabilities of both an excavator and a loader, allowing it to perform multiple tasks simultaneously with remarkable precision and agility. Equipped with advanced hydraulics and a rugged chassis, the excavator-loader is designed to tackle a wide range of construction projects with ease.
Whether it's digging trenches, loading materials into trucks, or backfilling excavations, this adaptable machine excels in various applications, maximizing productivity on the job site. Its dual functionality enables seamless transition between excavation and loading tasks, eliminating the need for multiple machines and streamlining operations.
| Operating weight | 8200kg |
| Rated load | 2500kg |
| Bucket capacity | 1m³ |
| Rated power | 75KW |
| Overall dimension (LxWxH) | 6050*2465*3100mm |
| Wheel base | 2200mm |
| Dumping height | 2650mm |
| Tire Type | 19-24 |
| Operating weight | 10050kg |
| Rated load | 2500kg |
| Bucket capacity | 1.2m³ |
| Rated power | 75KW |
| Overall dimension (LxWxH) | 6150*2250*3763mm |
| Max. Gradeability | 15° |
| Wheel base | 2450mm |
| Max Dumping height | 2350mm |
| Tire Type | 15/70-18 |
| Engine System (Weichai WP4G95E221) | |
|---|---|
| Type | Inline, direct injection, water-cooled, turbocharged |
| Rated Power / Speed | 70KW / 2200r/min |
| Displacement | 4.8L |
| Drivetrain & Axle | |
| Transmission Model | TLB1-4WD (Fixed shaft power shifting) |
| Axle Manufacturer | Carraro, Italy |
| Brake System | Wet, Built-in, Self-adjusting |
| Hydraulic System | |
| System Pressure | 20Mpa (Loading/Excavation) |
| Steering Type | Hydraulic Steering (BZZ5-250) |
