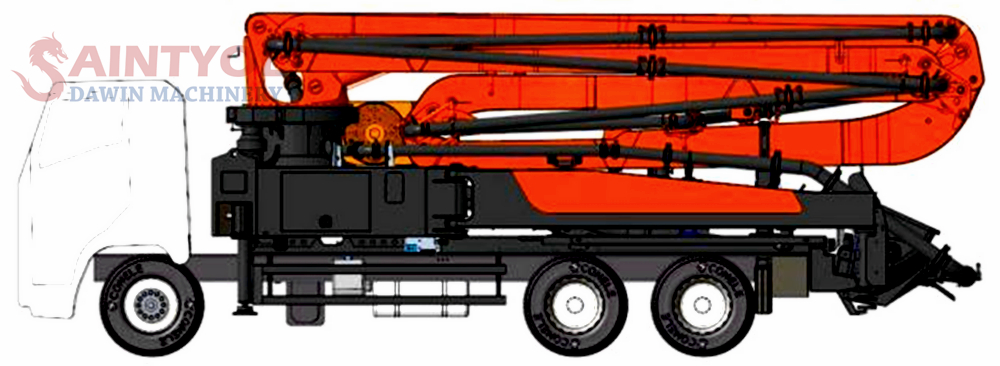

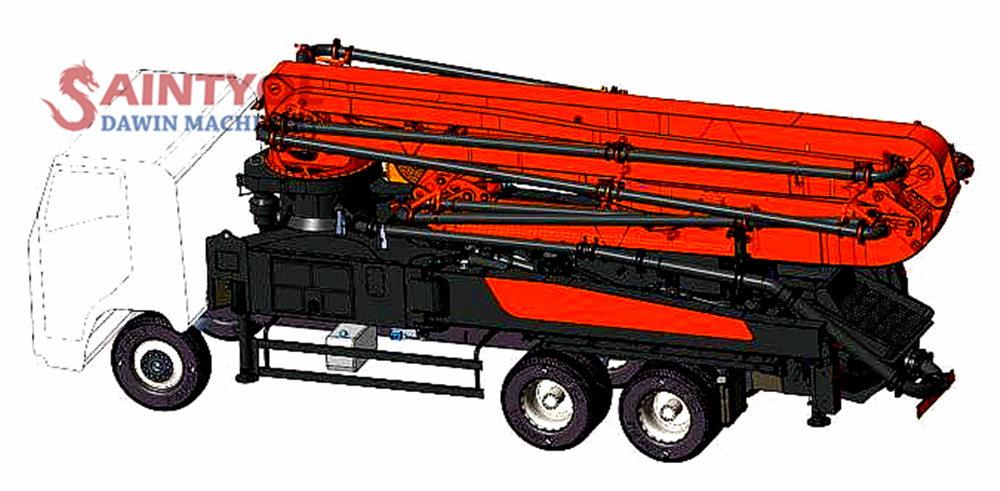

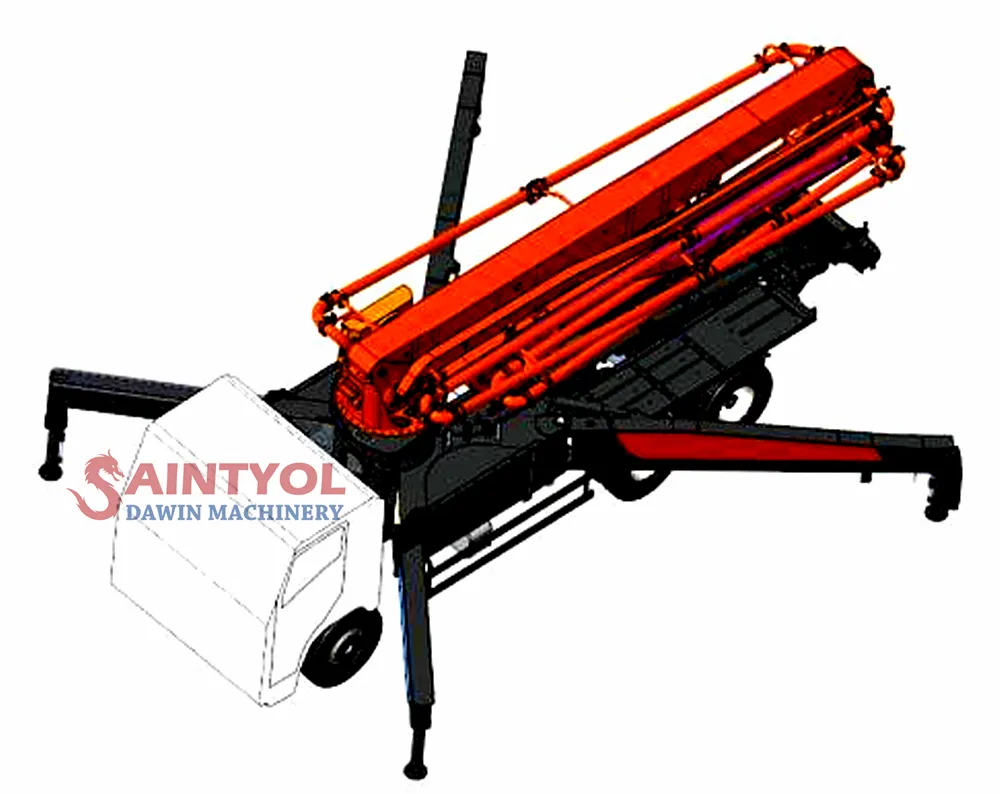

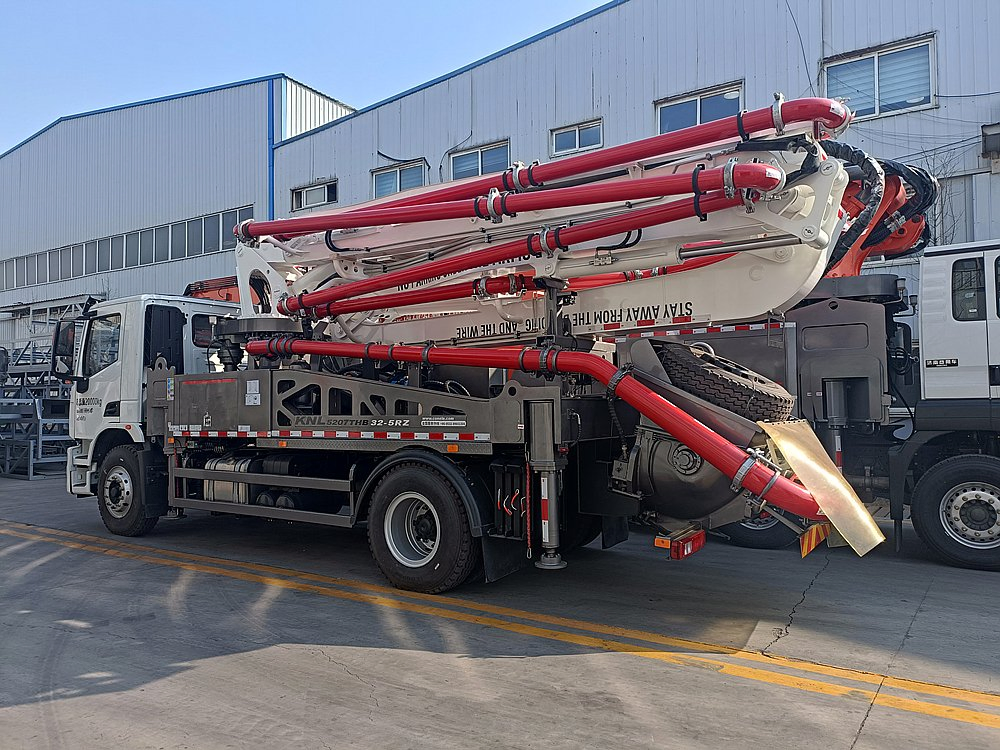

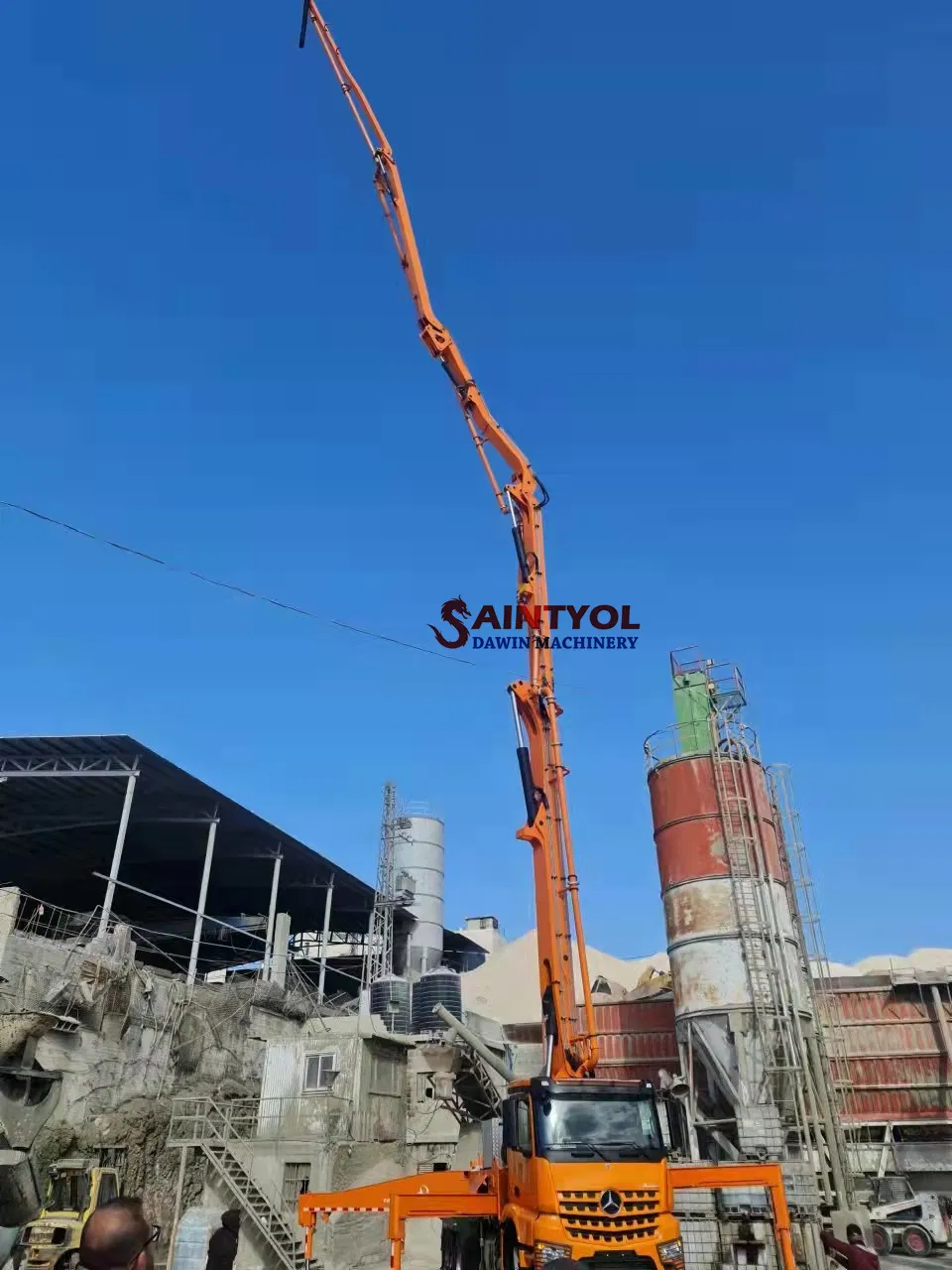

The specialized 39 meter 5 sections RZ folding shape remote control truck mounted concrete boom pump is designed for high reliability, economy, safety, and durability. It integrates high-performance systems including chassis, power, control, hydraulic, and pumping modules. Featuring flexible foldable arms and space-saving support legs, this equipment is ideal for tunnels, airports, seaports, high-speed rail sites, and bridge construction projects.

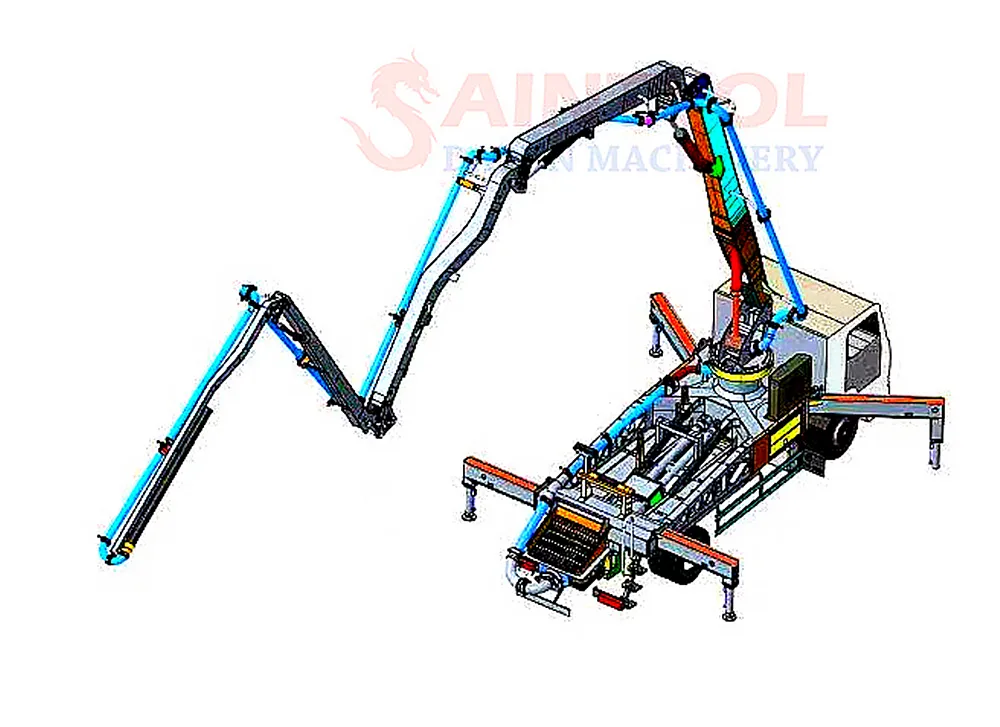

Our concrete pump truck is a refined equipment solution that integrates concrete pumping and placing efficiently. The boom design ensures stability and flexibility in complex construction environments. We offer a full range of boom lengths from 30m to 63m to meet diverse project requirements.
| System | Item | Unit | Parameter |
|---|---|---|---|
| Pumping System | Max. Theoretical Output | m³/h | 110 |
| Pumping System | Max. Theoretical Pressure | MPa | 10 |
| Pumping System | Hopper Capacity | L | 600 |
| Pumping System | Concrete Cylinder Dia.×Stroke | mm | φ230 × 1650 |
| Placing Boom | Structure Type | - | 39-5RZ |

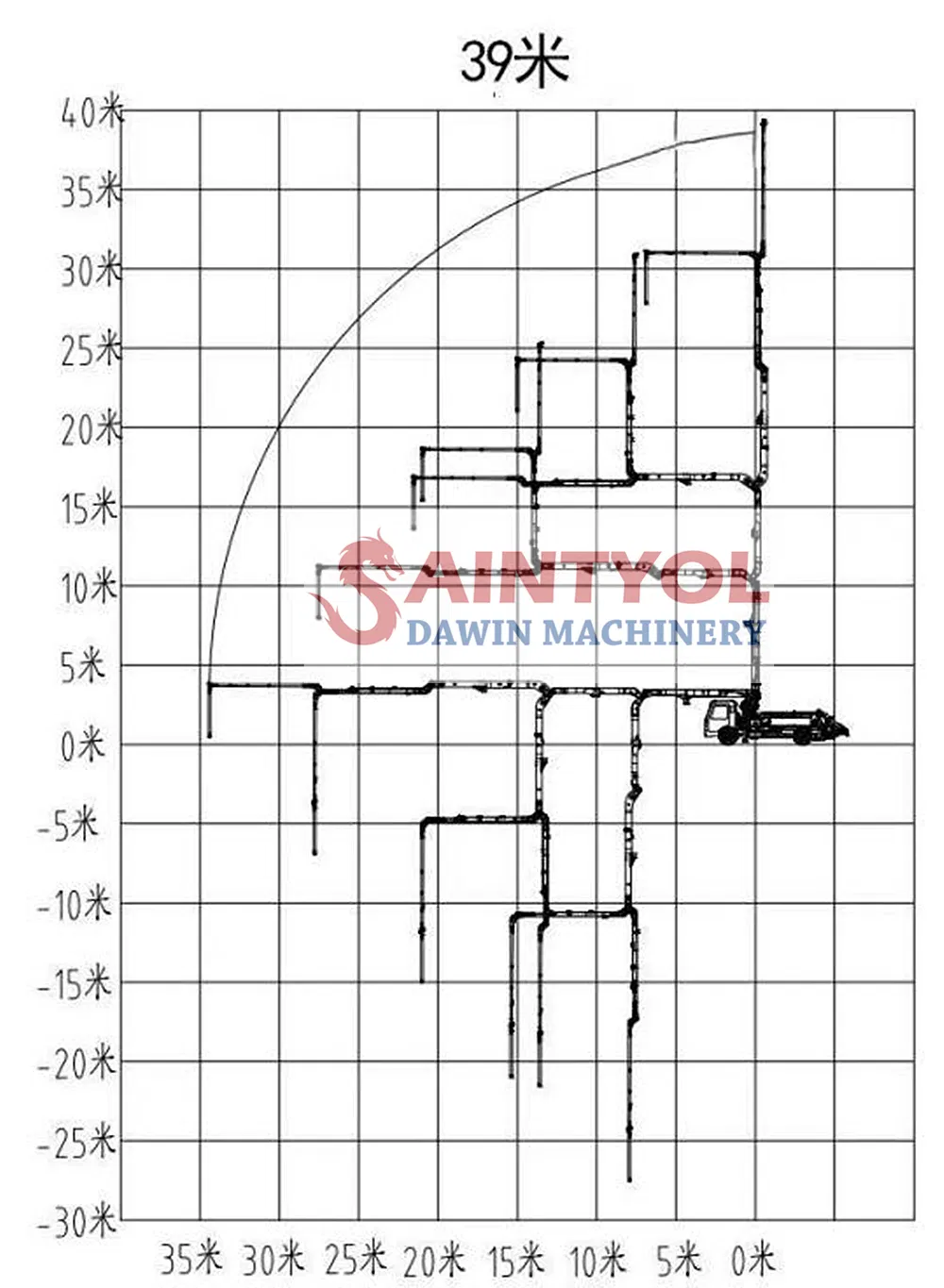

| Placing Boom | Max. Placing Height | m | 38.1 |
| Placing Boom | Max. Placing Radius | m | 35.1 |
| Placing Boom | Slewing Angle | - | ± 360° |

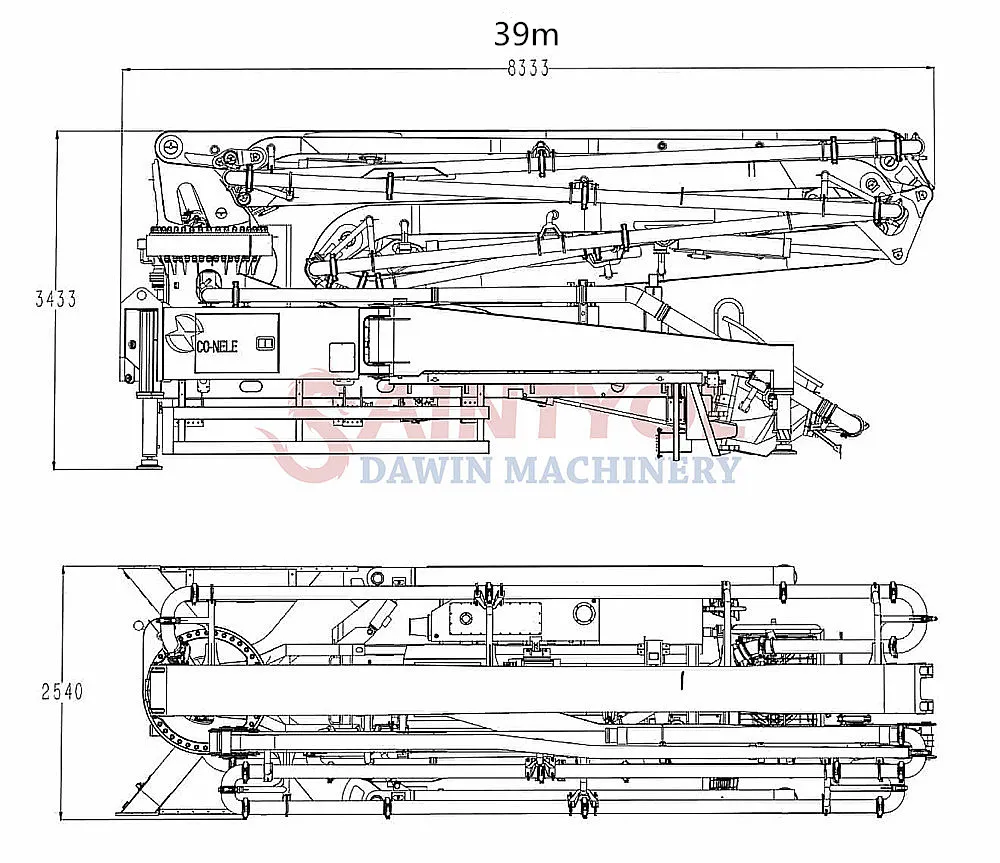

| Dimensions | Overall Dimension (L×W×H) | mm | 10580 x 2550 x 3750 |
| Asia | Philippines, Indonesia, Vietnam, Thailand, Sri Lanka, Pakistan, etc. |
| Middle East | UAE, Saudi Arabia, Oman, etc. |
| Africa | South Africa, Kenya, Uganda, Congo, Tanzania, Nigeria, Egypt, etc. |
| South America | Brazil, Argentina, Chile, Peru, Colombia, Mexico, etc. |
| Europe | Russia, Ukraine, etc. |
