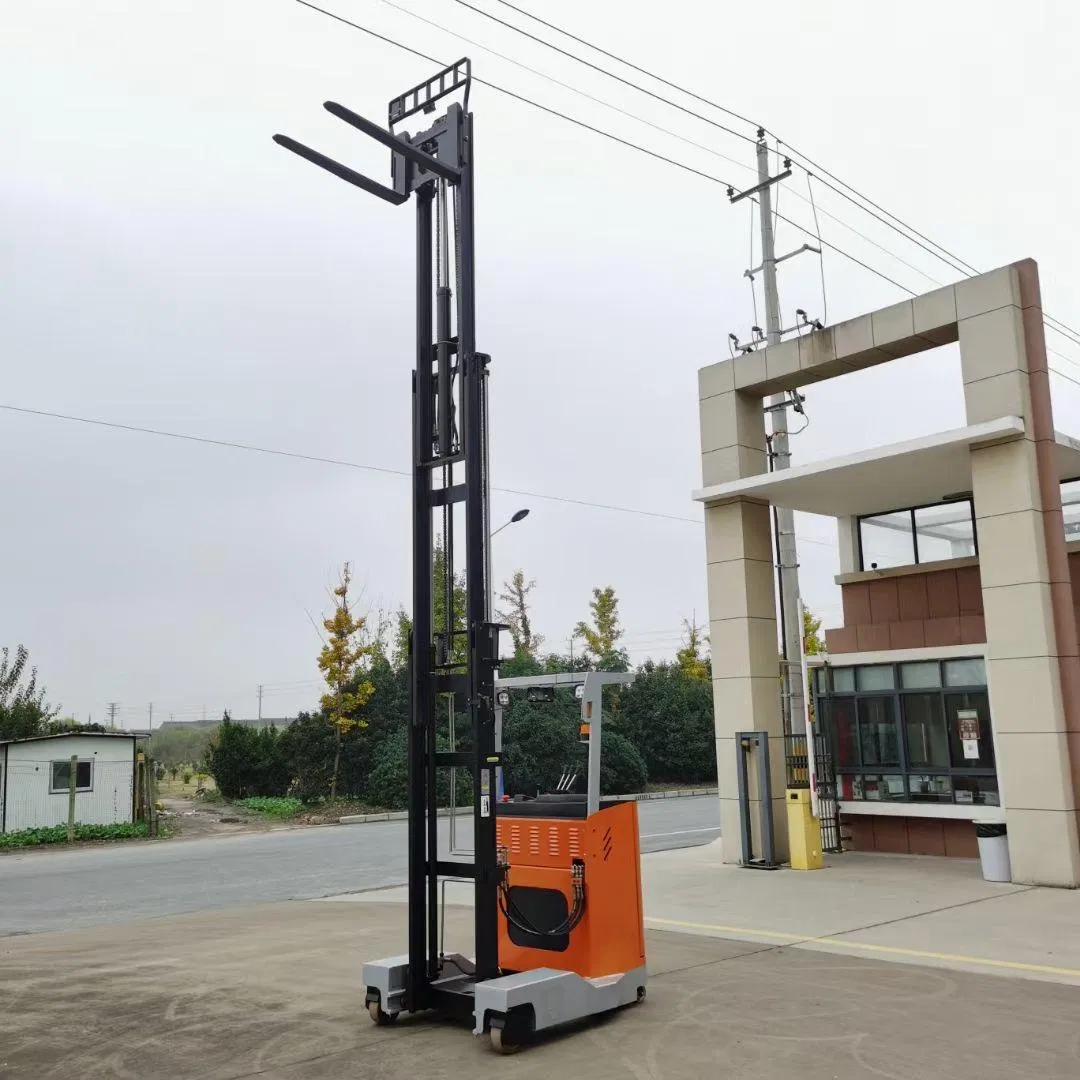

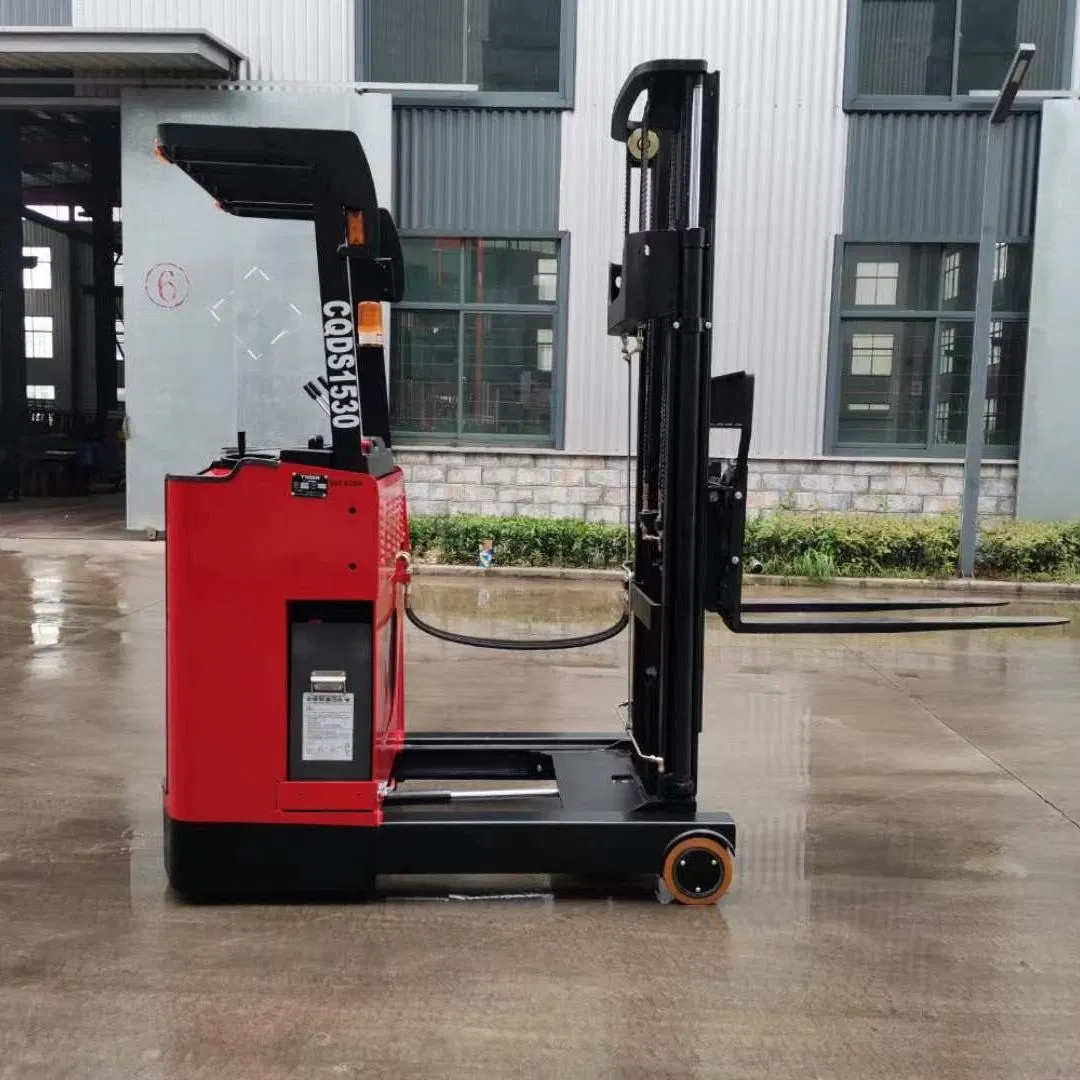

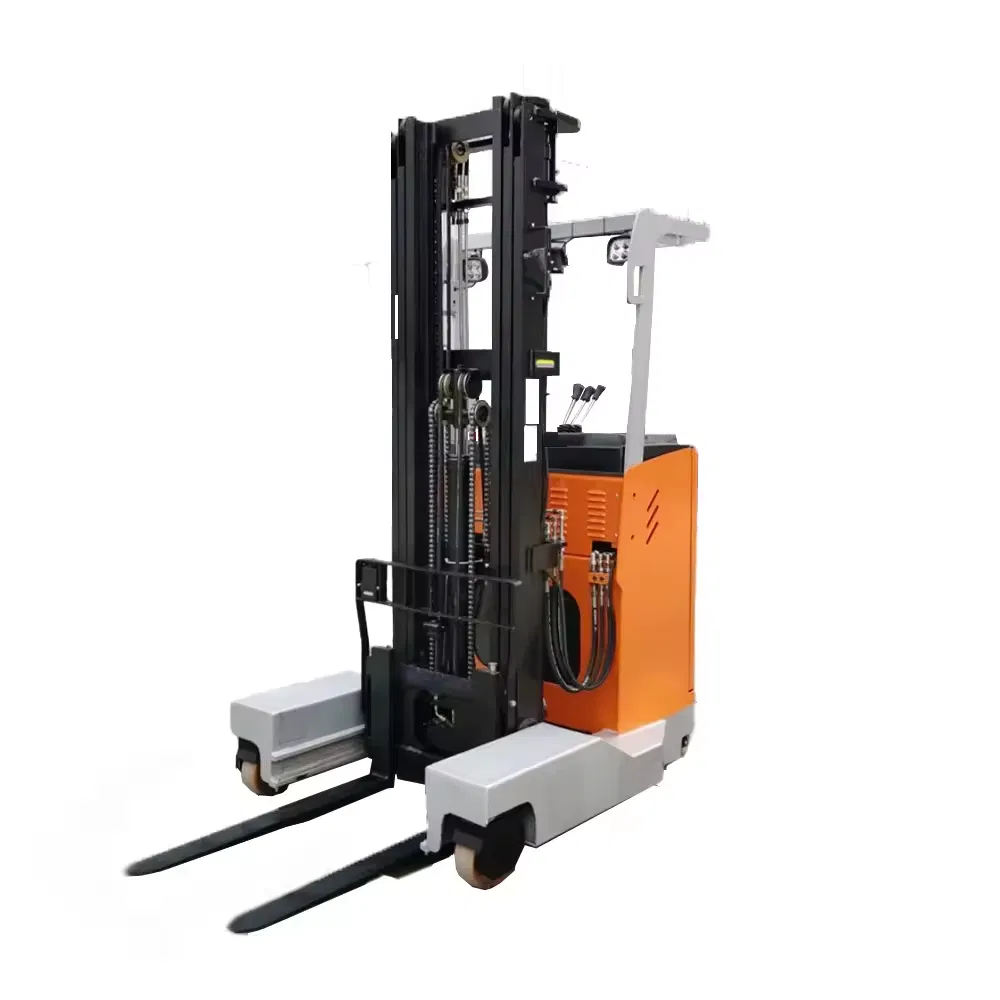

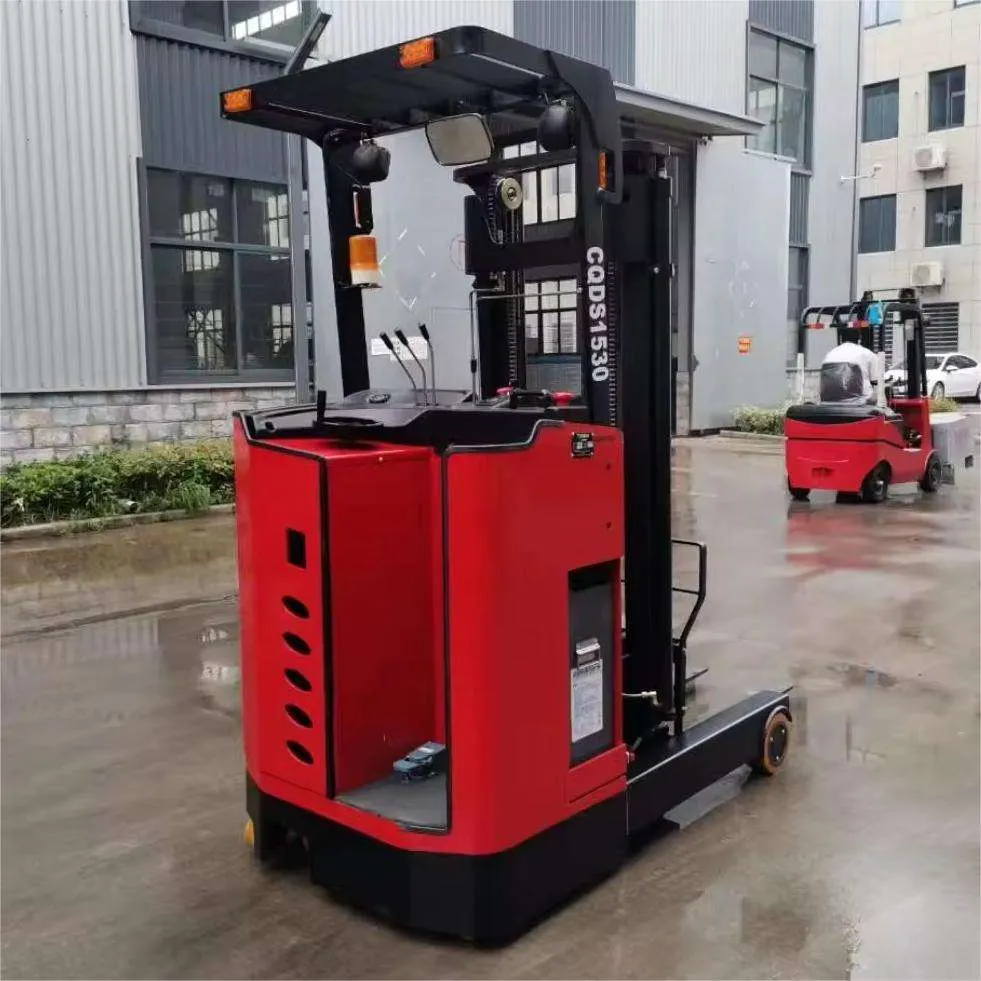

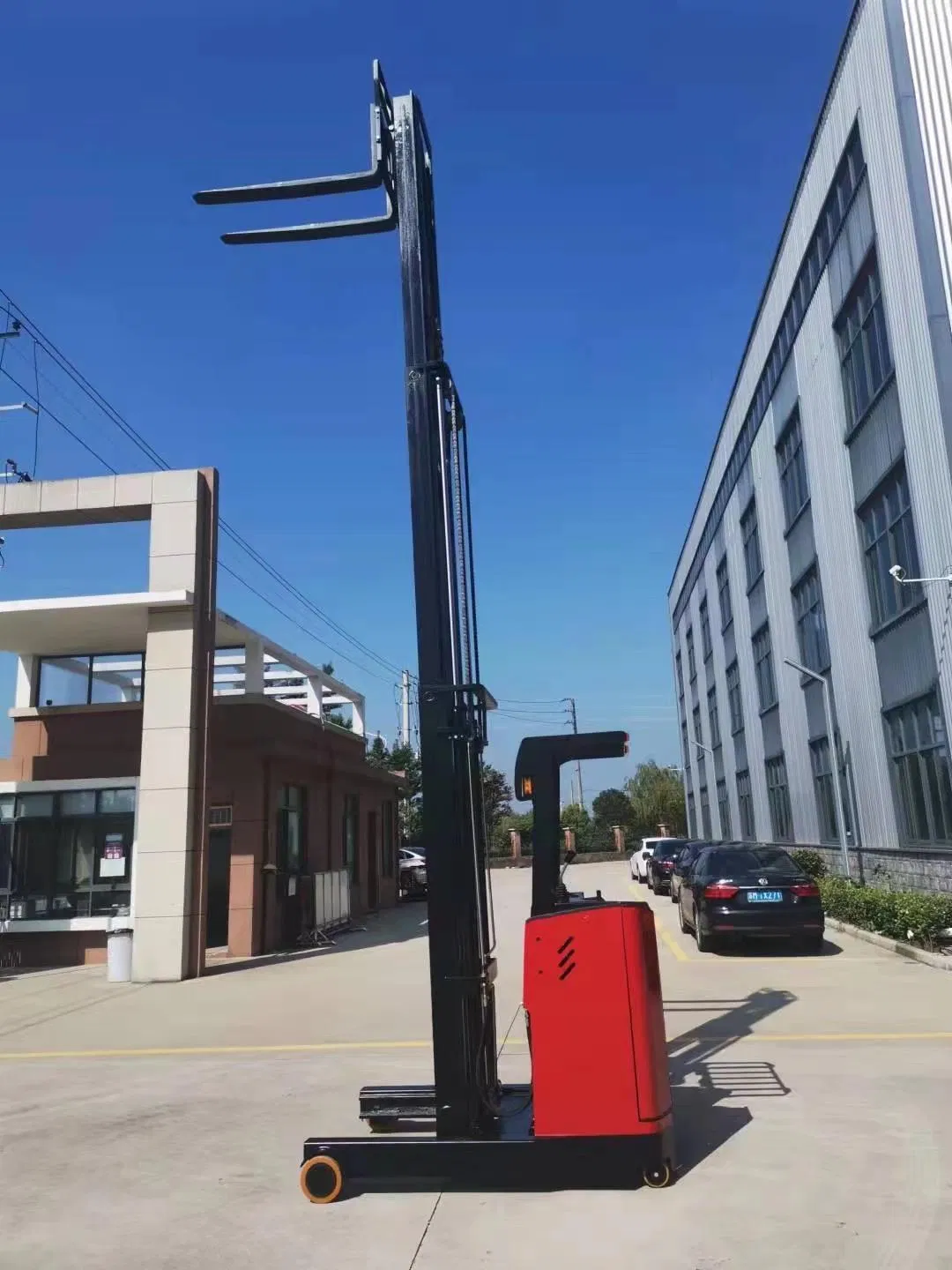

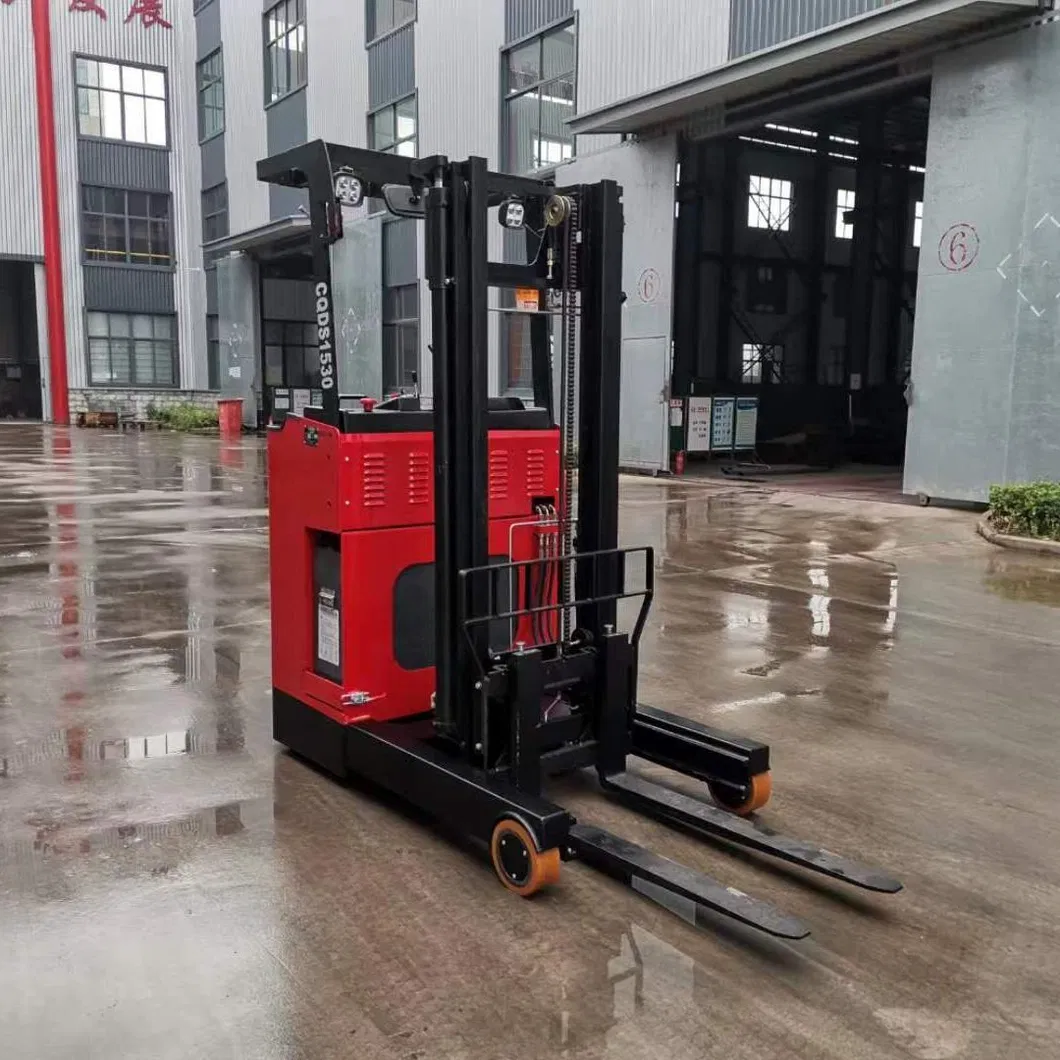

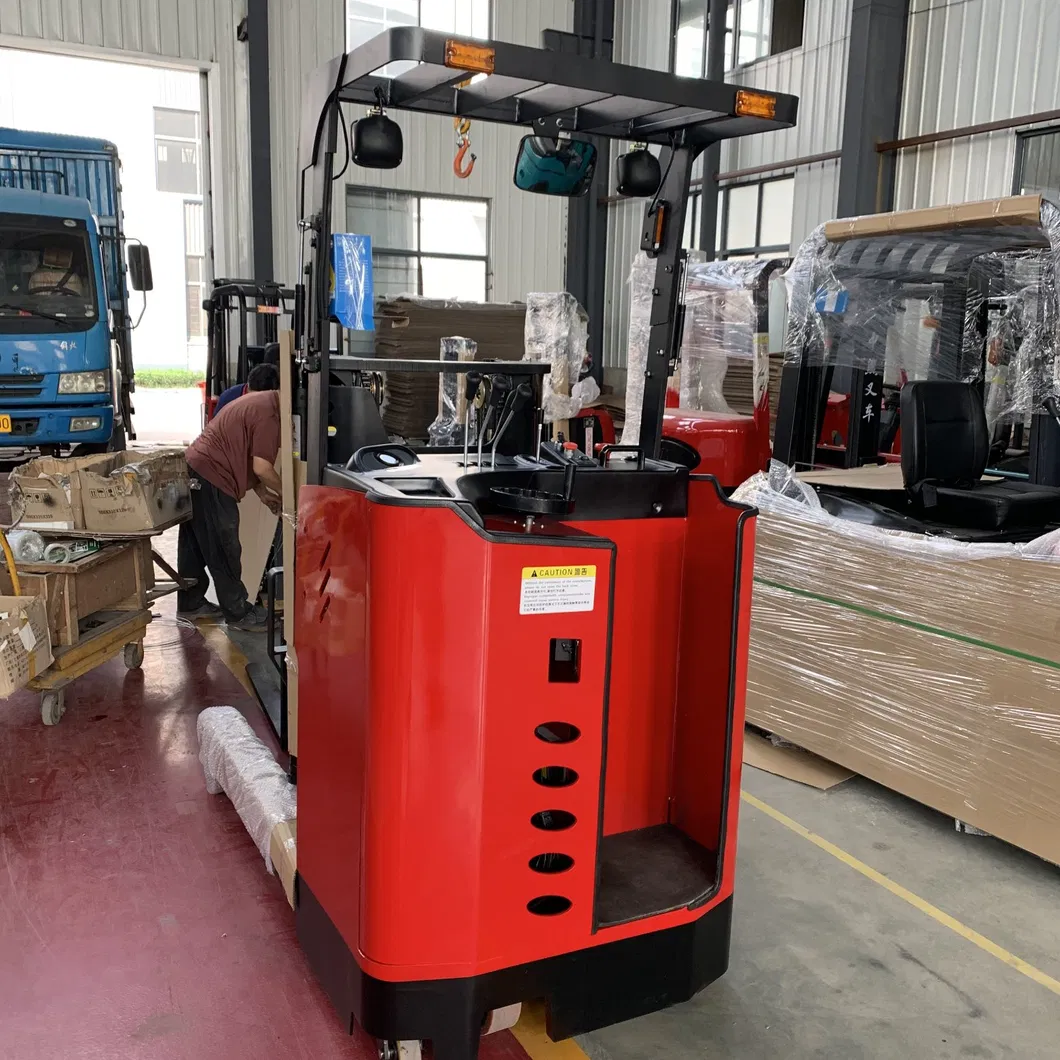

1.5t 3m Electric Forklift Narrow Aisle Stand Up Reach Truck
CQDS series reach stacker cranes are suitable for large capacity and high lift cargo storage applications. The rated load is 1500Kg-2000kg and the maximum lifting height is 6000mm. It has the feature of moving the gantry forward as a whole, with small turning radius, so that the baffle code at the bottom of the shelves can be ignored. Suitable for large-scale three-dimensional factories, warehouses, supermarkets and wharves to store goods.
| Characteristics | Model | CQDS10 | CQDS15 | CQDS20 |
|---|---|---|---|---|
| Power | Type | Electric | Electric | Electric |
| Operation | Stance | Side-standing | Side-standing | Side-standing |
| Load Capacity | Q(kg) | 1000 | 1500 | 2000 |
| Load Center | C(mm) | 500 | 500 | 500 |
| Wheelbase | Y(mm) | 1399 | 1399 | 1584 |
| Lifting Height | h3(mm) | 4500 | 4500 | 4500 |
| Travel Speed | km/h | 5/4 | 5/4 | 5/4 |
| Drive Motor | kw | 1.5 | 2.5 | 2.5 |
