| Model | CQE12R/15R |
| Type | Reach Forklift |
| Power | AC Motor |
| Load Capacity | 1.2ton / 1.5ton |
| Lift Height | 3000~5000mm |
| Battery Type | Lithium |
| Steering System | Electronic (EPS) |
| Tyre Type | PU |
| Operator Design | Standing |
| Certification | CE/ISO9001 |
| Fuel | Electric |
| Condition | New |

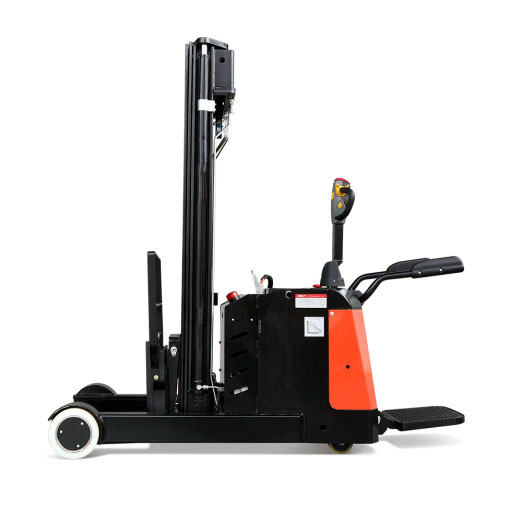

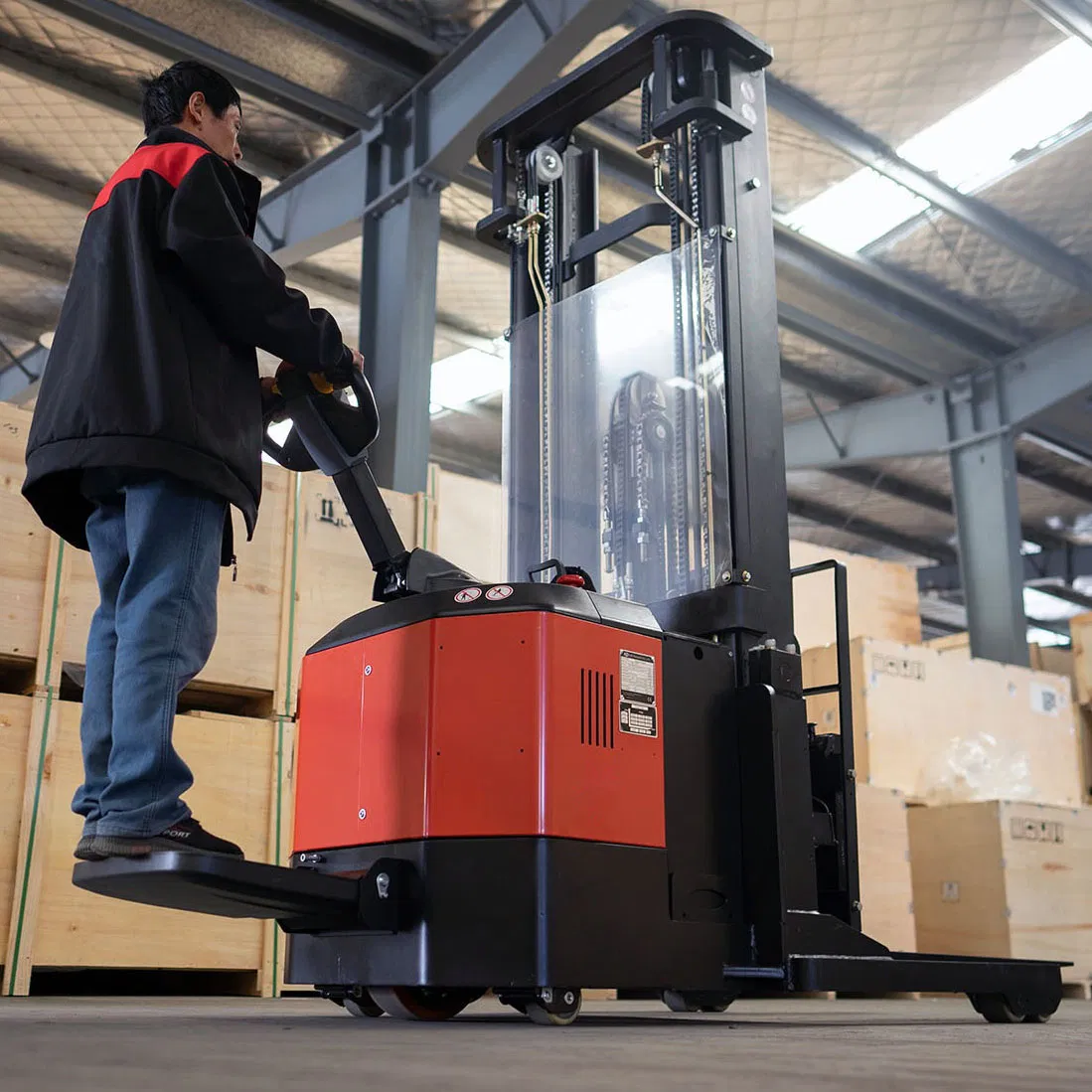

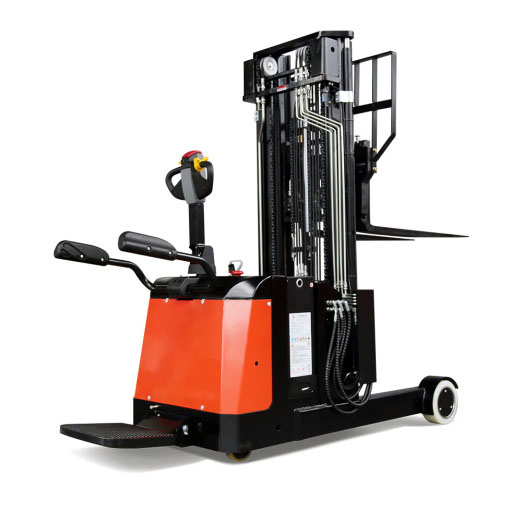

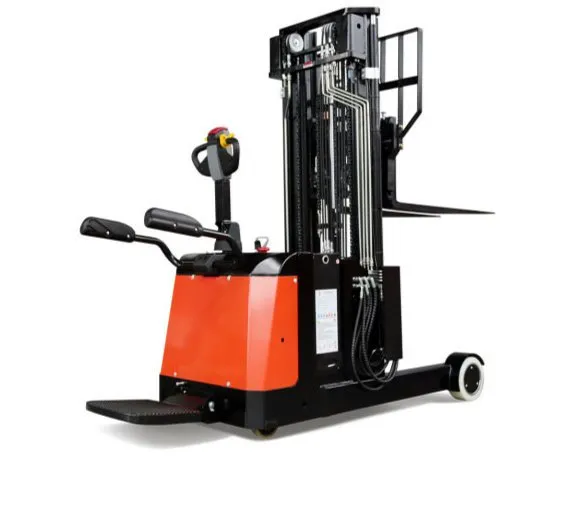

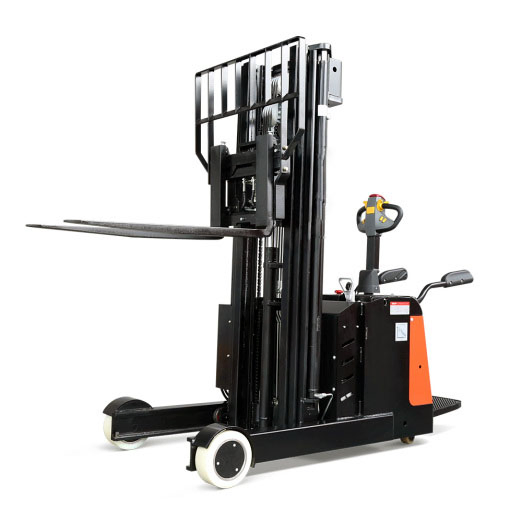

1.2-1.5Ton Advanced Walkie Electric Reach Truck for Unique Pallet Handling CQE12R/15R

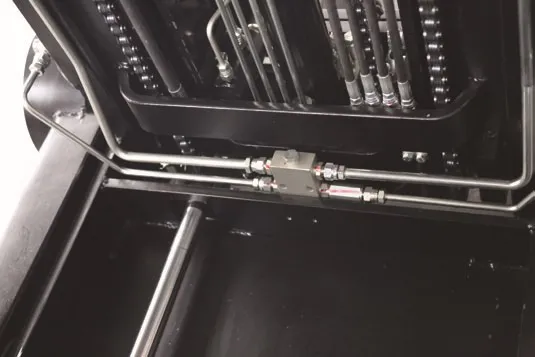

The CQE series reach truck is a walkie or ride-on reach truck specially designed for narrow aisles and non-standard pallets. It serves as a reliable supporter for various stacking tasks. The operation is precise and reliable via electromagnetic valves, with comfortable driving supported by dual-monitoring power steering. Available with either a pantograph or moving mast based on handling preferences.
Performance

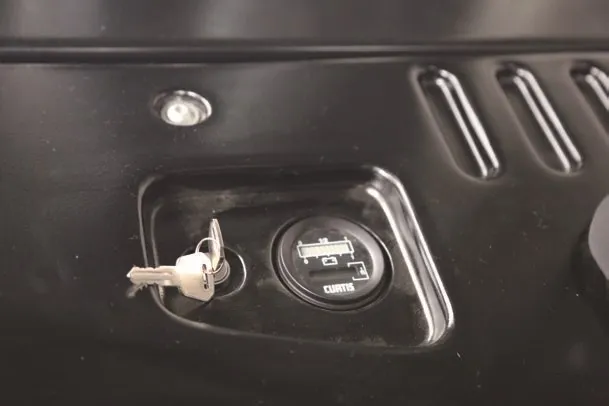

Operation
| Parameter | Unit | CQE12R | CQE15R |
|---|---|---|---|
| Drive Mode | - | Seated/Stand | Seated/Stand |
| Load Capacity | kg | 1200 | 1500 |
| Load Center Distance | mm | 500 | 500 |
| Service Weight | kg | 1745 | 1955 |
| Lift Height | mm | 3000 | 3000 |
| Overall Length | mm | 2312 | 2332 |
| Overall Width | mm | 850/988 | 850/1018 |
| Turning Radius | mm | 1597 | 1697 |
| Battery Voltage/Capacity | V/Ah | 24/210 | 24/280 |

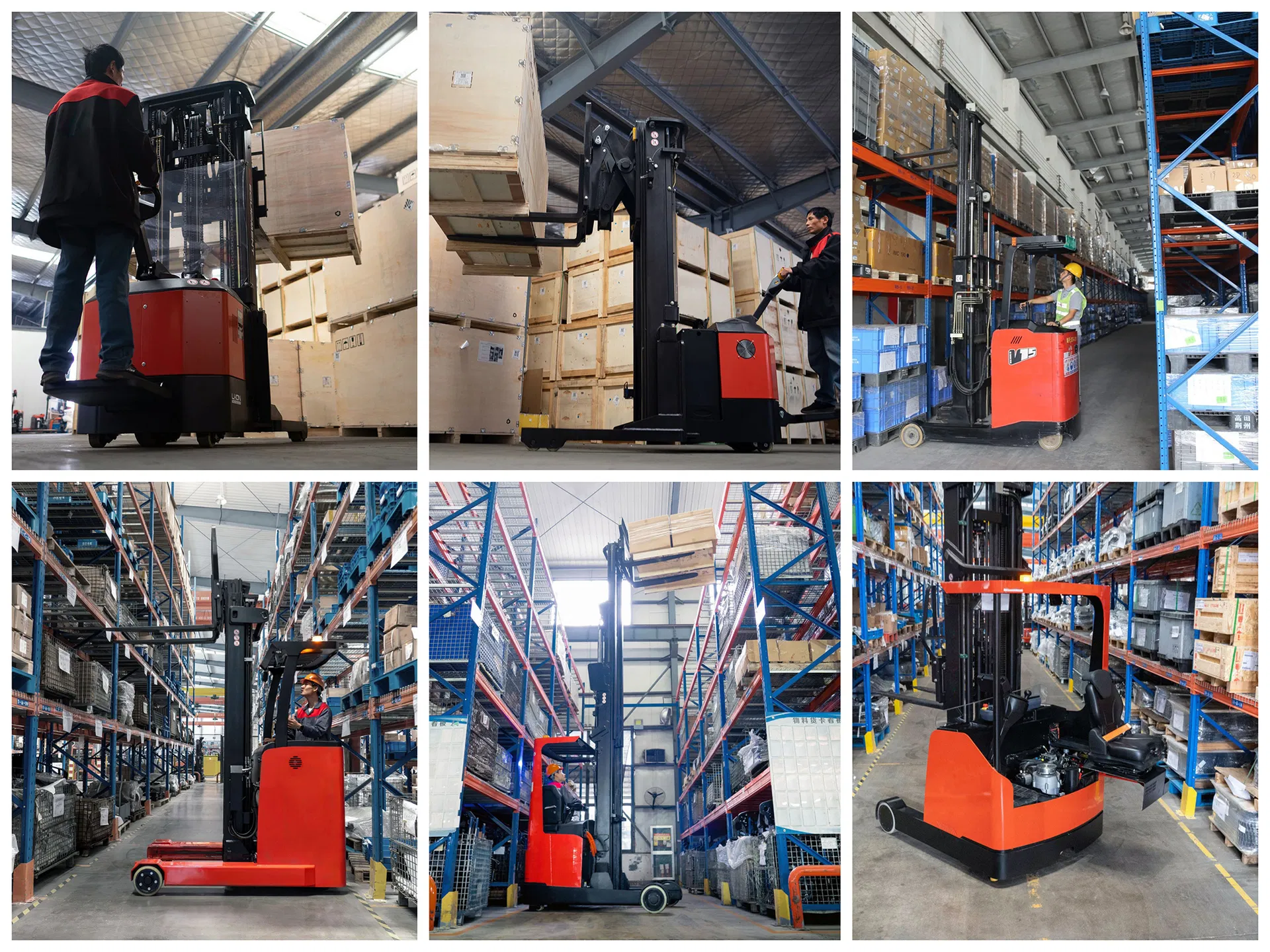

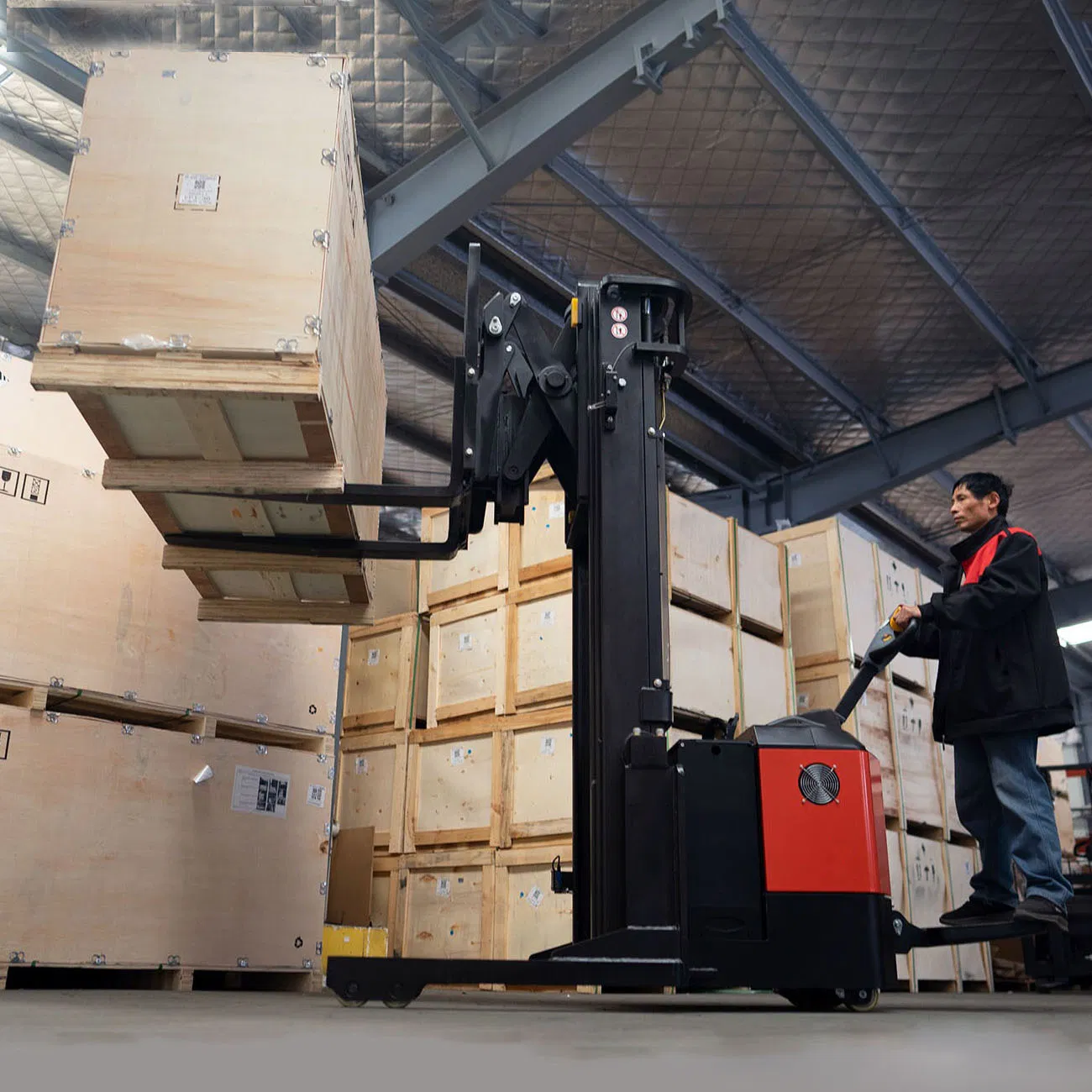

This reach truck series is ideal for warehouses with limited space and diverse goods. It is specifically designed for narrow aisle operations and non-standard pallet handling, providing maximum efficiency in modern logistics environments.

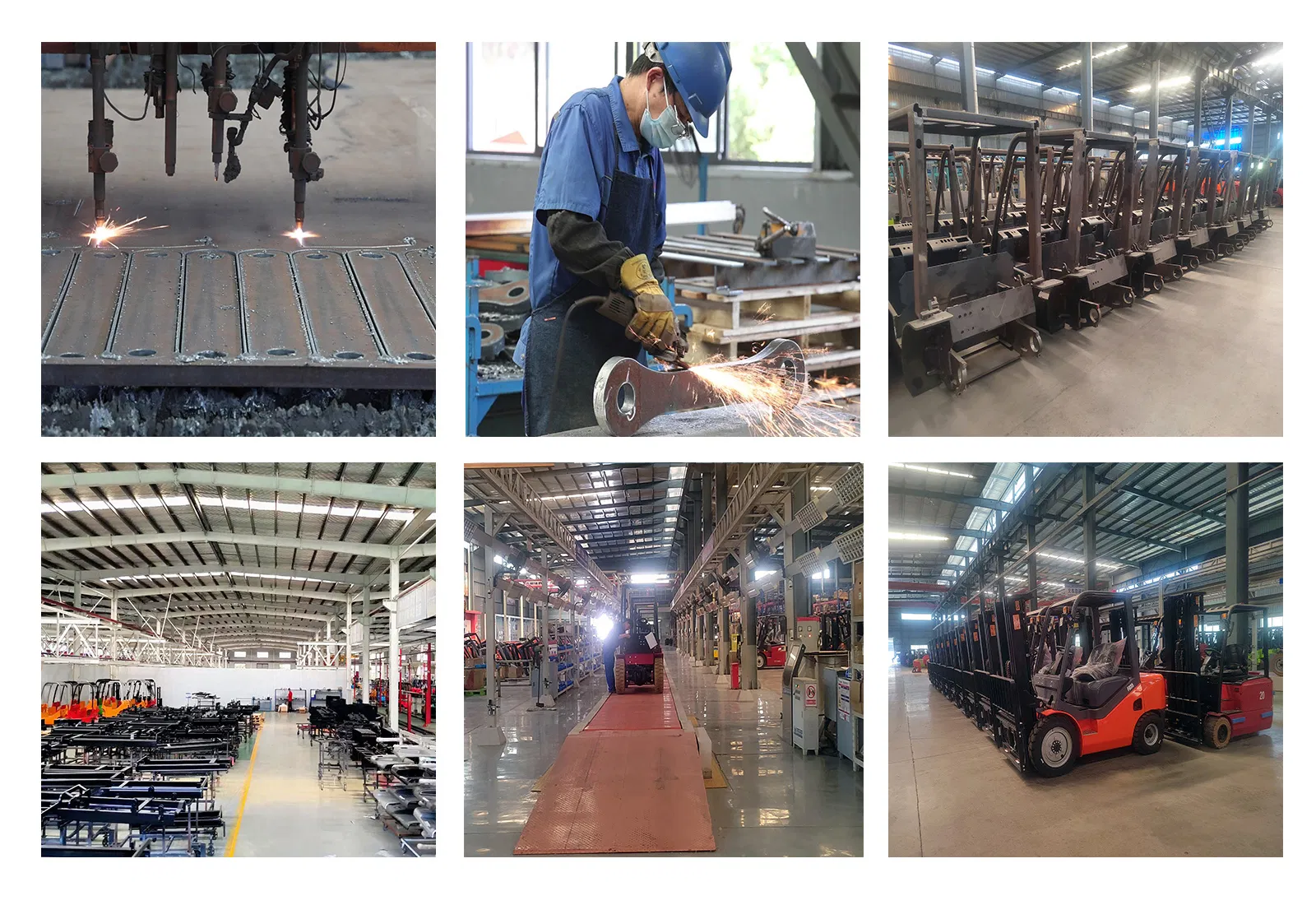

Established as a leading machinery manufacturer, we specialize in the R&D, production, sales, and service of high-performance material handling equipment. Our product range includes electric forklifts, diesel forklifts, stackers, pallet trucks, and industrial AGVs.
Our equipment is exported to over 100 countries including the United States, Mexico, Canada, and Russia. With a focus on quality and rapid service response, we have built a strong reputation across various industries globally.
